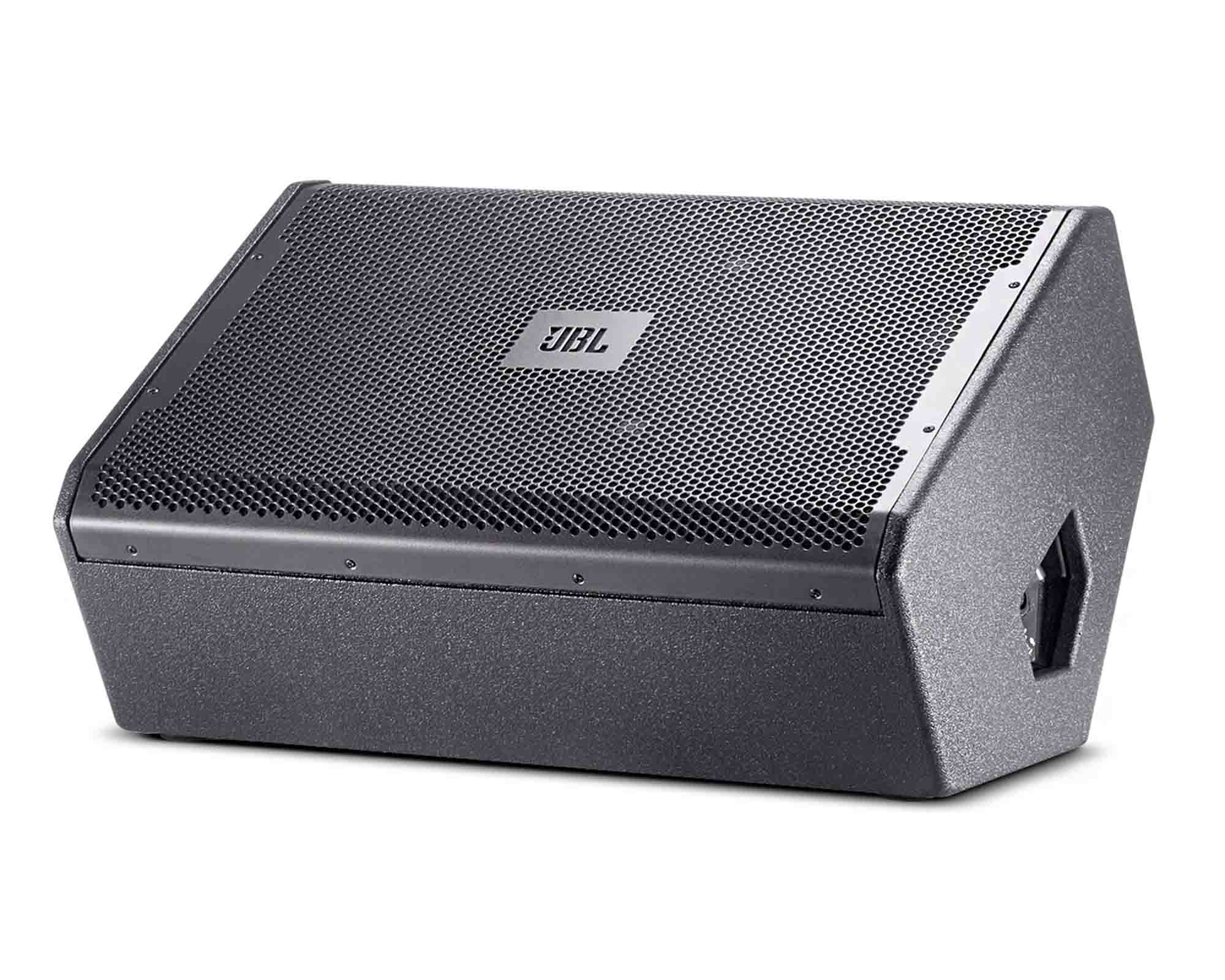

The VRX915M is a dedicated, compact and lightweight 15" two-way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL’s latest neodymium-magnet transducers.

A 380 mm (15 in) 2265H patented Differential Drive® woofer handles 800 watts (continuous) and delivers accurate and precise low frequency reproduction. The 2452H 102 mm (4 in) voice-coil compression driver is coupled to a 50°x 90° aluminium horn to provide smooth and clear high frequency reproduction, critical for high performance monitoring.

Bi-amp or full-range passive operation may be selected via a recessed, high-current switch mounted alongside the NL4 input connector in one of the handle cups. An additional NL4 connector is mounted in the other handle cup for a convenient loop-thru connection, minimising cable runs on stage.

The enclosure is constructed of top-quality Baltic birch plywood and is coated in JBL’s rugged DuraFlex™ finish. It is a symmetrical 30° wedge design, with four non-slip rubber feet per side enabling convenient left and right applications of adjacent monitors. The transducers are protected by an attractive 16-gauge CNC-machined steel grille. It is internally lined with acoustically transparent foam to provide additional transducer protection.

Product Features

Compact and low-profile for minimal obstruction of audience sightlines
50° x 90° nominal coverage
Bi-amplified or full-range passive operation
Differential Drive® woofer with neodymium magnet for high power capacity and very light weight
4" (voice coil) diameter compression driver with neodymium magnet

Product Specifications

General

Power Rating: 800 W / 1600 W / 3200W
Frequency Range: 60 Hz - 20 kHz
Frequency Response: 70 Hz - 20 kHz
Coverage Pattern: 50° x 90° nominal
Crossover Modes: Passive / Bi-amp
Crossover Frequency: 1.1 kHz
System Maximum SPL: 127 dB SPL continuous (133 dB SPL peak)
System Sensitivity (1w @ 1m): 98 dB SPL
LF Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms
HF Driver: 1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and neodymium magnet
Nominal Impedance: 8 ohms
Enclosure: Symmetrical stage monitor, 15/18 mm, plywood
Finish: Black DuraFlex™ finish
Grille: Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing
Input Connectors: Neutrik® Speakon® NL-4 (x2), one on each end
