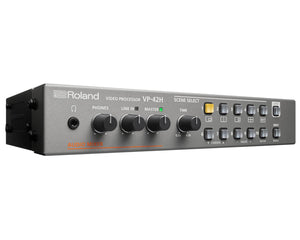

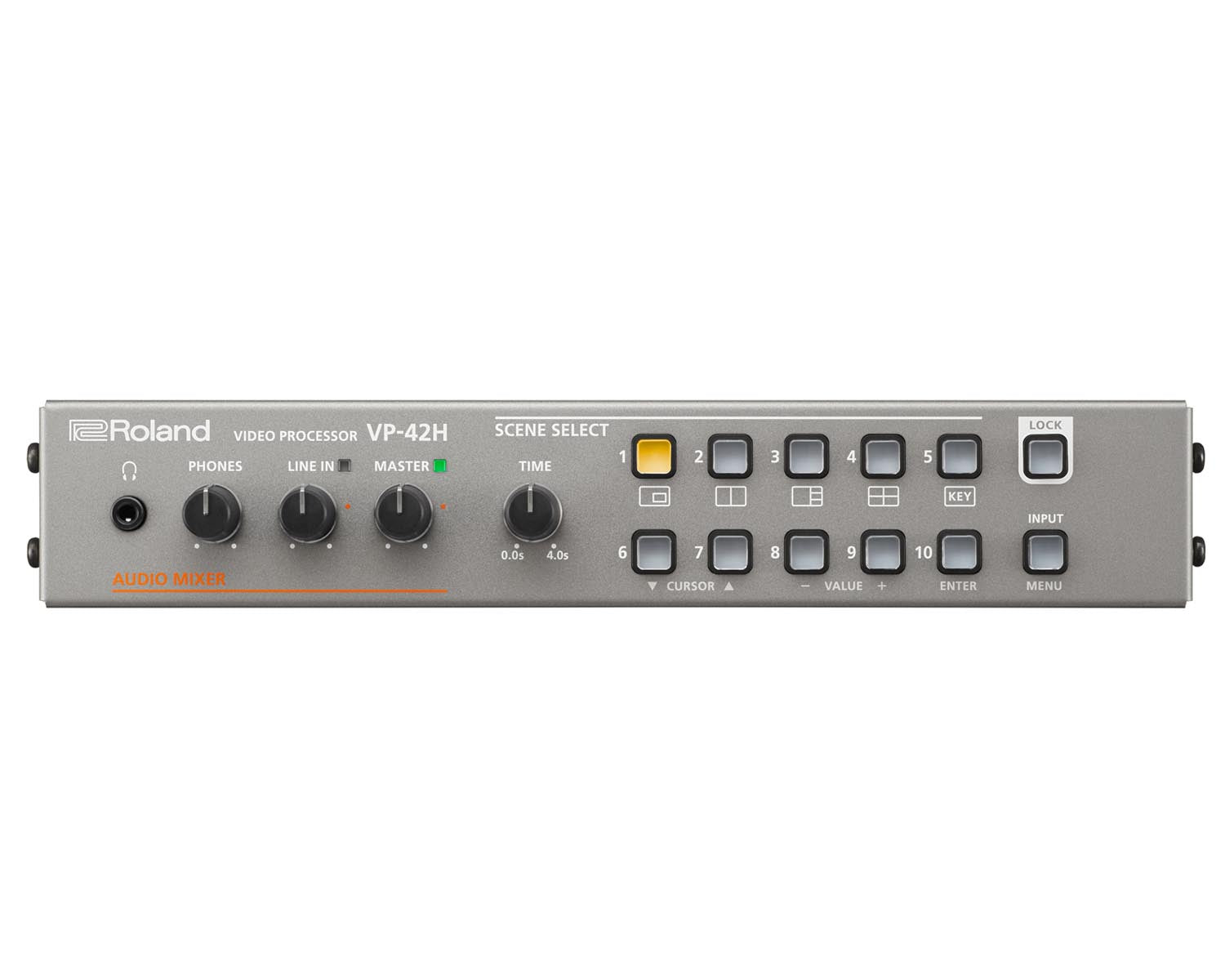

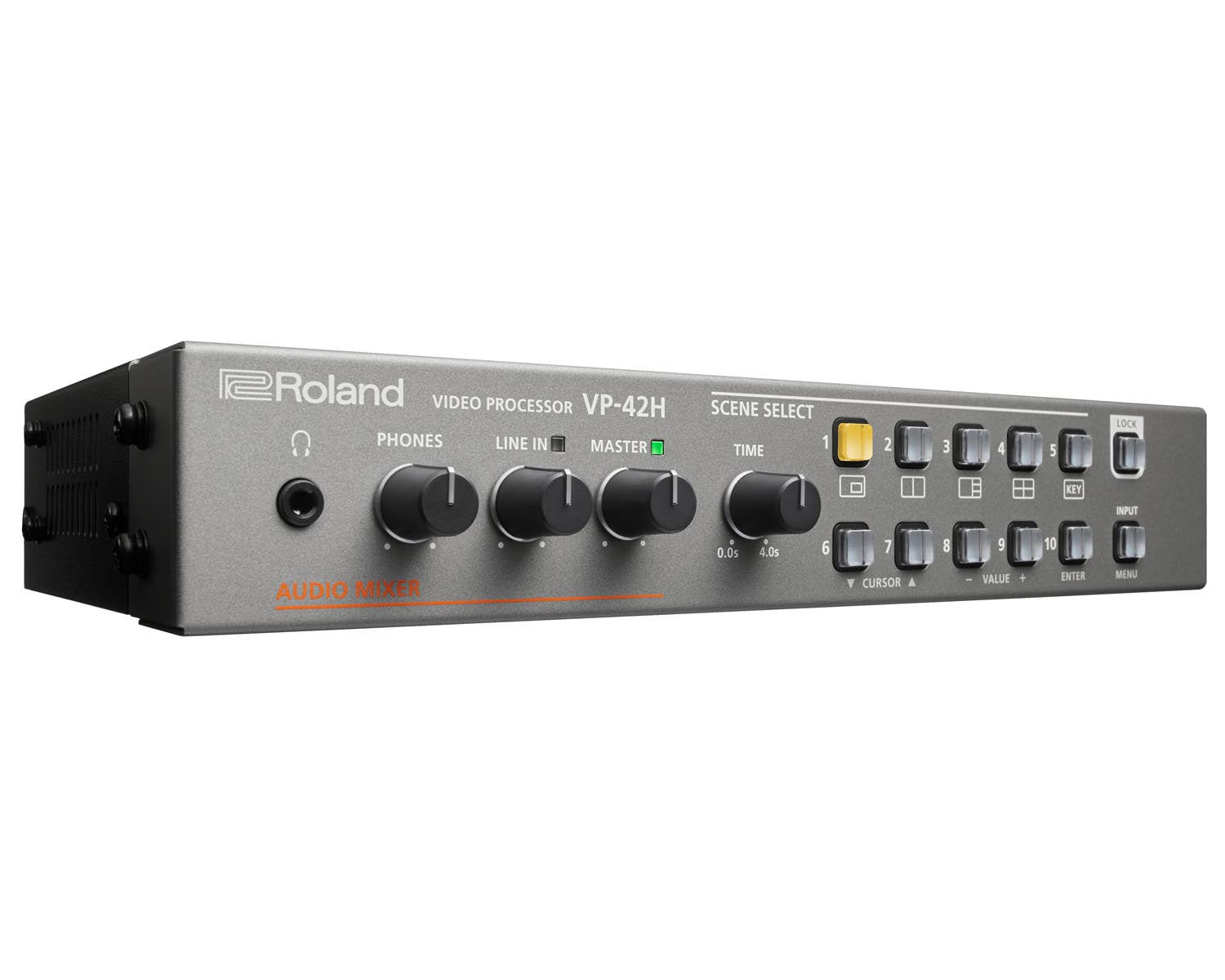

The Roland VP-42H Video Processor layers and arranges multiple video sources to a single screen with dynamic transitions for effective and engaging presentations, digital signage and meeting applications.

Maximum effect, minimum effort

The VP-42H goes way beyond typical switchers. You can instantly switch between ‘scenes’ containing preset arrangements of layered sources in customizable inset windows. The VP-42H smoothly transitions between current and next scenes by automatically moving and resizing the windows to their new positions. And highly impressive scene changes that used to take hours to program now happen at the touch of a button.

Simple, solid switching

Not all events require creative display and advanced scene transition capabilities. For simpler scenarios, the VP-42H functions as a true cross-dissolve seamless switcher, with a keyer to create overlays and the ability to display still images via USB drive — perfect for logos and safety slides.

Flexible audio capability

The Roland VP-42H includes stereo RCA outputs for de-embedding audio from connected HDMI sources and outputting it to other devices such as speakers and mixers. Levels for each source can be set by the internal audio mixer, and if the VP-42H is being used as a compositor for recording or streaming, the audio from an external mixer or other sources can be connected to the RCA inputs and embedded into the HDMI output signal.

Fast and convenient browser-based setup

Quickly configure scenes by using the web browser interface for your network-connected VP-42H. Each input’s layer can be scaled, cropped, zoomed and positioned by simply clicking and dragging. So even at a large event, a VP-42H connected to a big display will be up and running in seconds, letting you use a wirelessly connected tablet to set up compositions in no time.

Product Features

• Combine up to four HDMI video sources on to a single output
• Simple set-up and remote switching with browser-based network control
• Connect and switch multiple resolutions simultaneously
• Audio management and connection to external audio devices
• Motion Scene Switching for fluid transitions between complex screen sets
• Keyer function for overlays and advanced compositions

Product Specifications

General

• Processing: 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits
• Input Connectors: HDMI: HDMI type A x 4 (HDMI INPUT 1--4) * HDCP Supported
• Output Connectors: HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2) * HDCP Supported
• Formats:
  • 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
  • 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
  • *Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
  • *Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
  • (*1) Input only.
  • (*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
• Effects: Layer: 4 * Picture in Picture with Keyer x 1, Picture in Picture x 3 * Motion Scene Switch
• Still Image:
  • Internal Memory: 1
  • Maximum Size: 1920 x 1200 pixels
• Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
• Sample Rate: 48 kHz, 24 bits

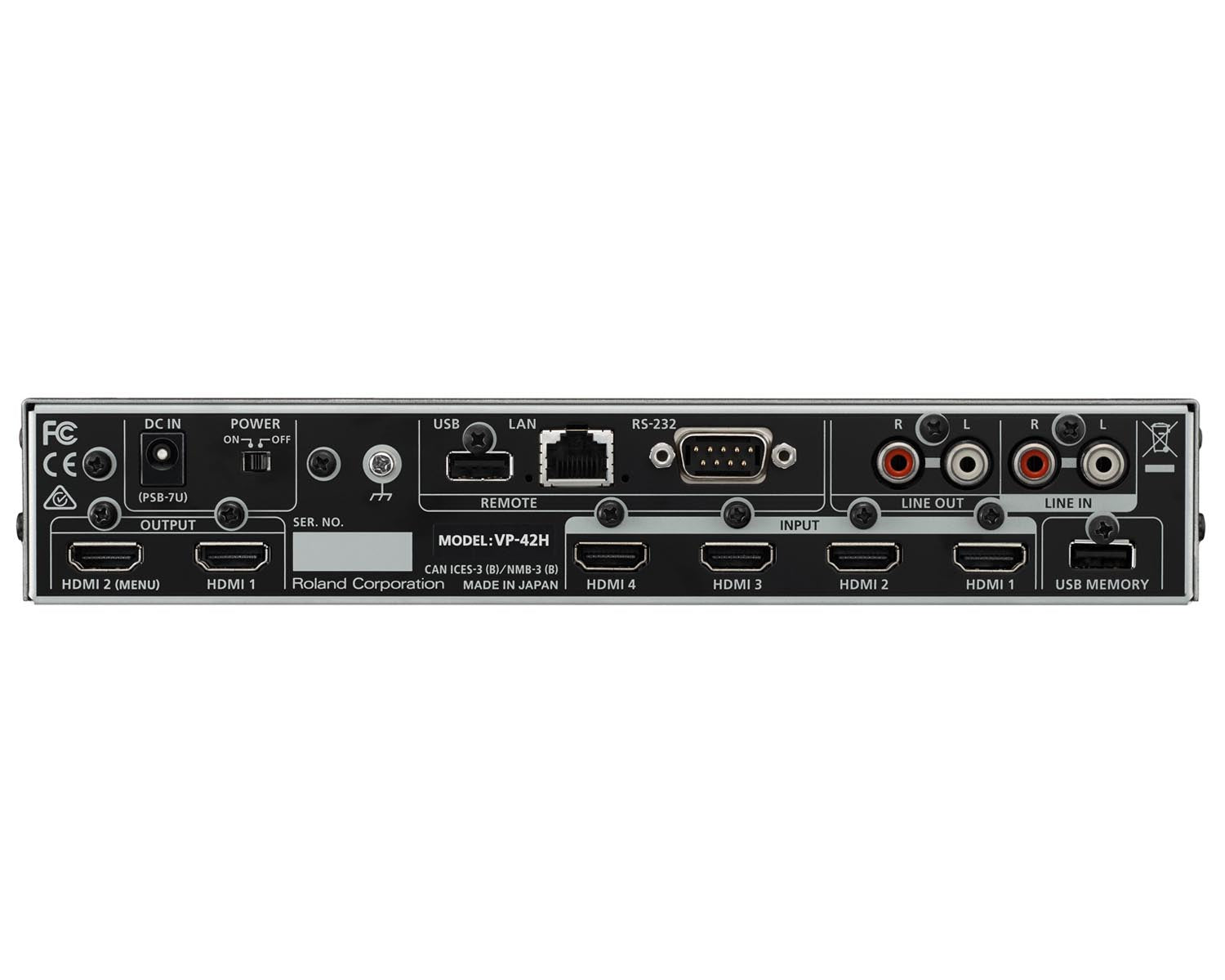

• Input Connectors
  • HDMI: HDMI type A x 4
  • AUDIO INPUT: RCA pin type
• Output Connectors:
  • HDMI: HDMI type A x 2 *2 Output is the same audio.
  • AUDIO OUTPUT: RCA pin type
  • PHONES: Stereo mini type
• Input Level: AUDIO INPUT: -10 dBu (Maximum: +8 dBu)
• Input Impedance: AUDIO INPUT: 15 k ohms
• Output Level:
  • AUDIO OUTPUT: -10 dBu (Maximum : +8 dBu)
  • PHONES: 72 mW + 72 mW (32 ohms)
• Output Impedance:
  • AUDIO OUTPUT: 1 k ohm
  • PHONES: 10 ohms
• Formats: HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch
• Processing: Mixer: 4 ch (Delay: Maximum 250 ms)
• External Connectors:
  • * REMOTE
  • RS-232: DB-9 type (Male) x 1
  • LAN: RJ45 x 1
  • USB: USB A type x 1 (Use for future expansion)
  • * USB MEMORY: USB A type x 1 (Use for USB Memory)
• Functions:
  • Scene Memory: 10
  • Test Pattern Generator
  • Test Tone Generator
  • EDID Emulator
• Power Supply: AC Adaptor
• Current Draw: 2.1 A
• Power Consumption: 25 W
• Operation Temperature:
  • +0 to +40 degrees Celsius
  • +32 to +104 degrees Fahrenheit

Physical & Dimensions

• Height: 44mm
• Width: 242mm
• Depth: 125mm
• Weight: 1.2kg

What's in the Box?

• Owner’s Manual
• Leaflet “USING THE UNIT SAFELY”
• AC adaptor
• Power cord
• Rubber feet (4 pcs.)
• Rack mount angle set
