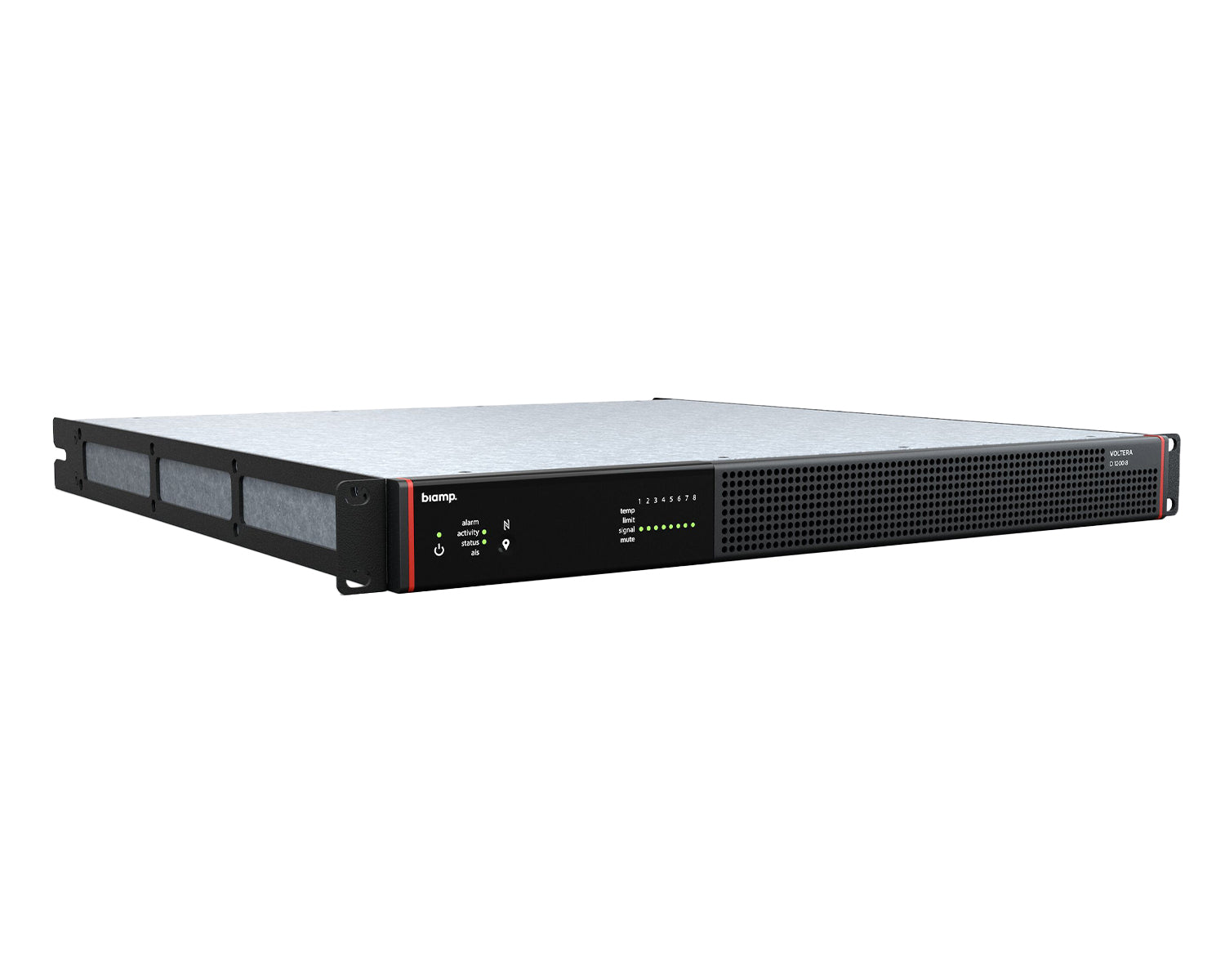

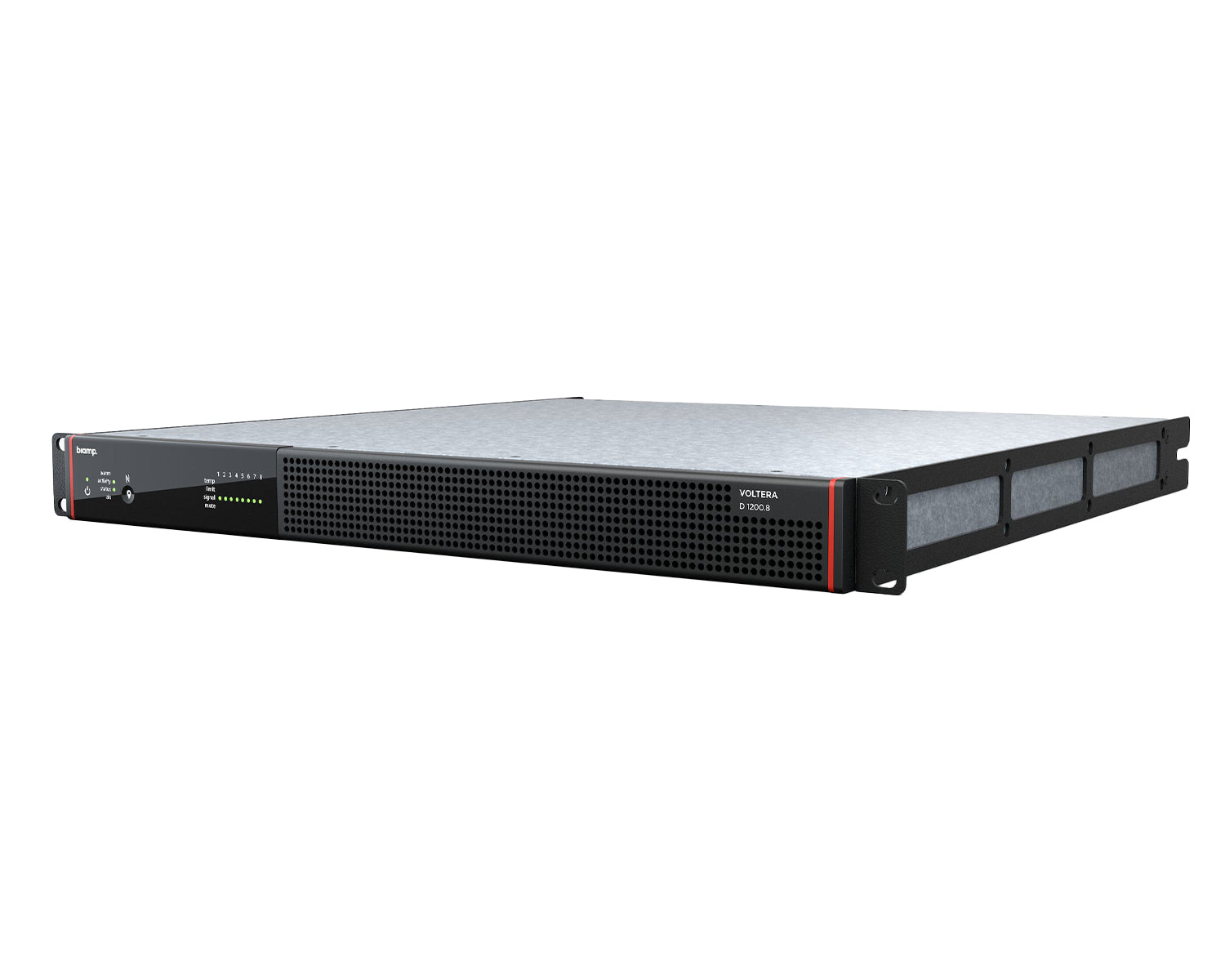

Voltera D series amplified loudspeaker controllers are available in 1200W 4-channel, 1200W 8-channel, 2400W 4-channel, and 2400W 8-channel configurations. They feature support of audio via AVB, Dante, and AES67. Dante can be dual redundant.

All models of the Voltera D provide high power and channel density while maintaining high efficiency and low idle power. They are capable of high peak voltage output and can deliver up to 75% of the total power on any channel using power sharing. They also offer both Lo-Z or Hi-Z per channel to support hybrid systems.

Configured by either the Tesira or VenueTune software, the Voltera D series is ideal for a wide variety of applications, from houses of worship to transportation.

Product Features

• Powerful onboard DSP
• Redundant media interface (AVB, Dante, and AES67)
• Lo-Z or Hi-Z per channel to support hybrid systems
• Configurable with Tesira or VenueTune software
• Wide dynamic range
• Low power consumption during use, idle, and standby
• Limiting for maximum reliability and zero clipping
• High peak voltage output capability (up to 160Vpk)
• High power and channel density
• 5-year warranty

Product Specifications

GENERAL

• Height 1.7 inches (44 mm) rack rail to rear panel
• Width 17.5 inches (444 mm) rack rail to rear panel
• Depth 16.9 inches (430 mm) rack rail to rear panel
• Weight 18.1 lbs (8.2 kg)
• Accessories: Rear support kit for 19" 1 RU mount

ENVIRONMENTAL

• Ambient Operating Temperature Range: 32-104F (0-40C)
• Humidity: 0-95% non-condensing altitude 0 - 2000 m (0-6562 ft)

POWER

• Power per channel all channels driven
• Hi-Z (70 / 100 V), 16 ohm, 8 ohm, 4 ohm, 2.7 ohm: 150 W

Max power per channel using power sharing (available on any channel)

• Hi-Z (70 / 100 V): 600 W
• 16 ohm: 600 W
• 8 ohm: 600 W
• 4 ohm: 600 W
• 2.7 ohm¹: 430 W
• Power Consumption: 100-240 VAC, 50/60 Hz

Power Output

• Total output all channels driven: 1200 W
• Maximum output voltage: 145 Vpk
• Maximum output current: 24 Apk
• Cooling: Variable speed fans, front to back airflow

NETWORK

• Ports 2 1000Base-T ports
• Networked media formats supported Dante, AES67 and AVB
• Network modes supported Converged, split or redundant
• PoE+ support If port 1 is connected to a PoE+ switch with a UPS, then the Voltera D will not reboot when mains power is lost
• Network latency AVB: 2 ms, Dante : 1 / 2 m
• s Sample rates supported 96 and 48 kHz
• Remote interface Tesira, VenueTune
• Third party interface TTP

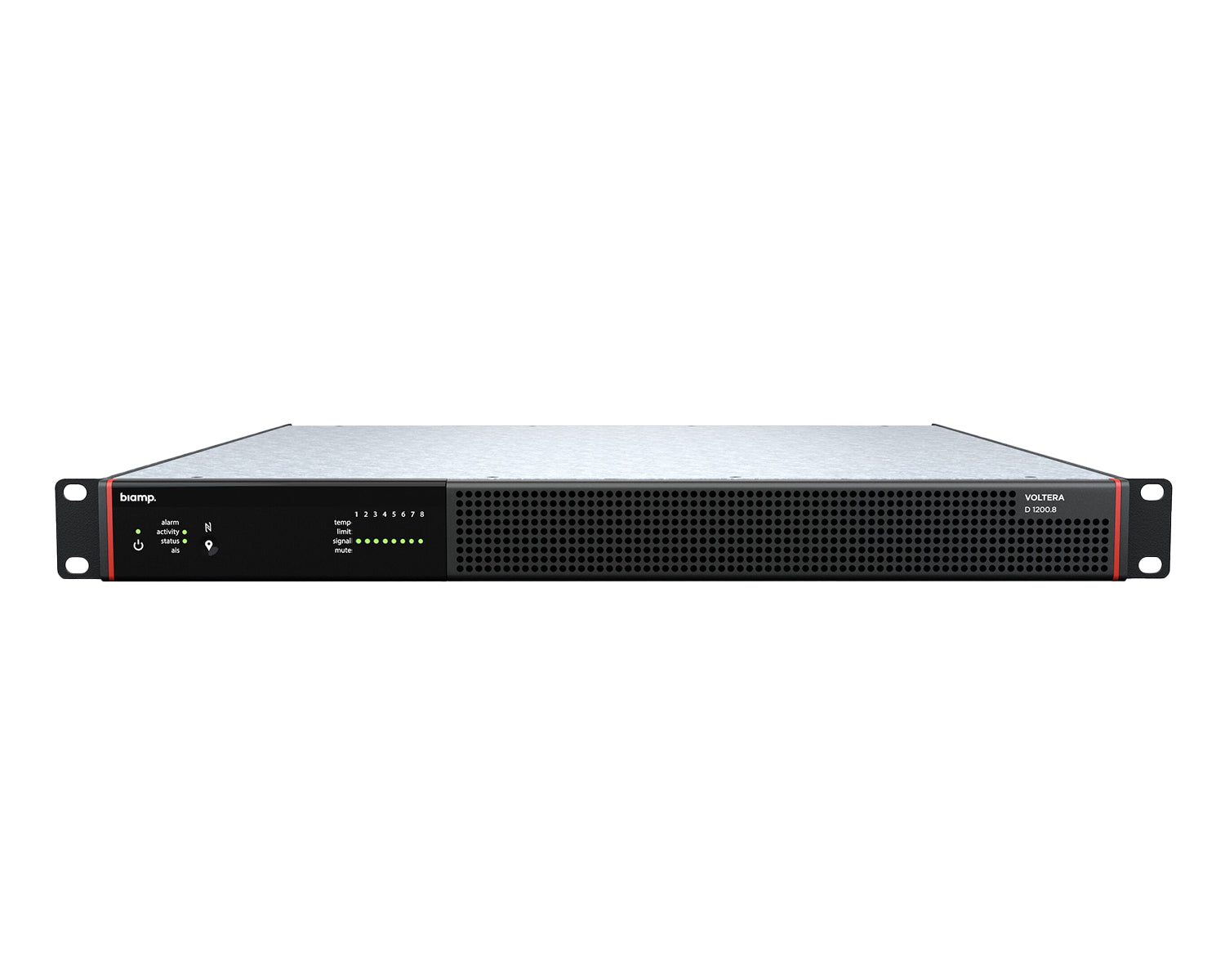

CONTROLS & INDICATORS

• System status indicator: Shows if there are faults within the greater system
• Device status indicators: Status, activity and faults
• Channel status indicators: Mute, signal, limit and temp

AMPLIFIER

• 8 Channels

Signal Processing:

• Latency (analog input to output): 2.5 ms (includes look-ahead delay in zero overshoot peak limiters)
• Default gain (analog input to output): 32 dB
• Per input: Supports input redundancy and failover to analog sources
• Multilayered group control of raised cosine EQ, gain, delay (≤2 s), polarity and mute

Per output: Very comprehensive processing supporting loudspeaker profiles including

• 2048 tap FIR, 24 biquads
• Dynamic EQ
• Peak, program and thermal limiters with side chains
• Startup time with PoE+ <1 s

AUDIO

• THD+N: THD+N (1000 Hz, at 1 dB below max output) <0.05%
• THD+N (20 - 20000 Hz for 1 W) <0.05%
• Frequency Response: +/-0.5 dB (20 - 20000 Hz, 8 ohm, unweighted)
• Dynamic Range: 117 dB
• Crosstalk: >70 dB

CERTIFIED SOLUTIONS

• TAA Compliant

NOTES

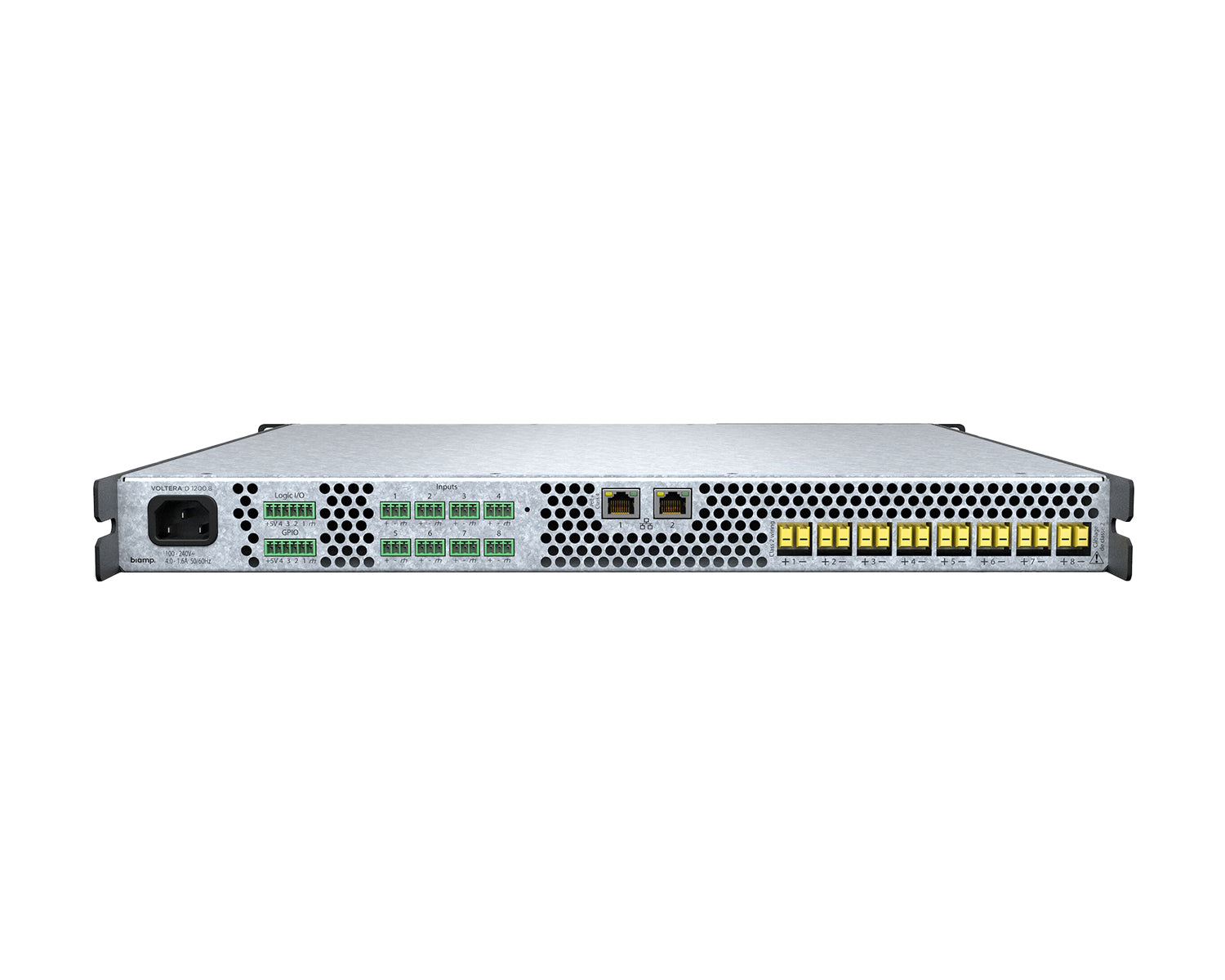

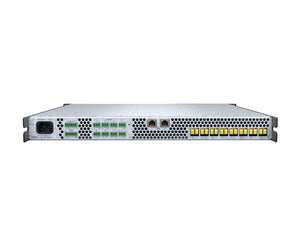

Back panel interface:

• Control and monitoring IO Mute all channels (input), Health (output), Sleep mode status (output), Sleep mode (input)
• Programmable GPIO 4 logic/voltage control pins, defined using Tesira software
• Analog input connectors 3-pin terminal block connectors with 0.15" (3.81 mm) pitch
• Output connectors 2-pin terminal block connectors rated for 41 Arms. Can take up to 8 mm2 (8.2 AWG) cables
• Detachable mains connector 3-pin IEC C14 inlet for C13 cables
• Front panel interface Tamper proof design
• NFC status reading Extensive status and network information can be read with a phone via NFC
• Locate Bi-directional locate funtionality
