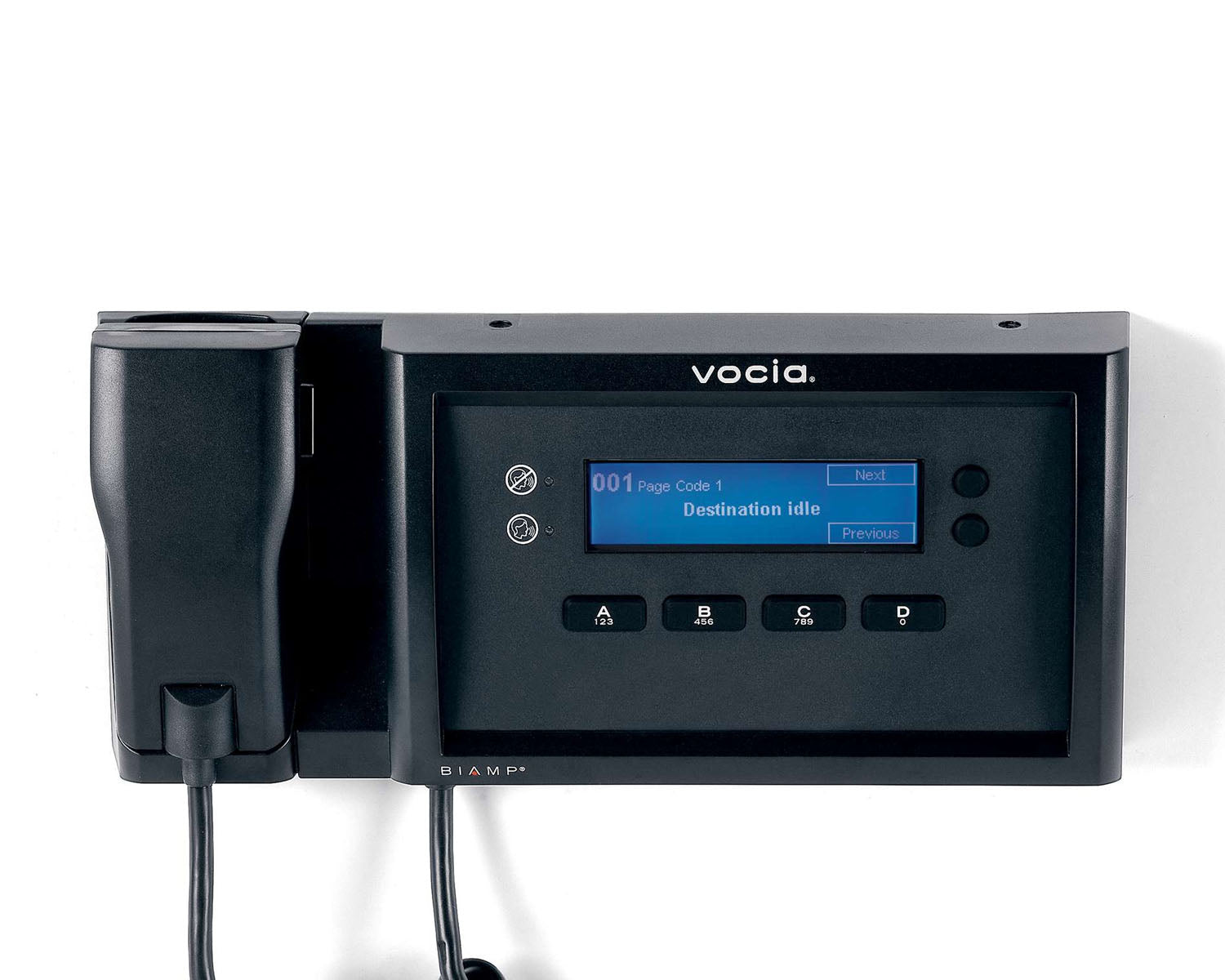

The WS-4 is a wall-mounted networked paging station that supports both standard and advanced public address functionality. Featuring embedded DSP, PoE, and on-board memory, all device-specific configuration information is stored locally, which means the WS-4 does not rely on a centralised controller for processing and page routing.

Product Features

• Push-to-talk button with status indication
• 4 user-configurable page codes
• 4 software configurable non-emergency priority paging levels
• Local digital signal processing including gain, filters, and compressor/limiter
• Local storage of default and/or custom preambles
• Built-in store and forward functionality
• CobraNet audio/control with dynamic use of available bundles
• Backlit liquid crystal display (LCD)
• Optional PIN to restrict unauthorised use
• Auxiliary Port provides connection for power, line-level audio, and bi-directional RS-232 for transmitting Vocia Text Protocol (VTP) commands
• High-quality, noise-cancelling handheld microphone
• Rotary ID switches for unit identification
• CE marked and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Product Specifications

General

• Network Connection: RJ-45 with shielded Ethernet (CAT5, CAT5e, CAT6 or CAT7
• Frequency Response (100Hz ~ 20kHz): +0, -1dB
• THD+N (100Hz ~ 8kHz): <0.05%
• Effective Input Headroom: 30dB
• System Headroom: 18dB
• Gain: Adjustable in 1dB steps over a 30dB range
• Maximum Input: 125dB SPL
• Mic Type: Noise cancelling dynamic microphone with dual transducer (monitored)
• Mic Pattern: Cardioid
• Mic Frequency Response: 100Hz-10kHz
• Auxiliary Port:
  • PTT: Switch contact between pin and ground
  • 12V DC Out: 50mA
  • RS-232: 57600 kbps
  • Balanced Line In: -10dB Nominal
  • Input Impedance: 3kΩ
• Power:
  • PoE: 802.3af Class 2
  • Aux: 24V DC 6W
• Environment:
  • Ambient Operating Temperature Range: 23-104° F (-5 – 40° C)
  • Humidity: 0 – 95% non-condensing
  • Altitude: 0-10,000 Feet (0-3000 Meters) MSL
  • Sample Rate: 48kHz
  • A/D Converters: 24-bit

Overall Dimensions (excl. microphone)

• Height: 5.3 inches (135 mm)
• Width: 11.9 inches (302 mm)
• Depth: 1.9 inches (48 mm)
• Weight: 2.6 lbs (1.2 kg)
• Mic Cord Length (extended): 4 ft. (1219 mm)

Compliance

• CE marked (Europe)
• RINA (Italy)
• RoHS Directive (Europe)
