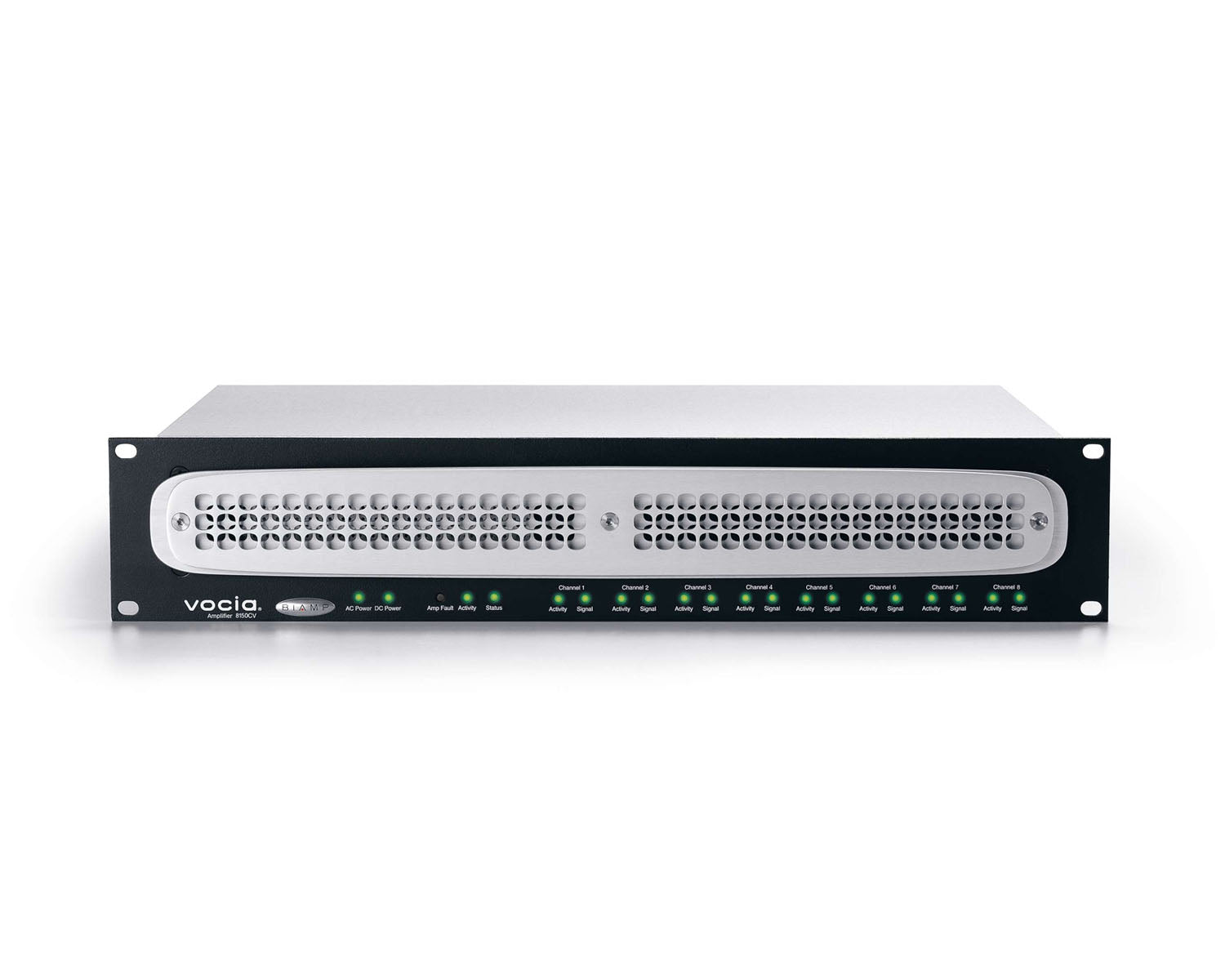

The VA-8150CV is a digital networked eight-channel constant voltage 70V/100V amplifier. It is CobraNet-enabled and capable of delivering continuous audio power at 150 Watts per channel. The VA-8150CV also has dual Ethernet ports for redundant CobraNet connectivity, comprehensive failover capabilities (device-to-device and channel-to-channel failover), and dual power inputs.

Product Features

• Eight channels; 150W per channel
• Page active relay
• Comprehensive failover
• Extended audio delay (up to 32 seconds per channel)
• CobraNet audio/control with dynamic use of available bundles
• Flexible line monitoring
• Dual Ethernet ports for network redundancy
• Dual power inputs (100-240V and 2x 48V DC)
• Rack mountable (2RU)
• EN 54-16 certified, CE marked and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Product Specifications

General

• Channels: 8 – fixed
• Watts per channel: 150W 70V/100V constant voltage
• Total output power: 8x150W
• THD + N (20Hz-20kHz, at rated power): < 0.3%
• Frequency Response (20Hz-20kHz): +/- 1dB
• Signal-to-Noise Ratio (20Hz-20kHz, unweighted at rated power): > 100dB
• Intermodulation distortion (SMPTE at continuous power):
  • < 0.35% at 100V
  • <0.4% at 70V
• Inter-channel Isolation (20Hz-20kHz at rated power): > 80dB
• Amplifier Topology: Class D
• Failover Support: Chassis or Channel 1:1, 3:1, 7:1
• Power:
  • AC: 100-240V AC 50Hz/60Hz
  • DC: Dual 48V
• Inputs: CobraNet 20 bits, 48kHz, 5-1/3ms (fixed)

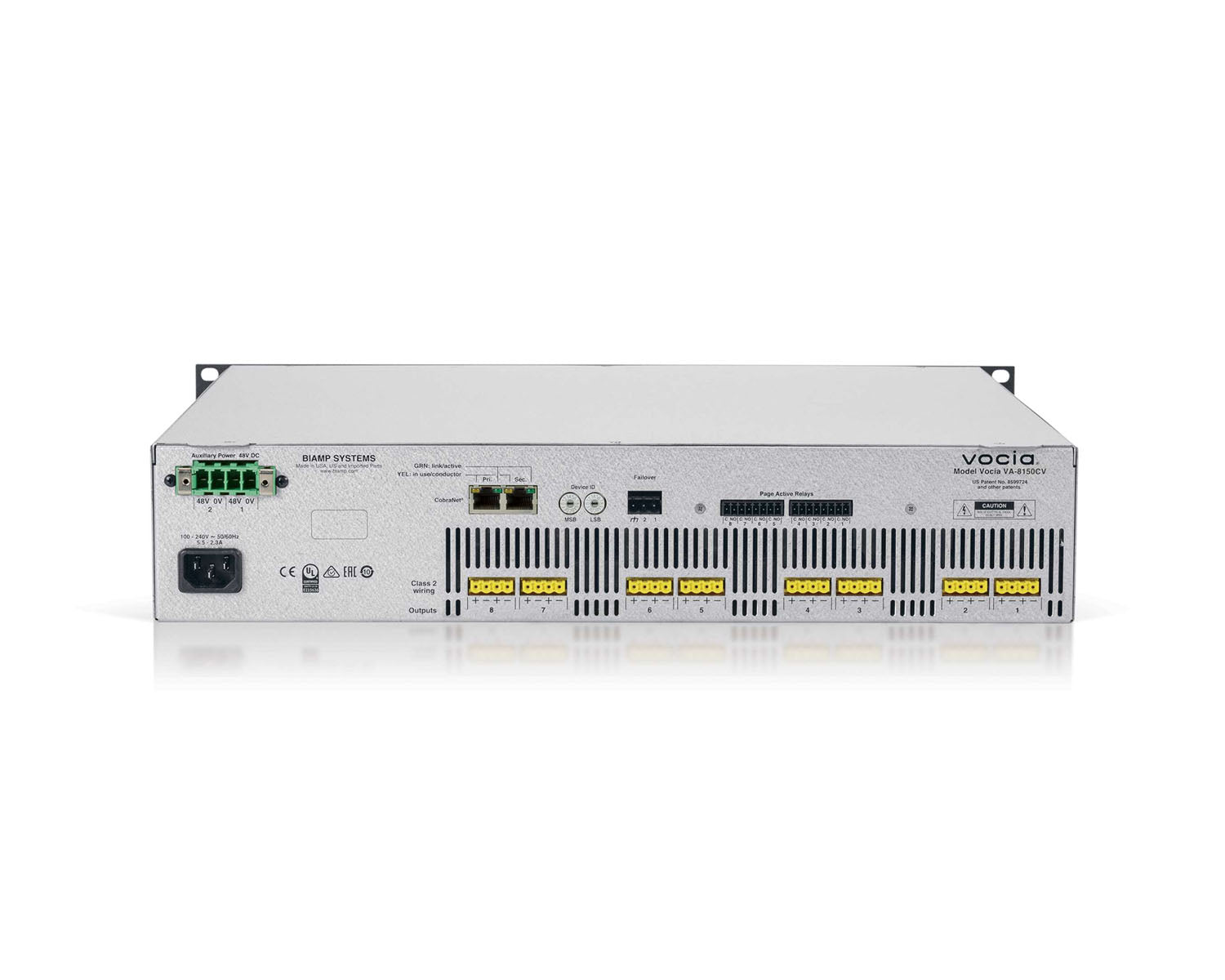

• Connection: Dual RJ-45 inputs for network redundancy
• Environmental:
  • Ambient Operating Temperature: -8°C - 42°C
  • Humidity: 0%-95% non-condensing
  • Altitude: 0-3000m
• Line Monitoring:
  • Passive end of line monitoring (PLD-2)
  • Active end of line monitoring (ELD-1)
  • Impedance monitoring
  • Pilot tone generation
• Extended Audio Delay: Up to 32 Seconds (10km) per channel

Overall Dimensions

• Height: 3.5 inches (88.9 mm)
• Width: 19.0 inches (483 mm)
• Depth: 17.5 inches (444 mm)
• Weight: 24.0 lbs (10.9 kg)

Compliance

• EN 54-16 certified
• FCC Part 15B (USA)
• CE Marked (Europe)
• RCM (Australia)
• RoHS Directive (Europe)
