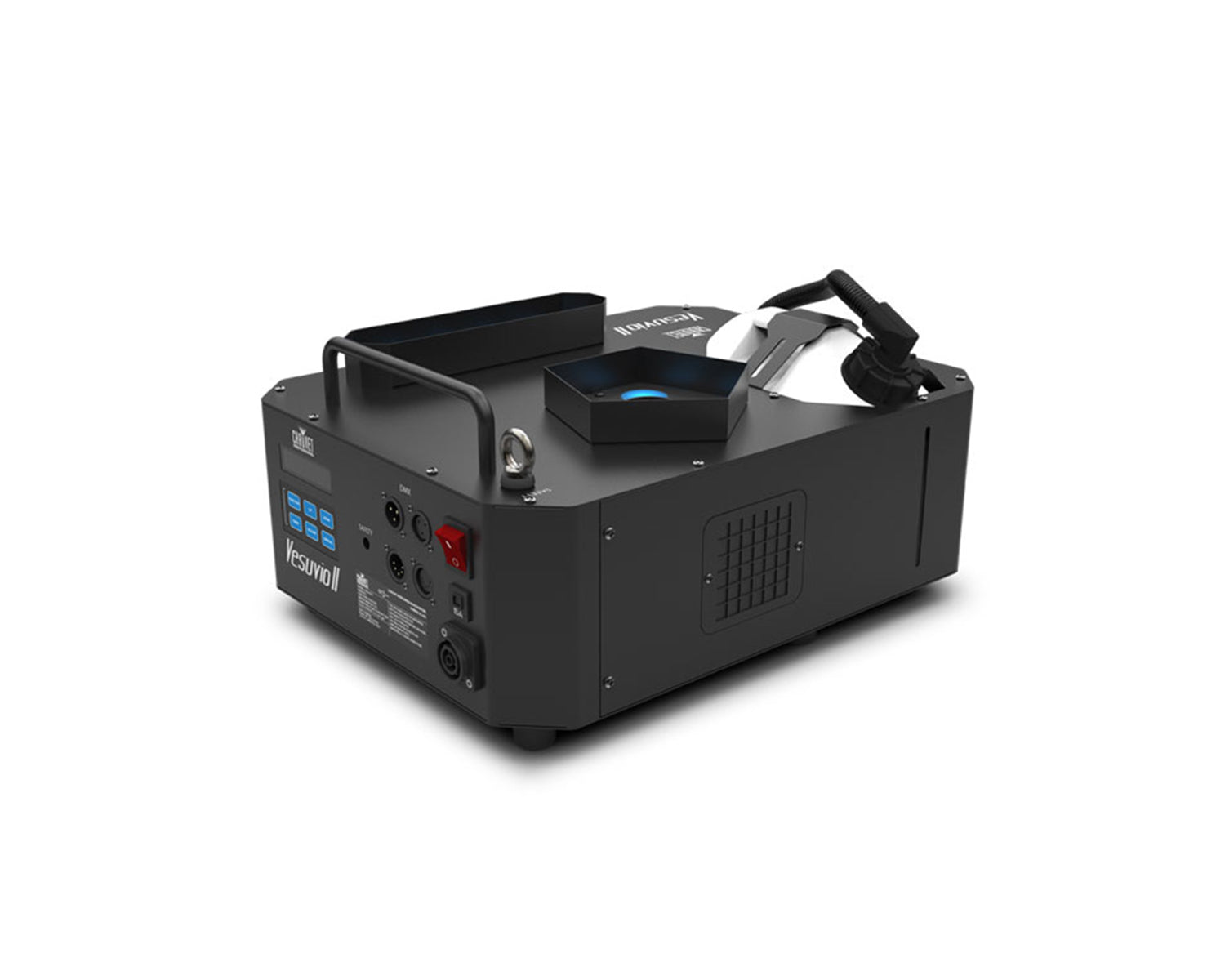

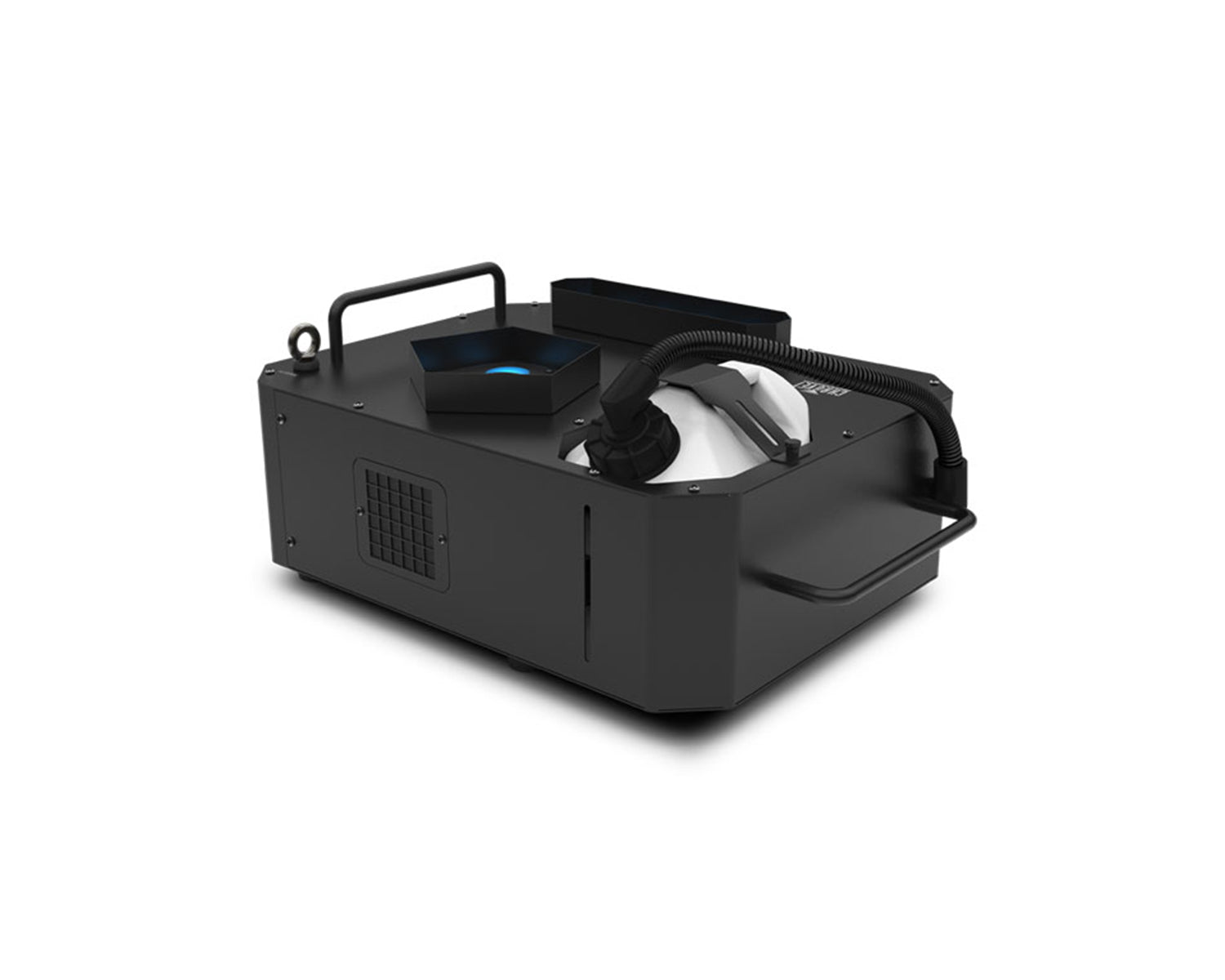

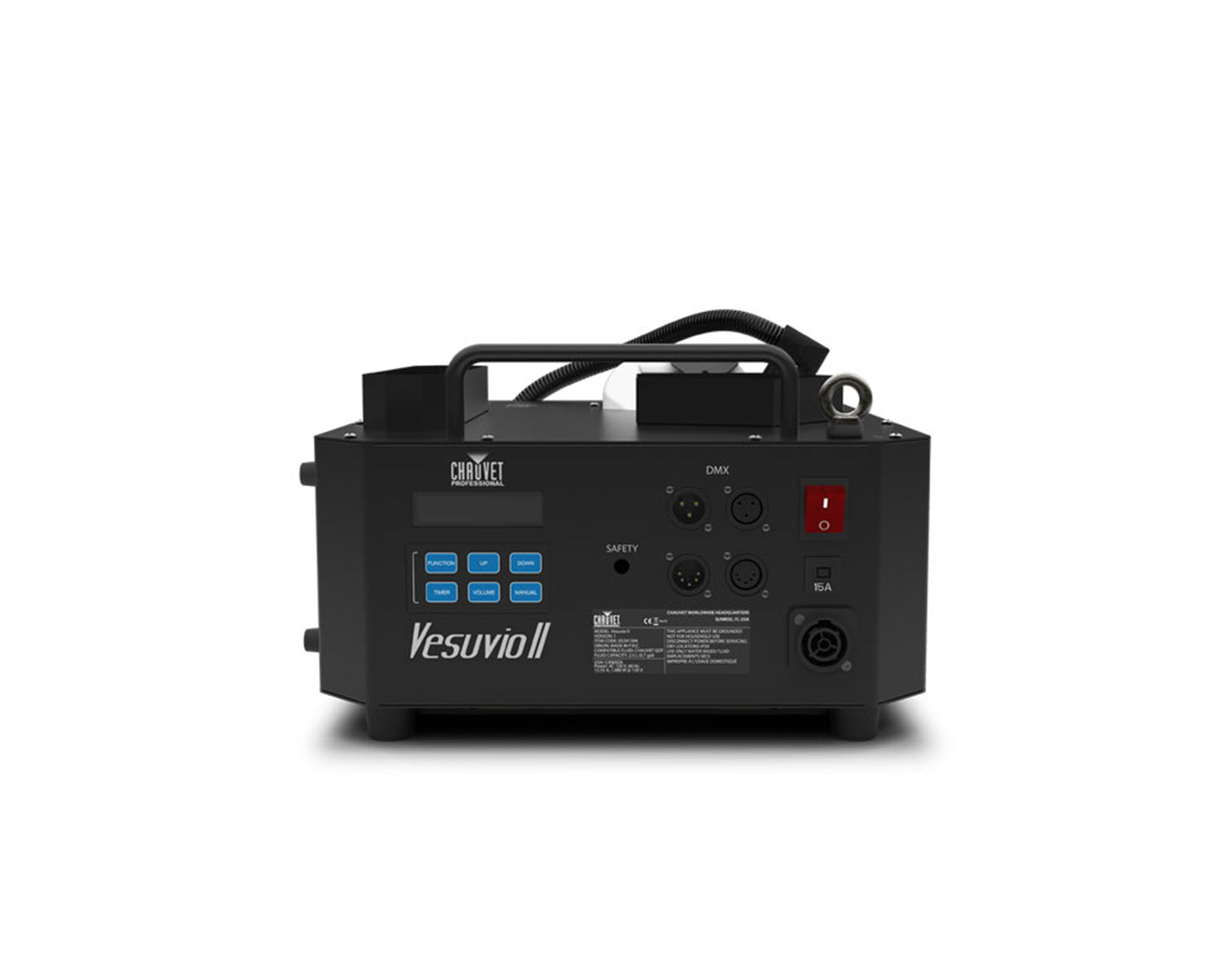

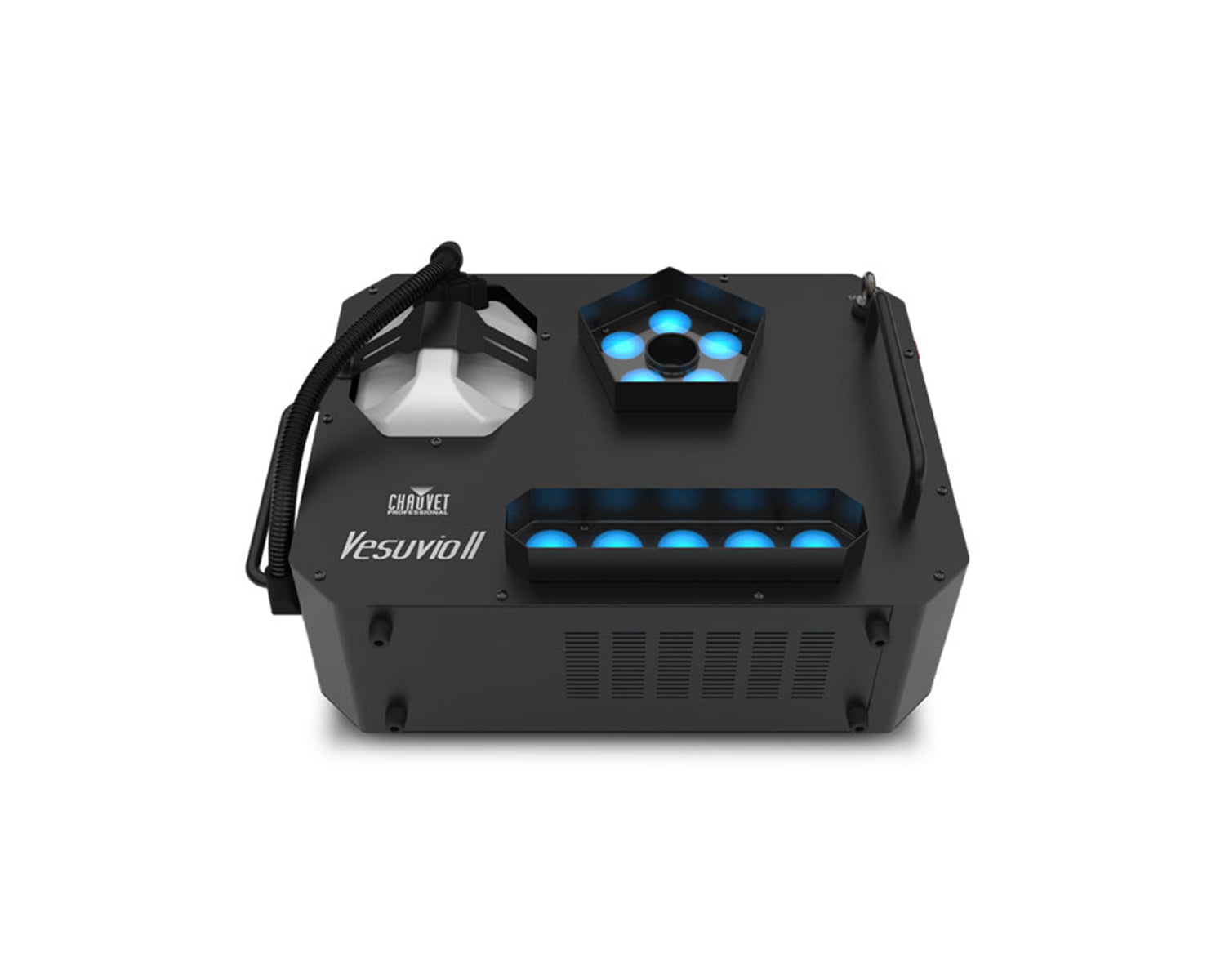

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED colour mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80ml/min of QDL fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with the Chauvet HDF high-density and QDF quick dissipating fluid.

Product Features

• Advanced red, green, blue, amber, and UV (RGBA/UV) LED colour mixing
• 40 second continuous bursts of fog, for intense effects and performance
• 40,000 CFM fog output for intense, large effects
• 2.5 l fluid tank for reliability in production
• Strong, sturdy construction for numerous production types
• DMX control for ease of use in production situations
• 3- and 5-pin DMX input/output connections

Product Specifications

General

• Optical

  • Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
  • Illuminance (Centre): 199.5 lux @ 5 m
  • Illuminance (Linear): 154 lux @ 5 m
  • Illuminance (Both): 334 lux @ 5 m
  • PWM Frequency: 126 Hz
• Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Output: 40,000 cfmLow Fluid Shutdown: No
• Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control

  • Control Protocol: DMX
  • DMX Channels: 15
  • Modes/Personalities: 1 personalities
  • On-Board Control: Yes
  • Included Remote: No
• Electrical

  • Input Voltage (120V): 120 VAC, 60 Hz
  • Input Voltage (220V): 230 VAC, 50 Hz
  • Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
  • Power and Current (220V): 2,880 W, 12.55 A @ 120 V, 60 Hz
  • Heat-up Time (120V): 10 min
  • Heat-up Time (220V): 10 min
  • Breaker Size (120V): 15A
  • Breaker Size (220V): 15A
• Certifications/Qualifications
  • CE
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Physical & Dimensions

• Height: 495mm
• Width: 335mm
• Depth: 239mm
• Weight: 12.9kg
• Exterior Colour: BLACK
• Housing Material: Aluminium alloy
• Tank Capacity: 0.7 gal (2.5 l)
• Fluid Consumption: 80 ml/min

What's in the Box?

• Vesuvio 2.0
• Seetronic Powerkon IP65power cord
