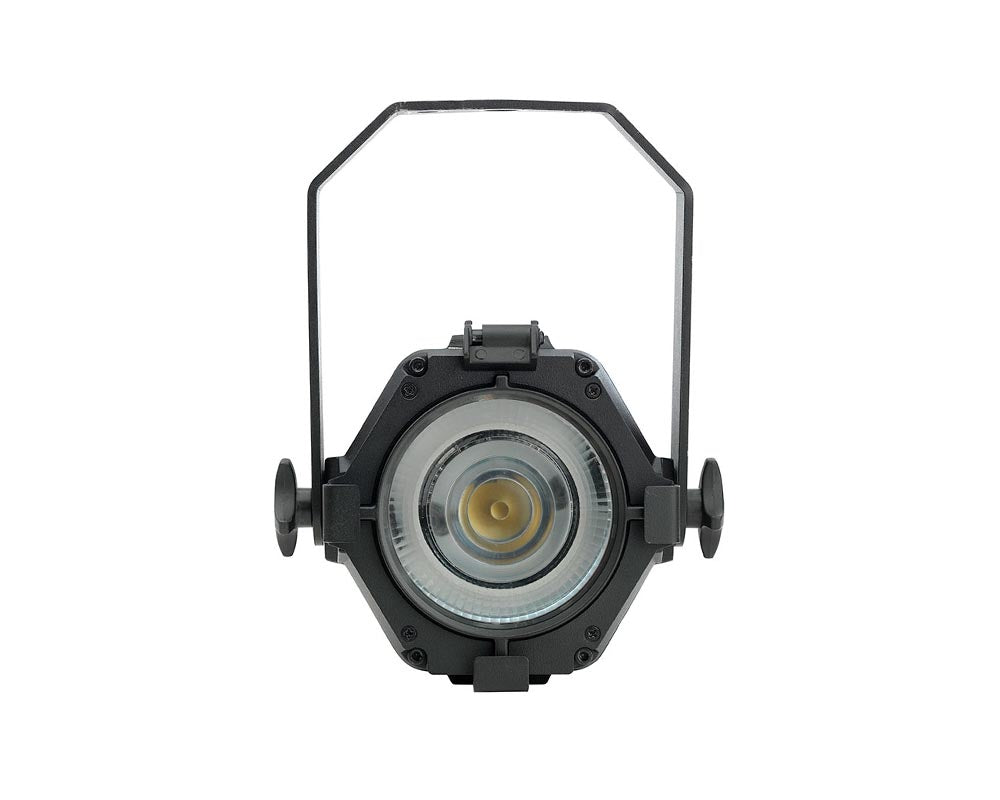

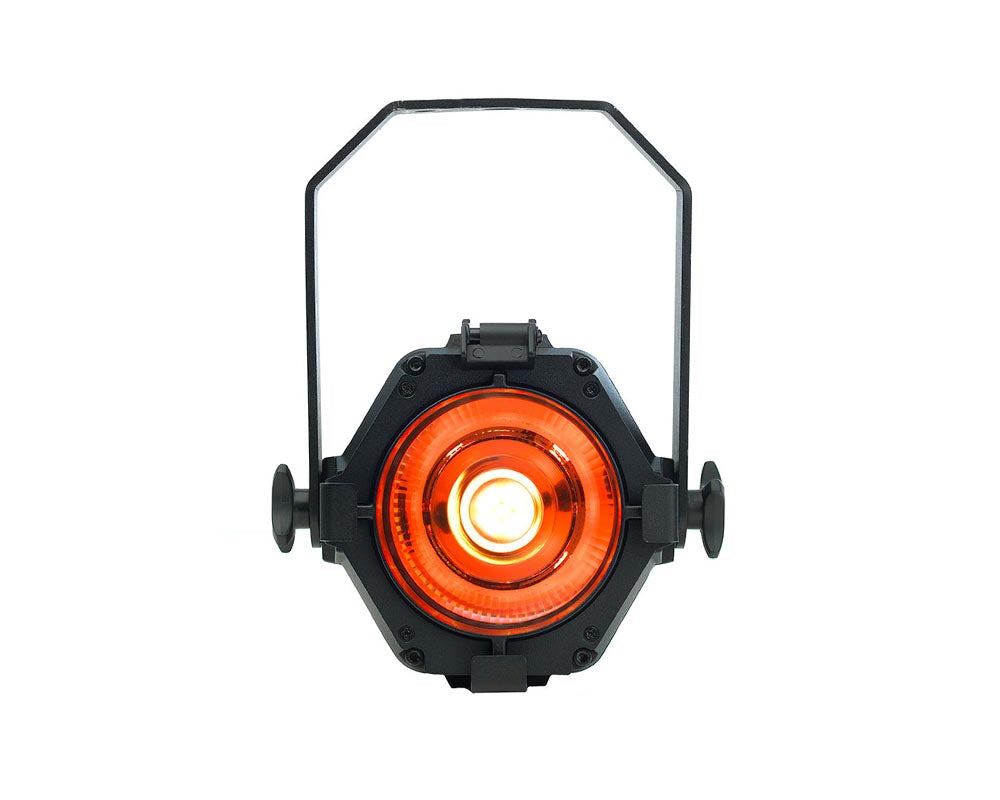

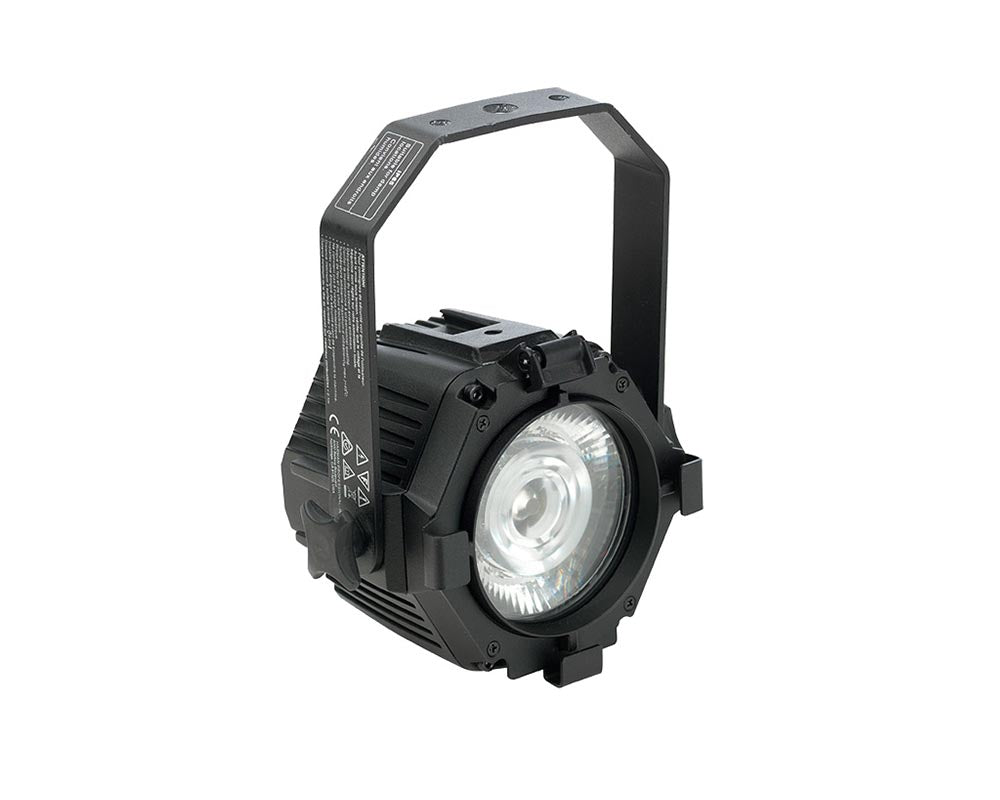

The Martin VDO Atomic Dot WRM hybrid lighting and video fixture, also available in a CLD color temperature variant, combines a small blinder, compact strobe, video-pixel and small spotlight.

By combining a video-controlled Aura backlight and a bright blinder/strobe dot in one fixture, lighting designers are empowered with greater creative potential to make a bigger impact with audiences than ever before. The fixtures’ compact design also gives designers the ability to place VDO Atomic Dots just about anywhere and deploy them in larger quantities. Integrated support for P3, DMX, Art-Net and sACN eliminates the need for additional interface boxes and onboard P3 eases pixel mapping and using the product as a video controlled blinder or strobe.

VDO Atomic Dots are ideal for rental customers and lighting designers working in concert/touring and TV show sets as well as supporting corporate and nightclub clients.

Product Features

• Warm white (2700K) beam/blind/strobe/eye-candy fixture
• 2850 lumen boost/strobe
• 1400 lumen continuous
• Beam angle of 11 degrees
• Field angle of 22 degrees

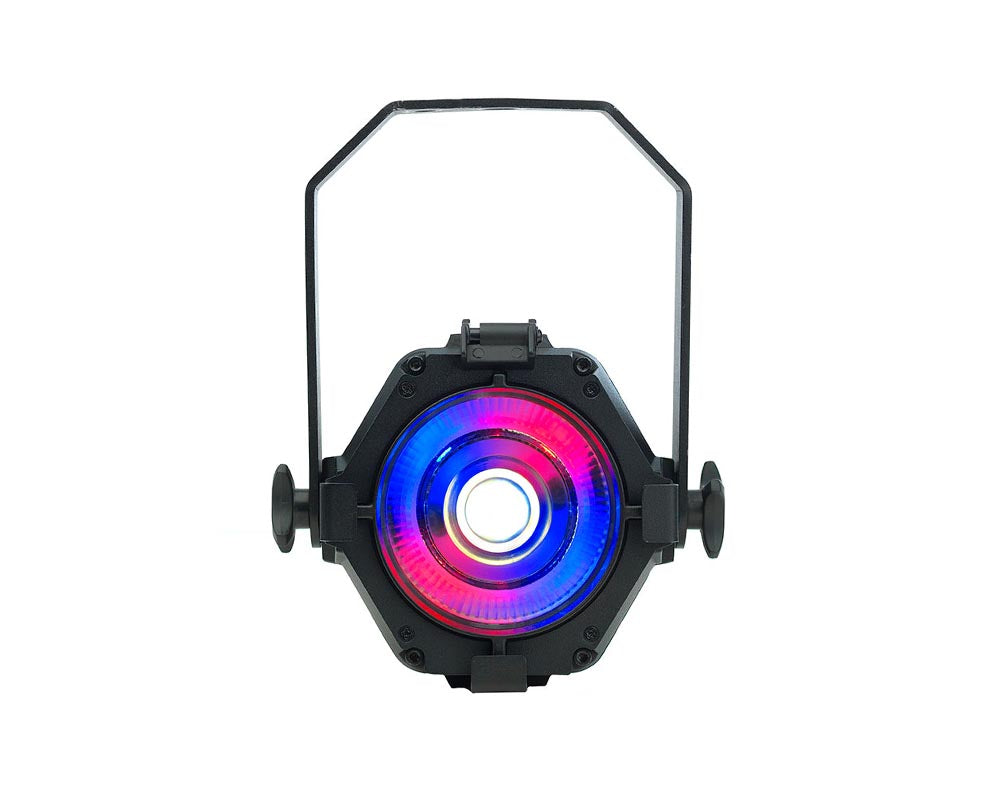

• Pixel-controllable RGB Aura backlight
• Compact form-factor
• Built-in power supply (100-240V)
• Power and Data IN & THRU via hybrid cable (PDE System)
• P3, DMX, Art-Net & sACN compatible
• Built-in pixel-FX on backlight and beam

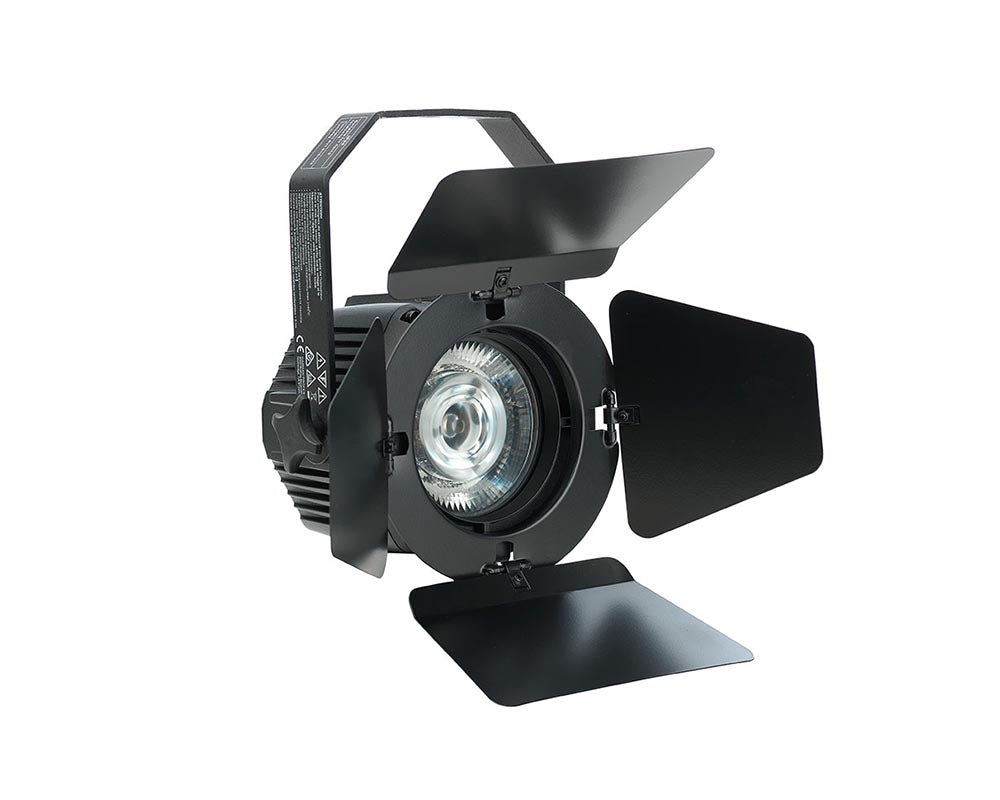

• Front-accessory holder for barndoors and/or diffuser/lens
• Detachable yoke-assembly

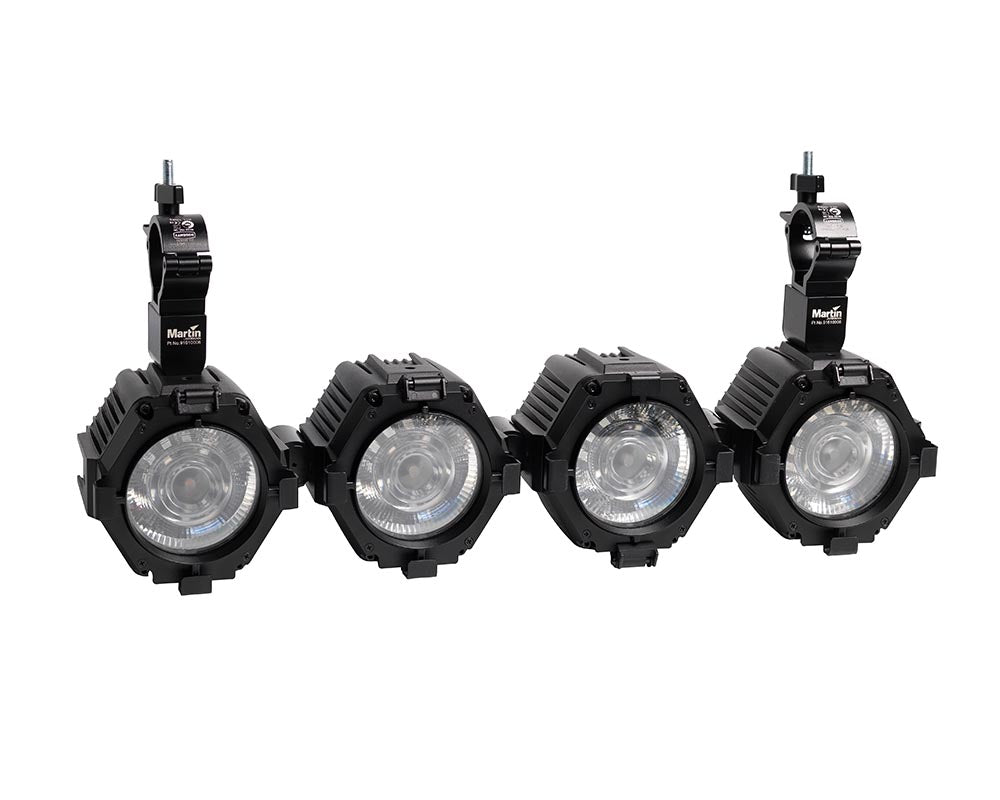

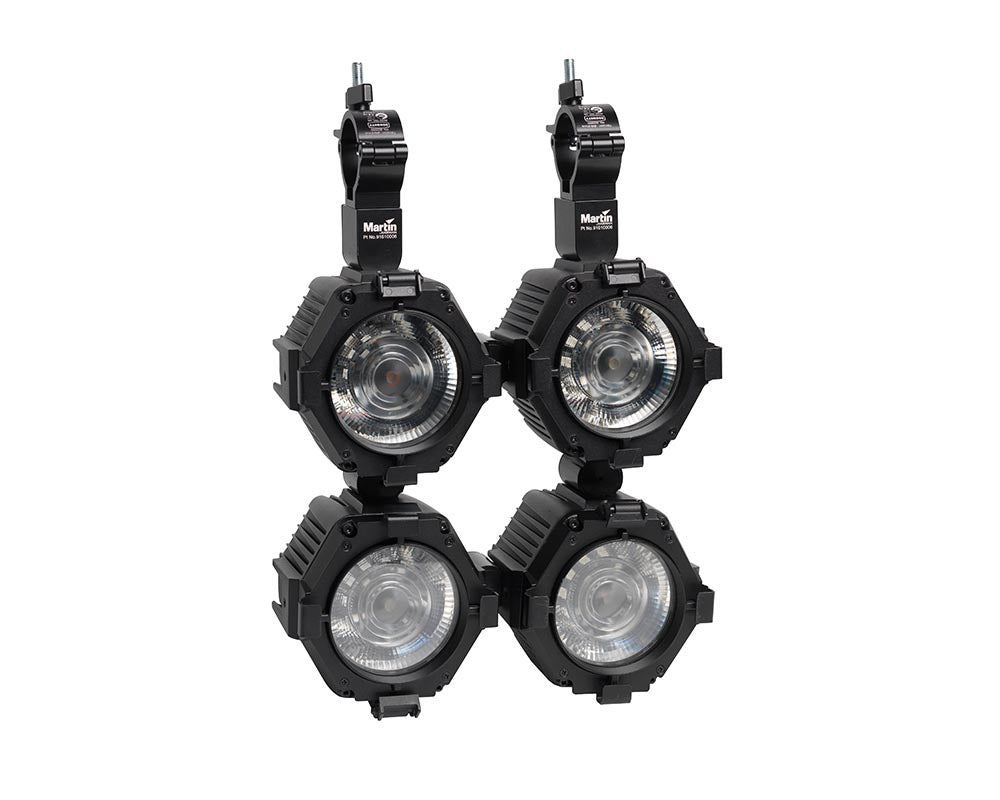

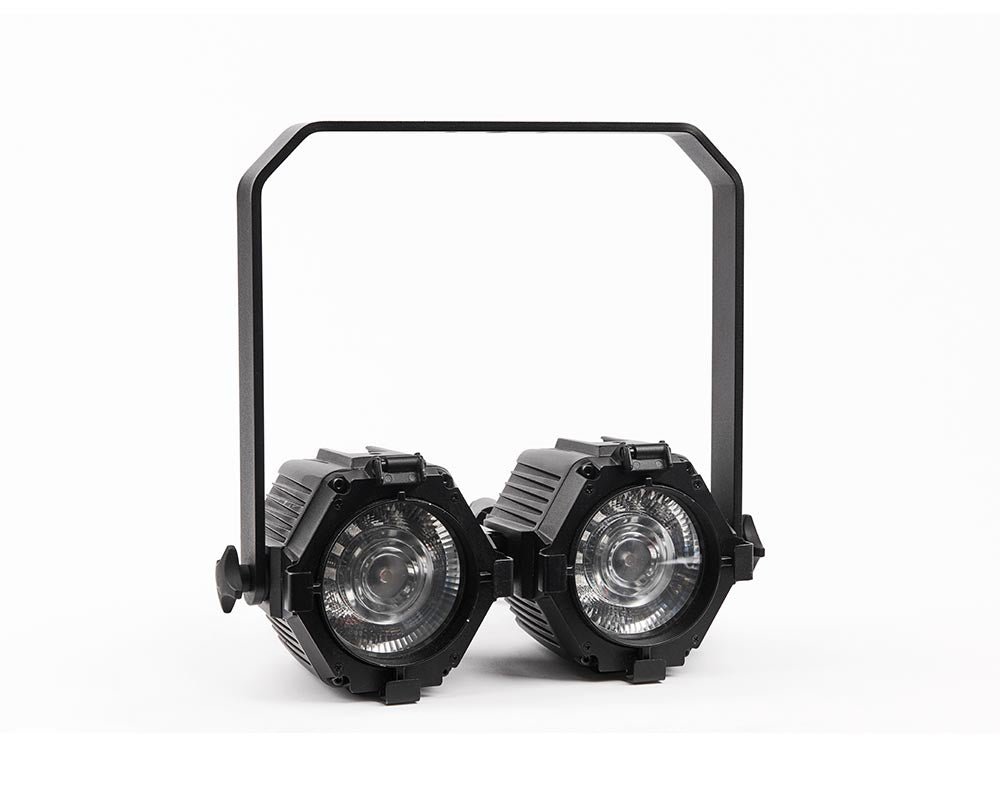

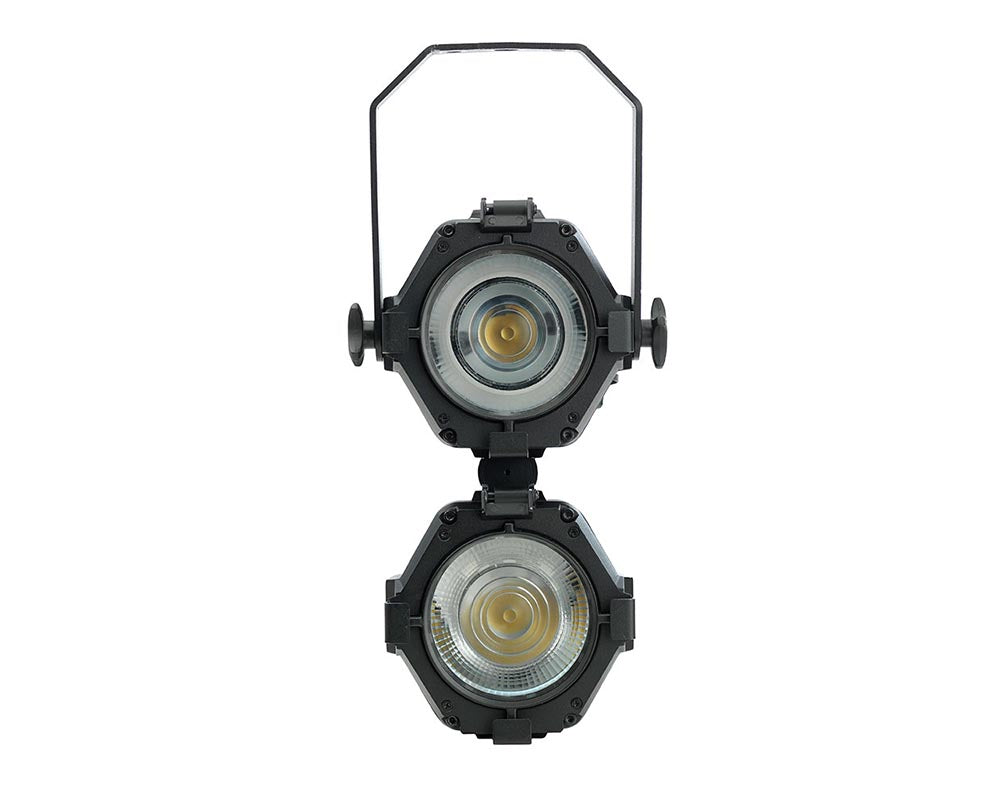

• Smart interlocking mechanics to build battens, arrays and creative shapes
• Compatible with Martin VDO Atomic Bold interlocking mechanics for mixed arrays
• Passive cooling
• IP65 rated

Product Specifications

PHYSICAL

• Width excluding hanging bracket: 130 mm (5.1 in.)
• Width including hanging bracket: 175 mm (6.9 in.)
• Height excluding hanging bracket: 134 mm (5.3 in.)
• Height including hanging bracket: 242 mm (9.5 in.)
• Horizontal fixture spacing: 150 mm (5.9 in.) (centre-to-centre using interlock couplers)
• Vertical fixture spacing: 150 mm (5.9 in.) (centre-to-centre using interlock couplers)
• Depth: 146 mm (5.7 in.)
• Weight including hanging bracket: 2.2 kg (4.85 lbs.)
• Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)

DYNAMIC EFFECTS

• Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
• Beam Dimming options: Choice of four dimming curves
• Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
• Aura Dimming options: Choice of four dimming curves
• Aura Colour mixing: RGB, independently variable 0 - 100%
• Aura Colour temperature control: Variable 2000 - 11,000 K
• Aura Virtual Colour wheel: 36 colour presets, continuous rotation & random colour
• Aura PixelMapping: individual RGB control of each Aura pixel
• Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both

CONTROL AND PROGRAMMING

• Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
• Protocol detection: Automatic
• Setting and addressing: RDM, RDM over Art-Net or P3
• DMX Modes: 1-channel, 3-channel, 4-channel, Basic, Extended
• DMX channels: 1, 3, 4, 19, 64
• Fixture Identification: User-settable ID number
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
• sACN Compliance: ANSI E1.31 - 2016
• Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
• DMX/RDM Transceiver: RS-485
• Ethernet Transceiver: 10/100Mbit
• Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller

CONTROL/USER INTERFACE

• Device status: Multi-colour status LED
• Device test and reset: Pushbutton to call up local test patterns and reset device

OPTICS AND PHOTOMETRIC DATA

• Lens Diameter: 95 mm
• Front Accessory Holder: PAR30 size
• Beam/Strobe LED
  • LED Type: Warm White
  • Max. total lumen output: 2850 lumens (boost/strobe mode)
  • Max. total lumen output: 1400 lumens (continuous mode)
  • Beam Angle: 11 Degrees (half peak)
  • Field Angle: 22 Degrees (one-tenth peak)
  • Colour Temperature: 2700 K
  • CRI (Colour Rendering Index): >84
  • Resolution: 16-bit
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)
• Aura Backlight LEDs
  • LED Type: RGB
  • LED Quantity: 16
  • Colour Temperature: Variable (2000-11,000 K)
  • Resolution: 16-bit per colour per pixel
  • Minimum LED lifetime: 50,000 hours (to >70% luminous output)

P3 VIDEO PROCESSING

• Colour Resolution: 16 bit per colour (48 bit per pixel) (Aura)
• Colour Temperature Control: 2000-11,000 K (Aura)
• Synchronization: System-wide
• Frame Rate: Up to 75 frames/sec
• Brightness Control: 0-100% (maintaining full colour depth)
• Colour Gamut Control: full spectrum control (Aura)
• Gamma Correction and Control: fully controllable (Aura)

CONSTRUCTION

• Housing: Aluminum
• Colour: Black
• Protection rating: IP65
• RoHS: Compliant
• REACH: Compliant

INSTALLATION

• Mounting options: hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism
• Location: indoor or temporary outdoor use
• Clamp attachment to hanging bracket: M12
• Clamp attachment directly to fixture: M8
• Maximum vertical column height: 16 fixtures
• Orientation: Any
• Minimum distance to combustible materials: 0.1 m
• Minimum distance to illuminated surfaces: 0.2 m

CONNECTIONS

• AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
• AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
• All connections hot plugging compatible

ELECTRICAL

• AC power: 100-240 V AC nominal, 50/60Hz
• Power supply unit: Auto-ranging electronic switch mode
• Maximum power consumption: 55 W
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.12 A
• Typical earth-leakage current: 0.25 mA

TYPICAL POWER AND CURRENT

• 100 V, 60 Hz: 49.0 W, 0.49 A, PF 0.99
• 120 V, 60 Hz: 48.9 W, 0.41 A, PF 0.98
• 208 V, 60 Hz: 48.6 W, 0.24 A, PF 0.95
• 230 V, 50 Hz: 50.2 W, 0.23 A, PF 0.96
• 240 V, 50 Hz: 49.6 W, 0.22 A, PF 0.94

^{Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.}

THERMAL

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 40° C
• Minimum ambient temperature (Ta min.): 0° C
• Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr

APPROVALS

• EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
• US safety: UL 1573
• US EMC: 47 CRF Chapter 15 Class B
• Canadian safety: CSA 22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM
• United Kingdom: UKCA

ACCESSORIES

• Junction Boxes
  • Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
  • Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002
• Adapters Cables
  • BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
  • BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
• Optical Accessories

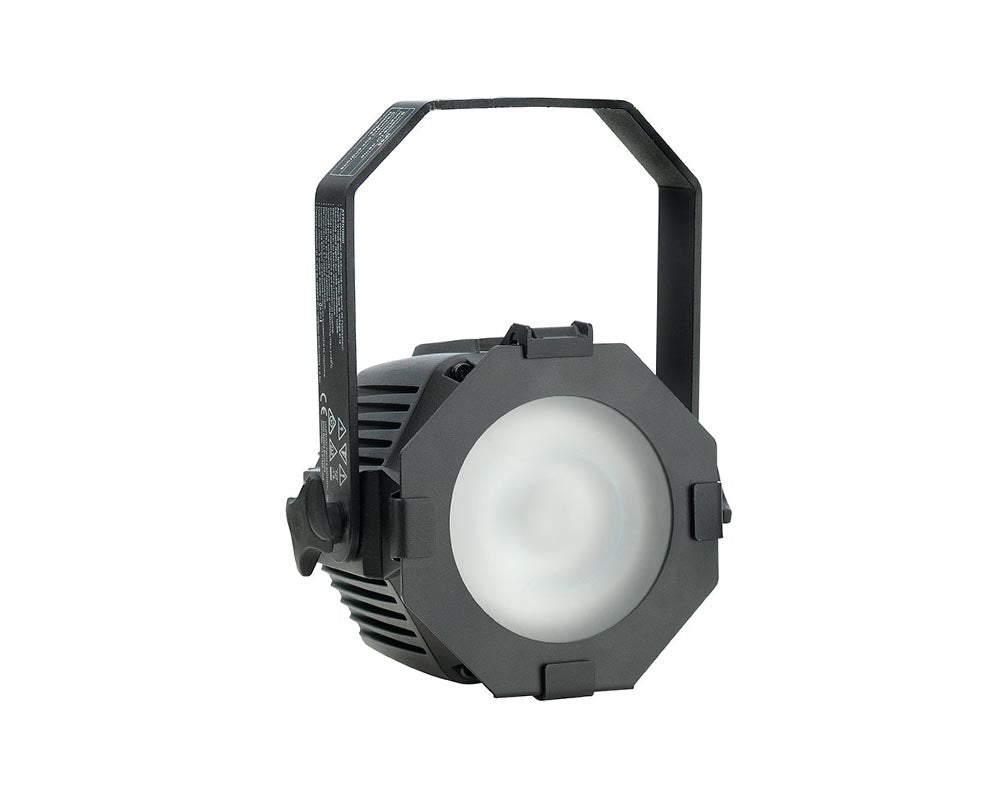

  • VDO Atomic Dot Diffuser 60 Degrees: P/N 91610002
  • VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005
• Mechanical Accessories
  • Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
  • G-clamp (vertical hanging installation only): P/N 91602003
  • Half-coupler clamp: P/N 91602005
  • Quick trigger clamp (vertical hanging installation only): P/N 91602007
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
  • Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
  • Set of 10 VDO Atomic Couplers: P/N 91610003
  • VDO Atomic Half Coupler: P/N 91610004
  • VDO Atomic Interlock Adapter: P/N 91610006
  • VDO Atomic Pivot Coupler: P/N 91610007

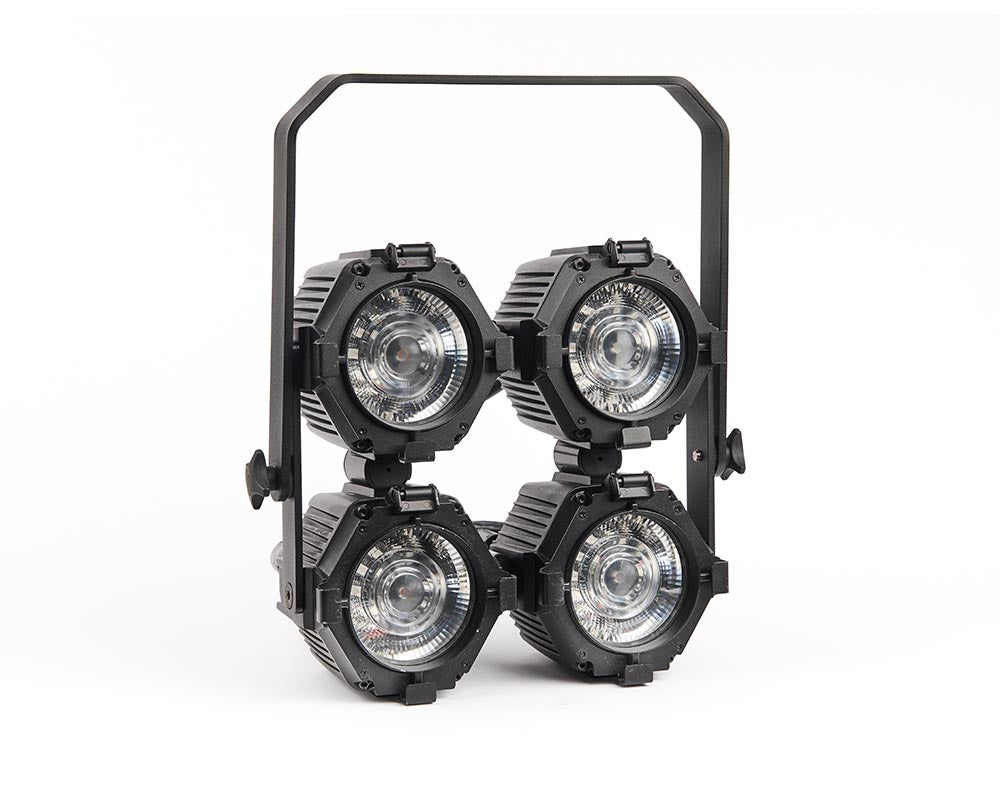

  • VDO Atomic Dot Double Width Bracket: P/N 91616117
  • VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118
• Pre-Assembled Hybrid PDE Cables
  • Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
  • Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002
  • Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
  • Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
  • Power+Data Cable Rental PDE-PDE 25m: P/N 91616005
• Bulk Hybrid PDE Cable and Connectors
  • Power+Data Connector PDE Male: P/N 91611701
  • Power+Data Connector PDE Female: P/N 91611702
  • Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006
• DemoKit
  • VDO Atomic Dot Demo Kit: P/N 91311001
• Flightcase
  • Flightcase for 15 x VDO Atomic Dot: P/N 91515053
  • Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054

RELATED ITEMS

• VDO Atomic Dot CLD in cardboard: P/N 90357701
• Martin P3-050™ System Controller: P/N 90721090
• Martin P3-150™ System Controller: P/N 90721015
• Martin P3-300™ System Controller: P/N 90721060
• Martin P3-PC™ System Controller: Free download from martin.com
• Martin Companion Cable (for firmware update over DMX): P/N 91616091

ORDERING INFORMATION

• VDO Atomic Dot WRM in cardboard : P/N 90357702
