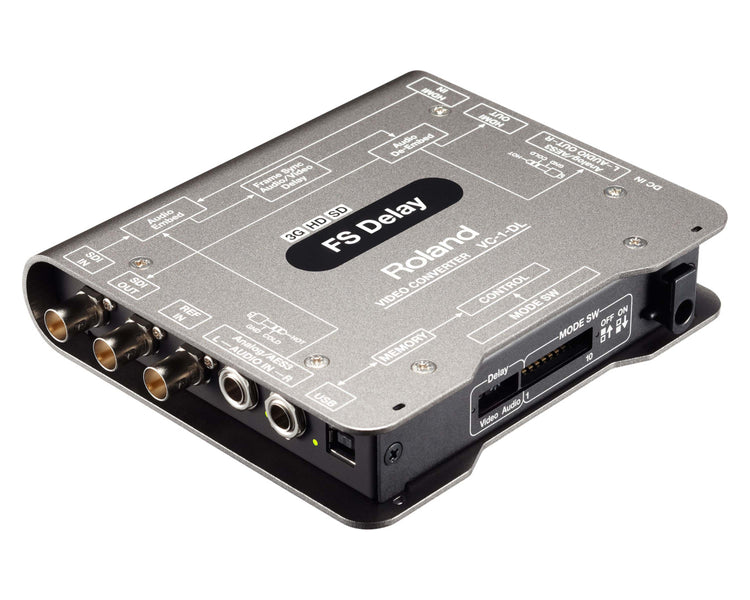

The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

Product Features

• HDMI to SDI Conversion
• SDI to HDMI Conversion
• Lossless Image Conversion
• 3G (Level A&B) /HD/ SD SDI
• HDCP Support
• Built-in Frame Synchronizer
• Audio Delay - up to 9 fields (4.5 frames)
• Video Delay - up to 9 fields (4.5 frames)

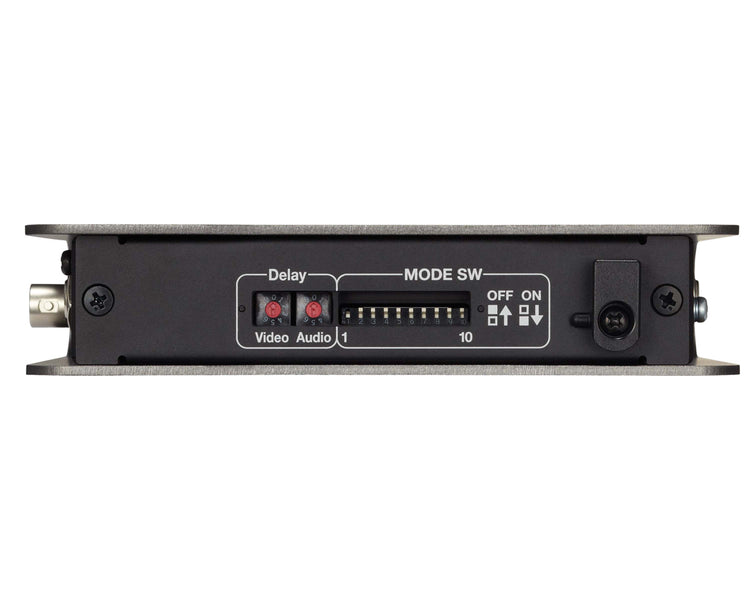

• VC-1 RCS, PC/MAC Control Application
• Selectable Channel for Embedded/De-Embedded Audio

Product Specifications

Input

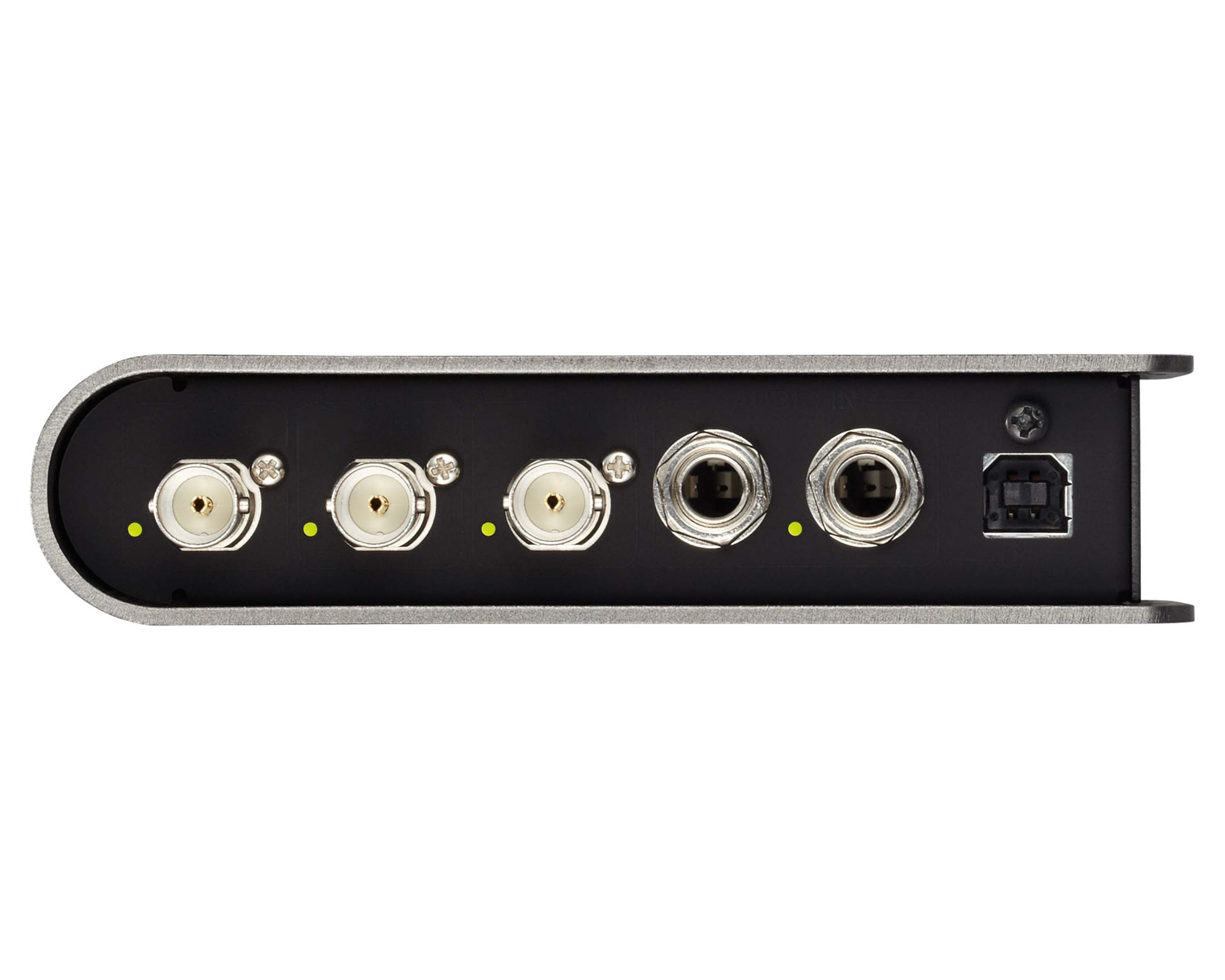

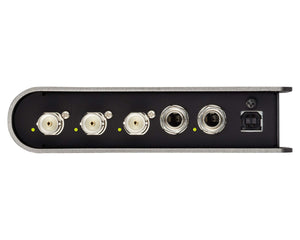

• SDI Connector: BNC type x 1

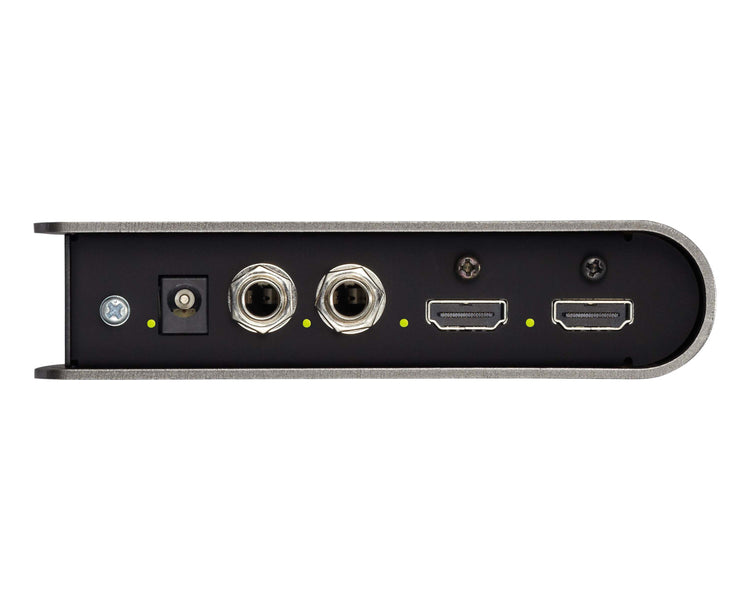

• HDMI Connector: Type A (19 pins) x 1
• Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
• Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector)
• Reference Connector: BNC type x 1
• Reference Signal Format: Black Burst, Bi-level, Tri-level
• Reference Impedance: 75 ohms

Processing

• Video delay ( 0 to 4.5 frames ) Audio delay ( 0 to 4.5 frames ) Audio embedding Audio de-embedding

Output

• SDI Connector: BNC type x 1
• HDMI Connector: Type A (19 pins ) x 1
• Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair ( L/R)
• Digital Audio Connector: 1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector)

Input/Output Format

• SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
• SDI Input Video Format:
  • 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M)
  • 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M)
  • 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
• Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
• HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
• HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1
• SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
• SDI Output Video Format:
  • 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M)
  • 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M)
  • 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
• SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
• HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)
• HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1

Audio Input/Output

• Analog Audio Input Level: +4dBu
• Analog Audio Maximum Input Level: +24dBu
• Analog Audio Input Impedance: 110 ohms
• Analog Audio Output Level: +4d
• Bu Analog Audio Output Impedance: 600 ohms
• Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
• Digital Audio Output Impedance: 110 ohms

General

• USB Connector: USB Type B (Hi-Speed USB) x 1
• Power Supply: DC 9V
• Power Consumption: 8W
• Operation Temperature +0 to + 40 degrees Celsius

Physical & Dimensions

• Width: 150mm
• Depth: 130mm
• Height: 30mm
• Weight: 500g

What's in the Box?

• AC adaptor
• Power Cord
• Rubber Foot x 4
• Owner Manual
