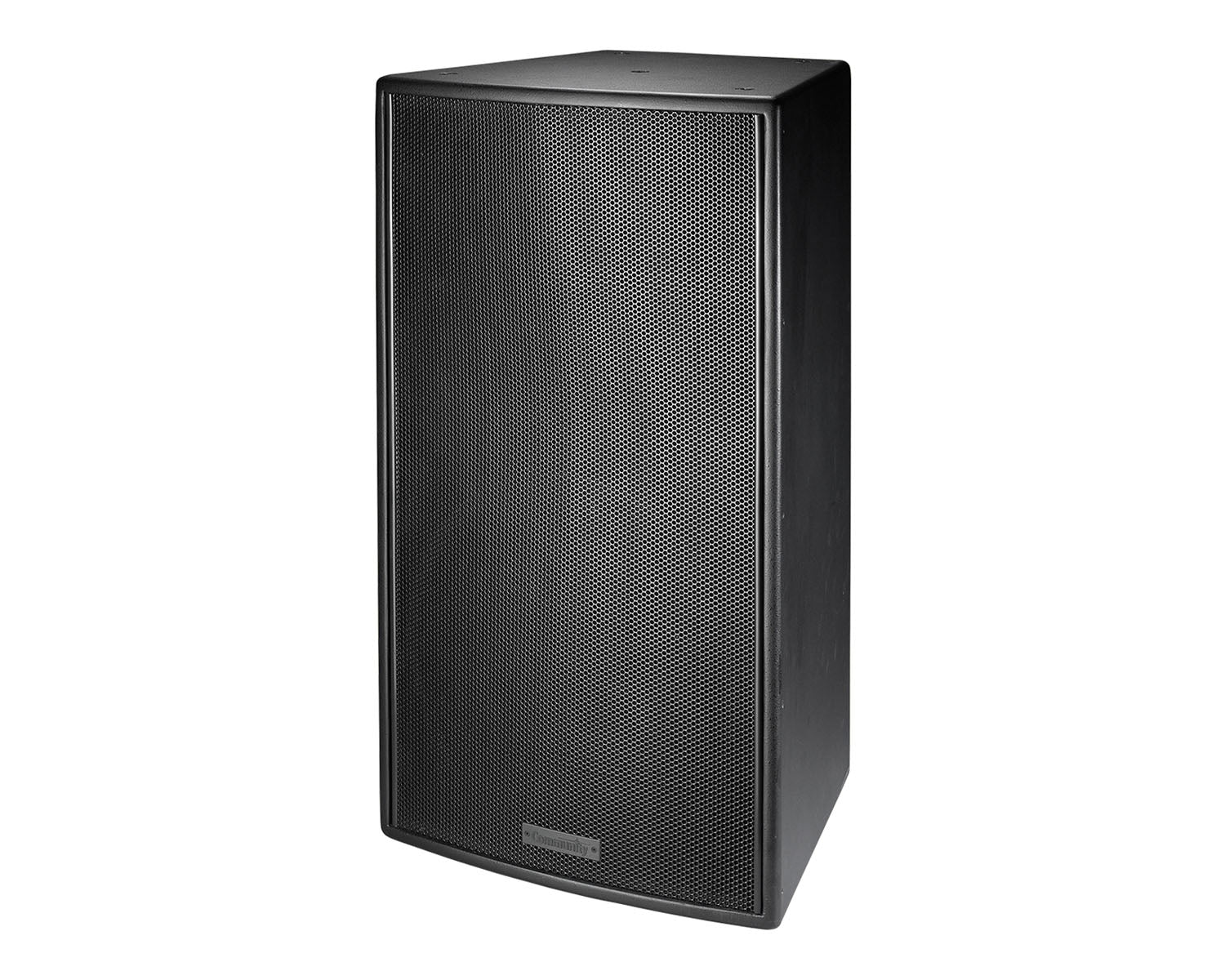

The V2-3294 is a three-way, full-range loudspeaker system suitable for use in a wide variety of fixed installations. The 90º x 40º pattern provides controlled coverage, particularly useful in rooms that are wider than they are deep. Extremely powerful with exceptionally low distortion, the V2-3294 is ideal for applications such as contemporary worship services, music and dance clubs, theatrical sound reinforcement, and other demanding work. Its trapezoidal design allows it to be clustered with like units, forming powerful arrays. The enclosure may be suspended from its M10 threaded rigging points using a variety of optional hardware available from Community, or it may be installed using a third-party mounting device. Featuring extended high frequency response, low distortion output, a tight, punchy bass response, and precise pattern control, the V2-3294 is a versatile performer for use in music and speech applications that require high quality, high power sound reinforcement at an affordable price. It includes a rotatable horn design that allows optimal dispersion in either vertical or horizontal mounting positions.

Product Features

• Discreet and aesthetic trapezoidal enclosure
• Optimised voicing for full-range reproduction
• DYNA-TECH™ driver protection circuitry
• Ferrofluid-treated HF driver for improved heat dissipation
• Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability in LF driver
• Terminal strip and NL4-compatible connectors
• User rotatable horn
• Multiple bracket options offer affordable arraying solutions
• Included in Community’s Forecaster HD ceiling distributed system software
• Finish: Black
• Coverage: 90° x 40°

Applications

• Houses of worship
• Clubs and discos
• Theatres
• Performing arts centres
• Gymnasiums
• Fitness centres

Product Specifications

• Transducers: LF - 1 x 12", carbon ring cone driver; MF – 6.5”, HF - 1 x 1" exit, Ferrofluid-cooled driver
• Operating Range: 60 Hz – 18 kHz
• Sensitivity (1W/1m): 100 dB
• Power Handling: 200W continuous @ 8 ohms
• Continuous Max Output: 123 dB (129 dB Peak)
• Nominal Beamwidth (H x V): 3294 (90° x 40°)
• Finish: Black uniformly textured painted 11-ply Baltic Birch plywood with powder-coated steel grille
• Dimensions (H x W x D): 23.9" x 15.4" x 14.3" (608 x 390 x 362 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
