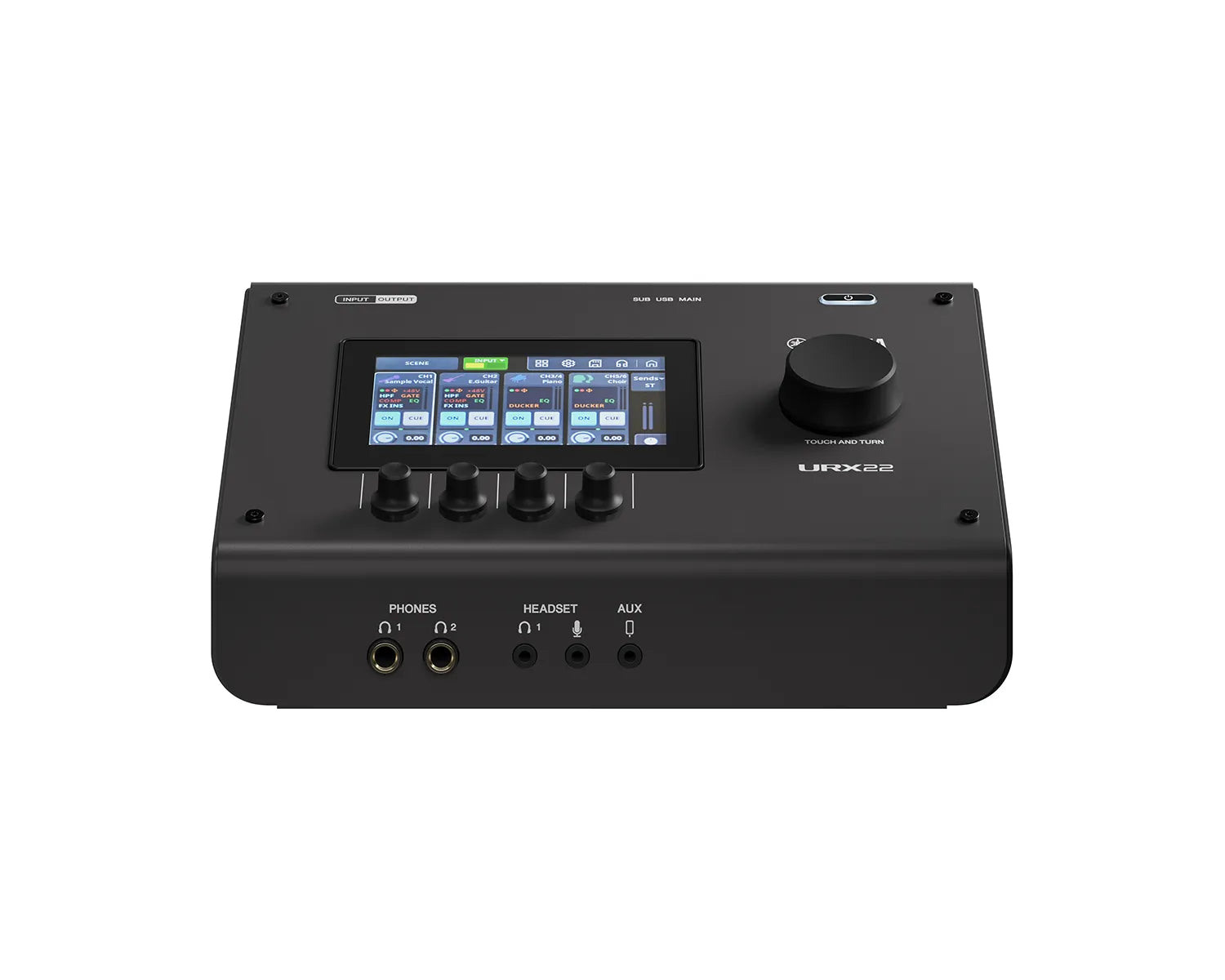

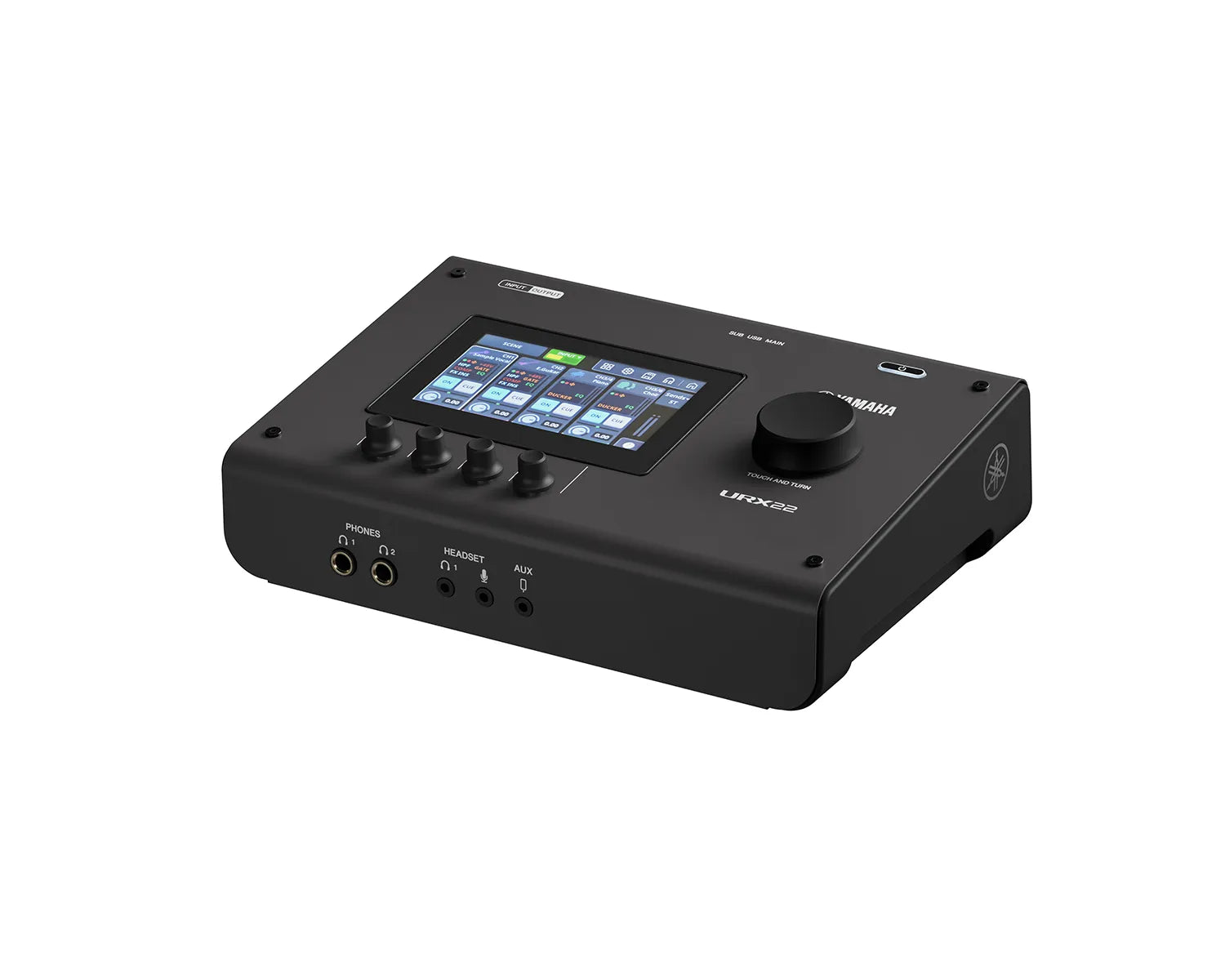

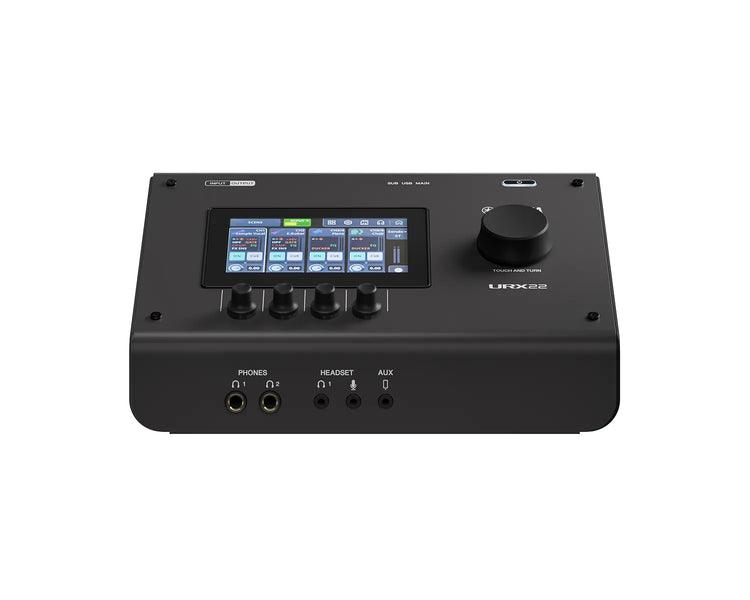

4-in/2-out USB-C Audio Interface with 32-bit/192kHz support, Touch LCD panel GUI with physical controller, DSP-powered mixing/effects for a seamless workflow.

Perfect for streamers, podcasters, gamers and vocalists/ musicians in particular, the URX22 is a compact, portable powerhouse punching well above its weight class in sound quality and system capability. When you demand professional-level audio but without the often frustrating and complicated setup and operation that usually comes with it, the URX22 is a minimalist’s dream, delivering professional-level results, yet with an effortless setup and workflow that won’t hinder your creativity.

The pristine 192 kHz / 32-bit resolution, combined with high-end AD/DA converters, delivers pure input and output sound that faithfully reproduces the vividness and life of every moment in your recordings, productions and edits—without compromise.

Product Features

• USB Type-C audio interface with 32-bit / 192 kHz support, Multi-Stream Audio Driver, dual USB (MAIN/SUB)
• 125 dB dynamic range (MAIN output - Balanced)
• 2 URX mic preamps with 78 dB gain range and +48 V phantom power
• 2 Mic/Line (1 Combo/3.5 mm headset mic, 1 Combo with Hi-Z), 1 AUX input (3.5 mm phone)

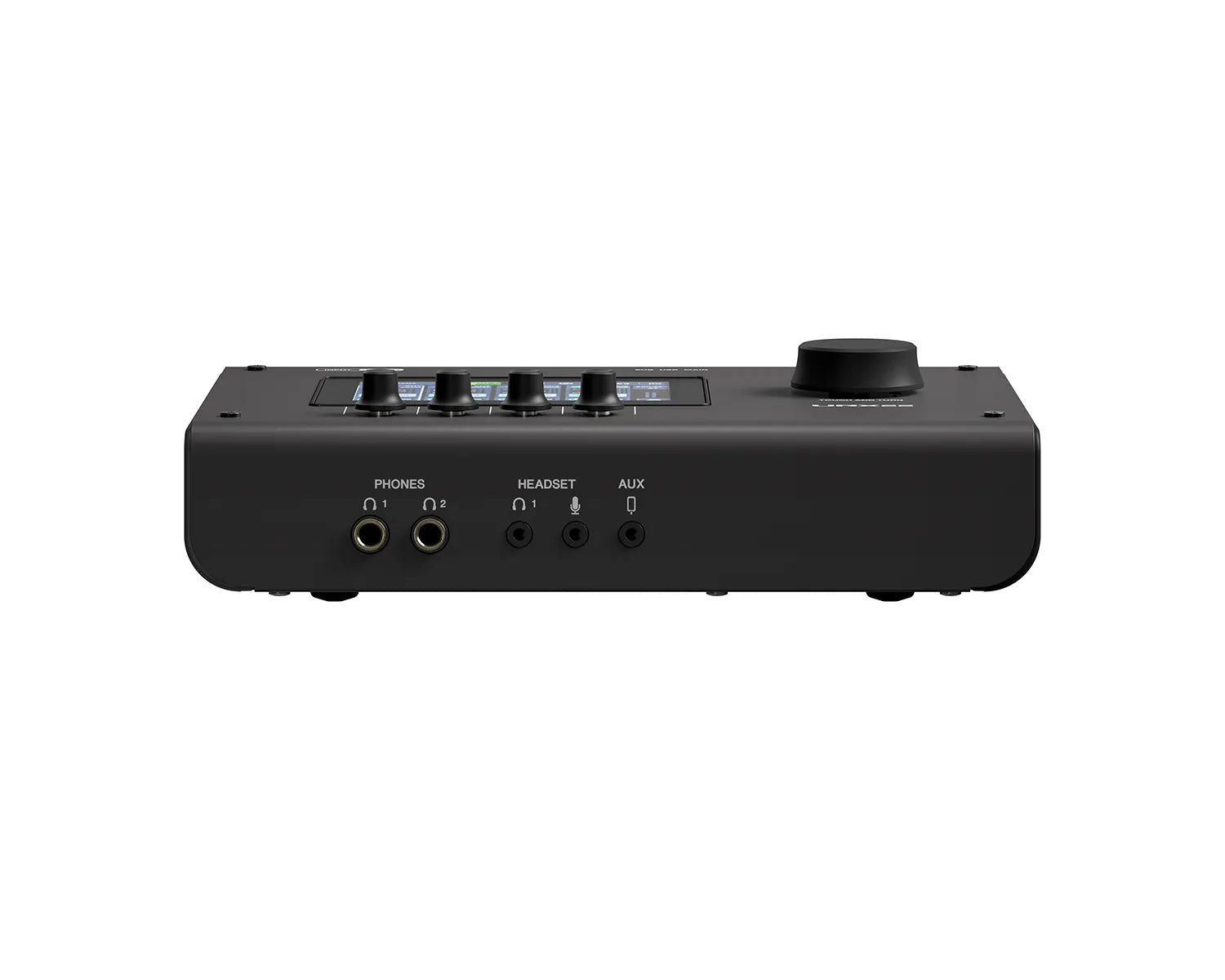

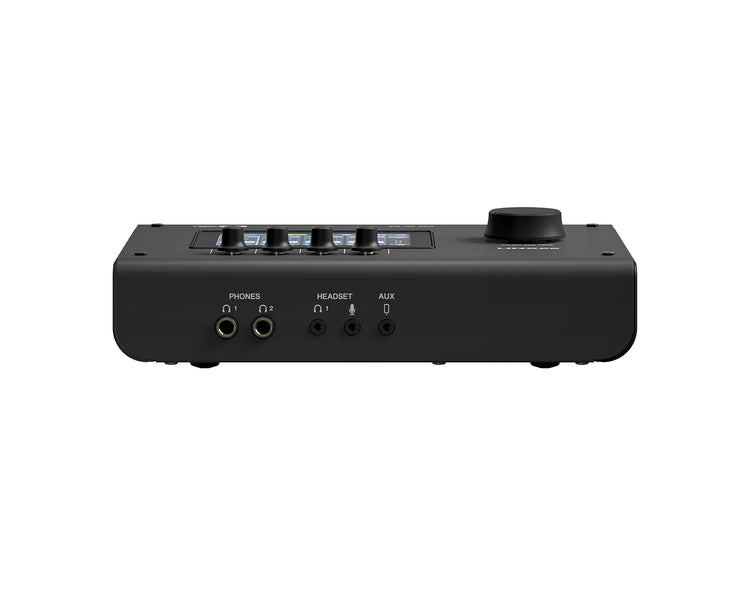

• 2 TRS line outputs, 2 headphones (1 stereo phone/3.5 mm headset, 1 stereo phone)
• Input mixing channels: 2 mono + 4 stereo + 2 FX
• Buses: 2 MIX (stereo) + 1 STEREO

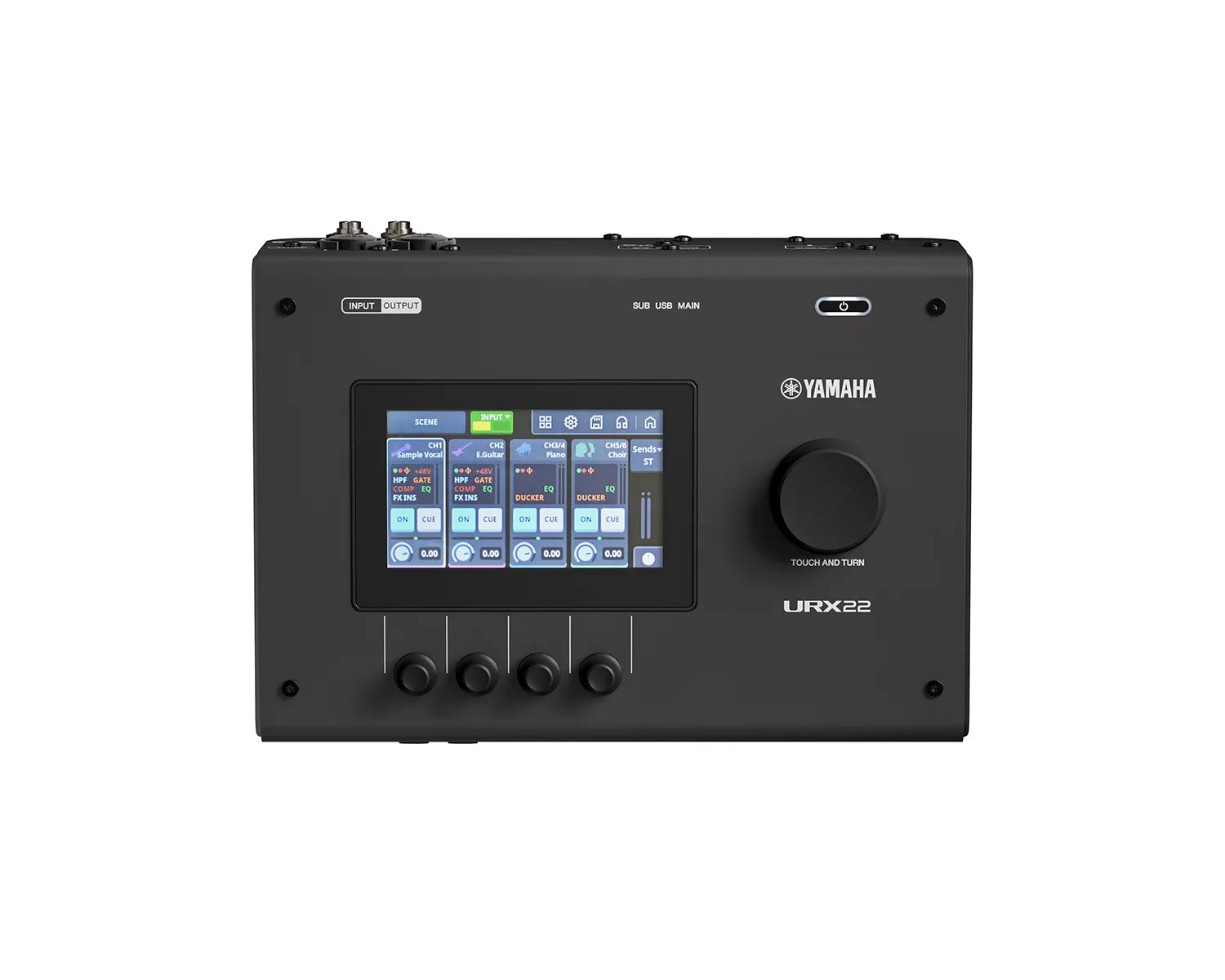

• A 4.3-inch touchscreen with five control knobs
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Built-in DSP processor for professional sound and latency-free monitoring

Product Specifications

• Mixing Capacity
  • Input Channels:  2 mono + 4 stereo + 2 FX
  • Mix Buses:  2 (stereo)
  • Stereo Buses:  1
  • FX Buses:  2
  • FX Buses:  1
• On-board processors
  • DSP:  Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb)

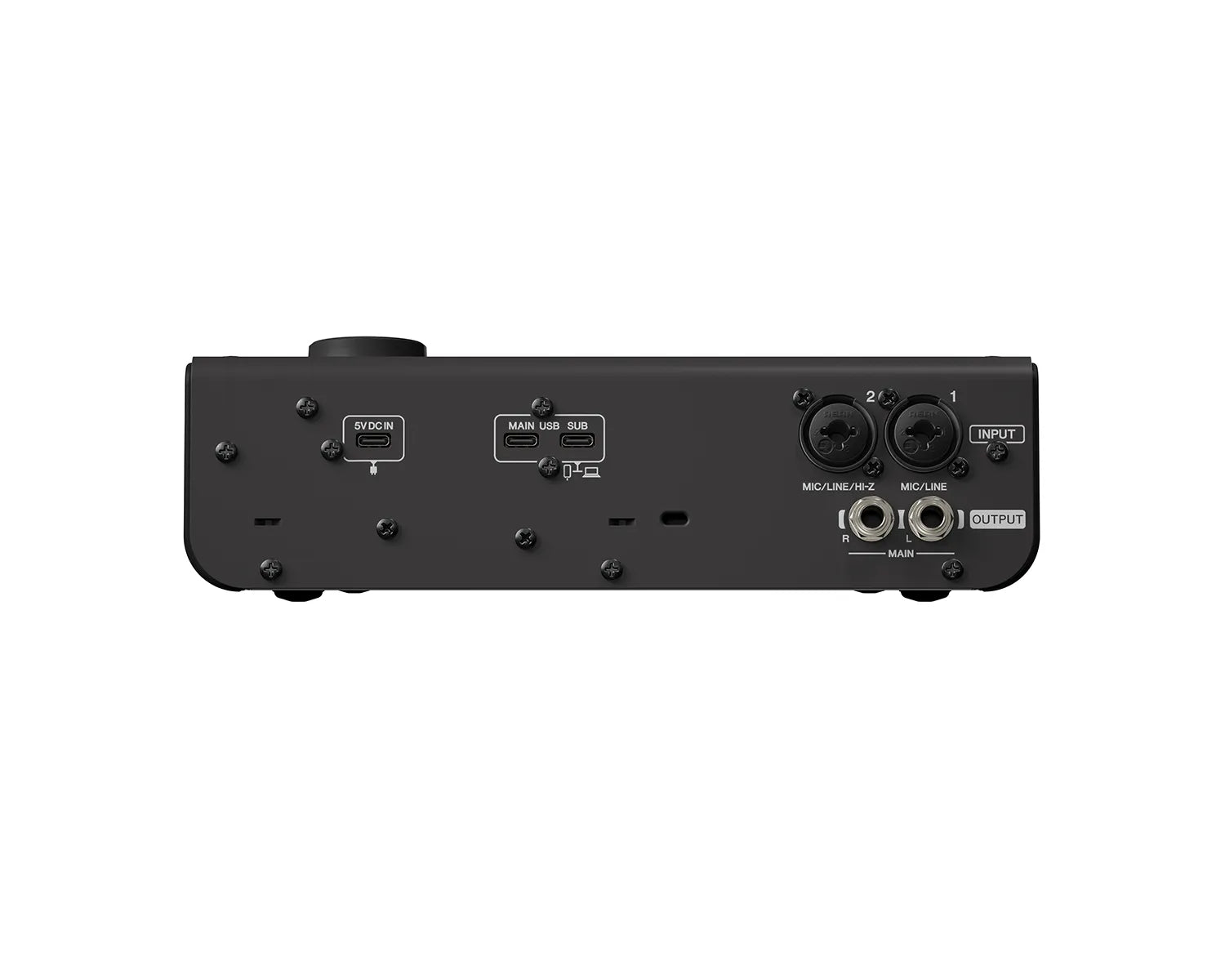

• I/O Connectors
  • Analogue Input:  2 Combo (1 Mic/Line/3.5 mm headset mic, 1 Mic/Line/Hi-Z) + 1 AUX (3.5 mm phone)
  • Analogue Output:  2 TRS
  • USB TO HOST:  2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit)
  • Phones:  2 TRS, 1 mini headset phones (100 mW+100 mW @40 Ohm) *The first TRS Phones port and the 3.5 mm mini port cannot be used simultaneously.
  • DC:  2 (Type-C USB MAIN bus power or Type-C USB DC IN)
  • microSD Card Slot:  n/a
  • HDMI:  n/a
  • MIDI:  n/a
• User Interface:  4.3-inch touch screen, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN")
• Recording & Playback
  • USB:  16-track recording, 16-track playback
  • USB (SUB):  2-track recording, 2-track playback
  • microSD Card:  n/a
• Sampling frequency rate:  192 kHz - 44.1 kHz
• Frequency response:  +0.0/−0.2 dB (20 Hz – 20 kHz)
• Dynamic range:  [MIC/LINE/Hi-Z] 115 dB, [MAIN OUTPUT] 125 dB
• Total harmonic distortion:  [MIC/LINE/Hi-Z] 0.0008 %, 1 kHz, 20 kHz LPF; [MAIN OUTPUT] 0.00036%, 1 kHz, 20 kHz LPF
• Hum & noise level
  • Equivalent input noise:  -128 dBu, A-Weighted
• Gain range:  78 dB
• Power requirements:  DC5 V/ 3.0 A
• Power consumption:  15 W (Off mode power: 0.1 W)
• Auto power off:  2 minutes, 5 minutes, 10 minutes, 15 minutes, 20 minutes or Never (factory default)
• Dimensions (WxHxD):  245 mm (9.6") x 78 mm (3.1") x 182 mm (7.2")
• Net weight:  1.9 kg (4.2 lb)
• Operating temperature:  0 to + 40 ℃
• Storage temperature:  -20 to + 60 ℃

What's in the Box?

• Start Guide
• Safety Guide
• Steinberg Software Licence Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus)
• Basic FX Suite licence card
• USB-C to USB-C Cable (USB 2.0, 1.5m)
