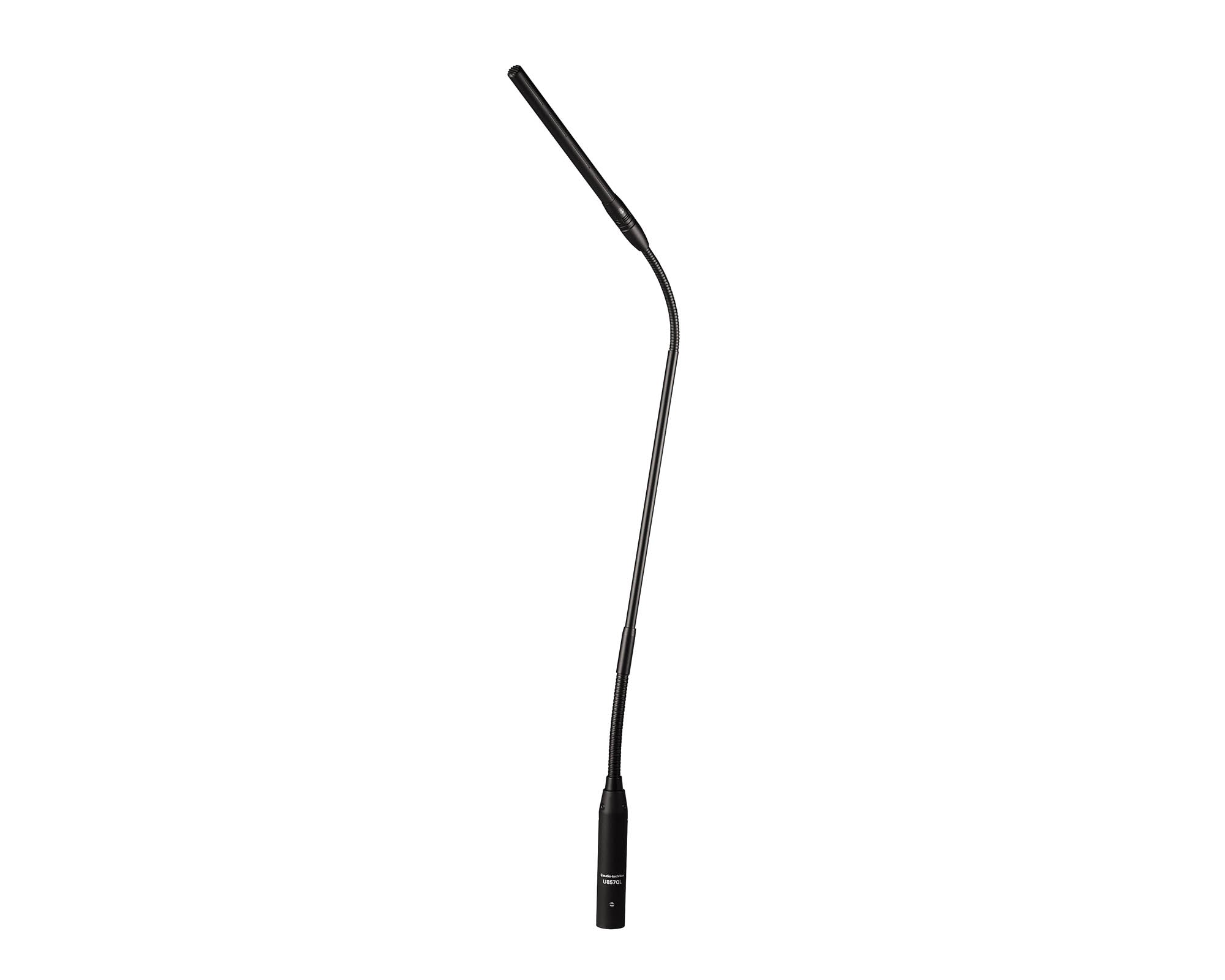

With advanced capsule design coupled with carefully engineered internal electronics. The U857QLU UniLine condenser delivers clear, consistent sound for a variety of installed applications. The 23.74" version of U857QU and U857QLU features Audio-Technica UniLine® line cardioid element. The microphone is designed to plug directly into a panel or desk mounted XLRF type connector. Its ultra flexible, robust gooseneck permits easy adjustment into desired shape while resisting inadvertent repositioning featuring UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. The U857QLU accepts new interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. The phantom powered microphone also offers an 80 Hz low cut UniSteep® filter that reduces pickup of low frequency ambient noise.

Product Features

• Designed for high-quality sound reinforcement, professional recording and broadcasting
• UniLine® polar pattern provides narrow 90° acceptance angle
• Superior off-axis rejection for maximum gain before feedback
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
• UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Self-contained electronics eliminate need for external power module
• Accepts interchangeable elements to permit angle of acceptance from 90° to 360°
• Two-stage foam windscreen yields dramatically improved resistance to P-pops and other breath blasts
• Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector
• Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface

Product Specifications

General

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Line Cardioid
• FREQUENCY RESPONSE: 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
• OPEN CIRCUIT SENSITIVITY: –35 dB (17.7 mV) re 1V at 1 Pa
• IMPEDANCE: 250 ohms
• MAXIMUM INPUT SOUND LEVEL: 135 dB SPL, 1 kHz at 1% T.H.D.
• DYNAMIC RANGE (typical): 115 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 74 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
• SWITCH: Flat, roll-off
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type
• OPTIONAL INTERCHANGEABLE ELEMENTS:
  • UE-C cardioid (120°);
  • UE-H hypercardioid (100°);
  • UE-O omnidirectional (360°)

Physical & Dimensions

• Length: 603mm
• Head Diameter: 12.2mm
• Base Diameter: 18.9mm
• Weight: 167g

What's in the Box?

• AT8154 two-stage foam windscreen
• AT8662 shock mount
