Every detail of the Theatrixx Totem has been designed to ensure maximal impact and delivery of your message in a clear and appealing way.

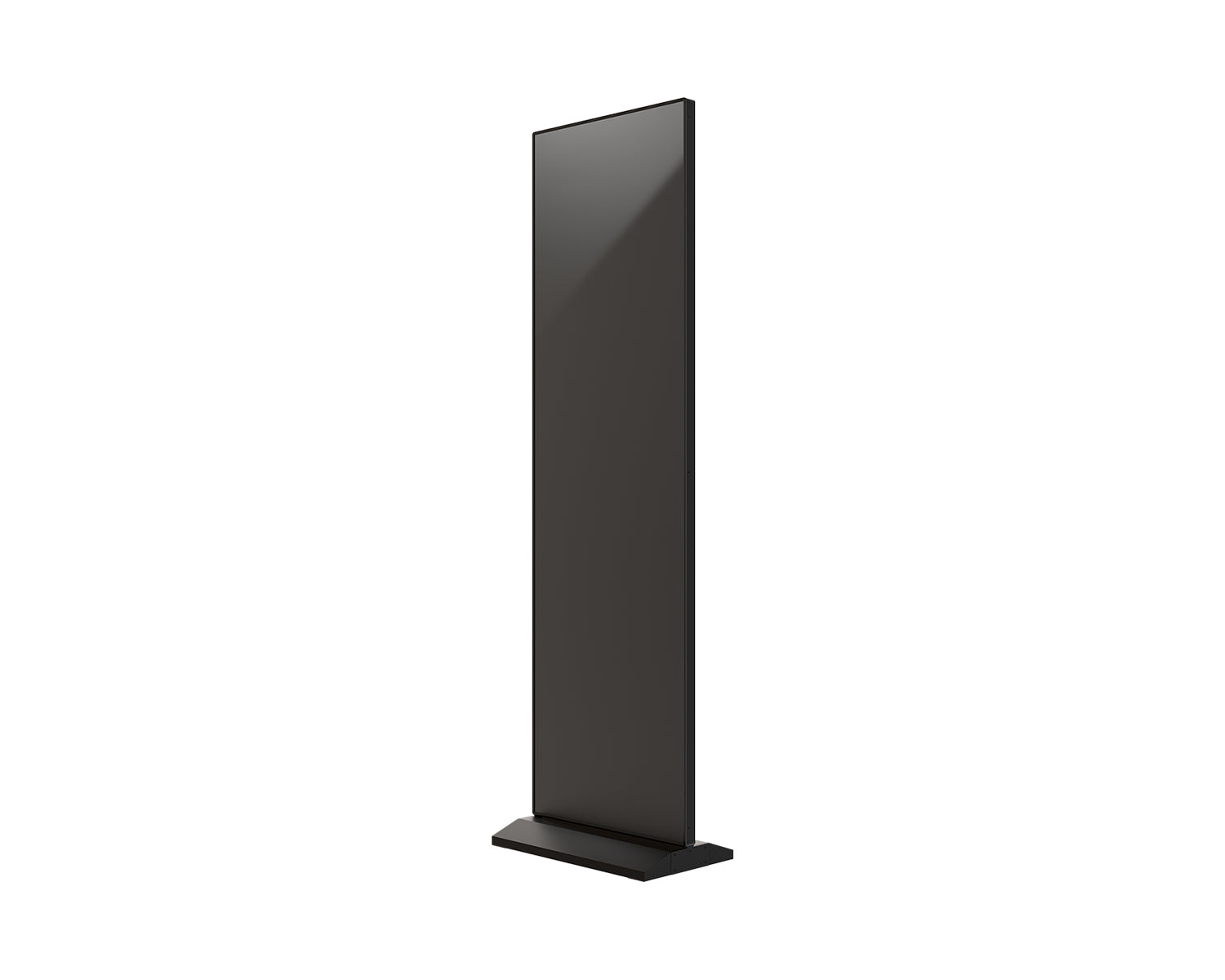

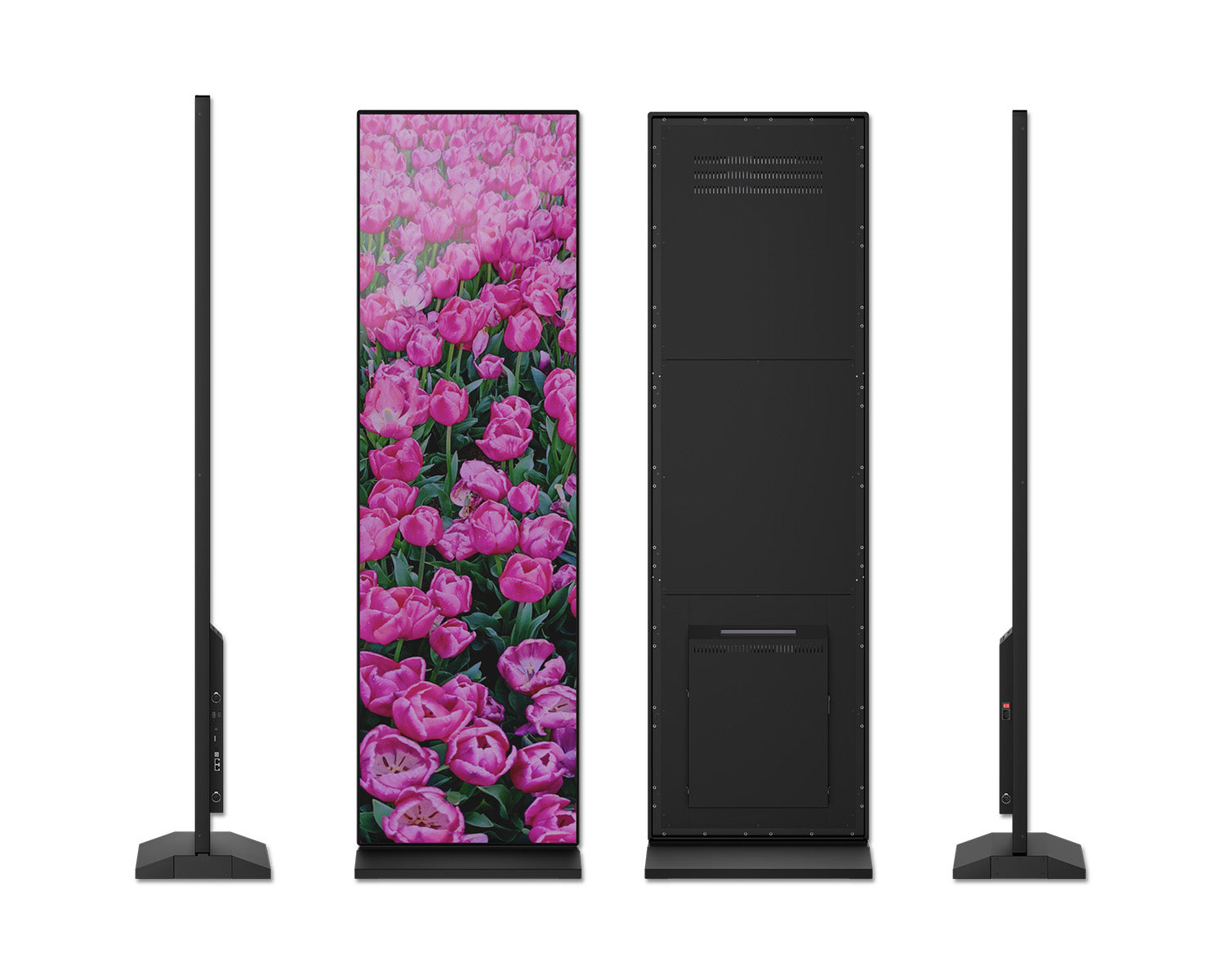

The Theatrixx Totem is a standalone, fully autonomous digital signage display. It can be used either has a free-standing structure (with optional locking casters) or as a digital power installed to a wall or suspended from the ceiling in any orientation. Its direct-view LED display ensures readability even in bright environments, and a strong plexiglass cover protects its surface against long term damage.

Each Totem can be connected to WiFi and loaded with new content with just a few clicks. A user-friendly PC application allows the management of your fleet of Totems on a local network, and creating new slides is as easy as designing a PowerPoint slide show. The software also provides detailed logging such as play counts, easily exportable to Excel. Totems can even be controlled from iOS or Android devices, and an optional, subscription-based cloud platform allows the handling of a larger fleet of device from anywhere in the world.

Product Features

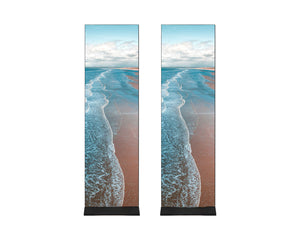

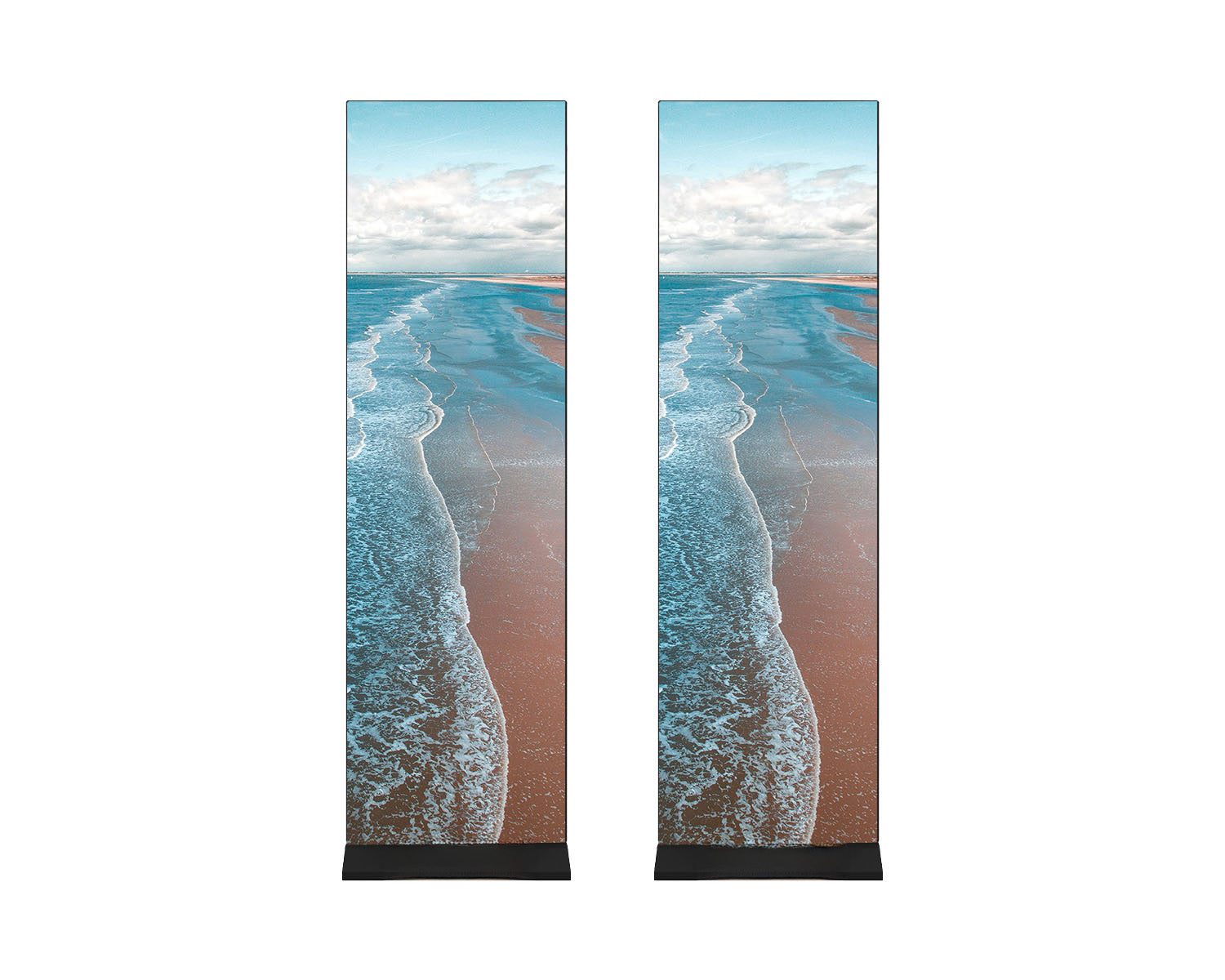

• Bundle includes 2 x Totems (1.8mm Pixel Pitch) and Flightcase

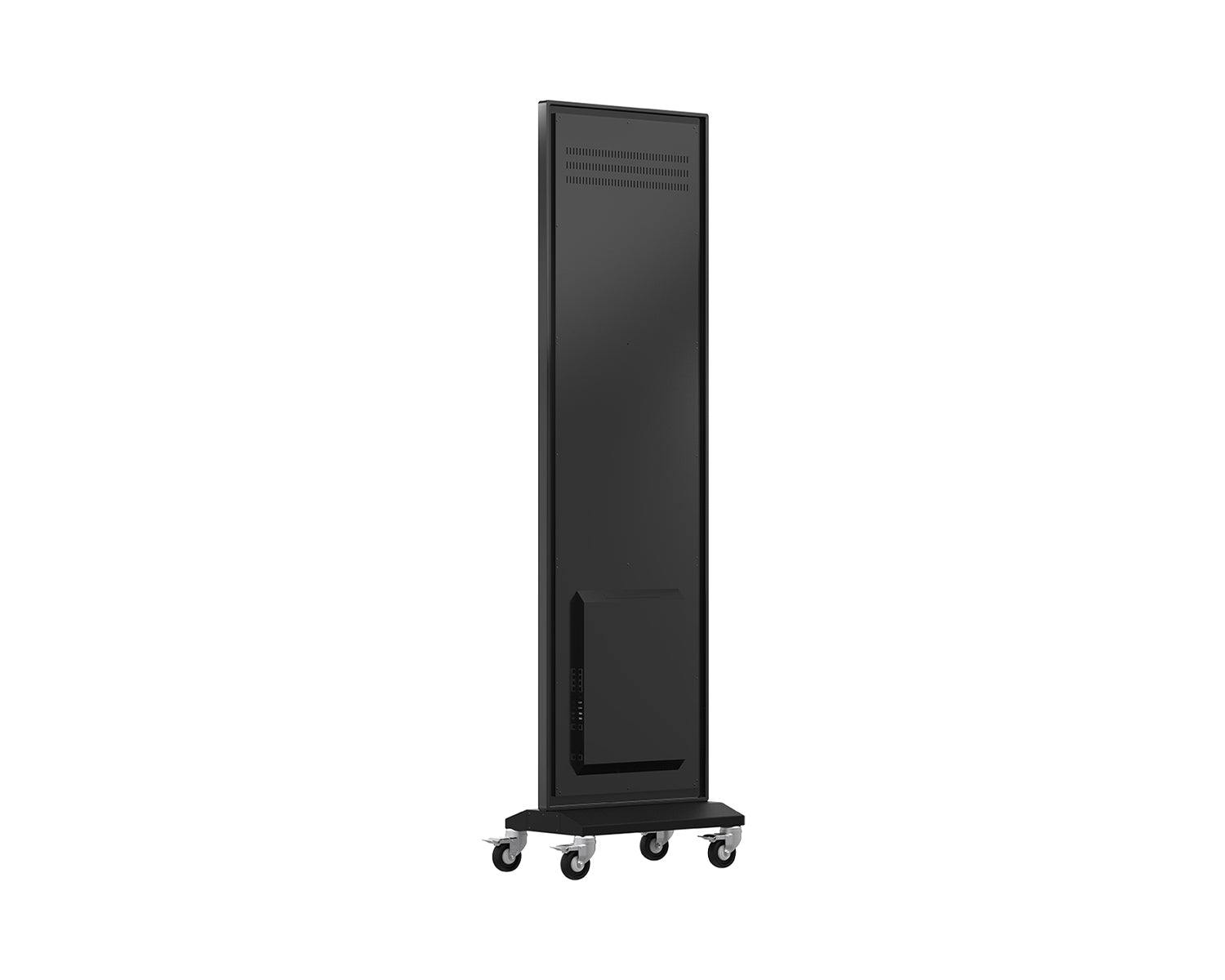

• Multiple mounting options: free-standing, wheeled, wall hanged and suspended

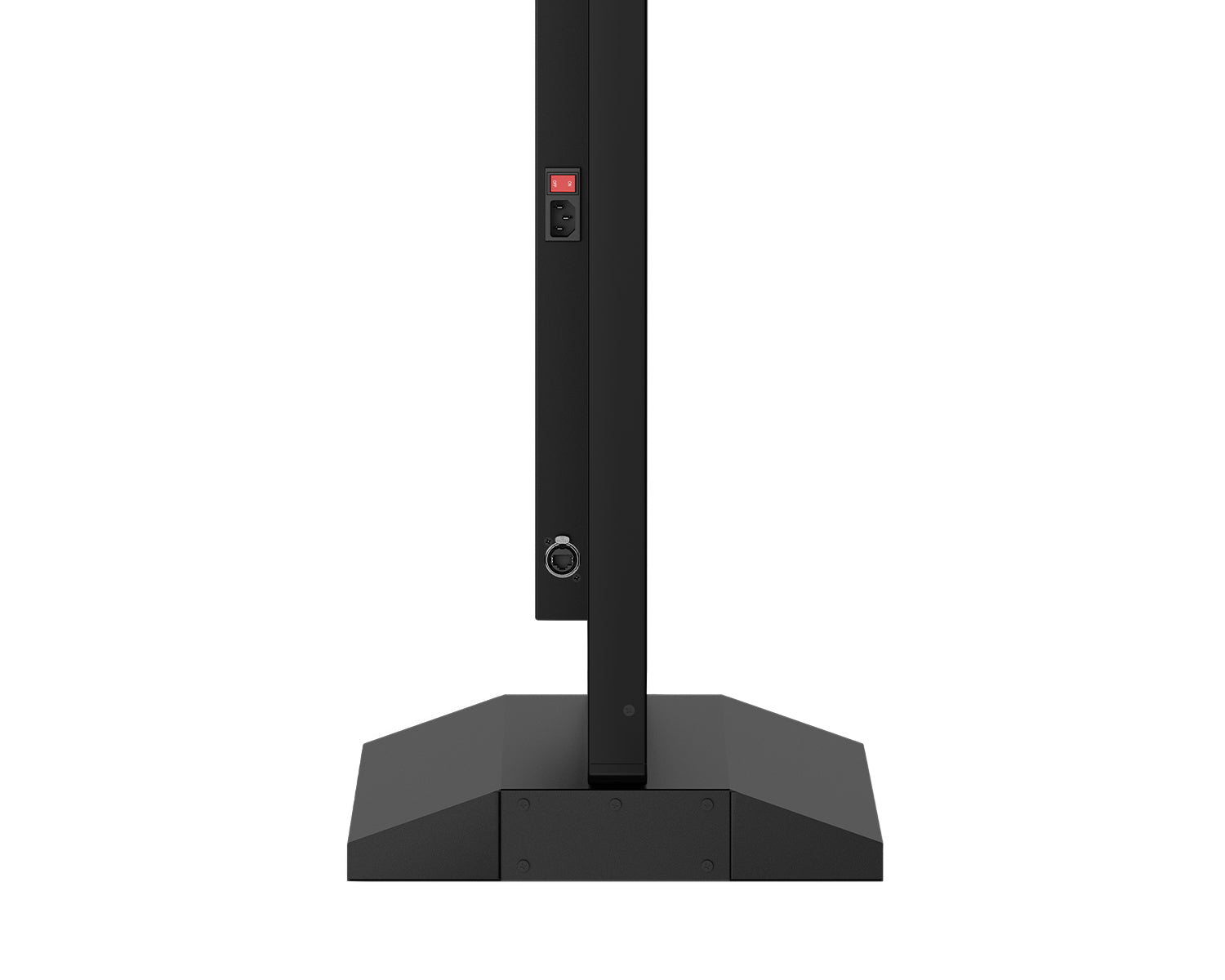

• Built-in power supply; single 120VAC inlet
• Plug and Play operation; user-friendly software gets you up and running in minutes
• Built-in Wi-Fi access point and client; easily connect to each device using your computer or smartphone
• Fully autonomous professional digital signage player built-in with scheduler

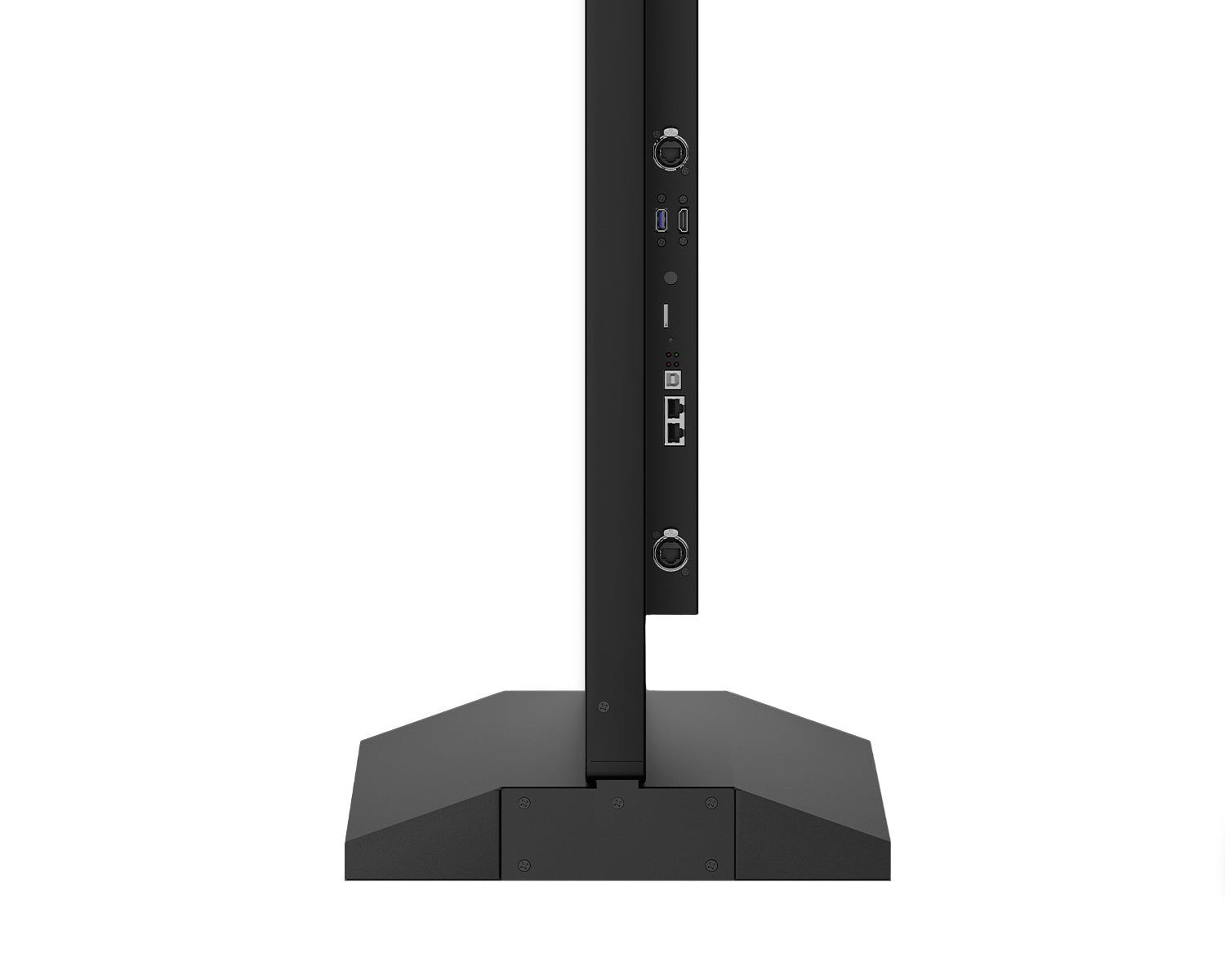

• Auxiliary HDMI input for external video sources
• Daisy-chainable; Connect up to 6 Totems together to create a perfectly synchronised display
• Integrated remote monitoring, diagnostics and logging of both the display and the player

Product Specifications

Pixel

• Packaging: RGB SMD 3-in1
• Pixel Pitch: 1.80 mm

Mechanical

• Module Resolution: 160 x 120 px
• Module Dimensions: 288 x 216 mm (11.34 x 8.5 in)
• Panel Resolution: 320 x 1,080 px
• Installation: 5 mounting points at the back, floor stand
• Mounting points: 4 x M8 threads in 550 x 550 mm pattern
• Cooling: Passive

Optical

• Brightness: 600 nits after calibration
• Lifespan: 50,000 hours
• Colour Temperature: 2,500 - 6,500 K
• Horizontal Viewing Angle: 160°
• Vertical Viewing Angle: 160°

Processing

• Driving Mode: 1/40
• Distribution Architecture: Common Anode
• Grayscale Depth: 17 bits
• Refresh Rate: 3,840 Hz
• Video Frame Rate 60 Hz
• LED Control System: Novastar Taurus Series (T50)

Environmental Specifications

• Protection Rating: IP40
• Operating Temperature: - 10°C @ + 50°C
• Storage Temperature: -40 ºC @ +70 ºC
• Relative Humidity: 10% to 95% non-condensing

Power Requirements

• Max Power Consumption: 640 W/unit
• Average Power Consumption: 250 W/unit
• Input Voltage: 100-240V, 50-60Hz auto-ranging

Certifications & Compliance

• Electrical Safety: UL 60950-1:2007, CSA C22.2#60950-1:2007
• Electro Magnetic Compliance: FCC Part 15 Class A, ICES-003/NMB-003 Class A
• Warranty: 2 years

Physical Specifications

• Width: 596 mm (23.46 in)
• Height: 1,964 mm (77.32 in)
• Depth: 39 mm (1.53 in) - excl. control box and base
• Weight: 36 kg (79.4 lbs)
