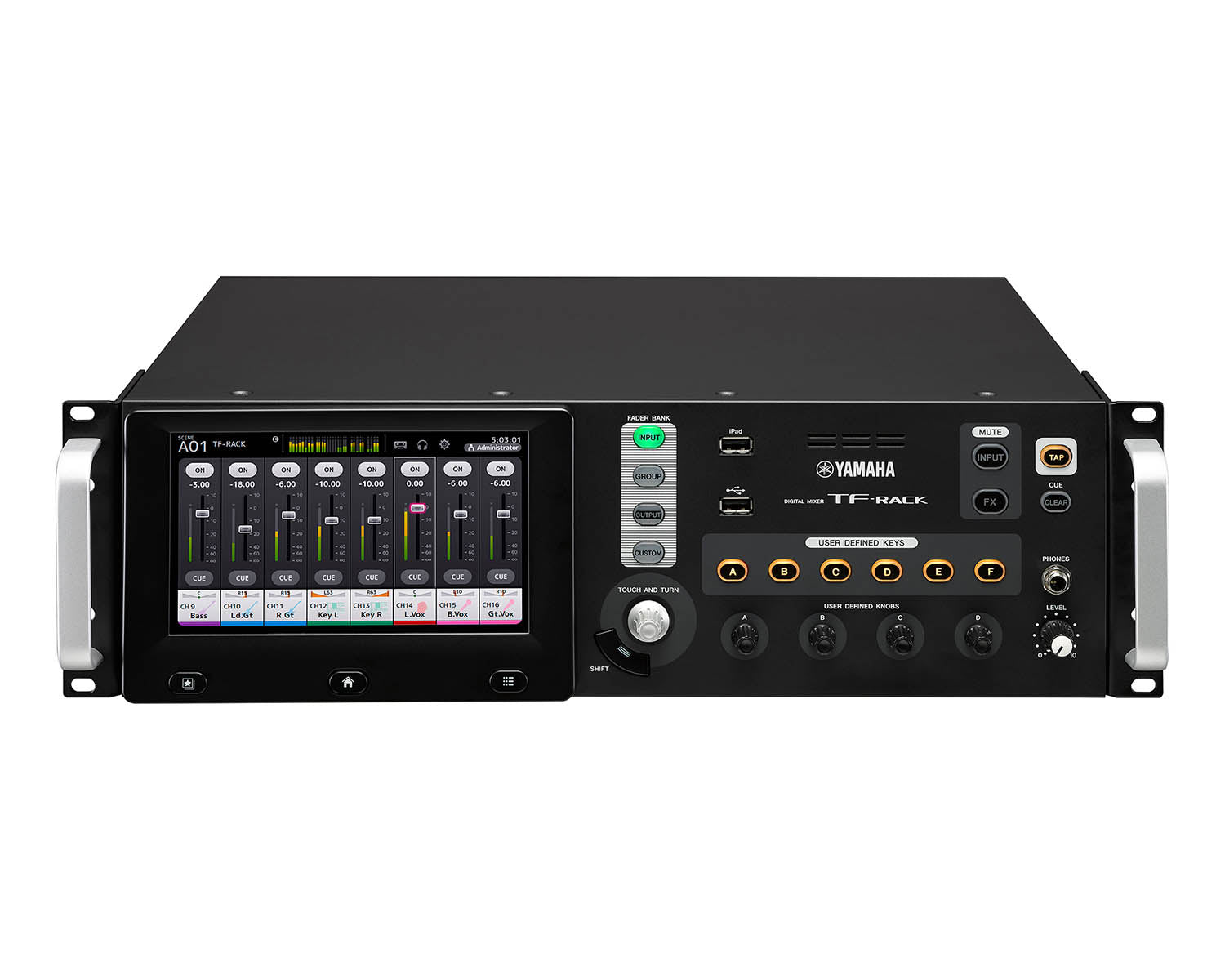

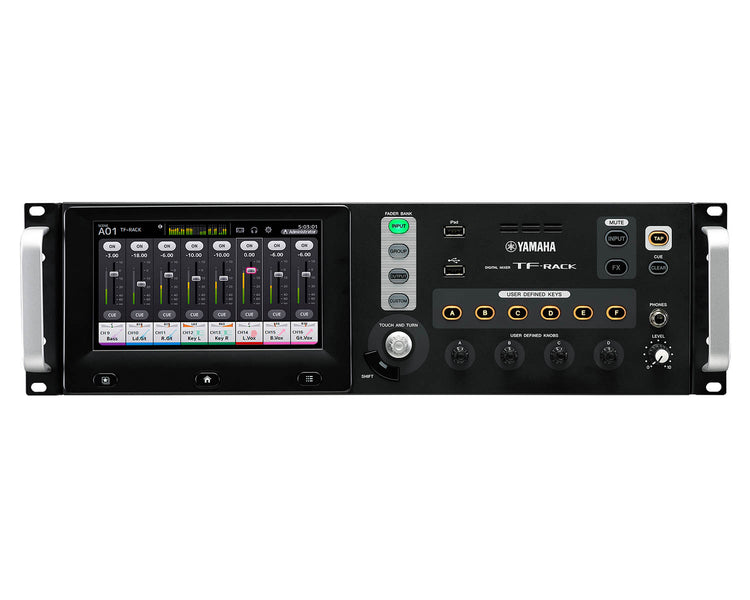

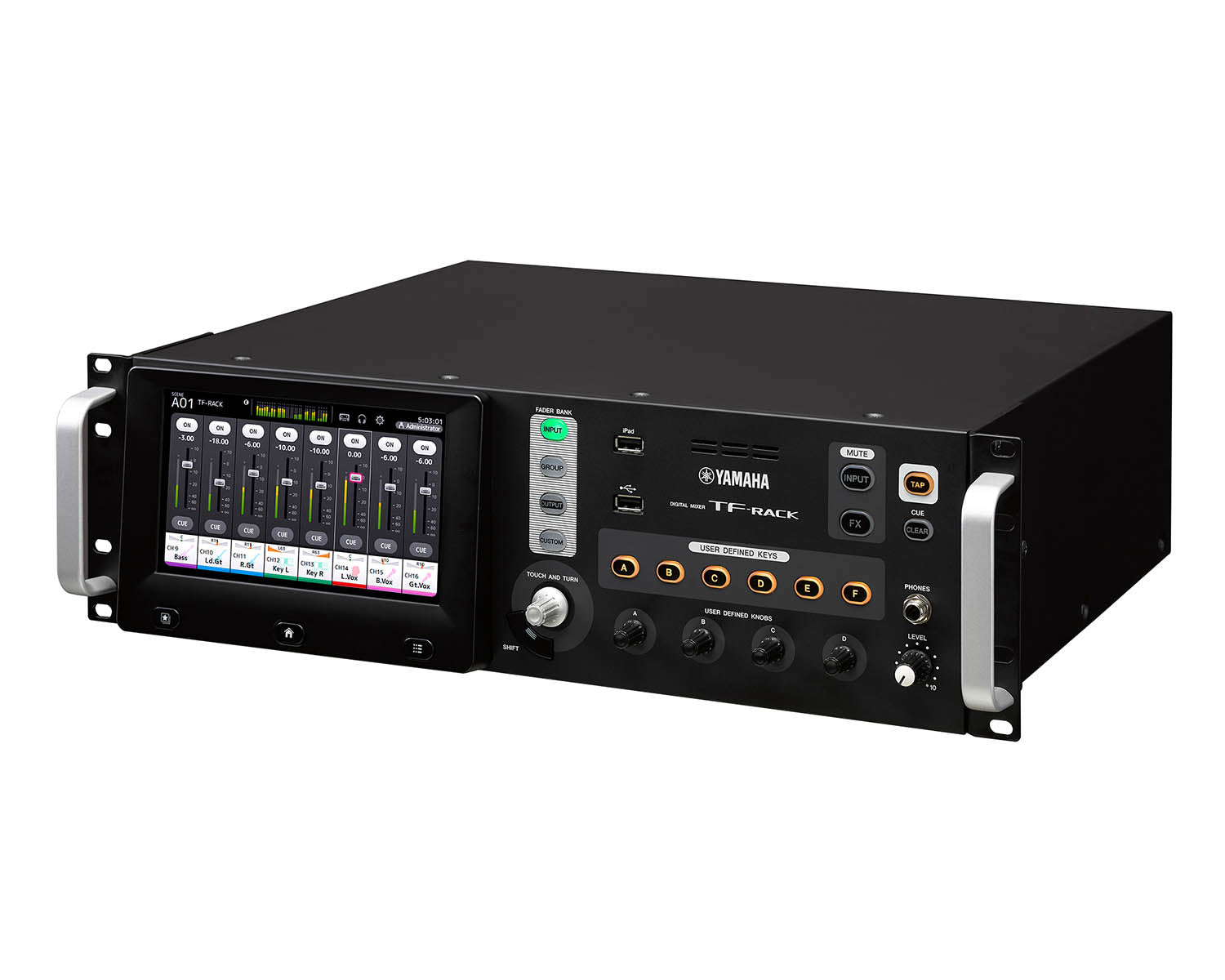

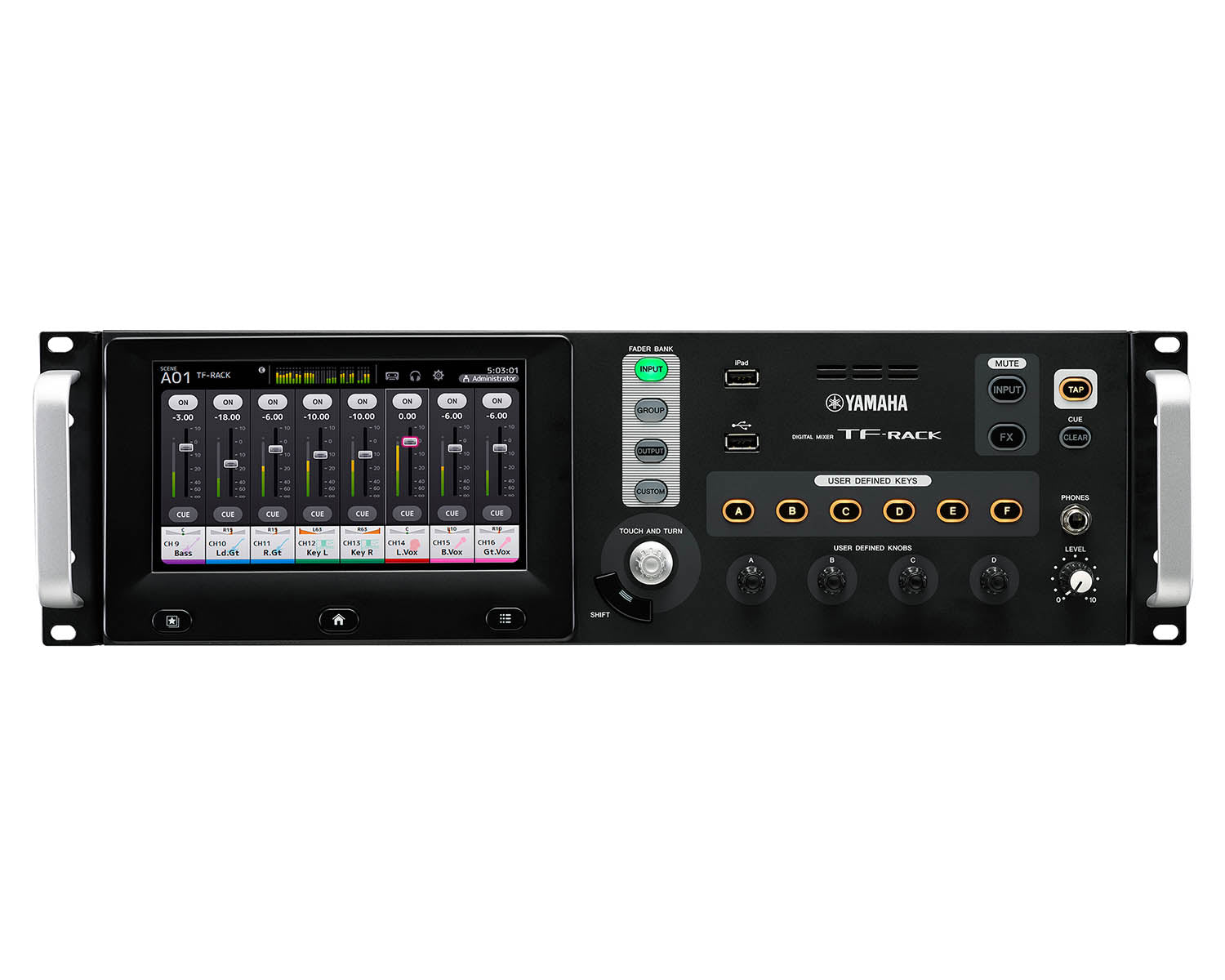

TF-RACK offers all-in-one mixing and processing capability for small to medium scale live sound, corporate speech events, installations and much more. It packs intuitive user interface, natural control flow, digital effects/processing units and many shortcuts to great sound into a compact, portable rack-style unit.

Product Features

• The scene memory features banks A and B, both capable of holding up to 100 scenes each
• 1-knob EQ feature that provides improved speed and smooth operation
• Features a selection of optimized QuickPro Presets
• Over 100 presets for input channels that range from vocals to drum sets
• For output channels there are several presets for speaker systems and in-ear monitors with many variations to suit all environments and room sizes
• New recallable versions of Yamaha’s acclaimed D-PRE microphone preamplifier
• TF consoles feature eight powerful processing/effect units which feature the same type of SPX processors that have become standards in recording and live sound applications.

Product Specifcations

General

• Sampling frequency rate: Internal 48 kHz
• Signal delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
• Fader: Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
• Total harmonic distortion: Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
• Frequency response: +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
• Dynamic range: 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
• Input channel functions: 8 DCA Groups
• Crosstalk: –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
• On-board processors: DSP 8 Effects + 10 GEQ
• Power requirements: 100–240 V 50/60 Hz
• Power consumption: 85 W

I/O

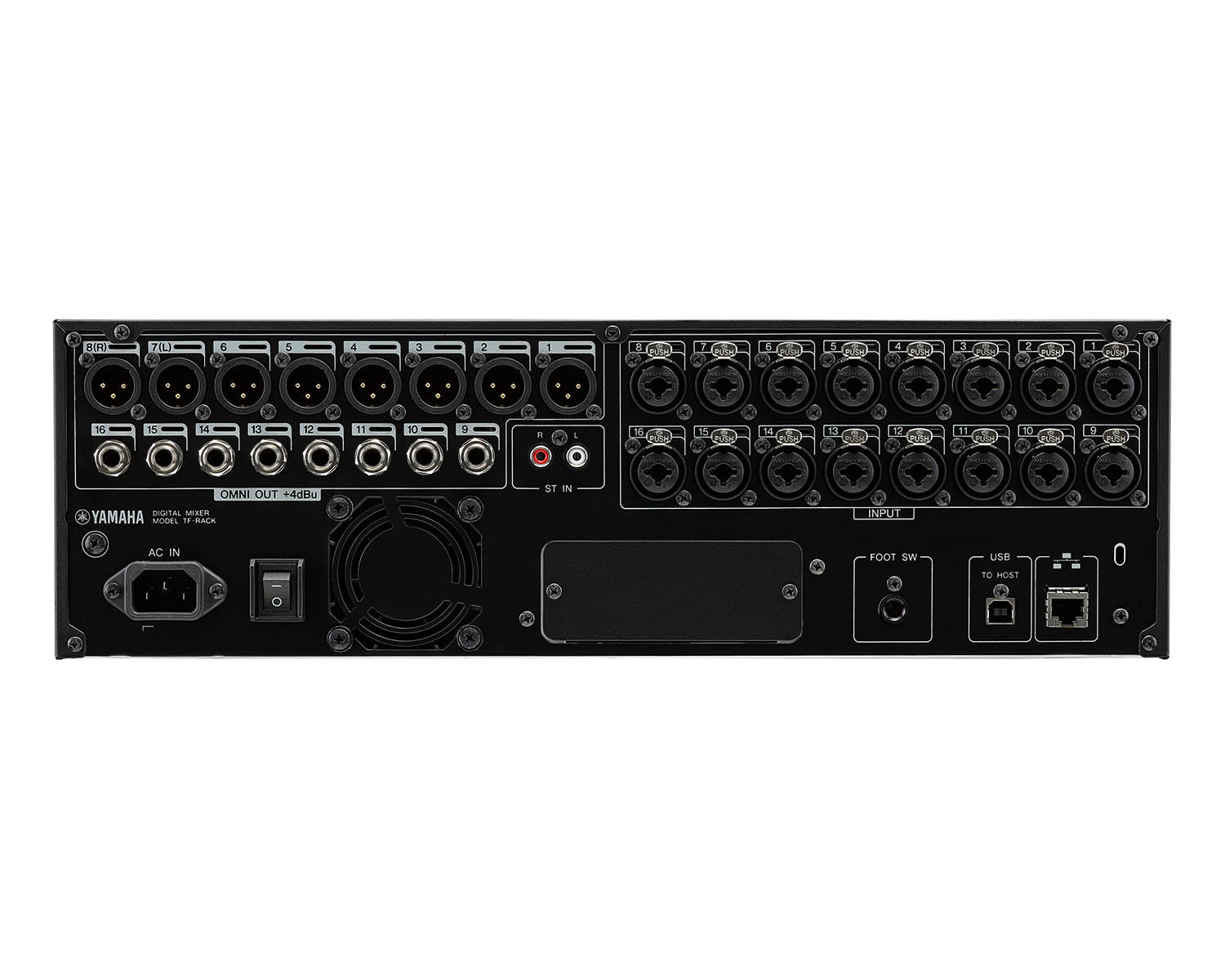

• Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
• Outputs: 16 (8 XLR + 8 TRS phone)
• Expansion slots: 1 (for NY64-D)

Mixing Capacity

• Input Channels: 40 (32 mono + 2 stereo + 2 return)
• Aux Buses: 20 (8 mono + 6 stereo)
• Stereo Buses: 1
• Sub Buses: 1

Hum & Noise Level

• Equivalent input noise–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
• Residual output noise–85 dBu, ST master off (Measured with an A-Weight filter)

Physical & Dimensions

• Height: 132mm
• Width: 480mm
• Depth: 409mm
• Weight: 9.2kg
