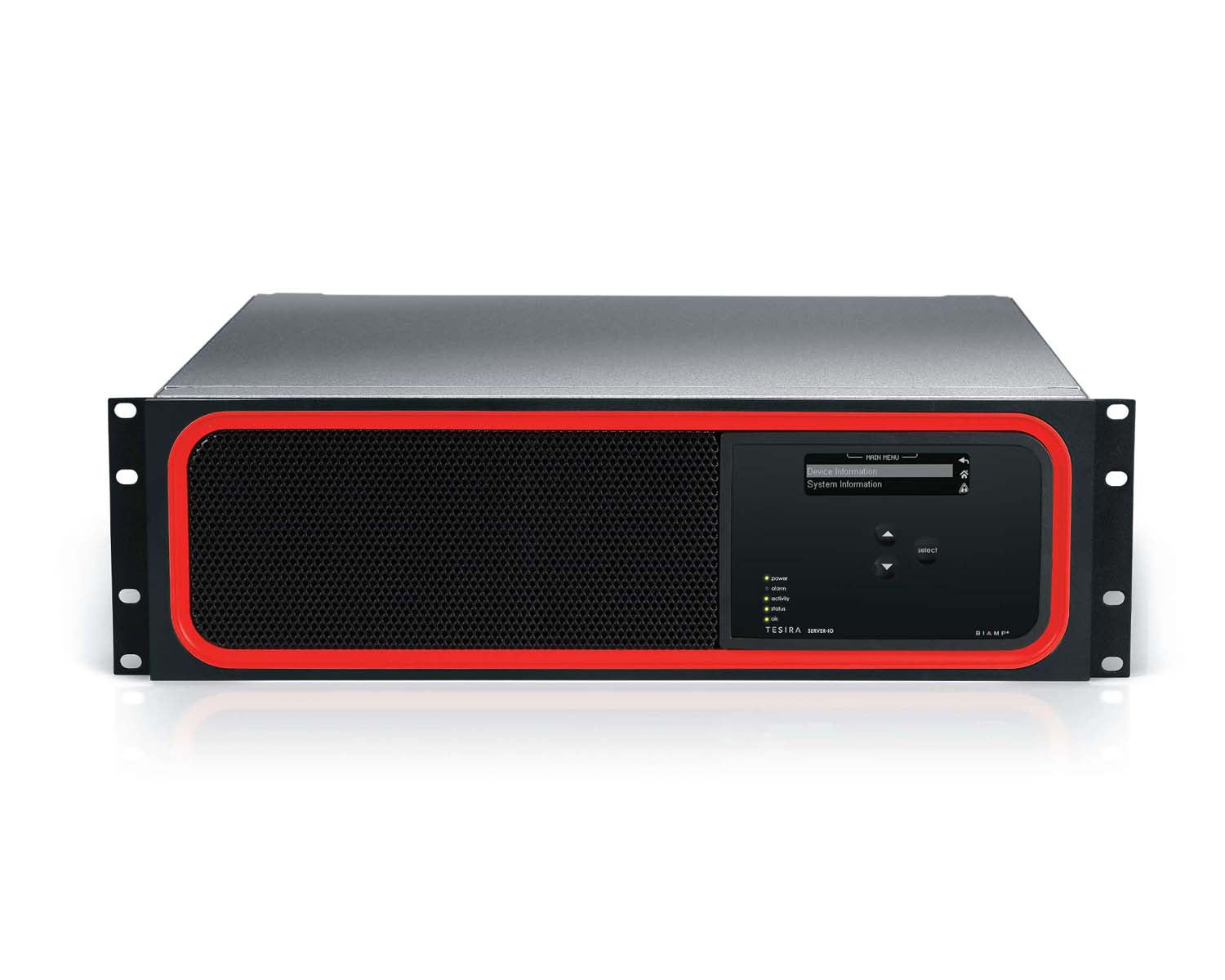

The Tesira SERVER-IO is a digital network server. It is factory configured with one DSP-2 card and is capable of handling up to two additional DSP-2 cards. The SERVER-IO has capacity for up to three total audio networking cards per server. The combinations of networking cards can include up to two AVB-1 Audio Video Bridging network cards, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration. The SERVER-IO can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. mic and line level, VoIP, and FXO telephone interface). The SERVER-IO can be used as a standalone device or with Tesira expanders to form a highly scalable audio network.

Product Features

• Supports up to 3 DSP-2 cards
• Supports up to 12 I/O cards with a maximum of 48 channels of analog audio
• Up to 420 x 420 channels of digital I/O over AVB
• Supports optional 32 x 32 CobraNet audio networking
• Supports optional 64 x 64 Dante audio networking
• System configuration and control via Ethernet or serial connection
• Front panel OLED display for device and system information
• SpeechSense™ and AmbientSense™ processing algorithms
• Signal processing via intuitive software allows configuration and control for: signal routing and mixing, equalization, filtering, dynamics, delay and much more
• Extensive input, output and logic expansion devices supported as part of the Tesira digital audio networking platform
• Rack mountable (3RU)
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Product Specifications

General

• Frequency Response: +0/-0.25dB
• (20Hz~20kHz @ +4dBu)
• THD+N (20Hz~20kHz):
  • @ 0dB Gain, +4dBu In < 0.006%
  • @ 54dB Gain, -50dBu In < 0.040%
• EIN (20Hz~20kHz, 66dB Gain, 150Ω): < -125dBu
• Dynamic Range (20Hz~20kHz, 0dB): > 108dB
• Input Impedance (balanced): 8kΩ
• Output Impedance (balanced): 200Ω
• Maximum Input: +24dBu
• Maximum Output: +24dBu
• Input Gain Range (6dB Steps): 0 - 66dB
• Phantom Power:
  • +48 VDC
  • (7mA/input)
• Cross Talk (channel to channel @ 1kHz):
  • @ 0dB Gain, +4dBu In < -85dB
  • @ 54dB Gain, -50dBu In < -75dB
• Sampling Rate: 48kHz
• A/D – D/A Converters: 24-bit
• Power Consumption: (100~240VAC 50/60Hz): < 150W

Physical & Dimensions

• Height: 133mm
• Width: 483mm
• Depth: 432mm
• Weight: 18lbs
