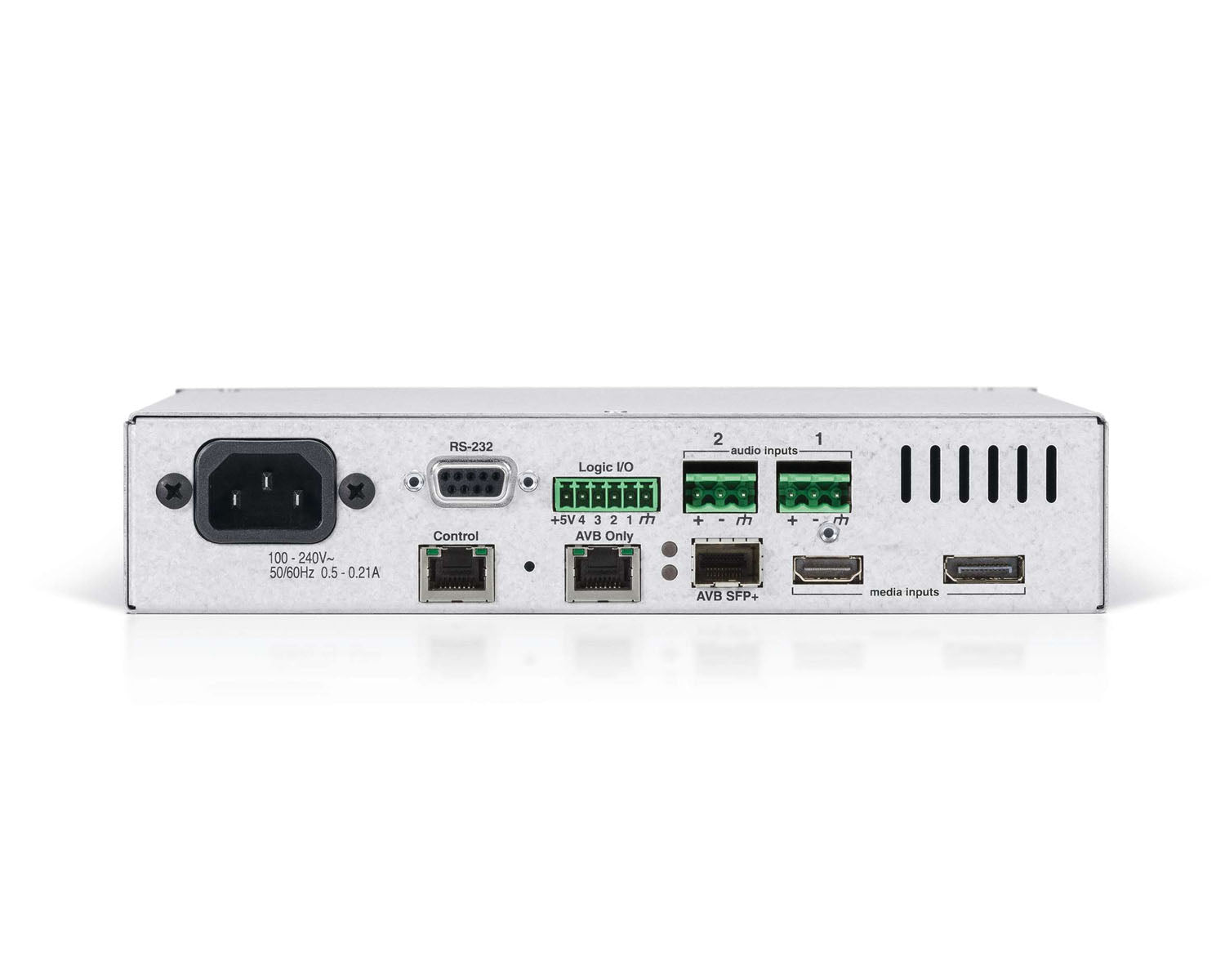

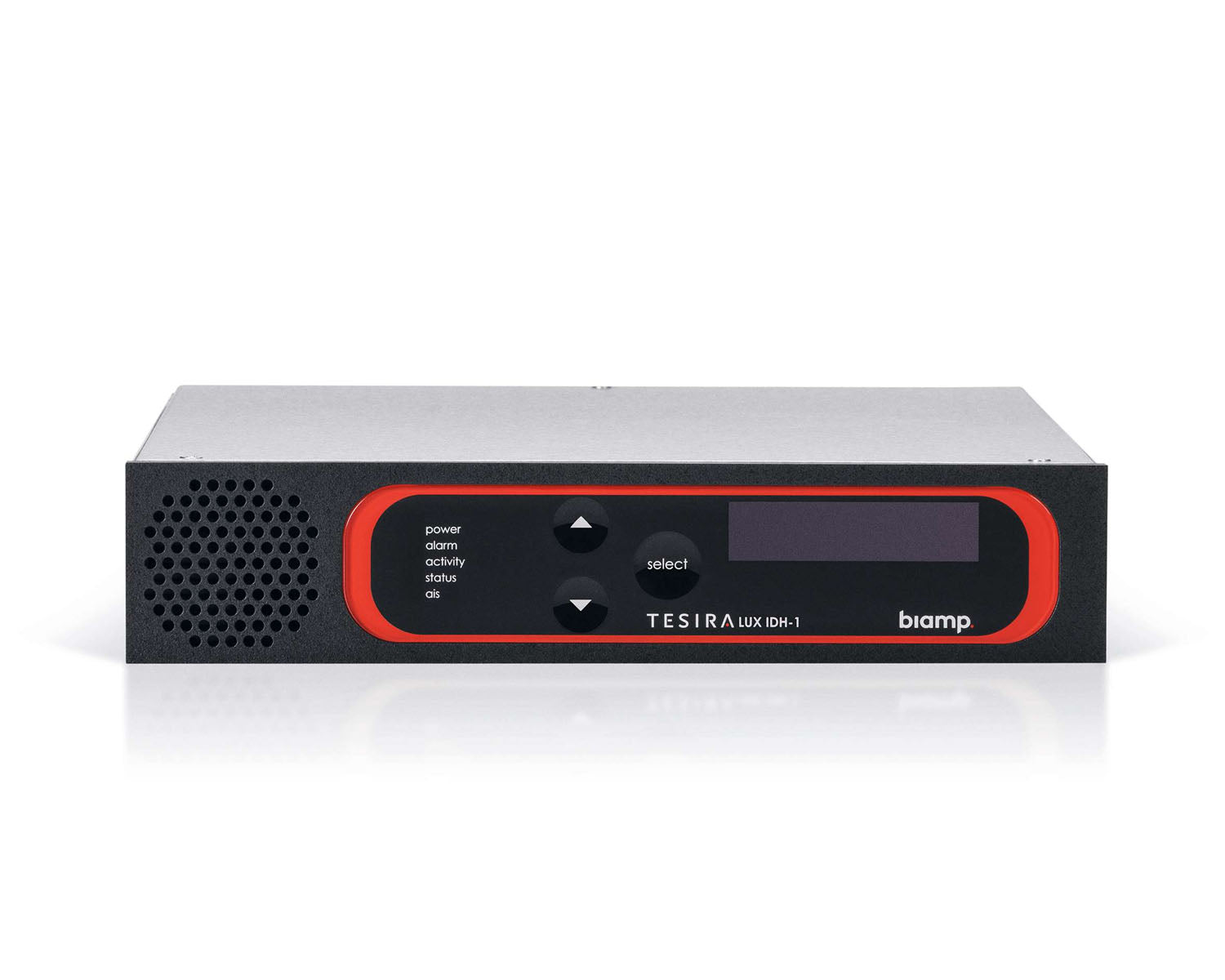

The TesiraLUX IDH-1 is an AVB/TSN enabled video encoder capable of transmitting video signals up to and including 4K60. The IDH-1 functions as a video server-class device in a Tesira media system and is configured through the Tesira configuration software. Acting as an AVB talker, the IDH-1 fully integrates digital audio and video on a single network, allowing for simplified lip sync management and end-to-end network transit latencies of less than 1.5 frames. Multiple software-based options are available for managing bandwidth, including setting maximum resolution, frame rate floor, and/or a rate of compression. The AVB/TSN streams can be transmitted over 1Gb or 10Gb ports while control signals are managed via a separate 1Gb Ethernet port. The IDH-1 accepts 8 channels of PCM audio for embedding/de-embedding, and includes 2 mic/line level analogue inputs. The TesiraLUX IDH-1 can be used as a standalone device (paired with a TesiraLUX OH-1) or can be combined with other Tesira servers, expanders, endpoints, and controllers.

Product Features

Includes one HDMI® port and one DisplayPort™ 1.2 port
Accepts video signals up to and including 4K60 with 4:4:4 subsampling
Supports a virtual matrix of up to 128 devices
Flexible color space including Rec. 2020
Integrated lip sync management
Supports 8 channel PCM audio for embedding/de-embedding
Automated EDID management between TesiraLUX and the input source
Supports HDCP 2.2 protected content
Supports port authentication via IEEE 802.1X
Flexible bandwidth management options
2 mic/line level analogue audio inputs
4 logic connections can be used as inputs or outputs
Serial port for the output of command strings
Half-rack chassis
Optional mounting accessories available
Covered by Biamp Systems’ 5-year warranty

Product Specifications

General

Control Connection: RJ-45 with Ethernet cable
- (Cat 5e and above)
Media Connections:
- 1Gb: RJ-45 twisted-pair Ethernet
  - (Cat 5e and above)
- 10Gb: 10G fiber SFP+
Video Inputs:
- Supported Resolutions: Up to 4K60
- Physical Interfaces: HDMI, DisplayPort
- Colourspace: Up to Rec. 2020
- Colour Formats: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Colour Depth: 8-bit, 10-bit, 12-bit, 16-bit
- Network Transit Latency: 1.5 frames (25ms @ 60fps)
- HDMI Audio Formats: 8ch PCM
Logic I/O:
- Logic Input Trigger: Contact Closure or 5V TTL
- LED Driver: 5V/10mA per output
- Logic Output Type: Open Collector;
- Sink 40V/300mA per output
RS-232: 115200/8-N-1
Analog Audio Inputs:
- Frequency Response (20Hz~20kHz @ +4dBu): +0/-0.25dB
- THD+N (20Hz~20kHz):
  - @ 0dB Gain, +4dBu In: < 0.006%
  - @ 54dB Gain, -50dBu In: < 0.040%
- EIN (20Hz~20kHz, 66dB Gain, 150Ω): < -125dBu
- Dynamic Range (20Hz~20kHz, 0dB): > 108dB
- Input Impedance (balanced): 8kΩ
- Maximum Input: +24dBu
- Input Gain Range (6dB Steps): 0 - 66dB
- Crosstalk, channel to channel, 1kHz:
  - 0dB gain, +4dBu input: < -85 dB
  - 54dB gain, -50dBu input: < -75 dB
- Sampling Rate: 48 kHz
- A/D Converters: 24-bit
Phantom Power: +48 VDC (7mA/input)
Current Draw (100-240VAC 50/60Hz): 0.5-0.21A
Environmental:
- Ambient Operating
- Temperature Range: 32 - 104° F (0 - 40° C)
- Humidity: 0-95% relative humidity (non-condensing)
- Altitude: 0-6,600 ft (0-2000m) MSL
