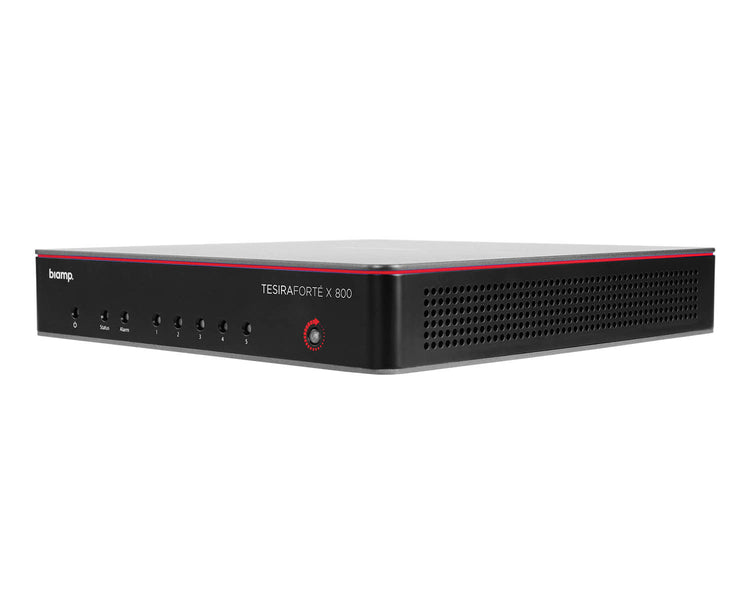

BIATFX8 - Biamp TesiraFORTE X 800 8ch Meeting Room DSP 4xPoE and Ports AVB or Dante Image 1

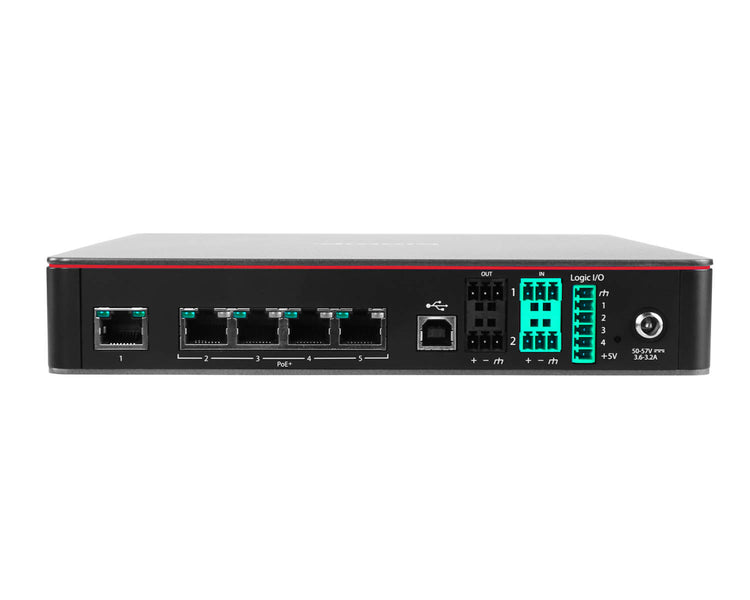

BIATFX8 - Biamp TesiraFORTE X 800 8ch Meeting Room DSP 4xPoE and Ports AVB or Dante Image 2

TesiraFORTÉ® X 800 is a meeting room DSP featuring multiple network and analogue audio connection points, with 8 channels of Acoustic Echo Cancellation (AEC) assignable across any digital or analogue input. Five 1 Gigabit Ethernet ports are provided, four of which are PoE+ powered, and all of which support media and control traffic of various types including AVB, Dante™, and VoIP.

A USB port also supports 1x1 mono or 2x2 stereo USB audio along with HID synchronization allowing the device to act as a conferencing audio peripheral to systems such as Biamp’s Modena™ family or Unified Communications platforms.

Biamp Launch™ technology provides the capability for device discovery and tuning to be undertaken without the need for custom programming, and additionally provides the user with a full performance report of the space upon completion.

TesiraFORTÉ X 800 provides extensive audio processing, including but not limited to: AEC technology, signal routing and mixing, equalization, filtering, dynamics, and delay, as well as control, monitoring, and diagnostic tools. TesiraFORTÉ X 800 is auto-configurable using Biamp Launch but also allows users the option to manually override and completely customize its programming using Tesira software.

Product Features

Up to 64x64 AVB Streams of digital audio networking with Biamp AVB devices
Up to 128 x 128 channels of digital audio networking with Biamp AVB devices
32 x 32 channels of digital audio networking via the Dante protocol
AES67-enabled Dante endpoint
2 mic/line level inputs, 2 mic/line level outputs
Five 1 Gigabit Ethernet Ports
Four ports support PoE+ power (IEEE 802.3.at Class 4, 30W)
Up to 2x2 channels of configurable USB audio
8 AEC channels assignable to any input
4-pin GPIO
Surface mountable with included bracket
Supports port authentication via IEEE 802.1X
SIP VoIP interface via Gigabit Ethernet connection
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ 5-year warranty

Product Specifications

Frequency Response:
- 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
THD+N (22Hz to 22kHz):
- 0dB gain, +4dBu input: < 0.006%
- 54dB gain, -50dBu input: < 0.040%
EIN (no weighting, 22Hz to 22kHz): < -125dBu
Dynamic Range (in presence of signal)
- 22Hz to 22kHz, 0dB gain: > 108dB
Input Impedance (balanced): 8kΩ
Output Impedance (balanced): 207Ω
Maximum Input: +24dBu
Maximum Output (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
Maximum Number of AVB Channels: 128x128
Maximum Number of AVB Streams: 64x64
Maximum AVB Stream Passthrough: 150
Maximum Number of Dante Channels: 32x32
Maximum Number of Dante Flows: 32x32
Input Gain Range (6dB steps): 0-66dB
Overall Dimensions:
- Height: 1.47 inches (37.3 mm)
- Width: 8.11 inches (206 mm)
- Depth: 8.11 inches (206 mm)
- Weight: 1.9 lbs (0.86kg)
Phantom Power: +48VDC (7mA/input)
Crosstalk, channel to channel, 1 kHz:
- 0dB gain, +4dBu input: < -85dB
- 54dB gain, -50dBu input: < -75dB
Sampling Rate: 48kHz
A/D - D/A Converters: 24-bit
Power Consumption:
- 100-240VAC 50/60Hz: < 150W
USB:
- Bit Depth: 24-bit
- Number of Channels: up to 2x2
- Sample Rate: 48kHz
Environment:
- Ambient Operating
- Temperature Range: 32-104° F (0–40° C)
- Humidity: 0–98%, non-condensing
- Altitude: 0-6,600 feet (0–2000 Meters) MSL
Compliance:
- FCC Part 15B (USA)
- Canada ICES-003 (A) / NMB-003 (A)
- CE marked (Europe)
- UL und C-UL listed (USA and Canada)
- RCM (Australia)
- RoHS Directive (Europe)
