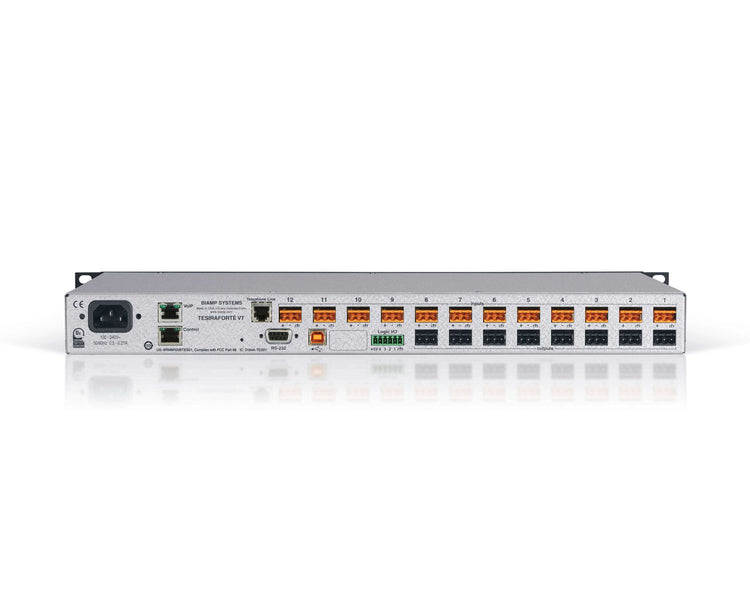

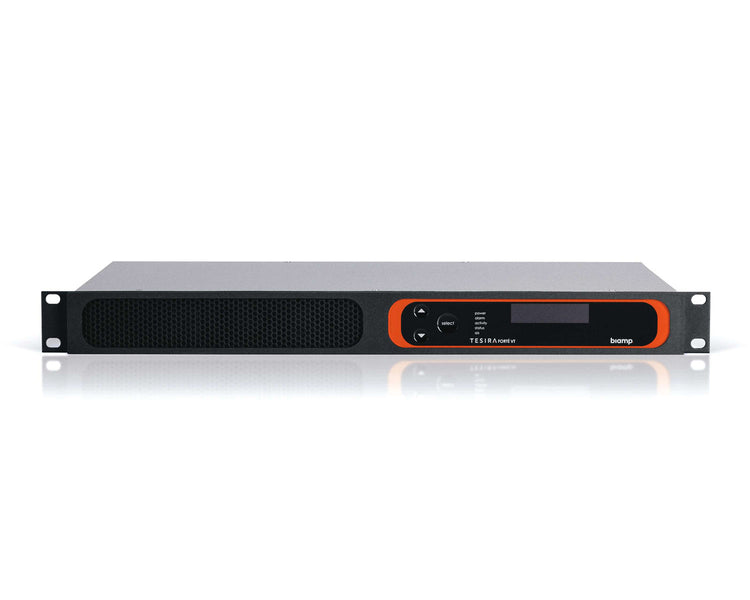

The TesiraFORTÉ VT is a digital audio server with 12 analogue inputs and 8 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 12 inputs. It includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, and a standard FXO telephone interface.

Product Features

• 12 mic/line level inputs with AEC, 8 mic/line level outputs
• Gigabit Ethernet port
• RS-232 serial port
• 4-pin GPIO
• 2-line OLED display with capacitive-touch navigation
• Rack mountable (1RU)
• System configuration and control via Ethernet
• Internal universal power supply
• SIP VoIP interface via RJ-45 connector
• Standard FXO telephone interface via RJ-11 connector
• Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalisation, filtering, and delay
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Product Specifications

General

• Frequency Response:
  • 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
• THD+N (22Hz to 22kHz):
• 0dB gain, +4dBu input: < 0.006%
• 54dB gain, -50dBu input: < 0.040%
• EIN (no weighting, 22Hz to 22kHz): < -125dBu
• Dynamic Range (in presence of signal)
  • 22Hz to 22kHz, 0dB gain: > 108dB
• Input Impedance (balanced): 8kΩ
• Output Impedance (balanced): 207Ω
• Maximum Input: +24dBu
• Maximum Output (selectable): +24dBu, +18dBu, +12dBu, +6dBu, 0dBu, -31dBu
• Input Gain Range (6dB steps): 0-66dB
• Phantom Power: +48VDC (7mA/input)
• Crosstalk, channel to channel, 1 kHz:
  • 0dB gain, +4dBu input: < -85dB
  • 54dB gain, -50dBu input: < -75dB
• Sampling Rate: 48kHz
• A/D - D/A Converters: 24-bit
• Power Consumption:
  • 100-240VAC 50/60Hz: < 35W
• USB:
  • Bit Depth: 16- or 24-bit
  • Number of Channels: up to 8
  • Sample Rate: 48kHz
• Environment:
  • Ambient Operating
  • Temperature Range: 32-104° F (0–40° C)
  • Humidity: 0–98%, non-condensing
  • Altitude: 0-6,600 feet (0–2000 Meters) MSL

Overall Dimensions:

• Height: 1.75 inches (44 mm)
• Width: 19.0 inches (483 mm)
• Depth: 10.5 inches (267 mm)
• Weight: 8 lbs (3.63 kg)

Compliance:

• FCC Part 15B (USA)
• FCC Part 68 (USA)
• Industry Canada CS-03 (Canada)
• CE marked (Europe)
• UL und C-UL listed (USA and Canada)
• RCM (Australia)
• RoHS Directive (Europe)
