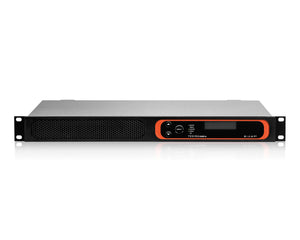

BIATSFAI - Biamp TesiraFORTE AI Fixed I or O DSP 12 Mic or Line In and 8 Mic or Line Out 1U Image 1

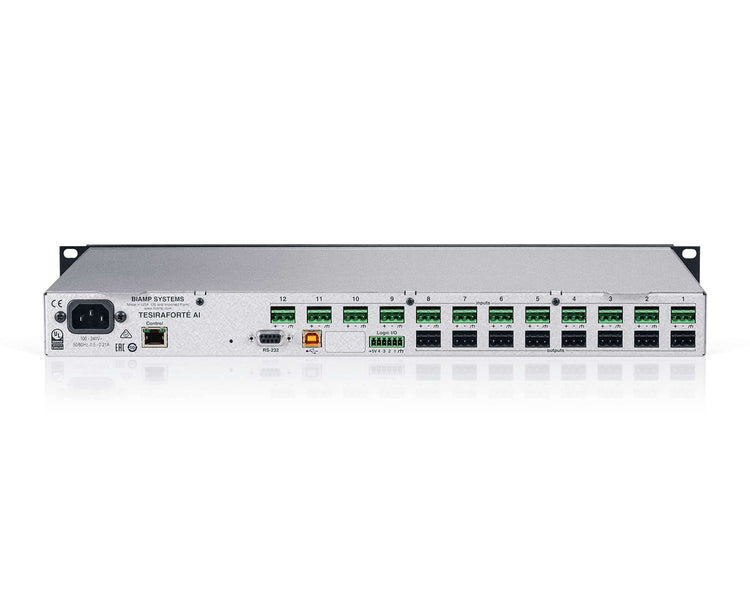

BIATSFAI - Biamp TesiraFORTE AI Fixed I or O DSP 12 Mic or Line In and 8 Mic or Line Out 1U Image 2

TesiraFORTÉ® AI is a fixed I/O DSP with 12 analog inputs and 8 analog outputs and includes up to 8 channels of configurable USB audio. USB audio allows TesiraFORTÉ to interface directly with USB audio hosts, as well as to take full advantage of today’s most sophisticated conferencing solutions. TesiraFORTÉ AI also provides extensive audio processing, including but not limited to: signal routing and mixing, equalization, filtering, dynamics, and delay, as well as control, monitoring, and diagnostic tools; all configured through the Tesira configuration software. TesiraFORTÉ AI is best-suited for small- to medium-sized rooms that require highquality audio solutions using voice lift and mix-minus, such as conference rooms or council chambers.

Product Features

12 mic/line level inputs, 8 mic/line level outputs
Gigabit Ethernet port
Up to 8 channels of configurable USB audio
RS-232 serial port
4-pin GPIO
2-line OLED display with capacitive-touch navigation
Rack mountable (1RU)
Supports port authentication via IEEE 802.1X
System configuration and control via Ethernet
Internal universal power supply
Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, delay and much more
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ 5-year warranty

Product Specifications

Frequency Response:
- 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
THD+N (22Hz to 22kHz):
- 0dB gain, +4dBu input: < 0.006%
- 54dB gain, -50dBu input: < 0.040%
EIN (no weighting, 22Hz to 22kHz): < -125dBu
Dynamic Range (in presence of signal)
- 22Hz to 22kHz, 0dB gain: > 108dB
Input Impedance (balanced): 8kΩ
Output Impedance (balanced): 207Ω
Maximum Input: +24dBu
Maximum Output (selectable):
- +24dBu, +18dBu, +12dBu,
- +6dBu, 0dBu, -31dBu
Input Gain Range (6dB steps): 0-66dB
Phantom Power: +48VDC (7mA/input)
Crosstalk, channel to channel, 1 kHz:
- 0dB gain, +4dBu input: < -85dB
- 54dB gain, -50dBu input: < -75dB
Sampling Rate: 48kHz
A/D - D/A Converters: 24-bit
Power Consumption:
- 100-240VAC 50/60Hz: < 35W
USB:
- Bit Depth: 16- or 24-bit
- Number of Channels: up to 8
- Sample Rate: 48kHz
Environment:
- Ambient Operating Temperature Range: 32-104° F (0–40° C)
- Humidity: 0–98%, non-condensing
- Altitude: 0-6,600 feet (0–2000 Meters) MSL
Compliance:
- FCC Part 15B (USA)
- CE marked (Europe)
- UL und C-UL listed (USA and Canada)
- RCM (Australia)
- RoHS Directive (Europe)
