TesiraCONNECT™ TC-5D serves as the central connection point for all Biamp® and Dante™ devices in a conference room. It simplifies installations by providing power and media over a single category cable between devices such as Tesira AVB DSPs, USB extenders, PoE+ amplifiers and microphones as well as 3rd party Dante devices. Four of the five Gigabit RJ-45 ports provide PoE+ power (IEEE 802.3at Class 4, 30W) to connected endpoints, while the remaining RJ-45 port is used for DSP connection or daisy-chaining TesiraCONNECT devices together. The TC-5D eliminates the need for third-party switches; it works out-of-the box with Tesira and Dante products and does not require any device configuration. The small form factor allows it to be easily mounted to a wall or under a table, or placed above the ceiling or inside a credenza in the conference room.

Product Features

• Five 1 Gbps RJ-45 ports
• Four ports support PoE+ power (IEEE 802.3at Class 4, 30W)
• Up to 4 TesiraCONNECT devices can be daisy-chained together
• Supports upto 32x32 channels of Dante audio
• Auto-detects media network on each port

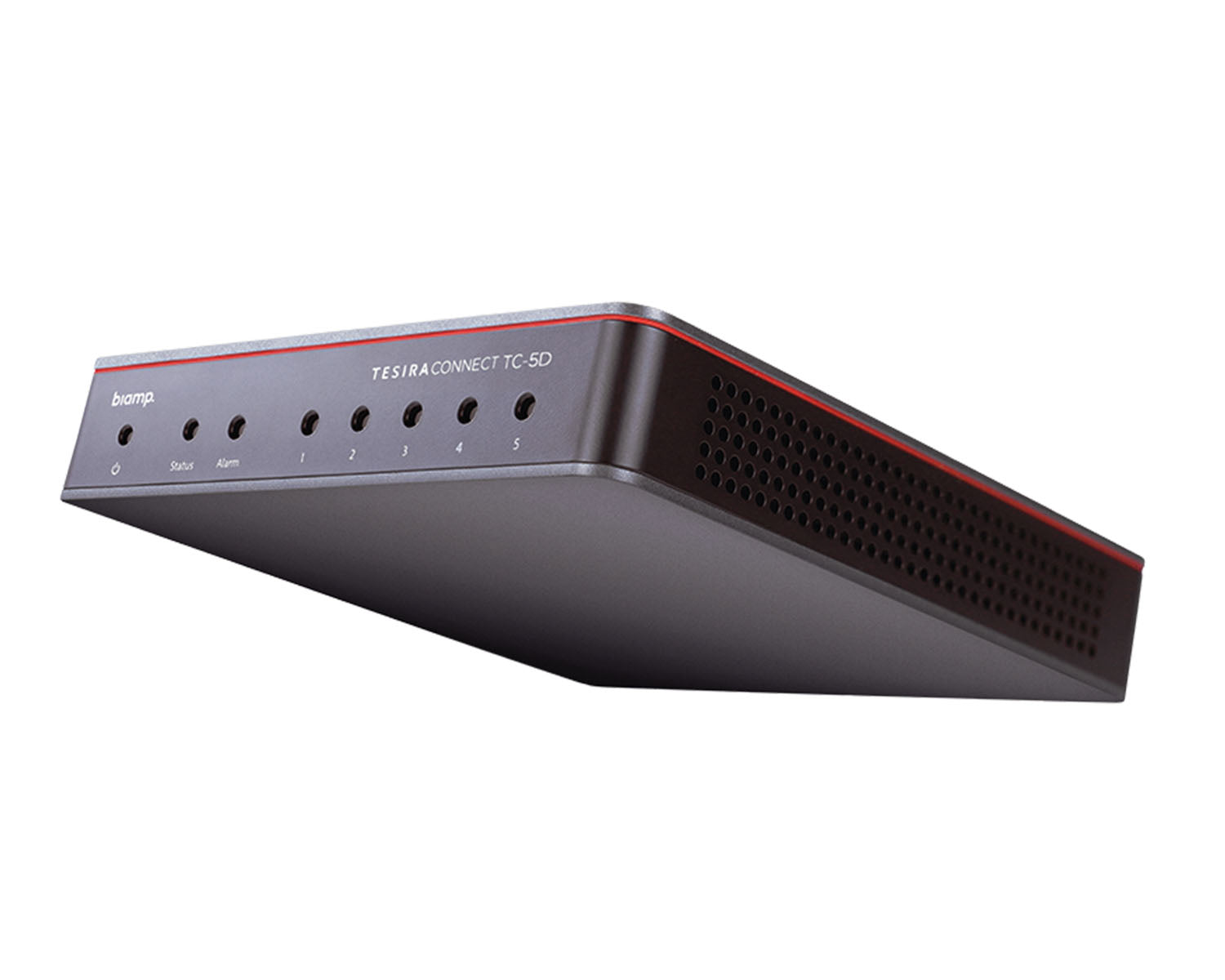

• Front panel LEDs indicate port connections, device status, and fault conditions
• Supports Dante Domain Manager
• Dante routing configured in Dante Controller
• Out-of-the-box compatibility with Biamp AVB products and Dante products
• Fault reporting and device monitoring supported in SageVue
• External universal power supply
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Product Specifications

General

• Connections:
  • Number of Ports: 5
  • Connector Type: RJ-45
  • Supported Connection Speeds: 100Mbps, 1Gbps
  • Number of PoE+ Powered Ports: 4
  • Supported IEEE Protocols: 802.1, 802.1at, 802.1w, 802.1AS, 802.1BA, 802.1Qav, 802.3ab, 802.3af, 803.3u
• Total PoE Power Budget: 120W
• Indicators:
  • Front Panel: Power, Device Status, Fault, Port Status (per port)
  • Rear Panel (per port): Link, Activity
• Maximum Number of AVB Streams: 150
• Maximum Number of Dante Channels: 32x32
• Maximum Daisychain Device Count: 4
• Maximum Number of Supported Endpoints: 13
• Power Consumption (100-240VAC 50/60Hz): < 132W
• Cooling: Convection
• Environmental:
  • Ambient Operating
  • Temperature Range: 32 - 104° F (0 – 40° C)
  • Humidity: 0-95% relative humidity (non-condensing)
  • Altitude: 0-6,600 ft (0-2000m) MSL

Overall Dimensions

• Height: 1.1 inches (48 mm)
• Width: 5.8 inches (147 mm)
• Depth: 5.8 inches (147 mm)
• Weight: 1.5 lbs (0.7 kg)

Compliance

• FCC Part 15B (USA)
• UL and C-UL listed (USA and Canada)
• CE Marked (Europe)
• RoHS Directive (Europe)
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
