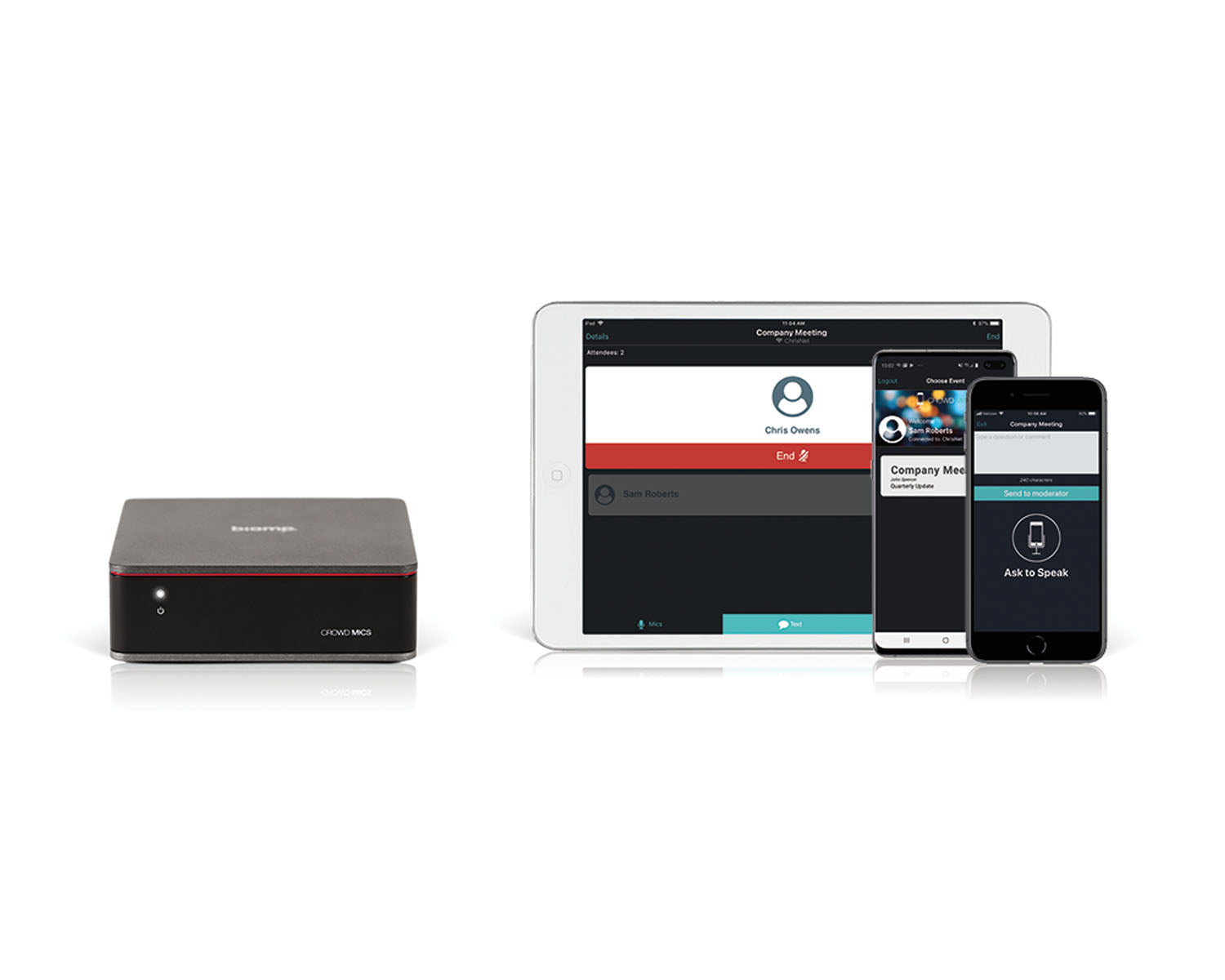

Crowd Mics™ empowers audience interaction by turning smartphones into wireless microphones. Whether in the same room as the presenter or across the globe, Crowd Mics allows live event attendees to use their phone as a wireless mic, text questions, and participate in polls, providing everyone with the same great experience regardless of their location. Crowd Mics is comprised of two apps — one for event attendees and the other for moderators — and a small, pre-configured hardware host device, the ATOM.

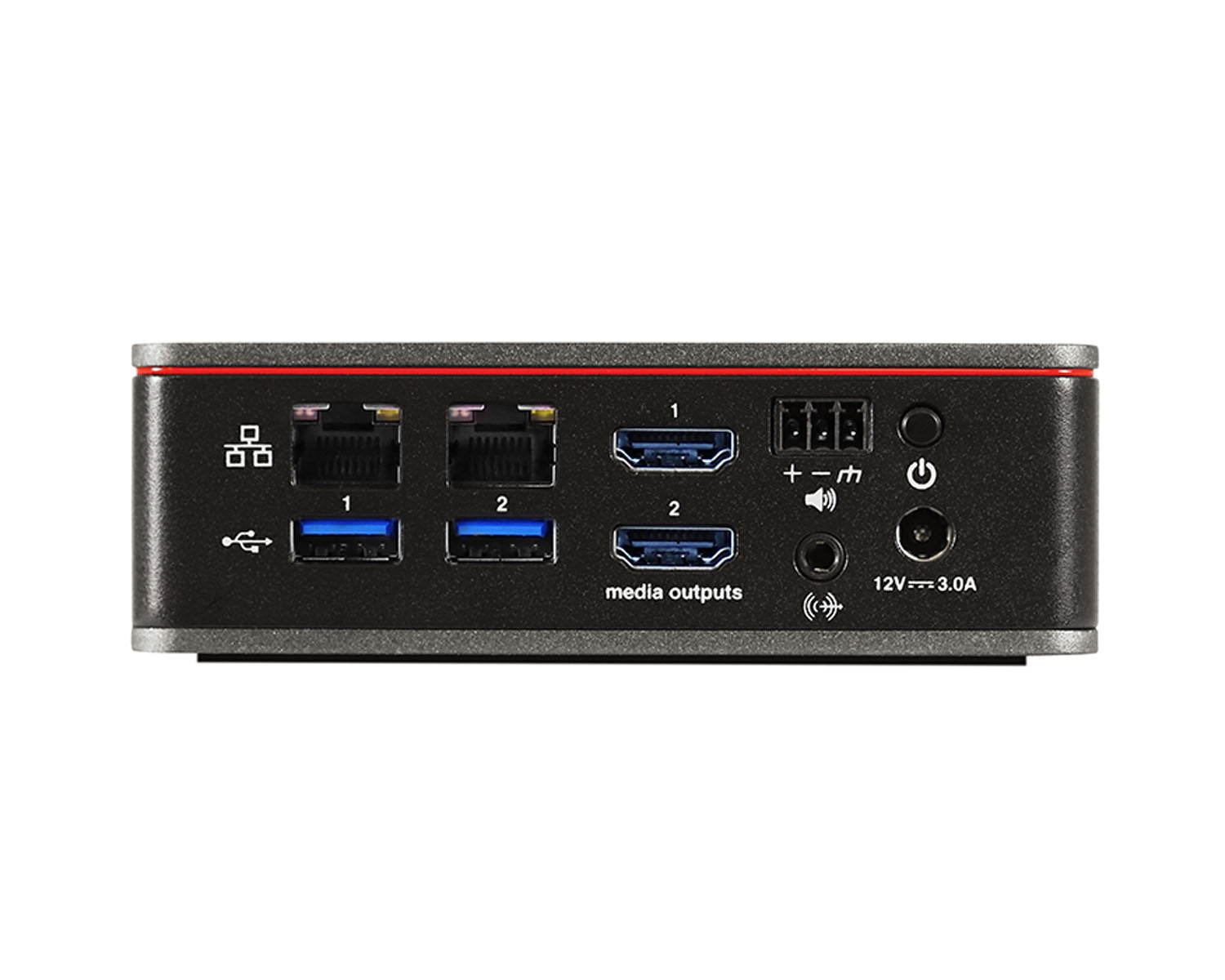

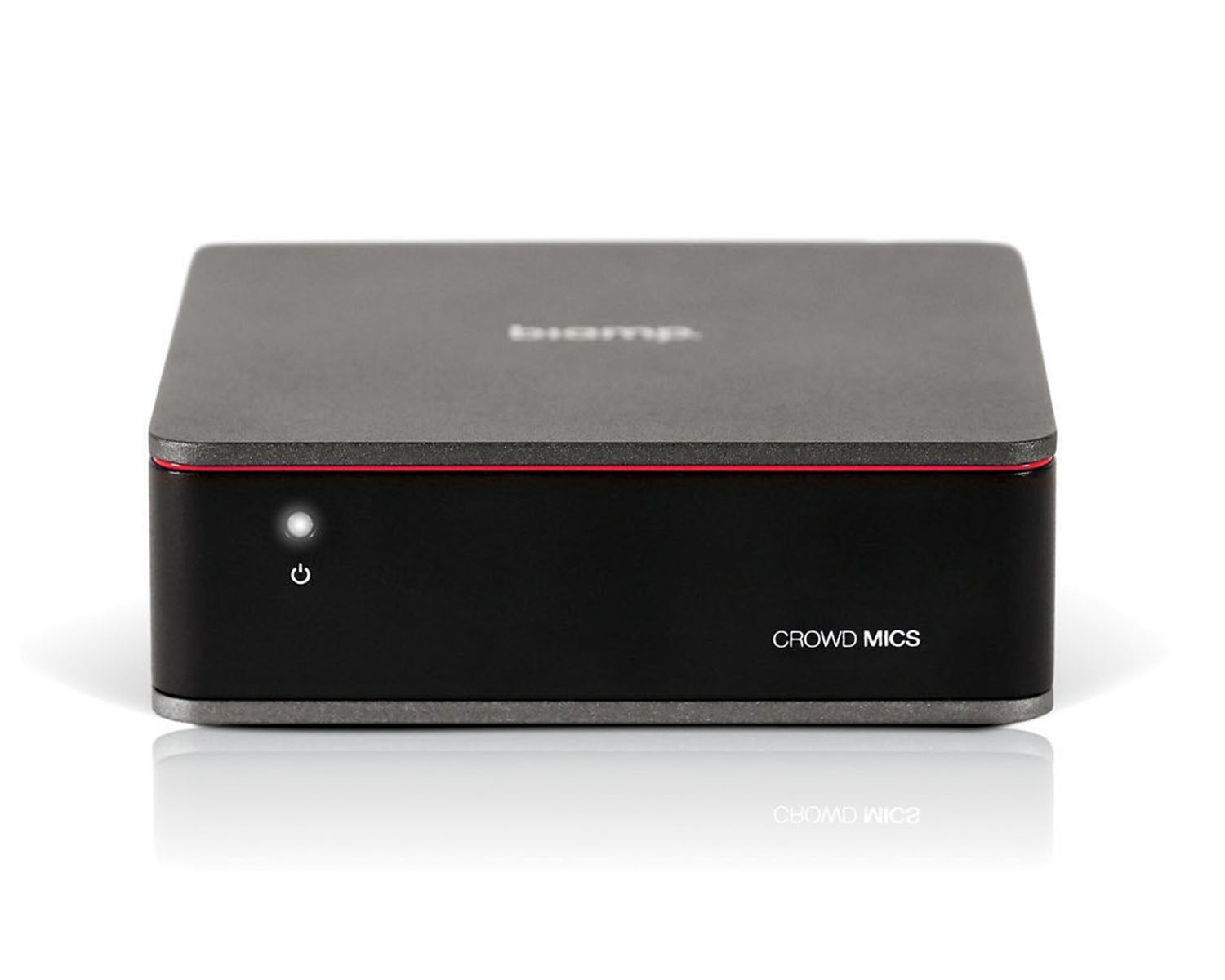

The ATOM serves as the central connection point between the attendee and moderator apps and the room’s AV system. It supports four audio output interfaces: 3.5mm minijack, Euroblock connector, HDMI embedded audio, and USB audio. Any combination of these outputs can be used simultaneously. Optionally, the ATOM can be connected to the room’s displays via HDMI to project poll results or other event content, and can be remotely monitored and managed via SageVue™ 2.0.

Crowd Mics is perfect for the participants and moderators of presentations, lectures, panel discussions or other similar events ranging in size up to 1000 attendees.

Product Features

• Audio output via Euroblock, HDMI embedded audio,
• 3.5 minijack, or USB
• Video output via HDMI®
• Two HDMI connections for display mirroring
• Can be monitored and managed via SageVue 2.0
• Supports both local and remote participants
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ two-year warranty

Benefits for Attendees

• Three ways to participate
• No waiting for a microphone
• Intuitive user interface
• Get involved without talking
• Easy-to-use polling

Benefits for Moderators

• Streamlines audience interactions
• Choose who speaks next
• Deactivate attendee mics
• Create polls and publish results
• Measure audience engagement

Product Specifications

General

• Network Connection: Gigabit Ethernet, RJ-45
  • (Cat 5 and above)
• Video Output:
  • Supported Resolutions: Up to 4K UHD
  • Physical Interface: HDMI 2.0
  • Number of Outputs: 2
• Analogue Audio Output:
  • Physical Interface: Euroblock
  • Frequency Response (20Hz~20kHz, +4dBu): +0/-0.25dB
  • THD+N (20Hz~20kHz): < 0.006%
  • Dynamic Range (20Hz~20kHz, 0dB): > 96dB
  • Output Impedance (balanced): 200Ω
  • Maximum Output: +12dBu
  • Sampling Rate: 48 kHz
  • D/A Converters: 24-bit
• USB:
  • Version: 3.0
  • Number of Ports: 2
• Power Consumption (100-240VAC 50/60Hz): < 132W
• Cooling: Convection
• Environmental:
  • Ambient Operating
  • Temperature Range: 32 - 95° F (0 - 35° C)
  • Humidity: 0-95% relative humidity (non-condensing)
  • Altitude: 0-10,000 ft (0-3000m) MSL

Overall Dimensions

• Height: 1.4 inches (35 mm)
• Width: 4.7 inches (120 mm)
• Depth: 4.7 inches (120 mm)
• Weight: 2.2 lbs (1.0 kg)

Compliance

• FCC Part 15B (USA)
• CE Marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
