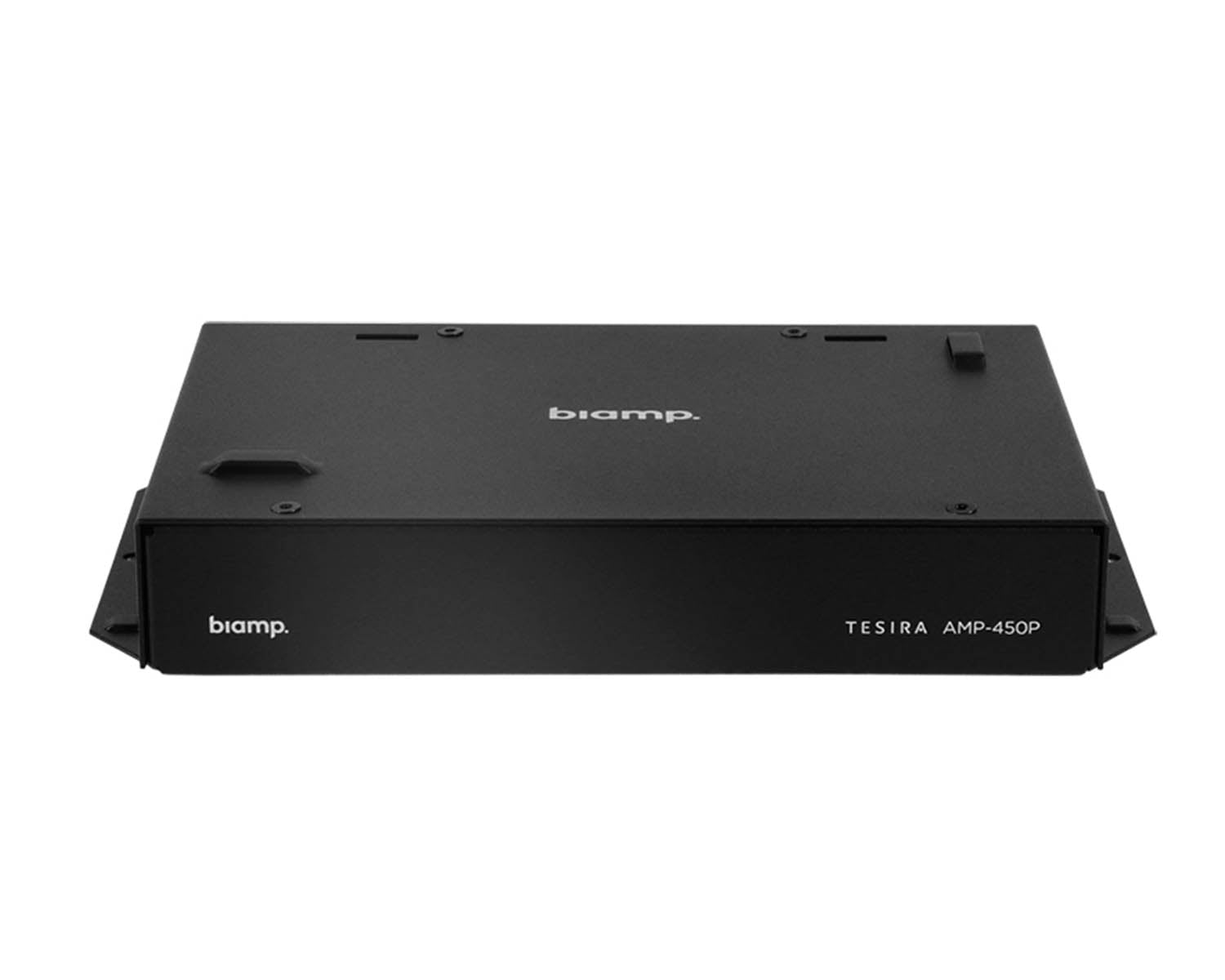

The AMP-450P is a four-channel PoE+ (IEEE 802.3at Class 4, 30W) conferencing amplifier for use in Tesira® systems. The output channels are software configurable, including selectable power versus channel count. PoE+ power allows the AMP-450P to be placed wherever you need it. Suitable for air handling spaces, the amplifier can be located close to ceiling speakers if desired. The AMP-450P includes an internal limiter, and is capable of providing 3 watts of continuous power to all four channels. The Tesira AMP-450P is also capable of operating in a burst mode to handle peak signals, providing up to 50 watts (4Ω load) or 30 watts (8Ω load) per channel. The amplifier serves as a dedicated endpoint in a Tesira system, making installations easier to design, support, and maintain. The AMP-450P is ideal for TesiraFORTÉ®-equipped conference rooms or other applications where sound reinforcement is needed.

Product Features

• Four channels; 3 watts of continuous power per channel
• Burst mode to handle peak signals in accordance with ANSI/CTA-2006-B; supports up to 50 watts (4Ω load) or 30 watts (8Ω load) per channel
• Powered by PoE+ (IEEE 802.3at Class 4, 30W)
• Class D amplifier topology
• Fanless operation
• Includes internal limiter function
• Software-selectable power versus channel count
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
• LED indicators for power and amplifier status
• Configurable via Tesira software
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Product Specifications

General

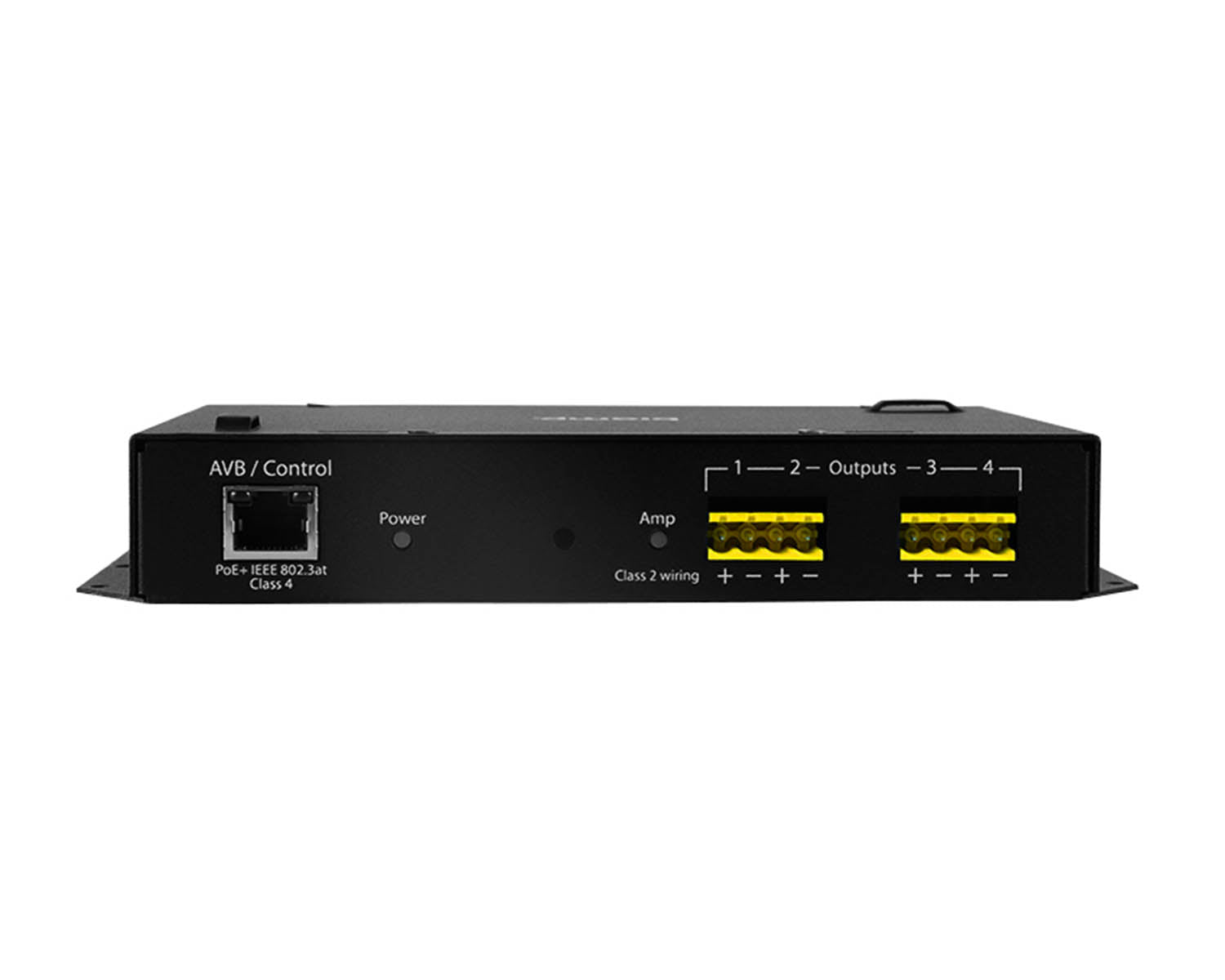

• Network Connection: RJ-45 with Ethernet cable (Cat 5e and above)
• Number of Channels: 4
• Connectors:
  • 4-pin 5.08 mm
  • Phoenix connectors
• Amplifier Topology: Class D
• Burst Power Output (per ANSI/CTA-2006-B @ 1kHz):
  • 4Ω (per channel): 50W
  • 8Ω (per channel): 30W
• Continuous Power Output:
  • Single Channel Driven (4Ω, 8Ω): 15W
  • Dual Channel Driven, (4Ω, 8Ω): 7W
  • Four Channel Driven, (4Ω, 8Ω): 3W
• THD+N (20Hz-20kHz, at continuous power): < 0.3%
• Frequency Response (20Hz-20kHz): ± 1dB
• Dynamic Range (20Hz-20kHz BW): > 90dB
• Minimum Operational Load: 4Ω
• Intermodulation distortion (SMPTE): <0.3%
• Cross Talk (channel to channel @ 1kHz): < -90dB
• Cooling: Convection
• Power: PoE+ (IEEE 802.3at Class 4 , 30W)
• Indicators:
  • Power Indicator (Green/Yellow/Red LED)
  • Amp Status Indicator (Green/Yellow/Red LED)

Physical

• Dmensions:
  • Height: 1.2 inches (30mm)
  • Width: 7.7 inches (195mm)
  • Depth: 4.7 inches (120mm)
  • Weight: 1.5 lbs (0.7 kg)
• Environmental:
  • Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
  • Humidity: 0-95% relative humidity (non-condensing)
  • Altitude: 0-10,000 ft (0-3000m) MSL
• Compliance:
  • FCC Part 15B (USA)
  • UL and C-UL listed (USA and Canada)
  • CE Marked (Europe)
  • KCC (Korea)
  • RoHS Directive (Europe)
  • Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
