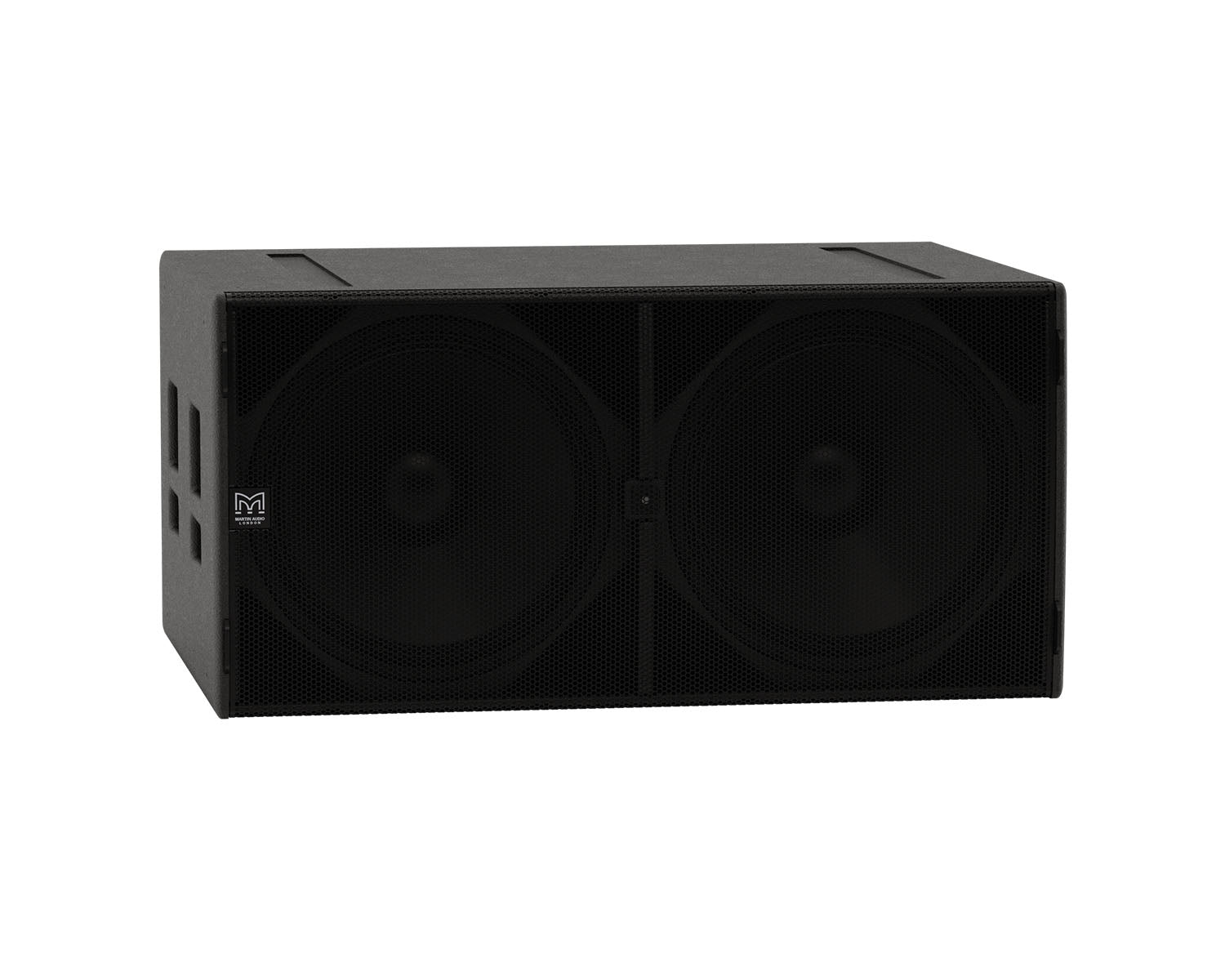

The SXP218 achieves the ultimate in subwoofer performance for the most demanding professional applications – delivering very high output levels and superb transient performance with minimal distortion. With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. The design of the 18” drivers maximises output while minimising power compression and distortion, and the eight reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a prodigious maximum SPL capability of 143dB peak at 1 metre, the SXP218 is the ideal subwoofer for touring sound reinforcement, theatre and portable live sound applications — as well as premium installations — that require low frequency augmentation with low distortion at very high output levels.

A self-powered system, the SXP218 incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers a total of 4000W peak output to the drivers, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz. DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.

For simple set-ups, ‘plug-and-play’ presets for operation with the CDD-LIVE 8, CDD-LIVE 12 or CDD-LIVE 15 — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. Additional presets provide the appropriate settings for the rear-facing subwoofer in a cardioid pair.

Product Features

• Dual-driver, self-powered subwoofer
• 2 x 18” (460mm) drivers with 4” (100mm) voice coils
• Very high output capability
• Onboard Class D amplification and DSP
• Dante™ Digital Audio networking
• Global mains operation with Power Factor Correction
• Tour-grade plywood enclosure with flying inserts
• IP24 rating option with rain cowl

Applications

• Live sound reinforcement
• Theatre sound
• Corporate AV events
• Fixed installations in concert halls, ballrooms and HoW
• Bars and clubs
• Outdoor restaurant, bar and hotel entertainment areas
• Concourses and Theme Parks

Product Specifications

ACOUSTICS

• TYPE: Dual-driver, direct radiating powered subwoofer

FREQUENCY

• RESPONSE: 35Hz – 150Hz ±3dB, -10dB @ 30Hz
• DRIVER: 2x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
• INPUT SENSITIVITY: -30dBu for 100dB SPL
• MAXIMUM SPL: 140dB continuous / 143dB peak
• DISPERSION: Omnidirectional / or Cardioid (paired)
• CROSSOVER: Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired)

MODULE AUDIO INPUT

• CONNECTORS: Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon
• ANALOGUE INPUT IMPEDANCE: 20 kΩ balanced to ground
• MAXIMUM ANALOGUE INPUT LEVEL: 24.6 Vpp (+21dBu), over voltage protected
• INTERNAL PROCESSING: Multi-channel DSP, programmable via TCP/IP using VU-Net software
  • PEQ/shelving filters
  • Up to 48dB/Oct LPF
  • Up to 200mS input delay
  • Pre-set selection via rear panel switch

NETWORK

• CONNECTORS: 2 x Neutrik® Ethercon RJ45
• PROTOCOL: TCP/IP and UDP/IP

AMPLIFIER MODULE

• TYPE: Two 2 channel switch-mode, class D, Bridged Tied Load
• PEAK OUTPUT POWER: 4000W
• AVERAGE EFFICIENCY: 89%
• COOLING: External fan
• MAXIMUM AMBIENT TEMPERATURE: 40°C (104°F) for full output

POWER SUPPLY

• TYPE: Switch mode, fixed frequency with PFC
• AC INPUT OPERATING RANGE: 85 – 265V ~ AC, 50 - 60Hz
• POWER FACTOR: > 0.98
• NOMINAL POWER CONSUMPTION: 250W
• MAINS CONNECTOR: Neutrik® Powercon True1

MECHANICAL

• ENCLOSURE: Extensively braced multi-laminate birch plywood.
• FINISH: Durable Polyurea Coating
• PROTECTIVE GRILLE: Black perforated Zintec
• FITTINGS:
  • Two skids on base, with mating channels on top
  • 16 x M8 inserts for optional castors
  • 24 x M10 mounting points
  • 4x Bar handles, 2 on each side
  • 4x fittings for optional transit cover
  • M20 Pole mount insert
• IP RATING: IP24 factory option available
• DIMENSIONS:
  • (W) 1085mm x (H) 537mm x (D) 792mm (920mm including castors)
  • (W) 42.72in x (H) 21.13in x (D) 31.16in (36.20in including castors)
• WEIGHT: 101.5kg (224lbs) w/o castors 105kg (231lbs) with castors
