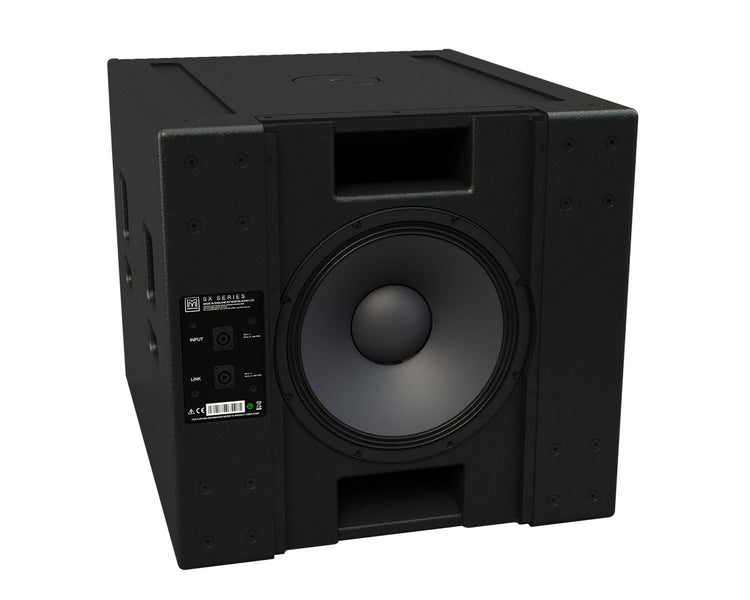

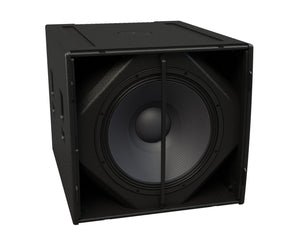

Designed for touring sound and installations, the SXC118 is a compact, high performance cardioid subwoofer. It features an 18” (460mm) forward facing driver and a 14” (356mm) rear facing driver, each driven independently by separate amplifier channels and DSP.

The recommended iK42 amplifier optimises the DSP parameters for front and rear drivers to maximise the rear rejection — from 21dB at 43Hz to 28dB at 75Hz. This keeps low frequencies away from stages, turntables and walls as well as reducing reverberant energy in the room, greatly improving the system’s low frequency response accuracy and impact.

In front of the enclosure, the output from the two drivers is additive, giving an extra 2dB of output when compared with a conventional 1 x 18” subwoofer.

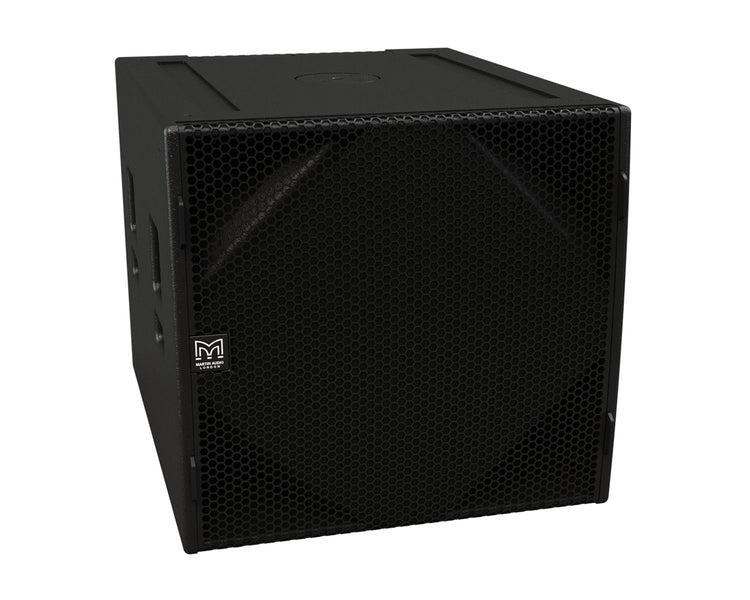

The enclosure is constructed from plywood and finished with a hard-wearing textured paint. It is equipped with four grab handles and foam-backed perforated steel grilles protect the front and rear drivers. It can be used individually, stacked or flown individually by means of threaded flying inserts.

Product Features

• Compact, cardioid subwoofer
• Front facing 18” (460mm)/4” (100mm) voice coil driver
• Rear facing 14” (356mm)/3.5” (88mm) voice coil driver
• Cardioid dispersion pattern
• 28dB rear rejection at 75Hz
• High output capability
• Tour-grade plywood enclosure with flying inserts

Applications

• Live sound reinforcement
• Fixed installations including live event venues and nightclubs
• Theatre sound
• Corporate AV events
• Acoustically-challenging rooms
• Outdoor restaurant, bar and hotel entertainment areas
• Concourses and Theme Parks

Product Specifications

• TYPE: Compact, cardioid subwoofer
• FREQUENCY RESPONSE: 43Hz – 150Hz ±3dB, -10dB @ 34Hz
• DRIVERS:
  • 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone
  • 14” (356mm)/3.5” (88mm) voice coil, long excursion, neodymium magnet, waterproof cone
• RATED POWER:
  • 18”: 1000W AES, 4000W peak
  • 14”: 800W AES, 3200W peak
• SENSITIVITY: 104dB
• MAXIMUM SPL: 140dB peak
• NOMINAL IMPEDANCE:
  • 18”: 8Ω
  • 14”: 8Ω
• DISPERSION (-6DB): Cardioid
• ENCLOSURE: Multi-laminate birch and poplar ply
• FINISH: Textured black paint
• PROTECTIVE GRILLE: Black HEX perforated steel
• CONNECTORS: 2 x NL4
• PIN CONNECTIONS (INPUT): 18”: +1, -1; 14”: +2, -2
• PINS CONNECTIONS (LINK): 18”: +1, -1; 14”: +2, -2
• FITTINGS:
  • Two skids on base, with mating channels on top
  • M20 top-mounted thread plate for pole mounting
  • Two bar handles on each side
  • Four fittings for optional transit cover
  • 16 x M10 Mounting Points

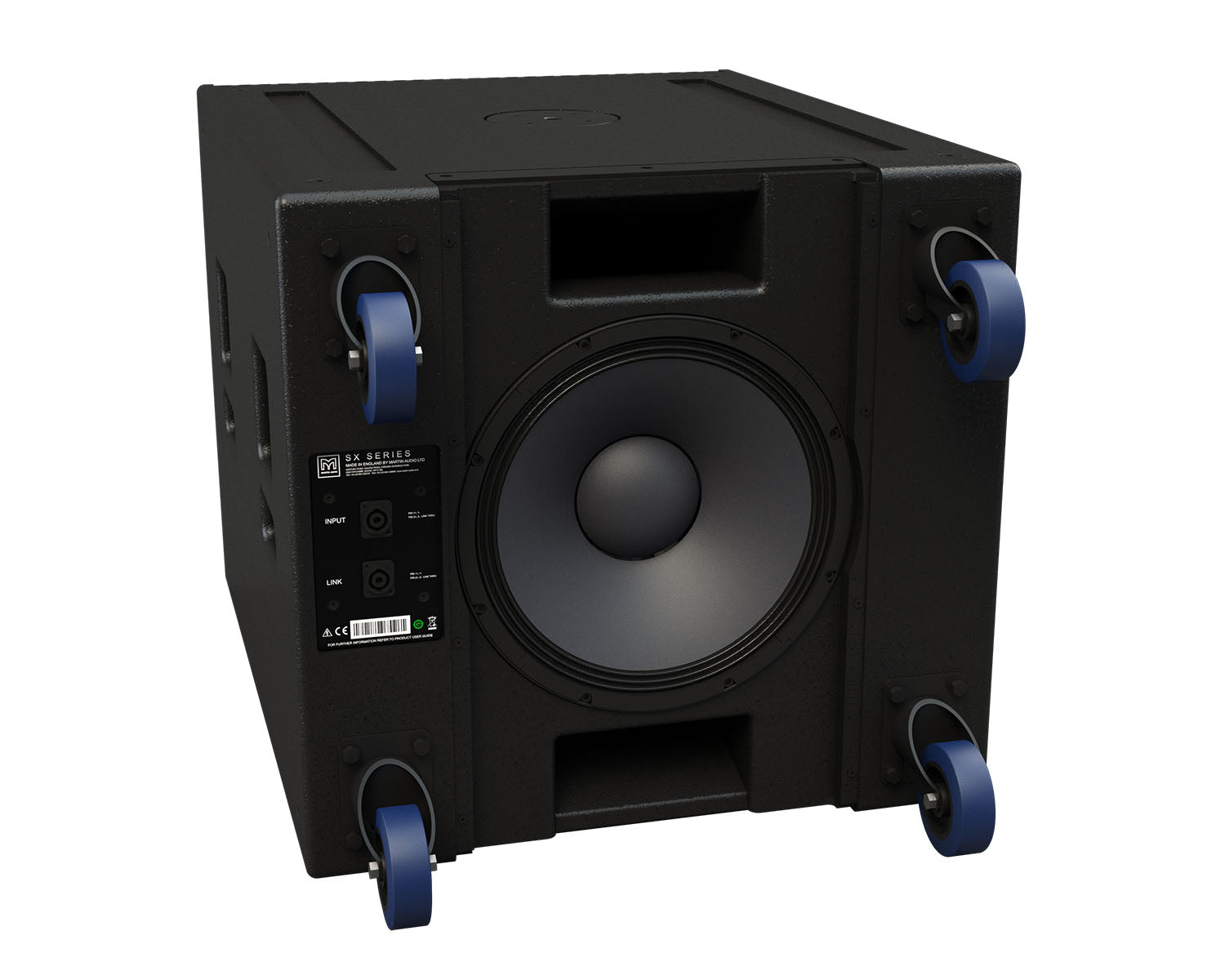

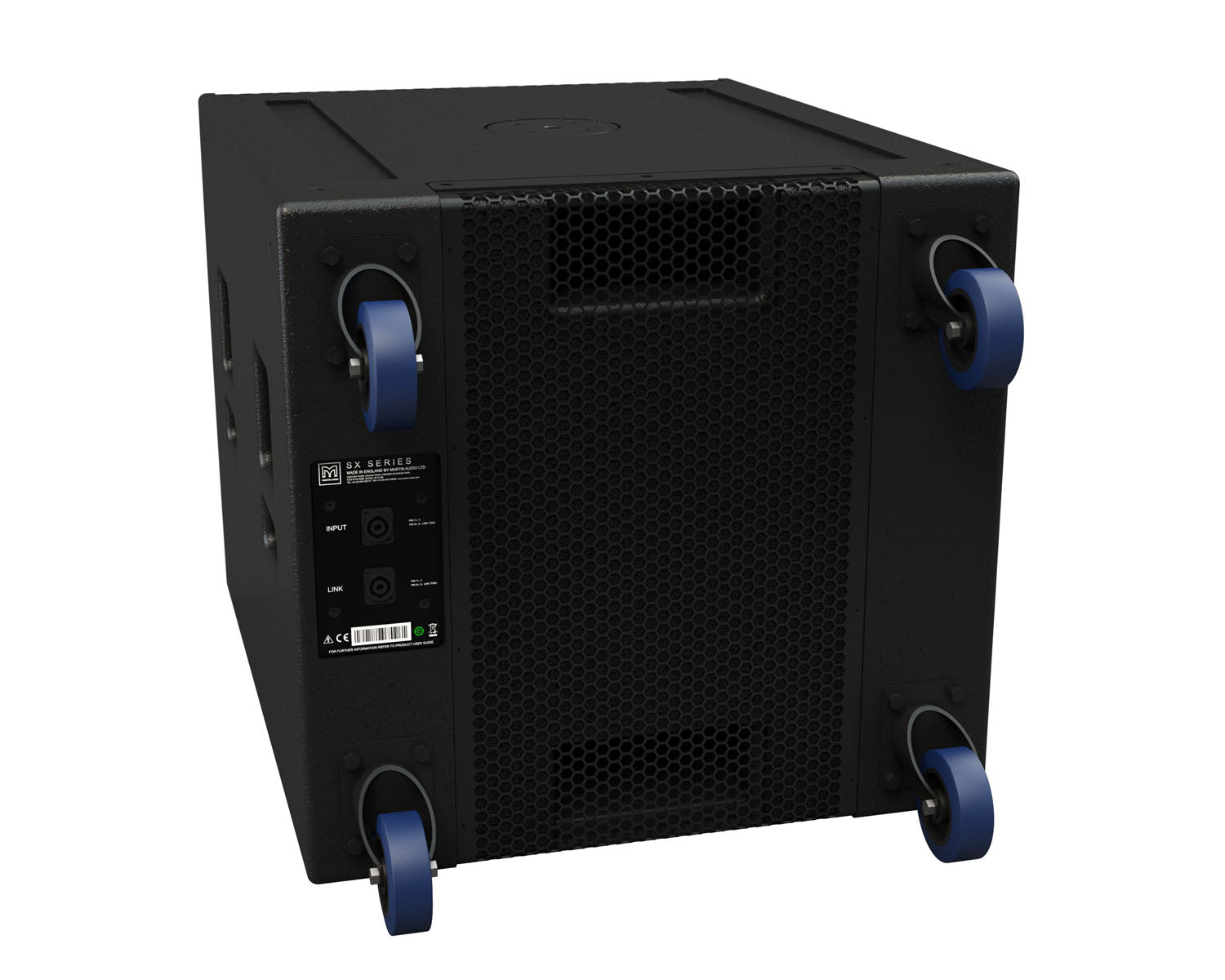

  • 16 x M8 inserts for optional castors
  • Two bar handles on each side
• DIMENSIONS (INCL SKIDS):
  • (W) 635mm x (H) 603mm x (D) 824mm (952mm incl castors)
  • (W) 25in x (H) 23.7in x (D) 32.4in (37.5in incl castors)
• WEIGHT:
  • 69kg (152lbs)
  • 73kg (161lbs) incl castors
