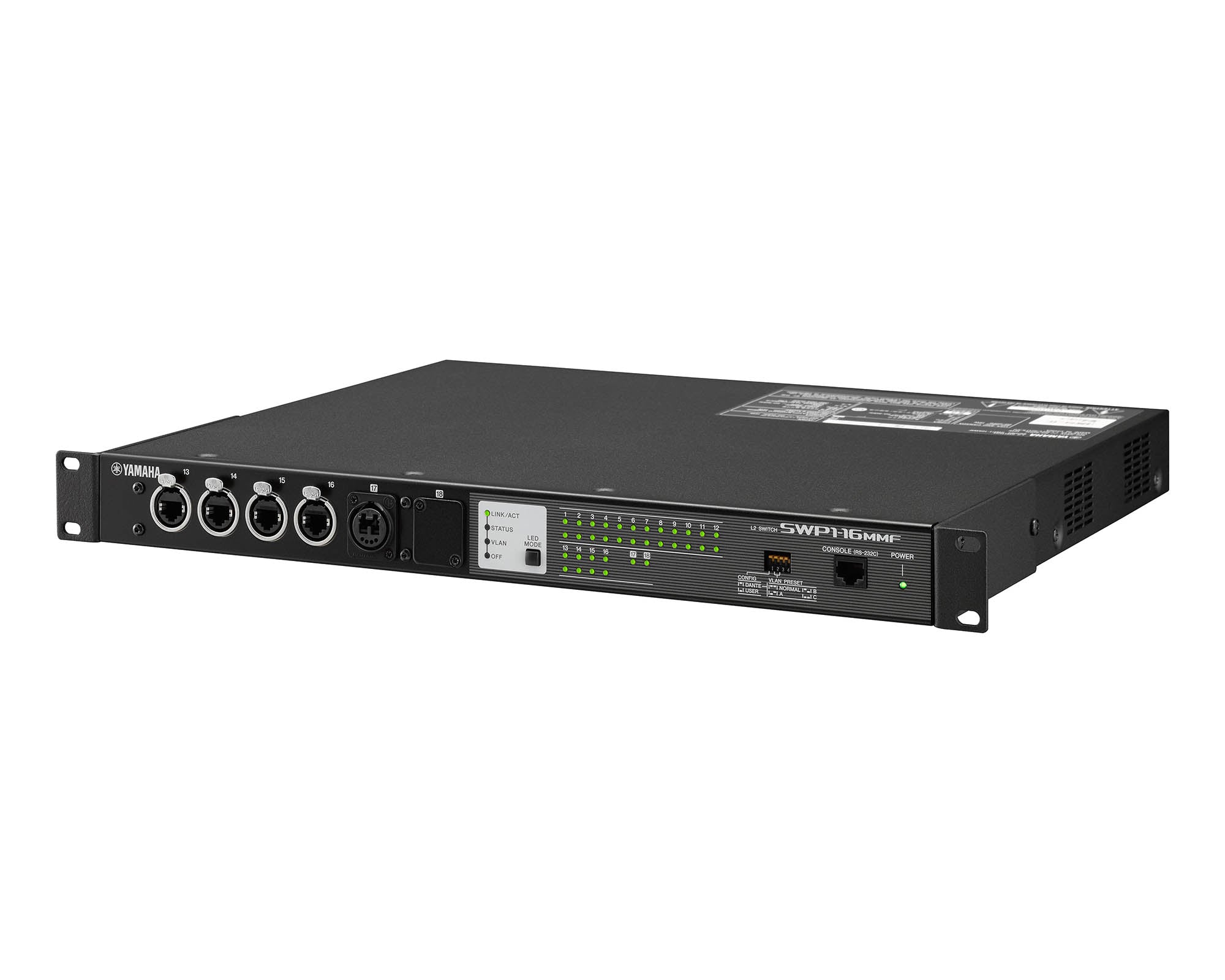

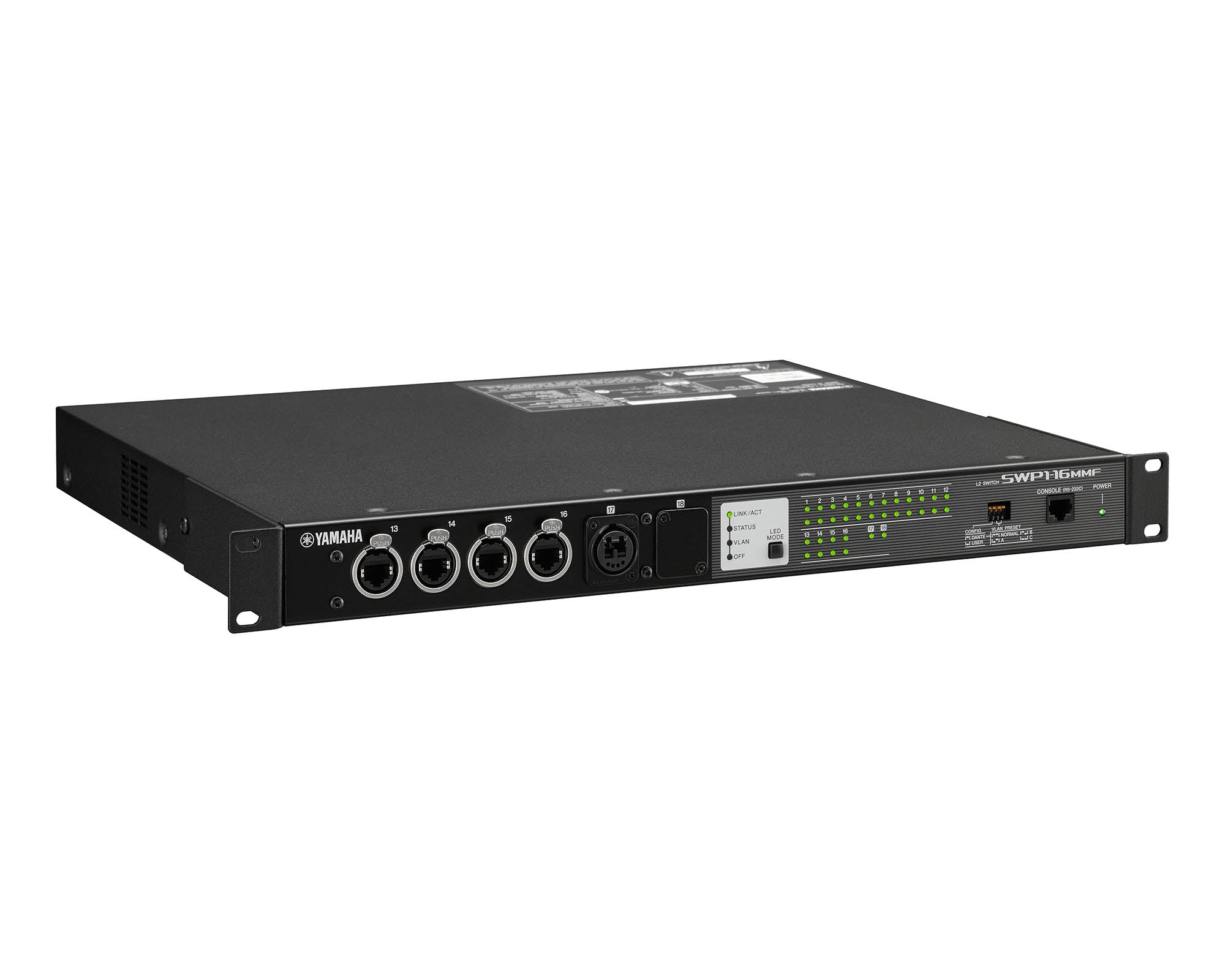

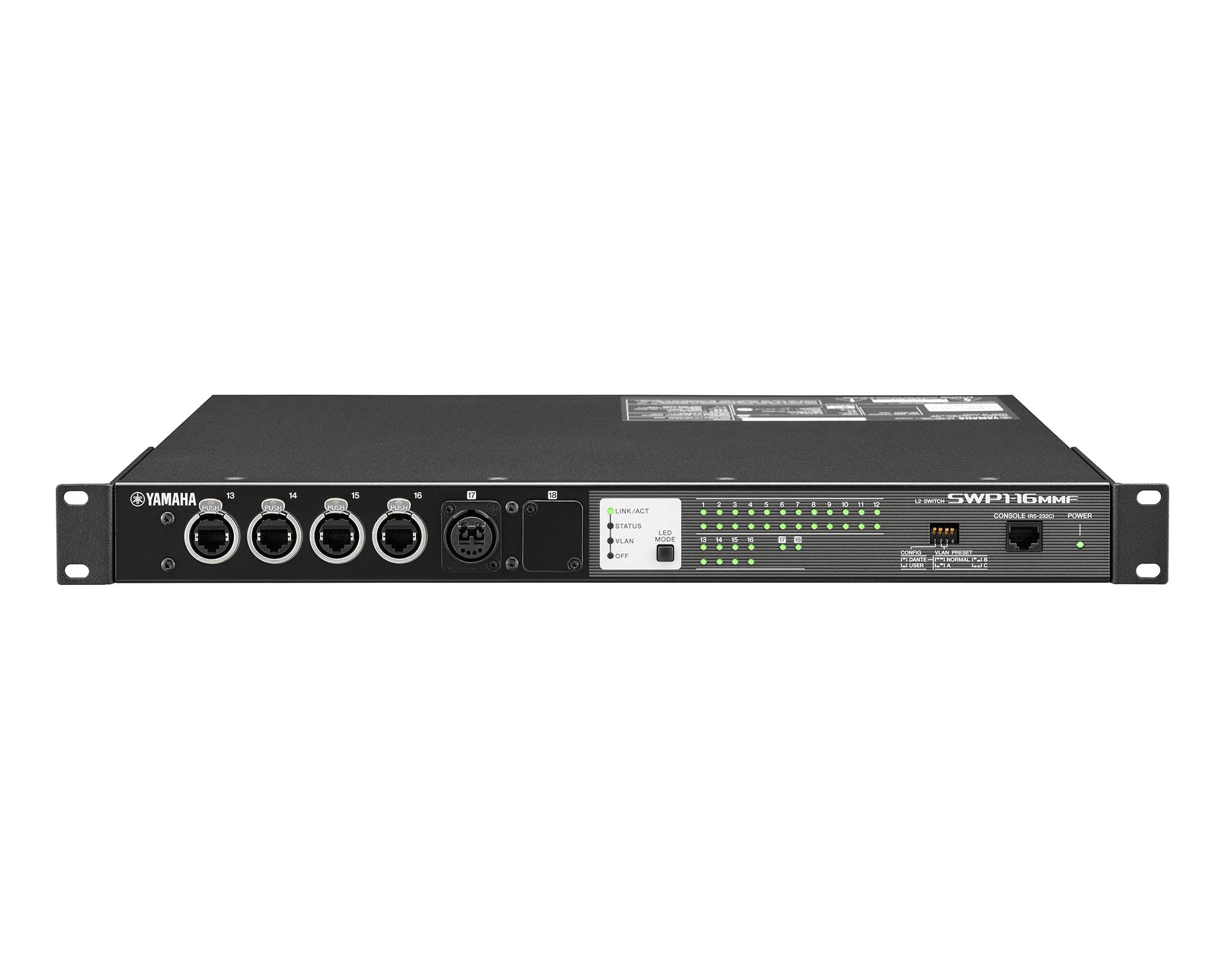

The SWP1 series network switch equipped with eight etherCON ports, one opticalCON port, and one option slot.

Complex network switch setup that was previously better left to an IT technician can now be easily accomplished by anyone. A simple switch setting is all it takes to optimize SWP1 series network switches for Dante operation, and a dedicated Windows application provides “network visibility” for comprehensive monitoring and control. Yamaha first entered the network device business in 1995, and has grown to hold a significant share of Japan’s small to medium enterprise and SOHO network market. Yamaha gigabit L2 switches that could be linked to Yamaha routers/firewalls were introduced in 2011, with features that significantly reduced the network setup, maintenance, and management workload. 20 years later audio networking has become one of the fastest growing, most highly valued technologies in the live sound and pro audio fields. An expanding range of Dante capable Yamaha products, including the highly regarded CL series digital mixing consoles, continues to lead the way. SWP1 series network switches are a solution the pro audio market has been waiting for, offering an ideal balance of IT and pro audio know-how that only Yamaha can provide. The SWP1 series makes audio network setup, monitoring, and operation easier and more convenient than ever before.

Product Features

• etherCON Connectors: 4 front / 4 rear
• opticalCON Connector: 1 front
• Optional optical module slot: 1 front

SWP1 Series Features

• DIP SWITCH DANTE OPTIMIZATION: Simple Dante networks are not difficult to set up and operate, but as network complexity grows the switches used need to be optimized for Dante operation in order to achieve maximum stability. Setting up QoS, IGMP Snooping, and other parameters on an intelligent switch can be a complex task, requiring specialized knowledge that is more the domain of IT technicians than audio engineers. The SWP1 series allows a Dante optimized setup to be recalled by simply flipping one DIP switch. No expertise or training is required.
• 3 PRESET VLAN TYPES: A truly efficient network should be able to handle multiple services simultaneously: Dante communication, StageMix and other smart device functions, computer software that allows digital mixer or power amplifier control, and perhaps more. But the more communication you combine on one network, the greater the chance for interference and problems. The use of virtual VLAN domains to isolate the various types of data is the ideal solution, but this type of setup also requires some IT expertise. The SWP1 series includes three VLAN presets that can be simply selected via a DIP switch. There’s also a USER mode that allows fully customized VLAN setup. SWP1-8 ports 9 and 10, SWP1-8MMF port 10, and SWP1-16MMF port 18 become available when the optional MMF-SWP1 is installed.
• NETWORK VISIBILITY: Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha Audio Network Monitor application for Windows computers provides a comprehensive single-screen view of all necessary parameters when used with SWP1 series switches. We refer to this type of graphical overview as “network visbility.” You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha Audio Network Monitor with a single click, providing a total Dante network solution on a single computer.
• ETHERCON CONNECTORS FOR LIVE SOUND RELIABILITY: Reliability is essential in live sound applications. Nothing can be allowed to interrupt the show. Conventional network switches usually have RJ45 connectors to match the connectors on the computers to which they will be connected, but the SWP1 series features durable, reliable etherCON connectors that are directly compatible with the etherCON connectors on Yamaha CL/QL series consoles and other Dante capable devices.
• OPTICAL FIBER AND NETWORK REDUNDANCY SUPPORT (OPTION REQUIRED FOR REDUNDANCY) : The SWP1-8MMF and SWP1-16MMF include multi-mode fiber capable opticalCON connectors. Both models allow transmission over distances of up to 300 meters. The optional MMF-SWP1 optical fiber module can be added to allow two optical fiber cables to be run for redundant connection. Rapid spanning tree protocol (RSTP) is also supported for redundant connections.

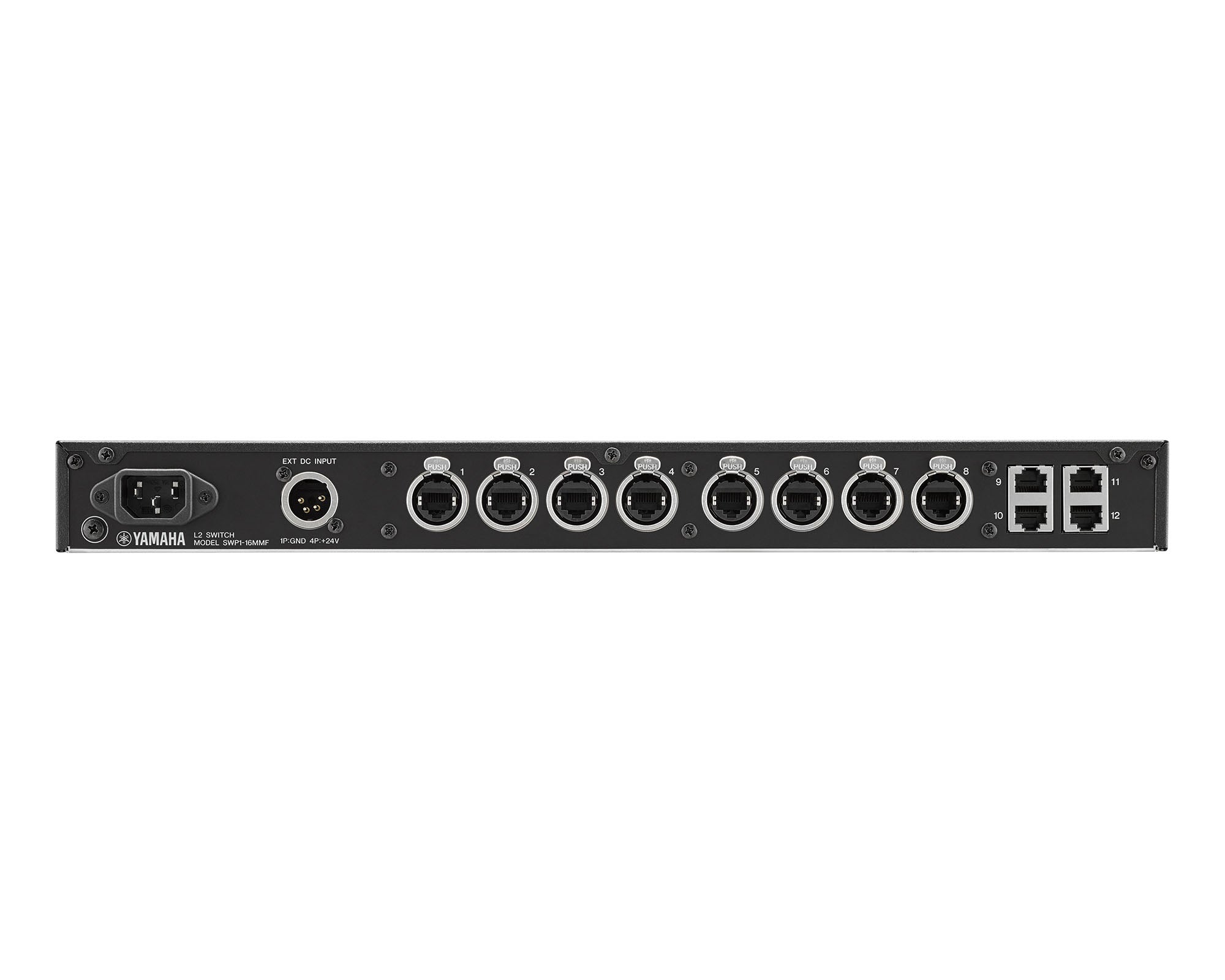

• EXT DC INPUT FOR POWER SUPPLY REDUNDANCY: SWP1 series switches include an XLR-4-32 type EXT DC INPUT connector in addition to the standard AC IN connector. +24V DC supplied to the EXT DC INPUT connector provides redundant power that can keep the device running if a problem occurs in the AC supply. For further reliability the AC connector is a locking type (V-Lock) that minimizes the possibility of accidental disconnection.
• Yamaha SWP1 series network switches were specifically created to give users maximum benefit with the greatest possible setup and operating ease. They allow one-touch Dante optimization plus advanced network visibility while taking full advantage of Dante audio flow management capabilities.Yamaha Audio Network Monitor software for Windows works with the SWP1 series to allow comprehensive monitoring and management of not only any connected SWP1 series switches, but connected Dante devices as well. Yamaha’s original L2MS (Layer 2 Management Service) protocol extends “network visibility” capability to any Dante devices connected to SWP1 series switches.
• LAN MAPPING FOR A COMPLETE NETWORK OVERVIEW: Understanding how multiple switches installed in different locations are connected, plus how network devices are connected to those switches, can be a difficult, time-consuming task. The Yamaha Audio Network Monitor makes overall network topology clearly visible, giving the user a comprehensive overview of how multiple switches and Dante network devices are interconnected. Simply connect a Windows PC to the nearest SWP1 switch and launch the Yamaha Audio Network Monitor software.
• PORT STATUS AND BANDWIDTH UTILIZATION: The Yamaha Audio Network Monitor includes a port status and bandwidth display that clearly shows the connection status of each network switch port, information about the connected devices, the communication speed at each port, and the bandwidth utilization at each port.
• DANTE DEVICE INFO: Device information and monitoring is also available for any Dante devices connected to SWP1 series switches on the network. The ability to monitor primary and secondary port status as well as transmit and receive flow is important to achieving stable, reliable Dante audio communication. This capability lets you keep an eye on the overall “health” of the network.
• 1-CLICK DANTE CONTROLLER LAUNCH: A Dante Controller button at the top of the Yamaha Audio Network Monitor interface lets you launch the Dante Controller with a single click (the Dante Controller software must be installed on the computer). Seamless switching between the Yamaha Audio Network Monitor and Dante Controller provides total Dante network control from a single computer.
• SNAPSHOT FUNCTION MAKES TROUBLESHOOTING EASY: You can take a “snapshot” of the network status when set up as required. The software can then automatically keep track of the settings and alert you to any changes. You could take a snapshot of the network during rehearsal, and then you’d be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance, for example.
• ENHANCED DEVICE ID WITH ICONS, LABELS, AND COMMENTS: Identifying devices connected to a switch by only their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields.
• DETAILED SWITCH SETTINGS AND FIRMWARE UPDATES: The web GUI for each device can be recalled to provide access to “deep” settings and allow firmware updates.

Product Specifications

General

• Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T/etherCON connector): 12
• Number of LAN ports (1000BASE-T/100BASE-TX/10BASE-T/RJ-45 connector): n/a
• Number of SFP ports (1000BASE-SX/opticalCON connector): 2 (1 optical module is installed as standard)
• Console port: 1 (RJ-45)
• Automatic Negotiation: Available
• Auto MDI/MDI-X: Available
• Switching Capacity: 20 Gbit/s
• Throughput: 15 Mpps
• Maximum number of MAC addresses: 16,384
• Frame buffer: 1024 kB
• VLAN: Port VLAN, Tag VLAN (IEEE802.1Q), Private VLAN
• Maximum of VLANs: 256 (VLAN ID 1–4,094) *VLAN ID 1 is the default VLAN ID.
• IP Multicast: IGMP Snooping (v1/v2/v3)
• QoS: 8 egress queues, Policy-based QoS, Remarking (CoS, ToS, DSCP), Scheduling (SP, WRR)
• Flow Control: IEEE802.3x (Full-duplex), back pressure (Half-duplex)
• Support functions: \n
  • Storm control
  • HOL blocking prevention
  • Loop detection
  • ACL
  • SNMP agents
  • Link aggregation (IEEE 802.3ad LACP, Static)
  • Spanning tree (STP*, RSTP*, MSTP)
  • Port mirroring
  • Port shutdown
  • Link speed down shift
  • Packet counter
  • Power saving mode (IEEE802.3az EEE; Disabled in DANTE mode)
  • DHCP client
  • Logging
  • Firmware download via TFTP/HTTP
  • Config file download via TFTP

*STP and RSTP are supported via downward compatibility of MSTP

• DIP Switches: CONFIG, VLAN PRESET
• Indicators (Front): \n
  • POWER
  • LED MODE×4
  • PORT×8×2
  • SFP×2

*The LED MODE button allows the PORT lamps to be switched between indicating LINK/ACT-SPEED, STATUS, or VLAN.

• Operating Temperature: 0 to 40°C
• Storage Temperature: -20°C to 60°C
• Power Supply (AC in inlet):\n
  • AC100V-240V, 50/60Hz
  • Internal power supply (no power switch)
  • Power supply inlet: locking type
• Power Suppler (EXT DC INPUT inlet): External power supply requirements: 24VDC±2V, 1A, XLR-4-32 type Connector
• Maximum Power Consumption: 11 W, 0.21 A
• Heat Dispersion: 9.5 kcal/h
• Chassis: Metal case, no fan
• Hazardous substances management: RoHS compliant

Physical & Dimensions

• Dimensions:\n
  • W: 480mm
  • H: 44mm
  • D: 362mm
• Weight: 4.2 kg
• Accessories: Power cord, Owner\'s manual
• Options: MMF-SWP1 (Optical expansion unit)

What\'ts in the Box?

• SWP18MM Network Switcher
• Power cord
• User Manual
