Designed, assembled, and tested by Audix in the USA, The Audix D Series and i5 represent the finest dynamic instrument microphones available today. Combined with the SCX25A and the SCX1HC, Audix offers the Studio Elite 8 (STE8) - a compelling array of eight drum microphones that will suit a wide variety of needs for critical recording applications. This collection of microphones enables artists and engineers to capture the sound at the source, regardless of the type of instrument or genre of music.

Product Features

• Designed, assembled, and tested by Audix in the USA
• A compelling array of eight drum microphones that will suit a wide variety of needs for critical recording applications
• Aluminium road case
• Rugged Audix quality
• All-in-one solution for studio miking

Product Specifications

General

i5

• Transducer: Dynamic VLM Type B
• Frequency Response: 50 Hz - 16 kHz
• Polar Pattern: Cardioid
• Output Impedance: 150 ohms
• Sensitivity: 1.5 mV / Pa @ 1k
• Maximum SPL: ≥140 dB
• Off -axis rejection: ≥23 dB
• Power Requirements: None

D2

• Transducer: Dynamic VLM Type B
• Frequency Response: 68 Hz - 18 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 280 ohms
• Sensitivity: 1.2 mV / Pa @ 1k
• Maximum SPL: ≥144 dB
• Off -axis rejection: ≥30 dB
• Power Requirements: None

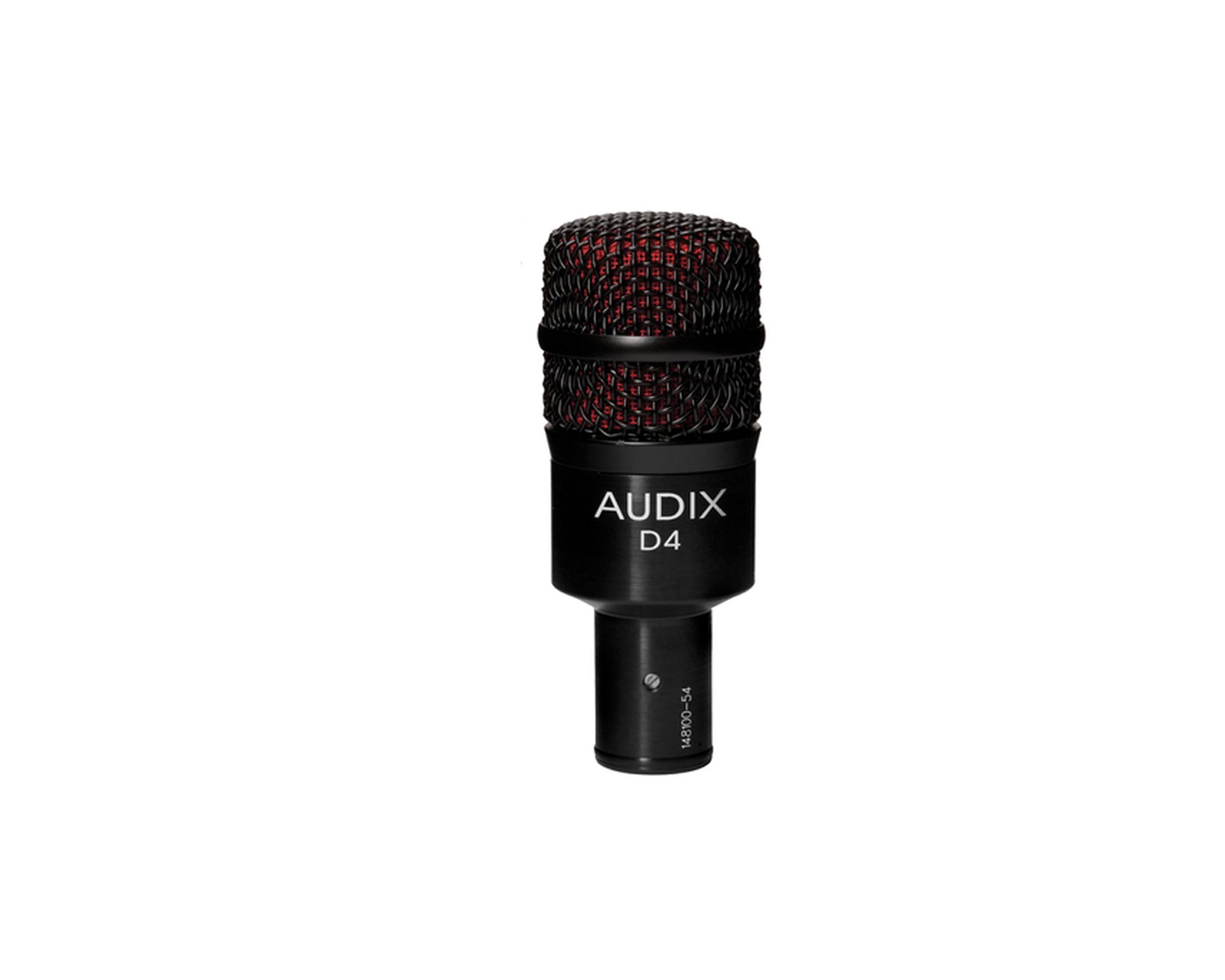

D4

• Transducer: Dynamic VLM Type D
• Frequency Response: 40 Hz - 18 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 280 ohms
• Sensitivity: 1.4 mV / Pa @ 1k
• Maximum SPL: ≥144 dB
• Off -axis rejection: ≥20 dB
• Power Requirements: None

D6

• Transducer: Dynamic VLM Type B
• Frequency Response: 30 Hz - 15 kHz
• Polar Pattern: Cardioid
• Output Impedance: 280 ohms
• Sensitivity: 0.8 mV / Pa @ 1k
• Maximum SPL: ≥144 dB
• Off -axis rejection: ≥20 dB
• Power Requirements: None

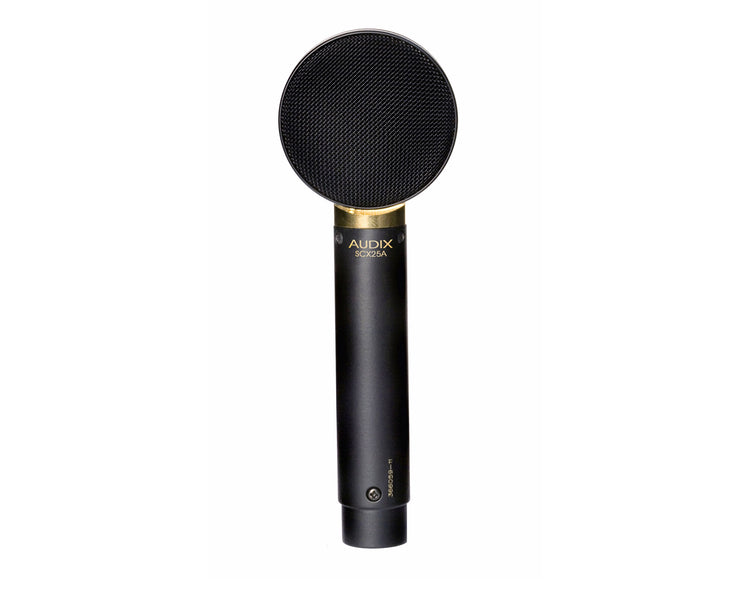

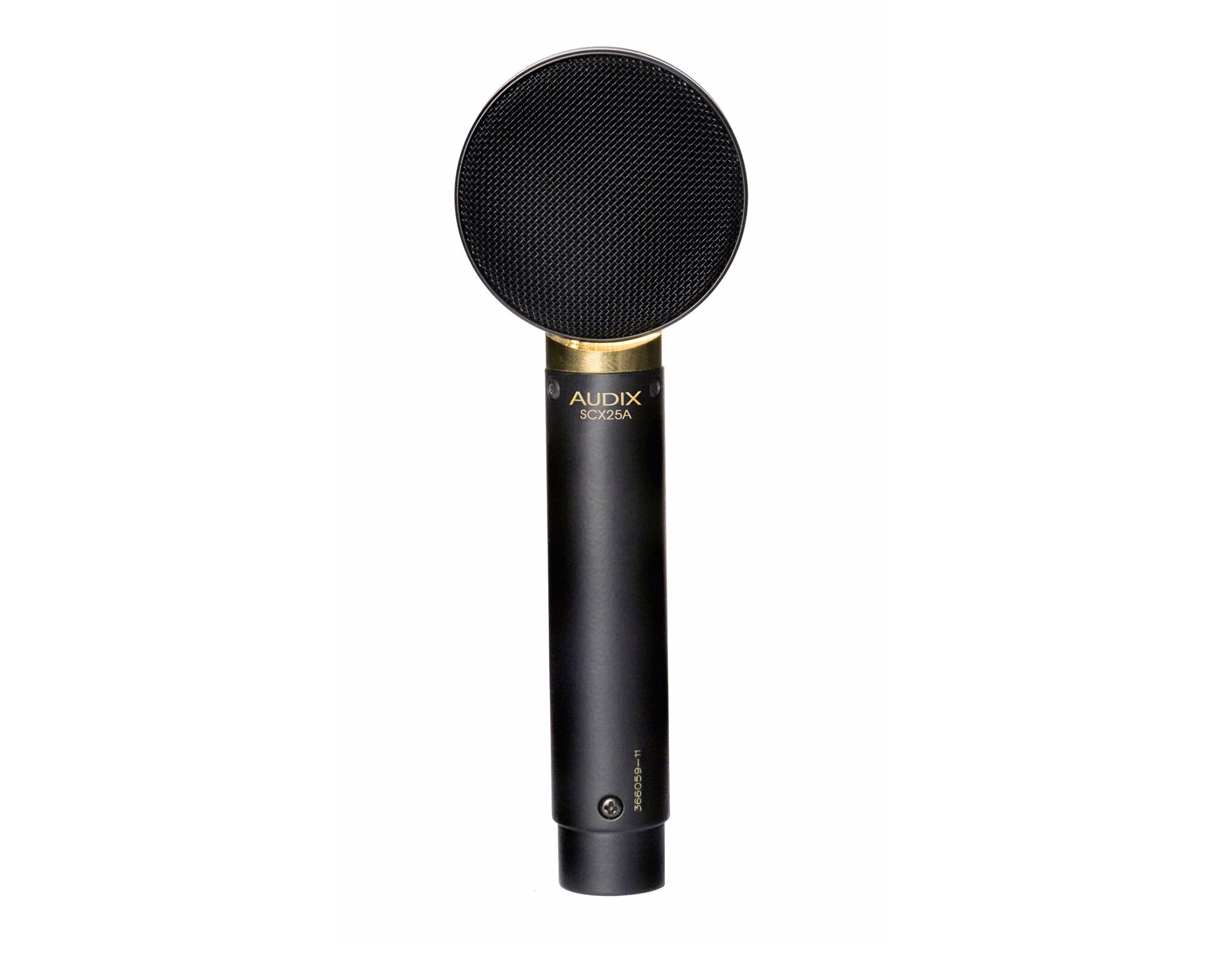

SCX25A

• Transducer Type: Condenser
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Cardioid
• Output Impedance: 200 ohms
• Sensitivity: 28 mV / Pa @ 1k
• Maximum SPL: ≥135 dB
• Power Requirements: 48 -52 V Phantom

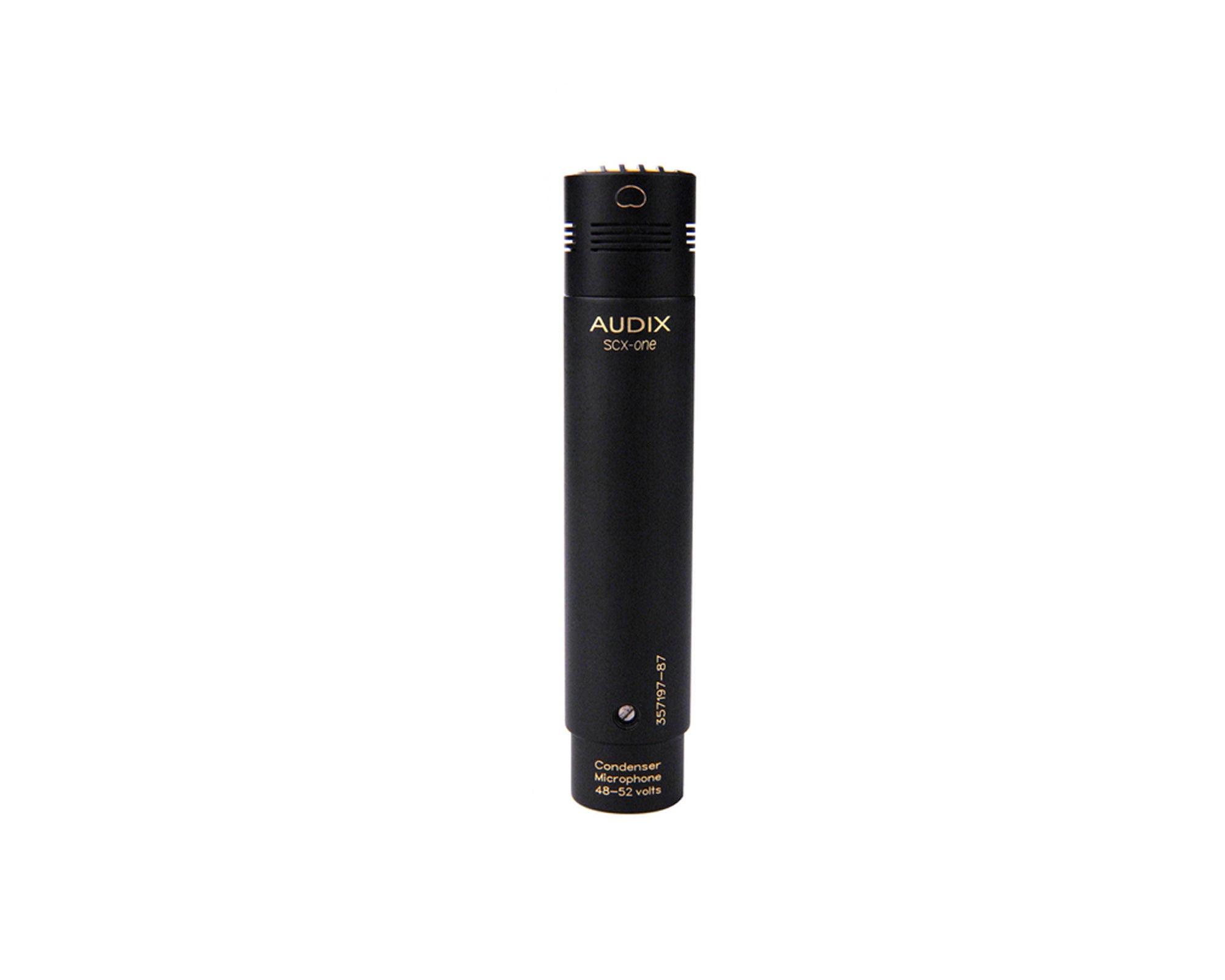

SCX1/HC

• Transducer Type: Condenser
• Frequency Response: 40 Hz - 20 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 200 ohms
• Sensitivity: 26 (C) | 17 (HC) | 15 (O) mV / Pa @ 1k
• Maximum SPL: ≥130 dB
• Power Requirements: 48-52 V phantom

Physical & Dimensions

i5

• Materials / Finish Zinc Alloy / Black Finish
• Weight: 250 g / 8.8 oz
• Length: 141.5 mm / 5.6 in

D2

• Materials / Finish: Black Hard Coat
• Weight: 250 g / 8.8 oz
• Length: 100 mm / 3.9 in

D4

• Materials / Finish: Black Hard Coat
• Weight: 128 g / 4.5 oz
• Length: 100 mm / 3.9 in

D6

• Materials / Finish: Machined Aluminum/Black Finish
• Weight: 254 g / 8.9 oz
• Length: 117 mm / 4.6 in

SCX25A

• Materials / Finish: Machined Brass/Black Finish
• Weight: 244 g / 8.6 oz
• Length: 148 mm / 5.8 in

SCX1/HC

• Materials / Finish: Machined Brass/Black Finish
• Weight: 144 g / 4 oz
• Length: 104 mm / 4.1 in

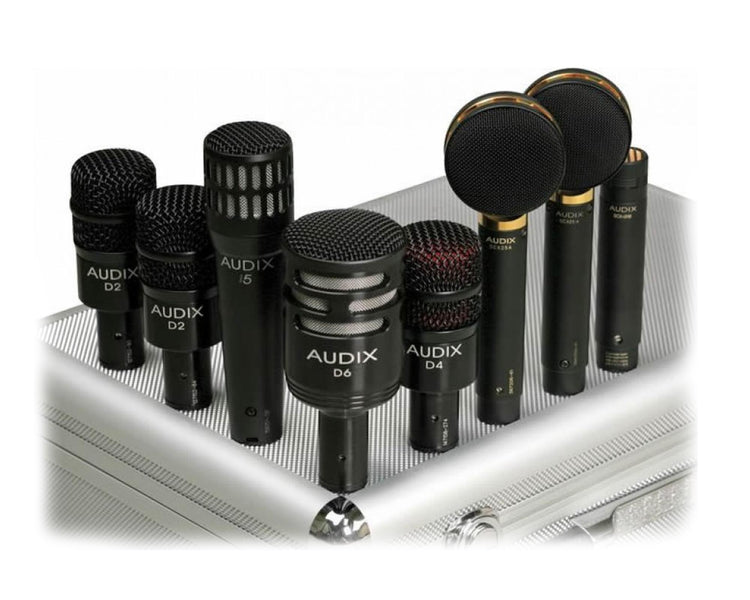

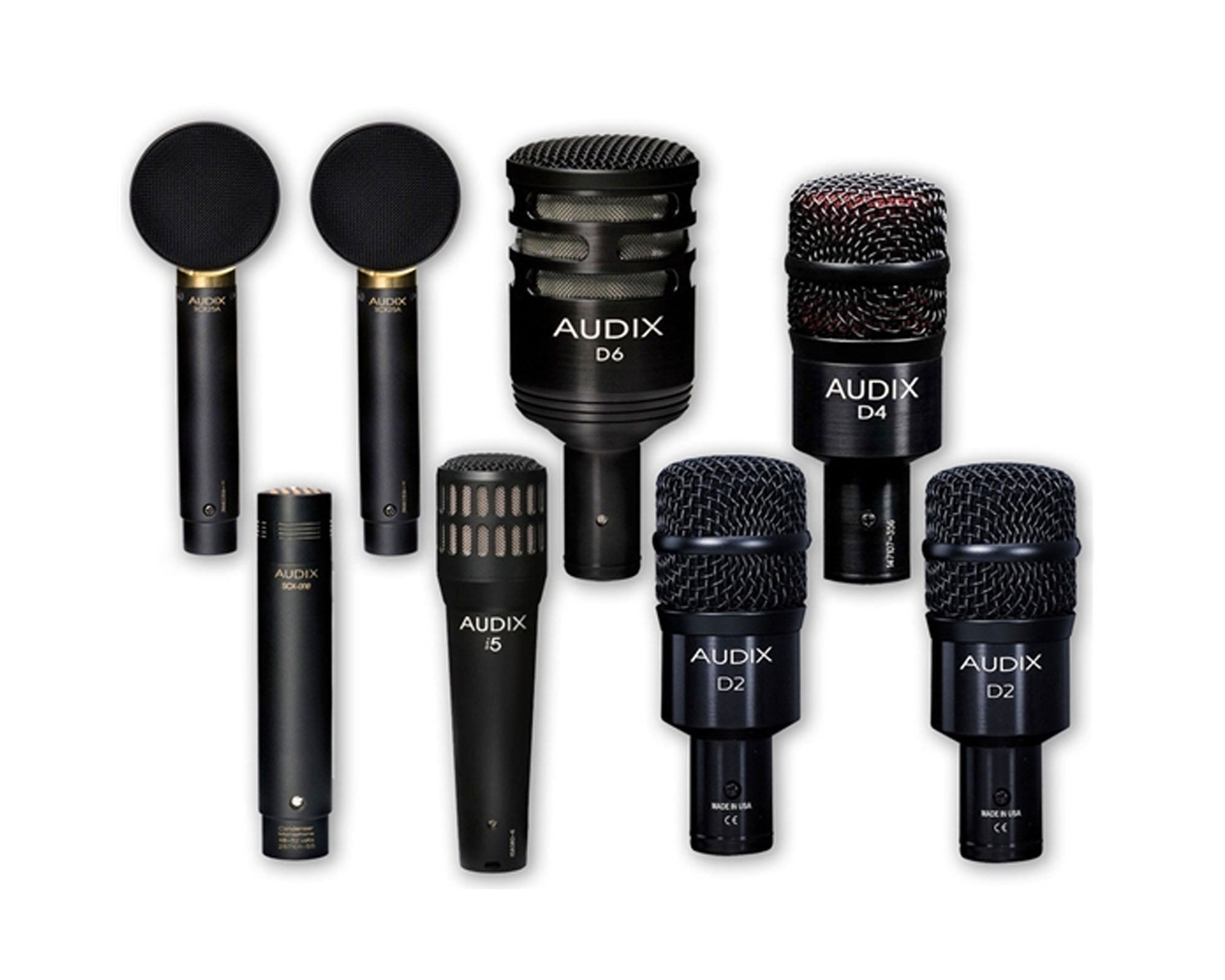

What's in the Box?

• 1 x D6 Kick Drum Microphone
• 1 x i5 Snare Drum Microphone
• 2 x D2 Rack Tom Microphones
• 1 x D4 Floor Tom Microphone
• 1 x SCX1HC Hi-Hat Microphone
• 2 x SCX25A Instrument Microphones
• 4 x DVICE Rim Mounts
• 4 x DCLIP Microphone Clips
• 1 x MC1 Microphone Clip
• 1 x MW81C Windscreen
• 2 x SMT25 Shock mounts for SCX25A

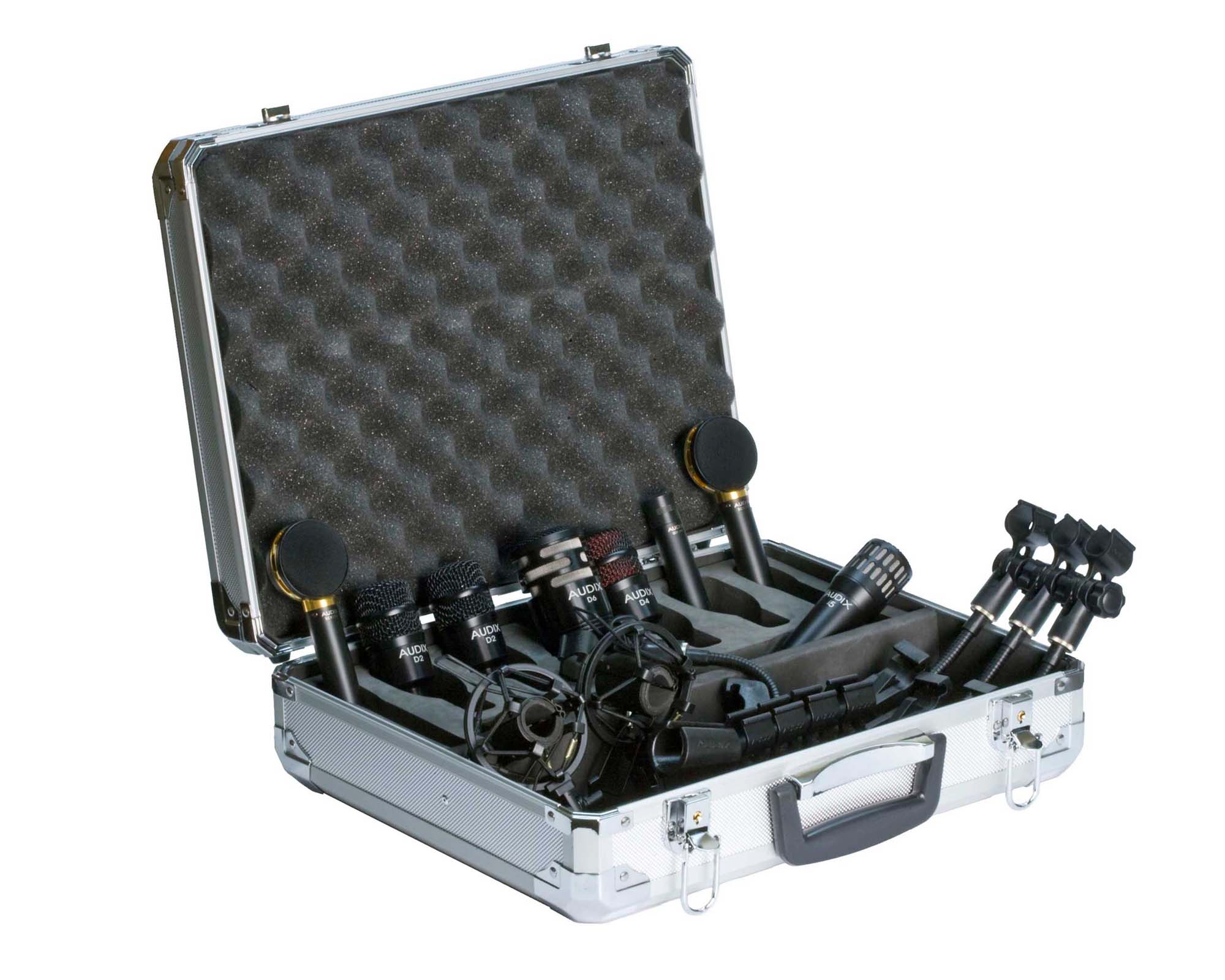

• Aluminium Road Case

Optional Accessories

• DFLEX - All-purpose percussion clamp
• DCLAMP - Tension rod mic clamp
• CBL20 - 20’ XLR-XLR mic cable
• CBLDR25 - 25’ right angle XLR-XLR mic cable
• STANDKD - Adjustable kick drum mic stand with telescopic boom
