Portable PA system equipped with a 100 W power amp, coaxial compression driver with 1.4” voice coil HF and 6.5” cone LF, a 3-channel mixer, and internal lithium-ion battery.

Product Features

• 100 W Class-D amplifier
• 1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
• 3-channel mixer (2 monaural mic/line + 1 line)
• Equipped with a 2-band master EQ
• Compatible with Hi-Z input (Channel 2 only)
• Equipped with mix-out

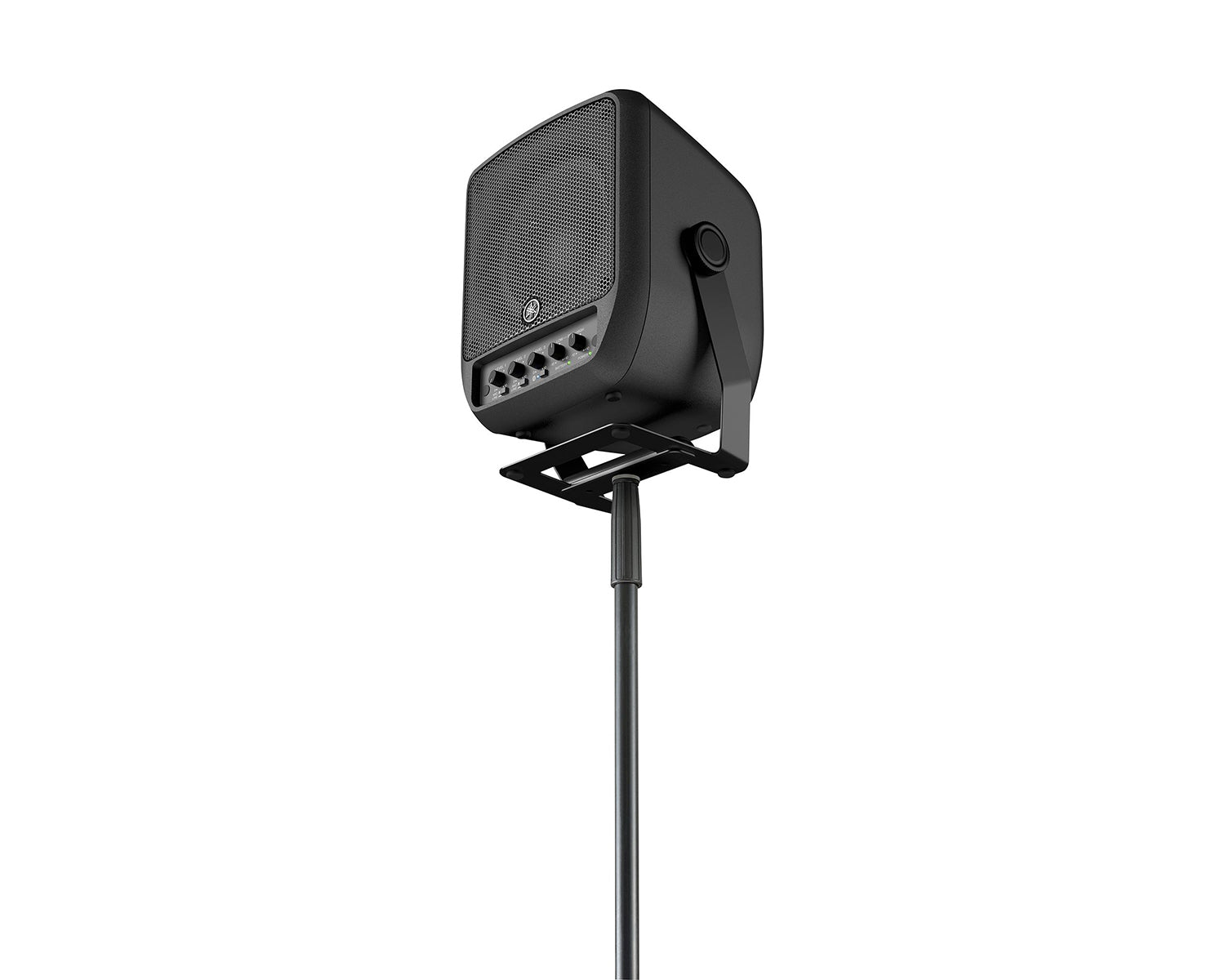

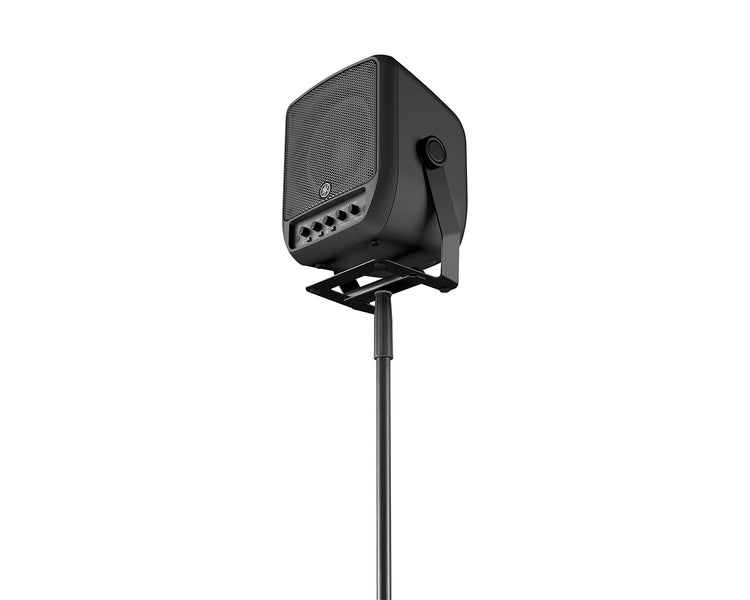

• Carrying handle doubles as an adjustable stand
• Compatible with audio accompaniment over Bluetooth
• Optional carrying bag (BAG-STP100) available for convenient transport
• Internal lithium-ion battery

Product Specifications

• Type: 2-way Bi-amp Powered Speaker with mixer
• Inputs: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
• Output: XLR3-32 (INPUT 1-3 mix)
• Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
• Mixing channels: 3
• Input channel functions: Hi-Z: CH2
• Output channel functions: 2 Band EQ

General specifications

• Speaker type: Coaxcial speaker with compression driver
• Frequency range (-10): 70 Hz – 20 kHz
• Coverage area: H90ﾟ x V90ﾟ
• Crossover: 1.8 kHz (FIR-X)
• Maximum output level (1m; on axis): 120 dB SPL *1
• Components: LF 6.5" Cone, 1.7" voice coil – HF 1" throat compression driver, 1.4" voice coil
• Amplifier class: D
• Power rating: 100 W
• Dynamic: LF:93W, HF:7W
• Cooling: Natural convection (no fan)
• Power consumption: 10 W (Idle), 30 W (1/8 power)
• Power requirements: 100-240 V 50/60 Hz

Battery

• Type: Rechargeable Lithium ion battery pack
• Capacity: 60 Wh
• Operating time: Maximum 6 hours, 1/16 power continuous 5 hours
• Charging time: Approx. 2.5 hours
• Cabinet material: Plastic
• Handle: Bottom x1 (Rotatable)
• Flying and mounting hardware: 1 × 3/8", depth 12 mm (centre of handle)
• Dimensions (W x H x D): 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
• Weight: 5.2kg (11.5ibs), without AC adaptor
• Accessories: Power cord x 1, AC adaptor (PA-500) x 1
