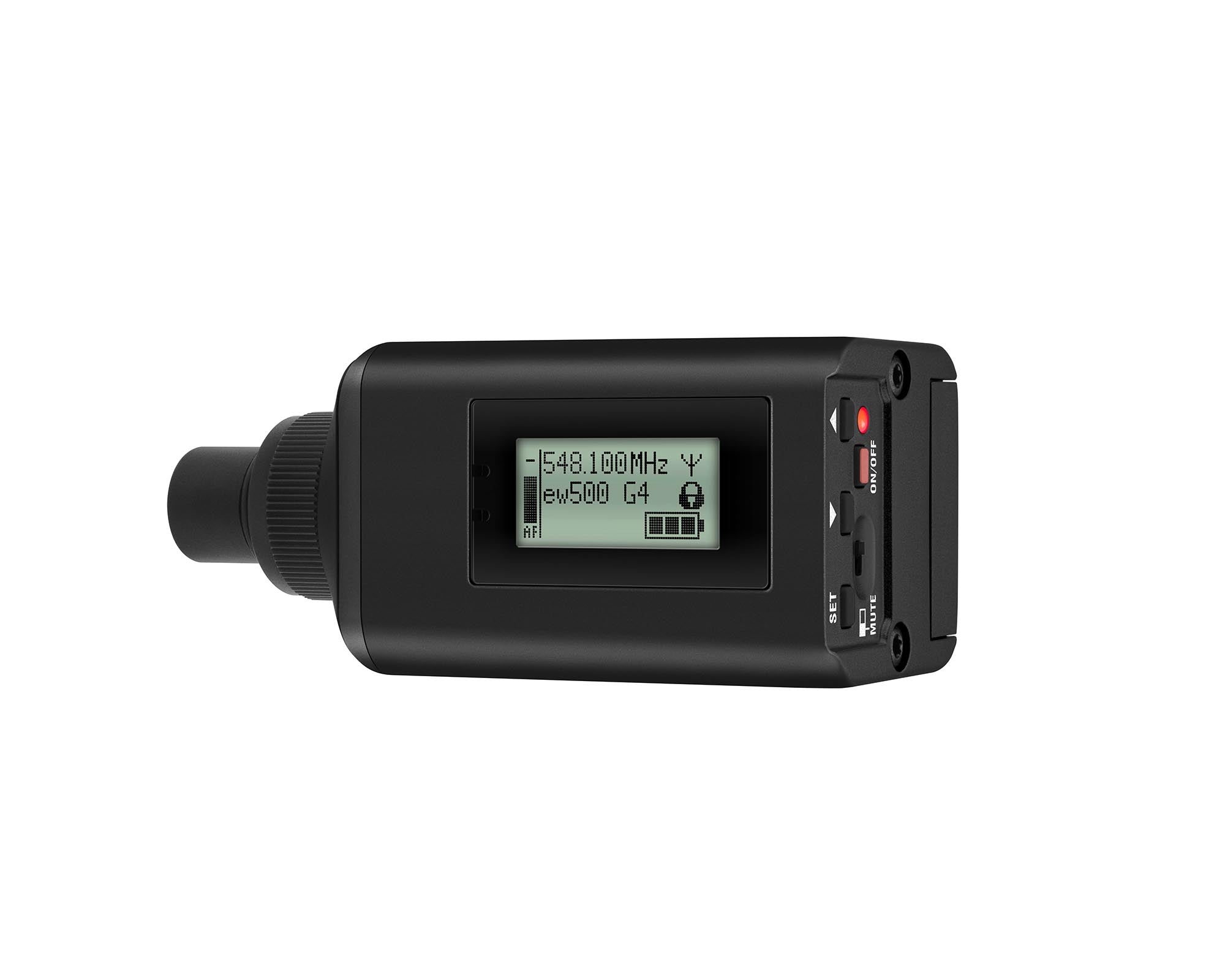

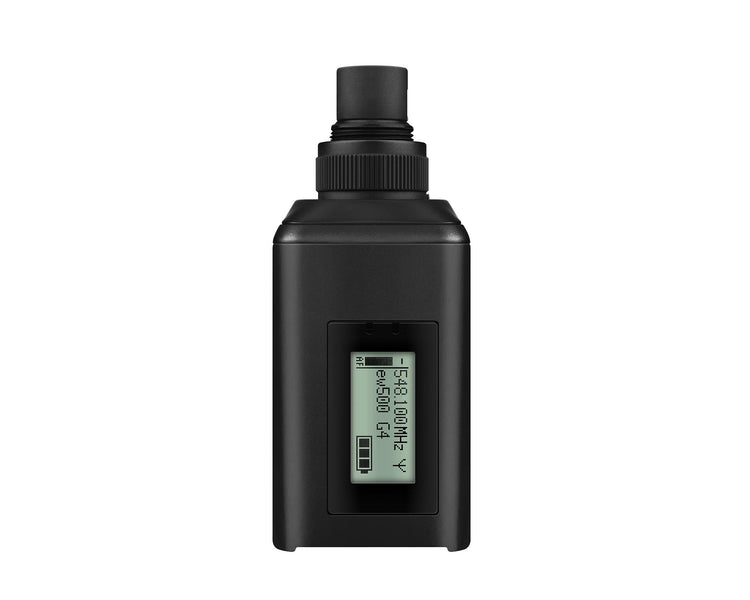

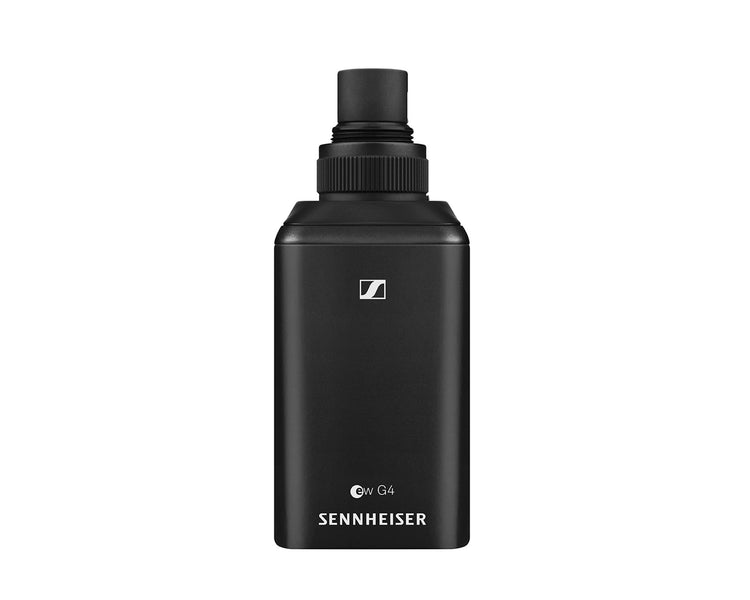

Powerful black plug-on transmitter with phantom power, increased bandwidth and transmission power for evolution wireless G4 500P Series systems. For professional film productions.

Product Features

• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, up to 32 channels
• Range: up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Product Specifications

General

• Modulation: Wideband FM
• Frequency ranges
  • Aw+: 470 - 558 MHz
  • AS: 520 - 558 MHz
  • Gw1: 558 - 608 MHz
  • Gw: 558 - 626 MHz
  • GBw: 606 - 678 MHz
  • Bw: 526 - 698 MHz
  • Cw: 718 - 790 MHz
  • Dw: 790 - 865 MHz
  • JB: 806 - 810 MHz
  • K+: 925 - 937.5 MHz
• Transmission frequencies
  • Max. 2880 frequencies, adjustable in 25 kHz steps
  • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
  • 6 frequency banks with up to 32 programmable channels
• Switching bandwidth: up to 72 MHz
• Nominal/peak deviation: ±24 kHz / ±48 kHz
• Frequency stability: ≤ ±15 ppm
• RF output power at 50 Ω switchable:
  • Low: typ. 10 mW
  • Standard: typ. 30 mW
  • High: typ. 50 mW
• Pilot tone squelch Can be switched off
• Compander system: Sennheiser HDX
• AF frequency response: 80 – 18,000 Hz
• Signal-to-noise ratio (1 mV, peak deviation): ≥ 120 dBA
• Total harmonic distortion (THD): ≤ 0.9 %
• Max. input voltage: 6 Veff
• Input impedance: 68 kΩ, unbalanced
• Input capacitance: Switchable
• Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
• Temperature range: -10 °C to +55 °C
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Nominal voltage: 3 V battery / 2.4 V rechargeable battery
• Current consumption at nominal voltage: typ. 210 mA with transmitter switched off: ≤ 25 µA
• Operating time: Typically 8 h

Physical & Dimensions

• Height: 43mm
• Width: 105mm
• Depth: 43mm
• Weight: 195g

What's in the Box?

• SKP 500 G4 pro plug-on transmitter
• 2 AA batteries
• POP 1 pouch with belt clip
• Quick guide
• Safety guide
• Manufacturer declaration sheet
