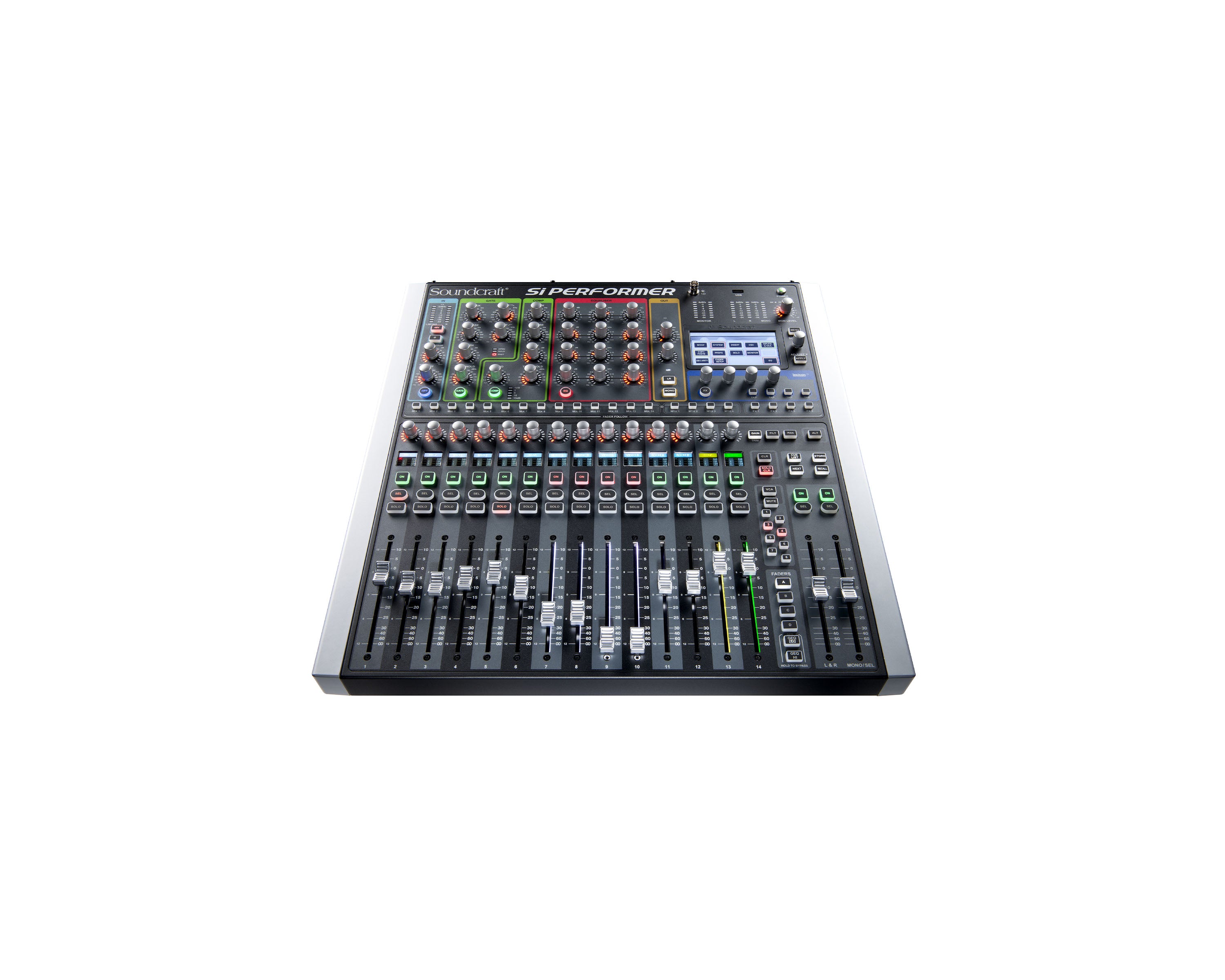

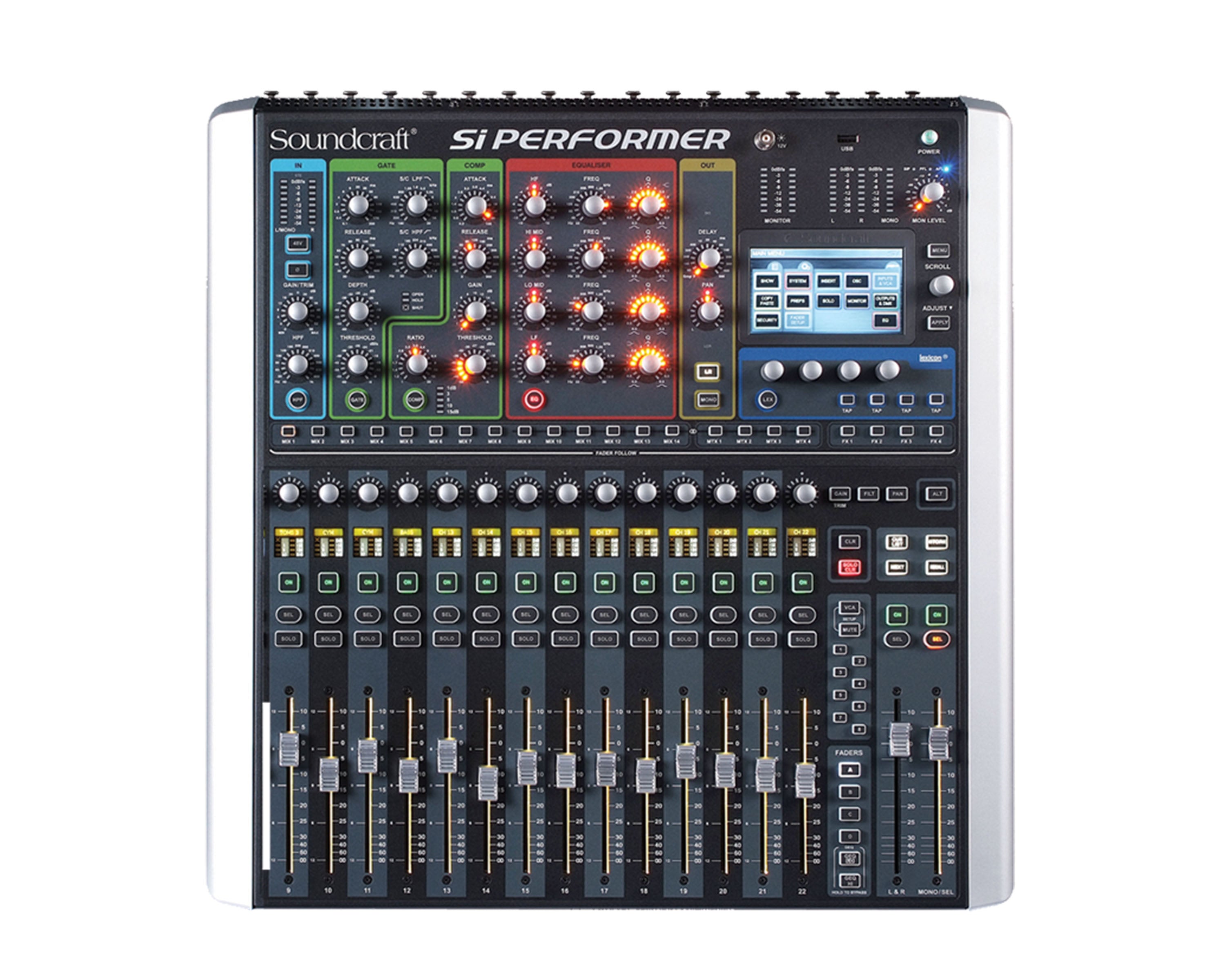

Drawing on the combined heritage of legendary Soundcraft quality and the powerful and intuitive Vi Series digital live sound mixers, the Si Performer brings unparalleled mix power and performance to small format digital live sound mixers.

Sitting where a plethora of gear once was, the Si Performer delivers the equivalent of 448 rack units of DSP including sophisticated 4-band fully parametric EQ, full dynamics processing, a comprehensive range of output options, totally flexible routing and, as with all Soundcraft consoles, an unmatched range of options to fully integrate the Si Performer into an existing system or become the centre of a thriving new installation.

Product Features

• 16 mono mic inputs
• 8 line inputs
• 80 channels to mix
• 2 ViSi Connect™ option card slots for 128 x 96 input/output paths
• Pre/Post selection per input per bus
• Freely assignable faders and patching
• Soundcraft FaderGlow™
• Colour backlit LCD screens per fader
• GEQ on every bus
• 20 sub-group / aux busses
• 4 FX busses
• 8 Matrix busses
• LRC Mix busses
• LCR panning
• 4 Stereo Lexicon Effects engines
• Delay on inputs and outputs
• 8 Mute Groups
• 8 VCA Groups
• AES in and out
• DMX interface and control -control sound and light simultaneously
• Freely assignable insert loops
• Harman HiQnet integration
• Colour touch screen interface
• Comes with removable side cheeks

Product Specifications

General

• Frequency Response
  • Mic / Line In to any Output: +/-1.5dB, 20Hz-20kHz
• T.H.D.
  • Mic Sensitivity -30dBu < 0.01% @ 1kHz
• Noise
  • Residual noise -86dBu
  • Mic Input E.I.N. 22Hz - 22kHz, Unweighted. (max gain)
  • 126dBu (150Ω source)
  • Mix noise, masters at unity < -86dBu
  • 1 input to mix at unity gain -84dBu
  • CMRR mic @1KHz (max gain) -80dBu
• Crosstalk (@ 1kHz)
  • Channel ON attenuation <120dB
  • Channel Fader attenuation <120dB
  • Mic – Mic -100dB @ 1KHz, -85dB@10kHz
  • Line – Line -100dB @ 1KHz, -85dB@10kHz
• Input Gain
  • Mic Gain -5dB – 58dB integrated pad design, 1dB steps
  • Line Trim -10dB - +16dB
• Gate
  • Threshold -60dBfs - -6dBfs
  • Depth -60dB - -3dB
  • Attack 0.1ms – 200ms
  • Release 20ms – 500ms
  • Side-chain HPF 22Hz – 2.5kHz
  • Side-chain LPF 160Hz – 20kHz
• Compressor
  • Threshold -52dBfs - -6dBfs
  • Ratio 1:1 – 20:1
  • Attack 0.1ms – 200ms
  • Release 5ms – 900ms
  • Makeup Gain 0dB – 24dB
• EQ
  • All Bands 22Hz – 20kHz, +/-15dB Q 6-0.3
  • Shelf (HF) 800Hz – 20kHz, +/-15dB
  • Shelf (LF) 20Hz – 500Hz, +/-15dB- HPF 40Hz – 1kHz
• Delay
  • User adjustable delay 1sample – 500ms
  • GEQ 31Hz – 16kHz 1/3 octave
• GEQ
  • 31Hz – 16KHz 1/3 octave
• Digital I/O
  • AES Sample rate converter range 8kHz – 200kHz
  • External Word Clock In range 48kHz +/-7Hz (internal systems), +/-3Hz with stageboxes.
  • Word clock out jitter +/- 7ns
  • Analogue out for 0dBfs +21.5dBu
  • Converter resolution 24-bit
  • DSP resolution 40-bit floating point
• Latency
  • Mic In to Line Out <0.8 ms
  • Analogue in to AES out <0.6 ms
  • AES in to Line Out <0.8ms
  • AES in to AES out <0.5ms
  • Stagebox Mic In to Stagebox <0.9mS
• Input & Output Levels
  • Mic Input +22dBu max
  • Line Input +22dBu max
  • Mix Output +21.5dBu max
  • Headphones (@150Ω) 300mW (recommended impedance 75 to 200Ω)
• Input & Output Impedances
  • Mic Input 3kΩ
  • Line Input 10kΩ
  • AES Input 110Ω
  • Outputs 150Ω (balanced), 75Ω (unbalanced)
  • Word Clock used as Output 50Ω
  • Word Clock used as Input 4K7Ω
  • AES Output 110Ω
  • DMX 120Ω
• USB
  • Max current 200mA
• Lamp Output
  • 12v DC 100mA max (per socket)
• Power
  • Consumption (typical) <130w Si EXPRESSION 3
  • AC Input voltage range 88-264VAC auto sensing
  • AC Frequency range 47-63Hz
• Operating Conditions
  • Operating Temperature Range 5°C to 45°C
  • Humidity 0%-90%, non condensing Ta=40°C (104°F)
  • Storage Temperature Range -20°C to 60°C (-4°F to 140°F)

Physical & Dimensions

• Height: 193mm
• Width: 483mm
• Depth: 522mm
• Weight: 15kg
