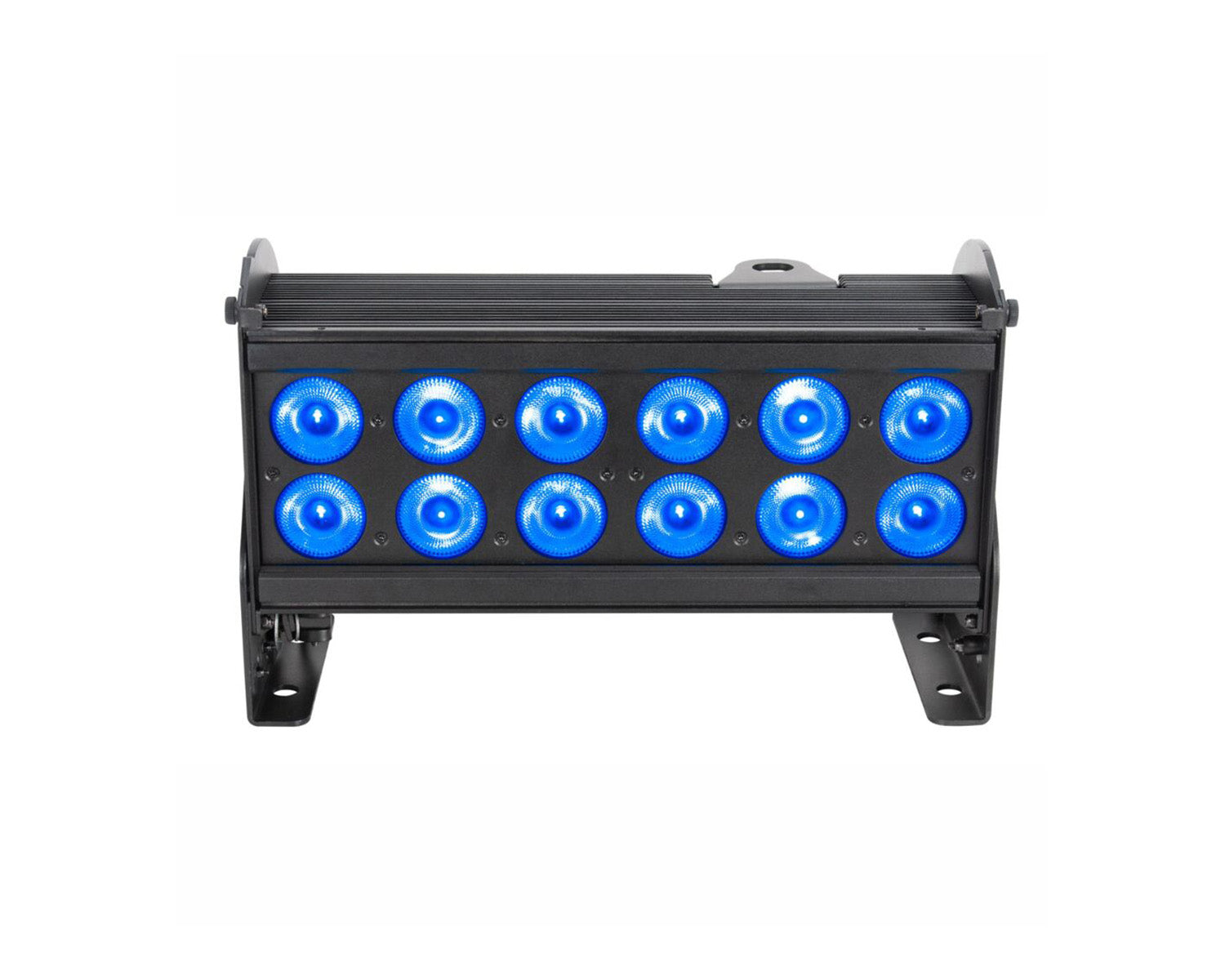

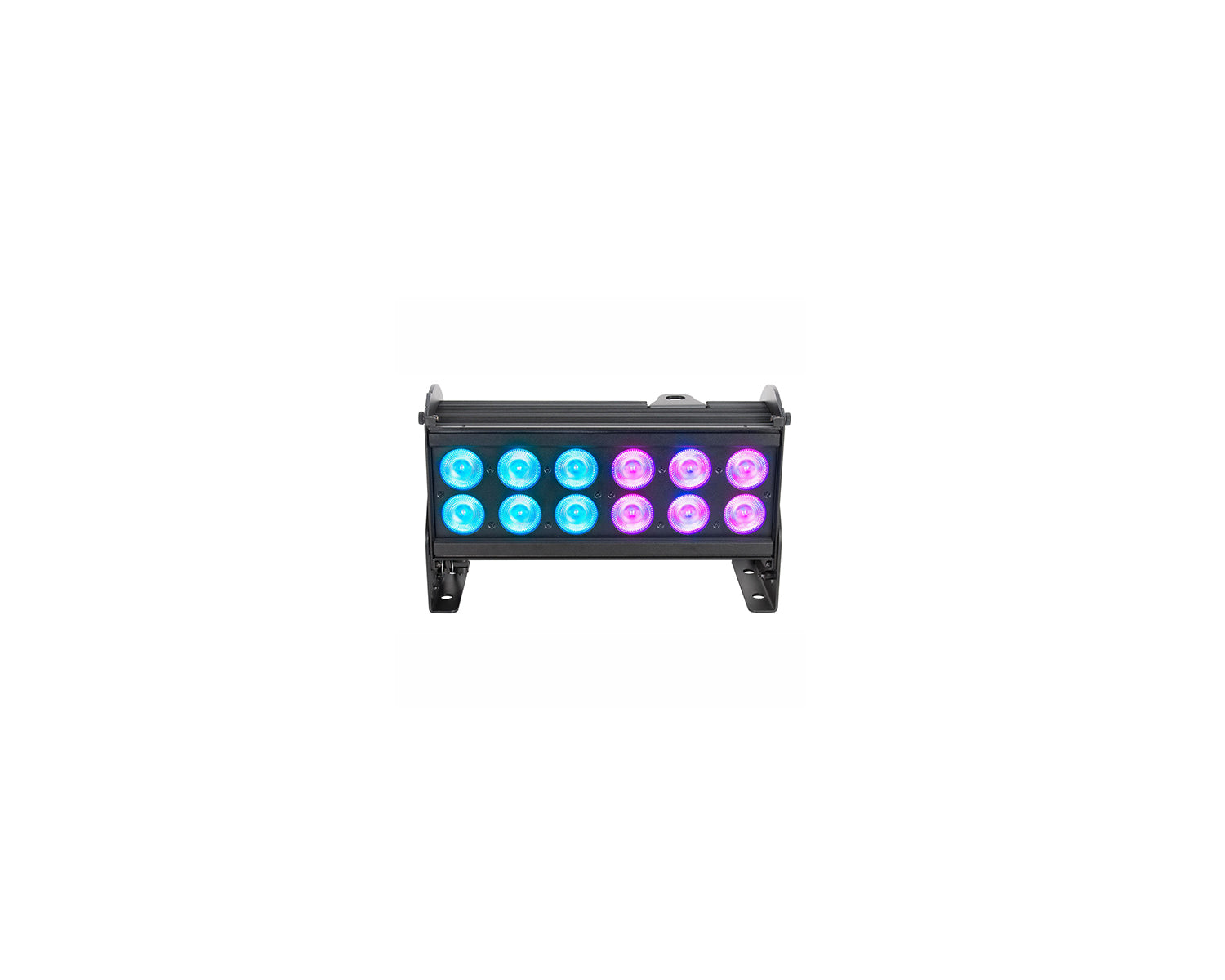

The SEVEN Batten 14™ is a seven-colour 0.4m (1.2 foot) long batten wash luminaire with (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 2 pixel mapping zones with pixel flip mode, smooth colour mixing, 12 internal programmes with speed and fade control, 64 unique 7-colour macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker-free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 ethernet, and locking power in/out connections, a 220° manual tilt adjustable mounting bracket, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder-coated die-cast aluminium exterior, and an integrated gel / frost filter slot.

Product Features

• 0.4m (1.2 Foot) Seven Colour Batten Wash Luminaire
• (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
• Individual Hue, Saturation, and Intensity Control
• Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
• 2 Pixel Mapping Zones with Pixel Flip Mode
• Smooth Colour Mixing, Internal Programs with Speed and Fade Control
• 64 Unique 7-Colour Macros
• Selectable 16-bit Dimming Curve Modes
• DMX Adjustable LED Refresh Rate
• Adjustable LED Gamma Brightness
• Flicker Free Operation for TV and FILM
• Art-Net, Kling-Net, and RDM Protocol Support

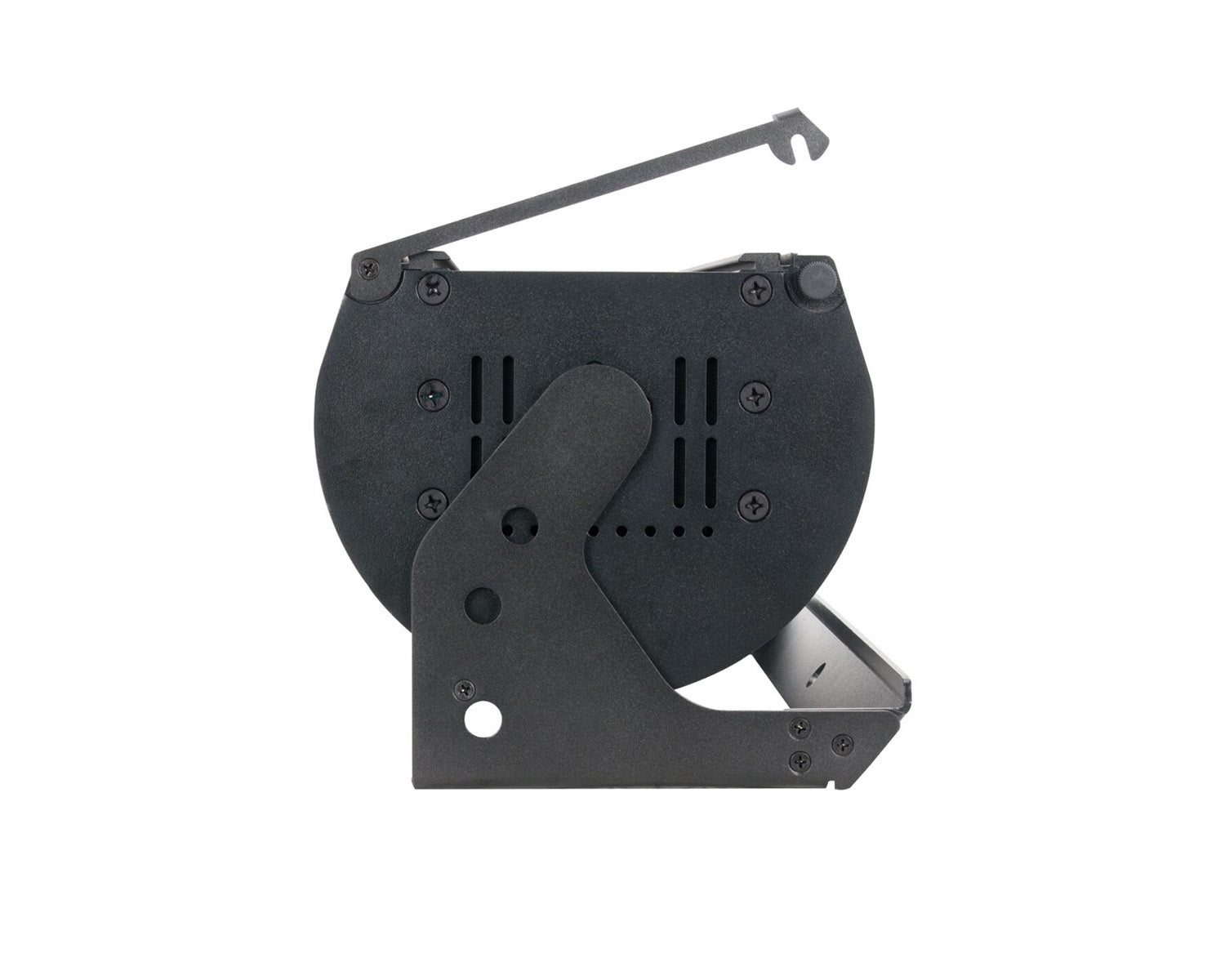

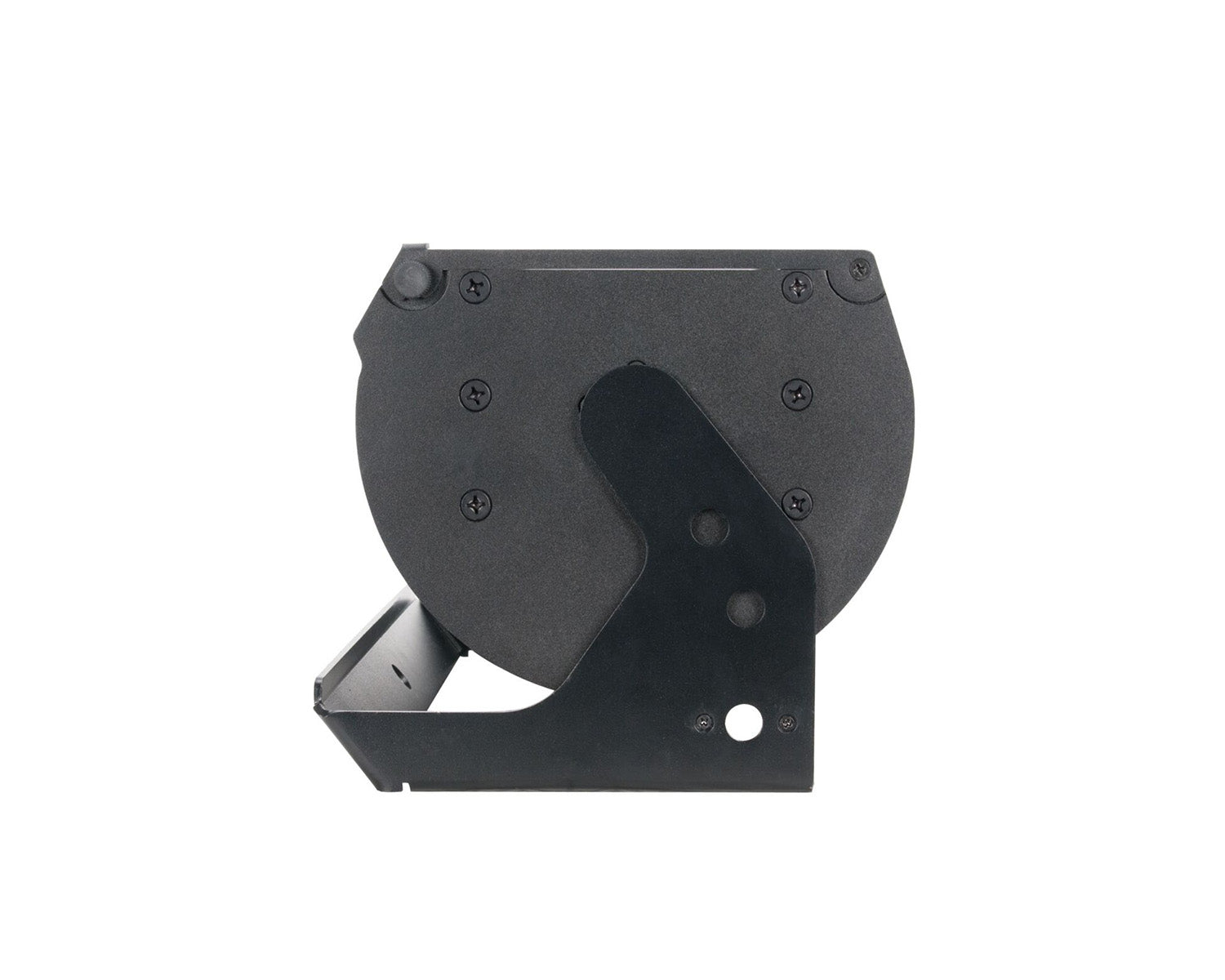

• 220° Manual Tilt Adjustable Mounting Bracket
• Rugged Powder Coated Die-Cast Aluminium Exterior
• Integrated Gel / Frost Filter Slot

Product Specifications

Source

• (12) 25W 7-IN-1 RGBAW + Lime + UV LEDs
• 50,000 Hour Average LED Life

Effects

• Individual Hue, Saturation, and Intensity Control
• Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
• 2 Pixel Mapping Zones with Pixel Flip Mode
• 12 Internal Programme Macros with Speed and Fade Control
• 64 Unique 7-Colour Macros
• Selectable 16-bit Dimming Curve Mode

Colour

• RGBAW + Lime + UV (395nm)

Control / Connections

• 12 DMX Channel Modes (22 total channels)
• DMX and Manual Control
• 4 Button Control Panel
• 180° Reversible OLED Menu Display
• DMX Adjustable LED Refresh Rate (900 - 25,000Hz)
• Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
• Art-Net, Kling-Net, and RDM (Remote Device Management) Protocol Support

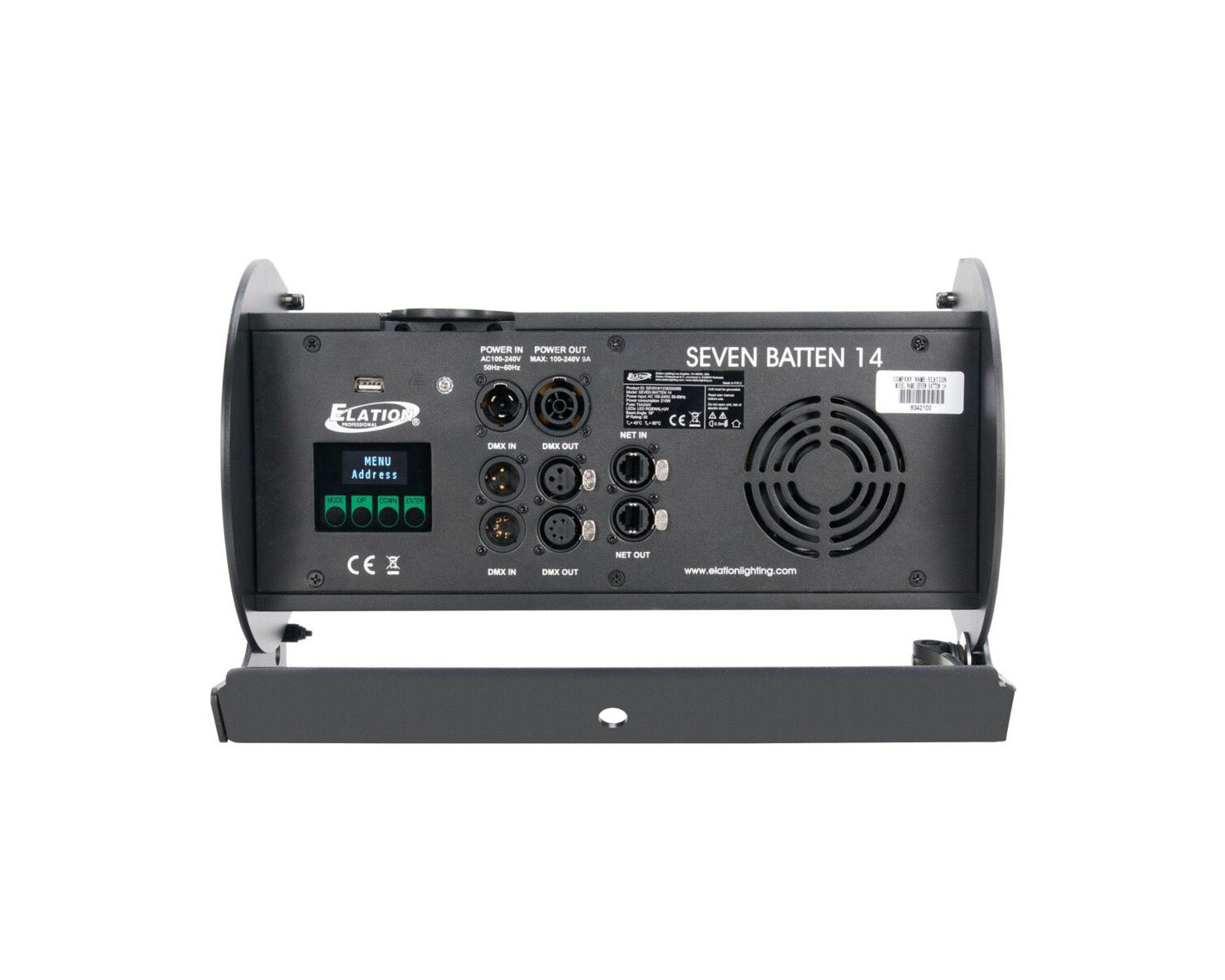

• 3/5pin DMX, RJ45 ethernet, and locking Power In/Out
• With Wired Digital Communication Network

Electrical / Thermal

• AC 100-240V - 50/60Hz
• 201W Max Power Consumption
• -10°C to 45°C (14°F to 113°F)

Size / Weight

• Length:  355.6mm (14.0”)
• Width:  114.3mm (4.5”)
• Vertical Height:  228.6mm (9.0”)
• Weight:  7.7kg (17.0 lbs.)
