The Sapphire Touch is high performance, with more submasters, more flash and executor buttons, and the power to control the larger, more challenging shows. Program with two wide screen touch monitors offering a huge workspace area, expandable further still with Sapphire Touch and Sapphire Media Wings. Tricolour optical trackball indicates fixture colour or functionality with unique ‘Saturn Ring’ control, giving X,Y,Z axis control simultaneously.

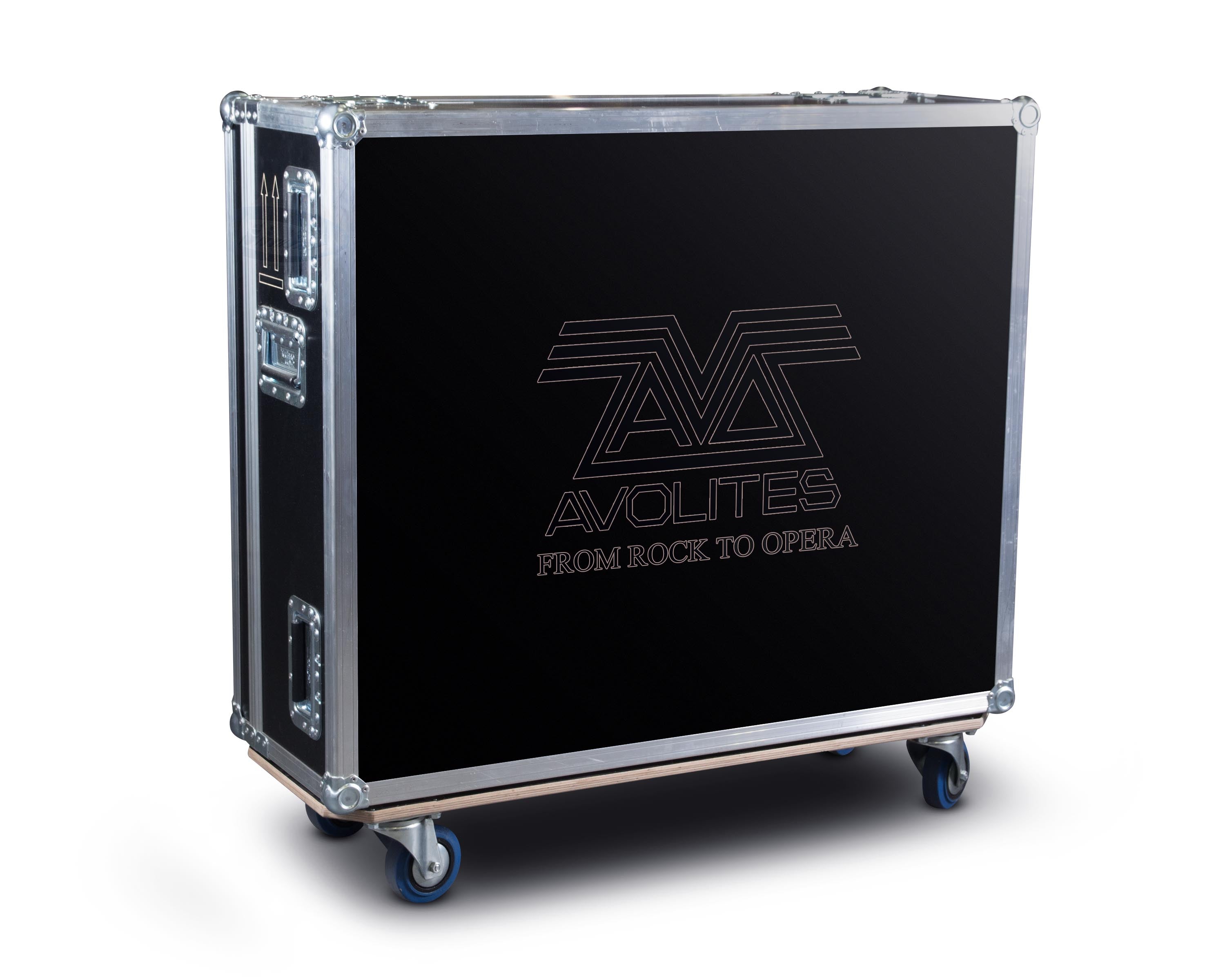

Sapphire Touch Flightcase

The Avolites Sapphire Touch Case for Sapphire Touch Console has been specifically designed to safely and easily transport your Sapphire Touch Console from one location to another. The solid Avolites case comes complete with Avolites logo and wheels to help make life easier.

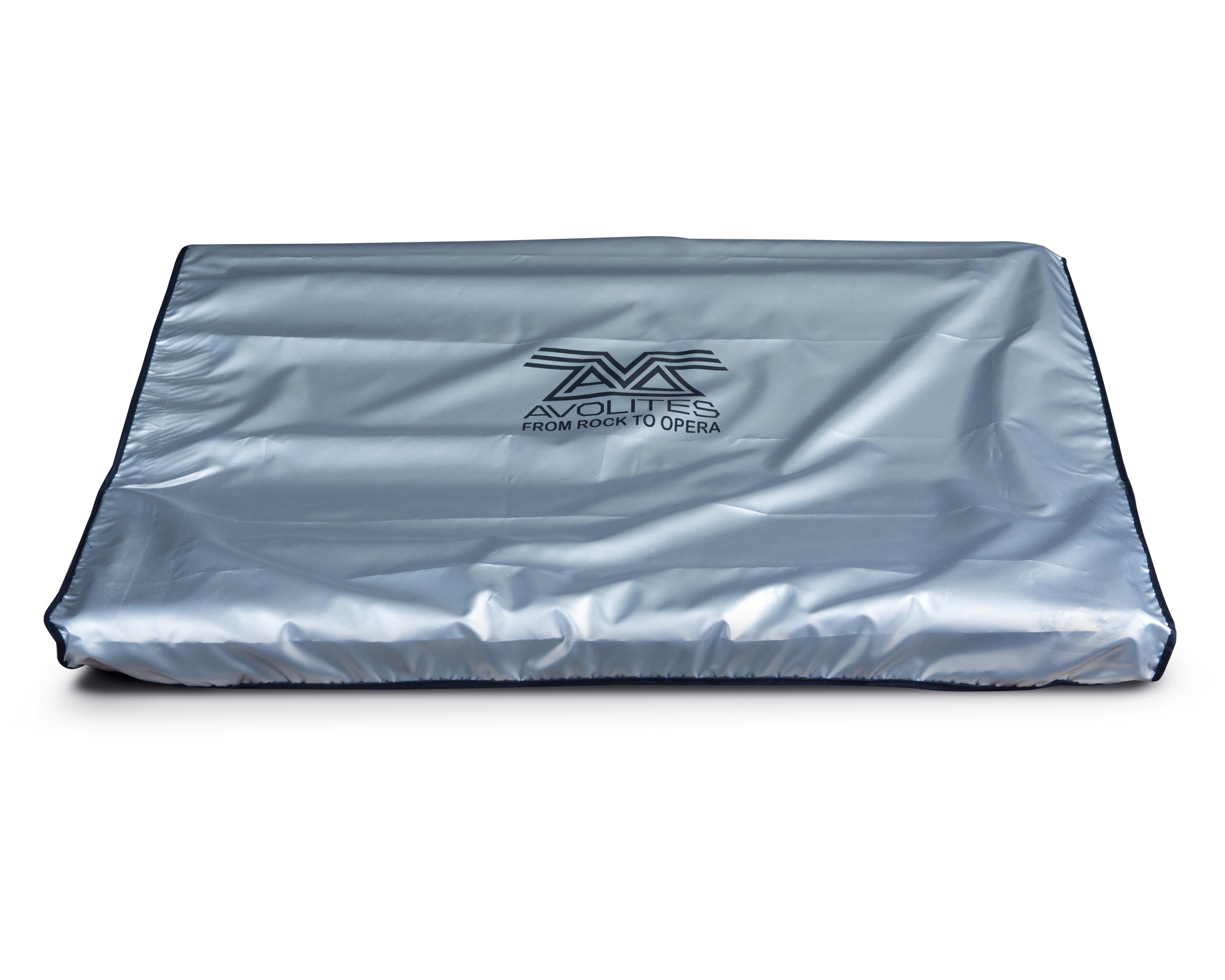

Sapphire Touch Cover

The Avolites Sapphire Touch Cover has been specifically designed to protect the Sapphire Touch from wear and tear. You can use the Sapphire Touch Cover when the console is not in use so it stays clean or you can use the cover when you are moving the console from one location in a room to another. The Sapphire Touch Cover comes finished in a metallic silver colour with a soft finish.

12" Right Angled Lamp for Sapphire Touch Console

A 12" LED right-angled lamp to light up your Avolites Sapphire lighting console during operation. Finished in black, this sturdy lamp is the ideal partner for your Sapphire lighting console as it easily maluable to get the perfect lighting position. With an XLR connection the lamp fits nicely into your lighting desk.

Littlite X-Series console lights feature the Littlite LLX, straight 3-Pin XLR style connector and are fully compatable with all major sound and lighting consoles with a dedicated XLR task light connector.

The gooseneck is available in the Halogen model and comes as the 18" version with your Sapphire Touch console - the ideal tool to help you use your lighting console in low light.

*Bundle specs subject to change without notice

Product Features

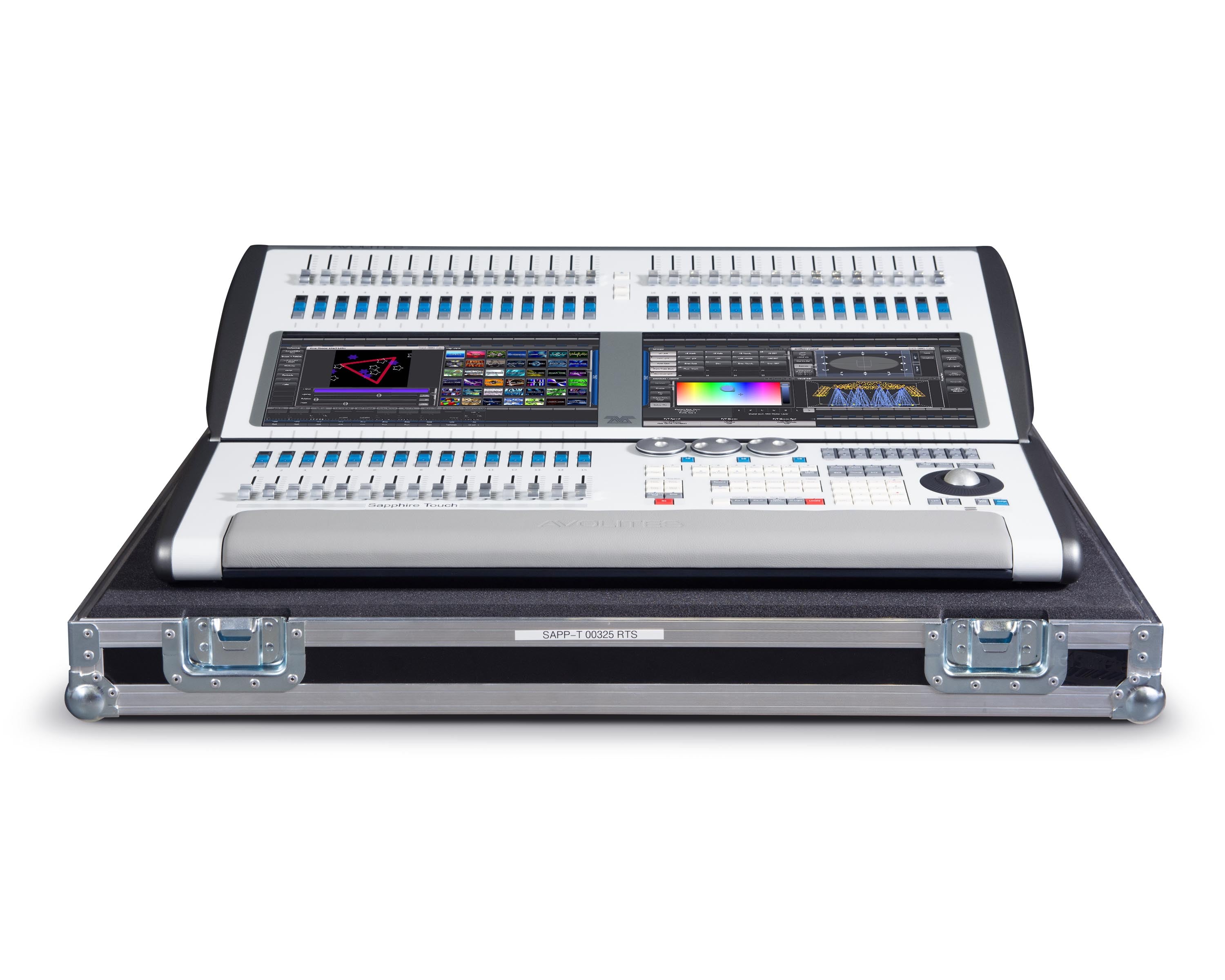

Sapphire Touch Lighting Console

• 45 motorised, automated master playbacks
• Massive, vibrant 15.6" widescreen programming windows
• Fast, live and hands on attribute controls
• Unique Tricolour illuminated tracker ball with Z axis control to give fast control of distance related attributes - zoom, iris and focus
• Built in UPS battery backup
• 8 physical DMX outputs, up to 16 over ArtNet or sACN - 8192 channels
• Supports Titan Network Processors for DMX expansion up to 64 universes
• Dual Ethernet port
• Direct SMPTE in
• Connectivity with Sapphire Touch Wing
• Dedicated theatre cue stack control
• Huge programming surface – capacity for 2 external touch screens
• 20 programmable macro buttons
• Screen articulation
• MIDI In Out and Through
• Trigger Inputs
• Compatible with Titan Remote

Sapphire Touch Flightcase

• Specifically designed for the Sapphire Touch
• Safest method on transportation
• Avolites logo on the side for that professional appearance
• Wheel foreasy transport

Sapphire Touch Cover

• Specifically designed for your Sapphire Touch
• Protects your desk from wear, tear and dust
• Keeps your desk cleam
• Finished in a metallic silver colour

12" Right Angled Lamp for Sapphire Touch Console

• 12" in length
• Right-angled XLR connection, ideal for the Sapphire lighting console
• Made from sturdy metal
• Easy maluable stalk
• Fits in XLR input of your Sapphire lighting console

Product Specifications - Sapphire Touch Lighting Console

Physical & Dimensions

• Console:
  • Dimensions: 884mm x 720mm x 218mm
  • Weight: 46kg
• Console in flightcase:
  • Dimensions: 1000mm x 970mm x 370mm
  • Weight: 86.35kg
• Console packed in flightcase:
  • Dimensions: 1010mm x 1000mm x 850mm
  • Weight: 88.45kg

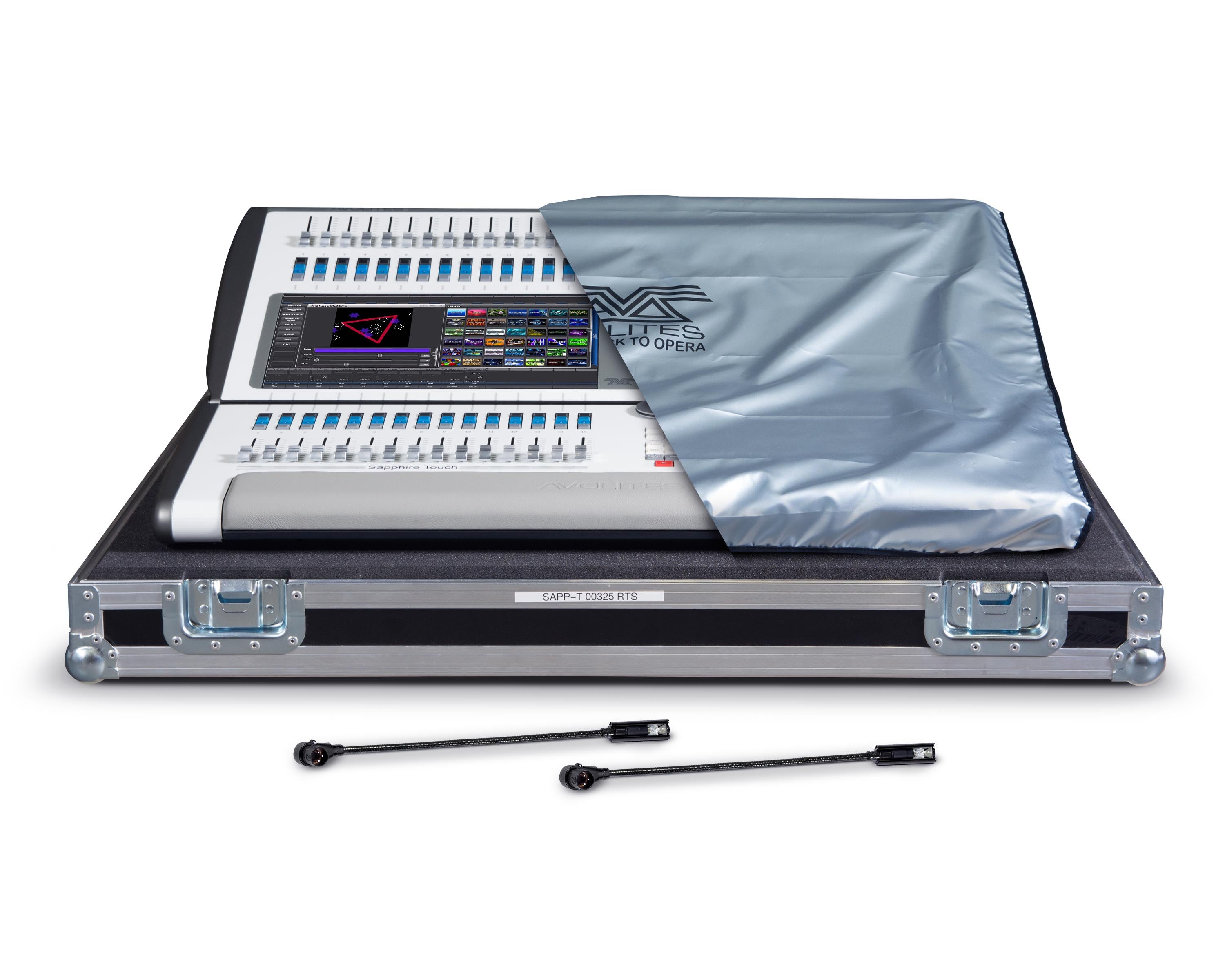

What's in the Box?

• 1 X Sapphire Touch Lighting Console
• 2 X 12" Right Angled LED Lamp
• 1 X Sapphire Touch Dust Cover
• 1 X Sapphire Touch Flightcase
