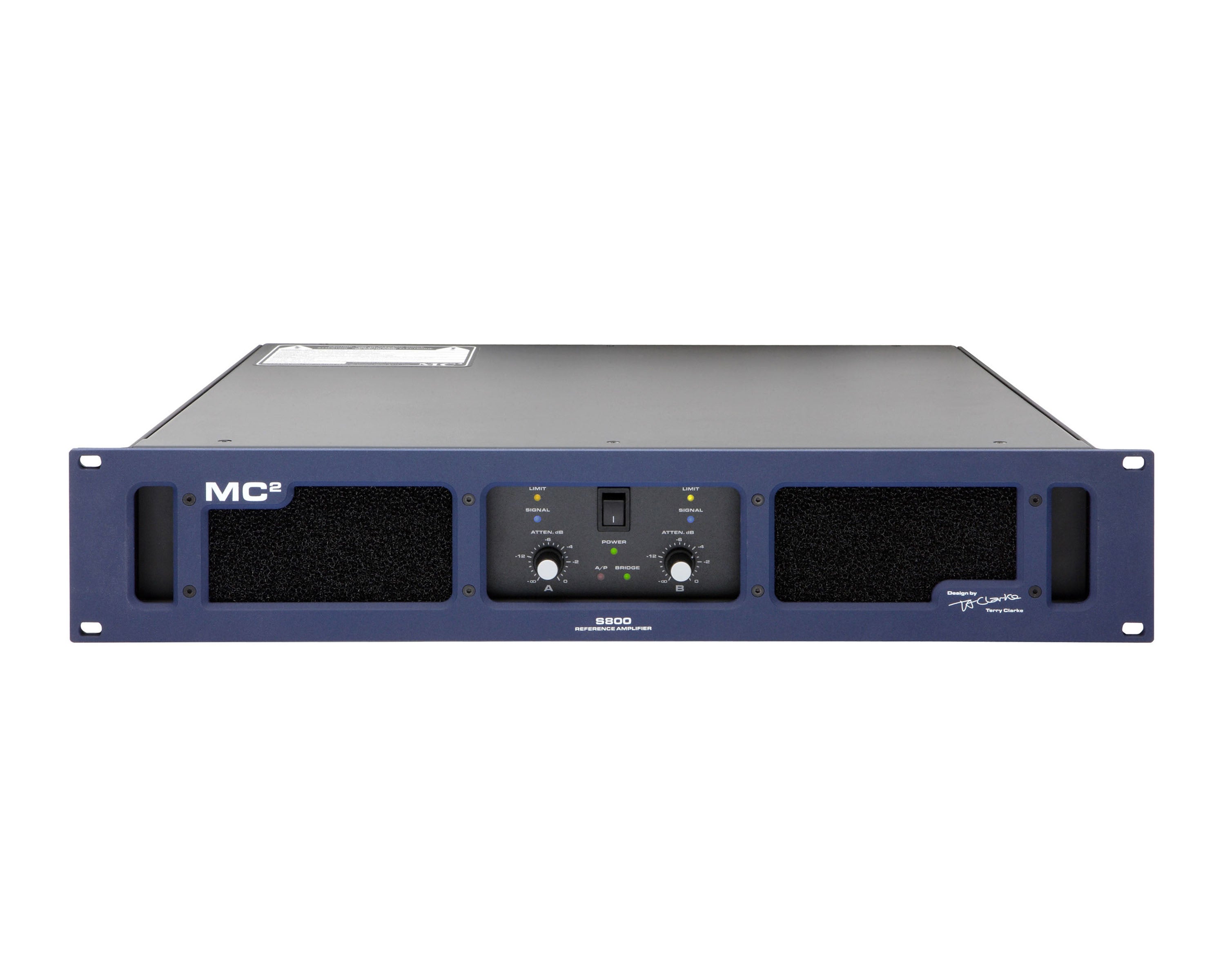

Designed for use in the best studio monitoring environments, but equally at home in any application where transparency and “no compromise“ performance are the focus, the S Series deliver the sound quality and reliability expected from MC².

The S Series utilise the best complimentary AB bipolar output stages, combined with the unique MC² current driven floating drive stage along with analogue level controls for minimal signal degradation.

Sophisticated “side-chain” limiters prevent distortion and speaker damage, but are out-of-circuit until the onset of clipping so do not compromise the signal path under normal working conditions.

A bespoke high fidelity shielded toroidal power supply combined with intelligently controlled low noise fans provide optimum conditions for the output stages, ensuring the only thing you will ever hear is your sound.

All MC² Audio products are covered by a 5 year warranty.

Product Features

• Designed for use in the best studio monitoring environments
• Utilises the best complimentary AB bipolar output stages
• Sophisticated “side-chain” limiters prevent distortion and speaker damage
• A bespoke high fidelity shielded toroidal power supply
• Intelligently controlled low noise fans provide optimum conditions
• All MC² Audio products are covered by a 5 year warranty

Product Specifications

General

• Number of channels: 2
• Output Power: (per channel)
  • 8 ohms: 475W
  • 4 ohms: 950W
  • 2 ohms: 1550W
• Output Power: (bridged)
  • 8 ohms: 1900W
  • 4 ohms: 3100W
• THD%: (@1dB below max output)
  • @ 1kHz: < 0.007%
  • 20Hz to 20kHz: < 0.03%
• Gain / Sensitivity:
  • Gain: 32/36dB
    • Sensitivity (for max power): +5.5/1.5dBu (1.4/0.9V)
• Frequency Response:20Hz to 20kHz (+ 0/- 0.5dB)
• Power Consumption:
  • Nominal @ 240v into 4 ohms: 2.1A
  • Nominal @ 120v into 4 ohms: 4.2A

Physical & Dimensions

• Height: 88mm
• Width: 482mm
• Depth: 428mm
• Weight: 20.5kg
