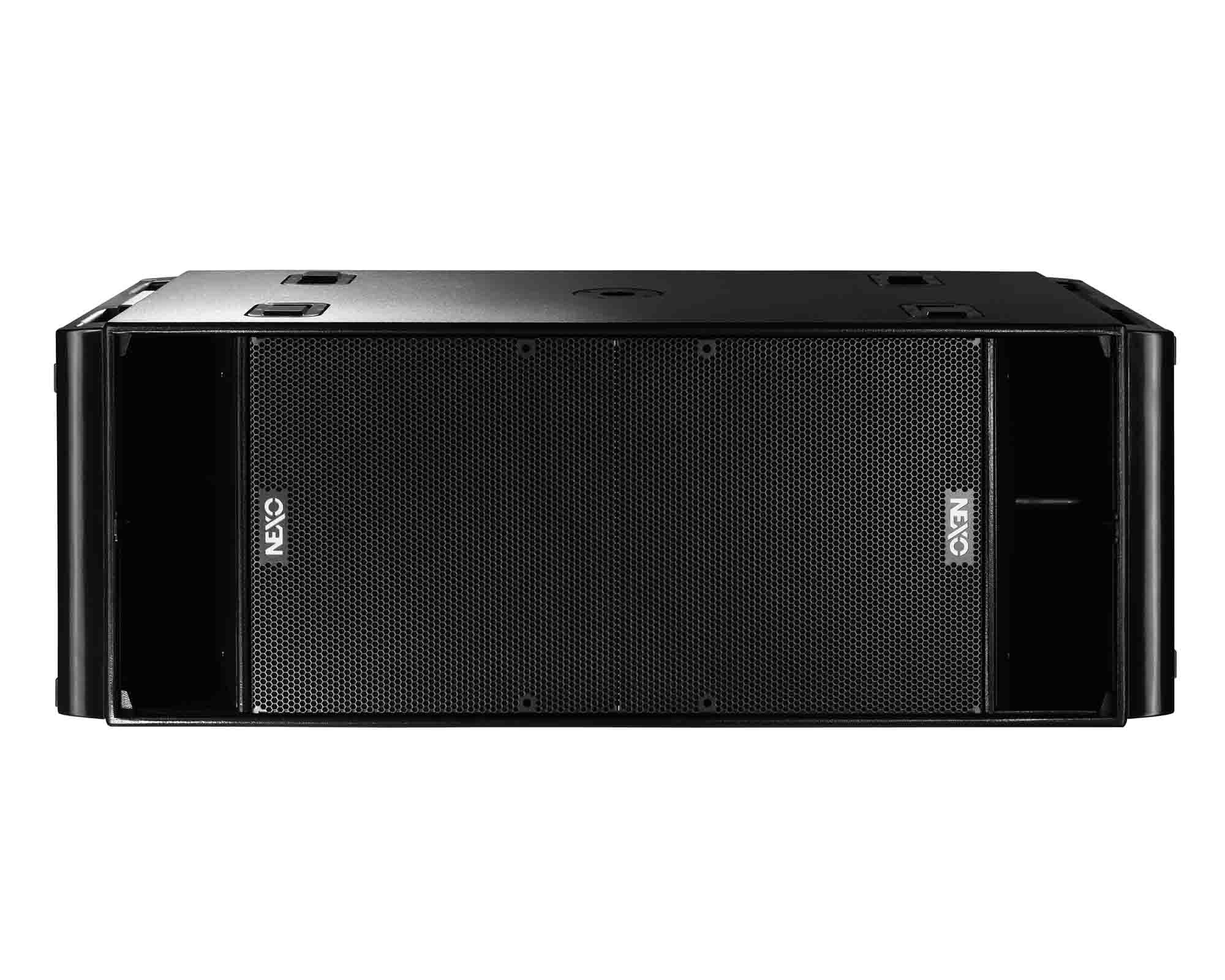

NEXRS18 - NEXO RS18PI 2x18inch RaySub High Output Subwoofer Painted Install Image 1

The RS18 sets a new standard for performance and versatility capabilities that 2x18" sub bass cabinets can provide.

Ray SUB Technology is based on optimising positioning and phase relationships of radiating surfaces in vented enclosures that permits acoustic distance from rear to front sections to always increase as frequency decreases; consequently rear and front sections sum up efficiently over the entire subwoofer bandwidth, allowing for an average of 5db gain from the rear section in the forward direction and cancelling in the rear direction.

Utilised in a stand alone format, RAY SUB Technology allows the same cabinet to be configured for any polar pattern, omni-directional as a standard direct radiating subwoofer when speakers are facing the audience, or highly directional when a speaker cabinet is rotated sideways or upwards. With arrays, RAY SUB subwoofers can be set back to back, front to front, alternate, in vertical columns, and when column length is sufficient, be beam-steered upwards or downwards. Comprised of two 18 inch transducers with a frequency response of 31Hz ñ 100Hz and a sensitivity of 107db SPL, the RS18 presents an unchallenged versatility for installations and touring requirements where large format sub-bass cabinets are required.

Product Features

Low Profile, High Output, Modular Scalable Bass
Configurable directivity pattern
Cardioid Pattern Reduces Rear Levels by
Minimising Rear/Side Wall Reflections
Aerodynamic Profiled Vents with 20db Noise
Reduction and improved Linearity at high SPL
Applies across entire NEXO Product Line

Product Specifications

General

Omni
- Frequency Response @ -3db [a]: 30Hz–100Hz
- Usable Range @ -6db [a]: 29Hz–250Hz
- Sensitivity 1W @ 1m [b]: 105dB SPL Nominal
- Peak SPL @ 1m [b]: 143–146dB Peak
- Dispersion: Omni & Directional pattern over the entire useable bandwidth depending on controller
- Directivity Index [c]: 1.5 < Q < 2 1.7dB < DI < 3dBQ=4.3 DI=5.3dB
- Crossover Frequency: From 75Hz to 100Hz
- Nominal Impedance: 2 x 8Ω
- Recommended Amplifiers: One amplifier channel is required for Omni mode operation, rated at 2000 to 4000 Watts into 4Ω
Directional
- Frequency Response @ -3db [a]: 30Hz–100Hz
- Usable Range @ -6db [a]: 29Hz–150Hz
- Sensitivity 1W @ 1m [b]: 103dB SPL Nominal
- Peak SPL @ 1m [b]: 140–143dB Peak
- Dispersion: Omni & Directional pattern over the entire useable bandwidth depending on controller
- Directivity Index [c]: 1.5 < Q < 2 1.7dB < DI < 3dBQ=4.3 DI=5.3dB
- Crossover Frequency: From 75Hz to 100Hz
- Nominal Impedance: 2 x 8Ω
- Recommended Amplifiers: One amplifier channel is required for Omni mode operation, rated at 2000 to 4000 Watts into 4Ω
