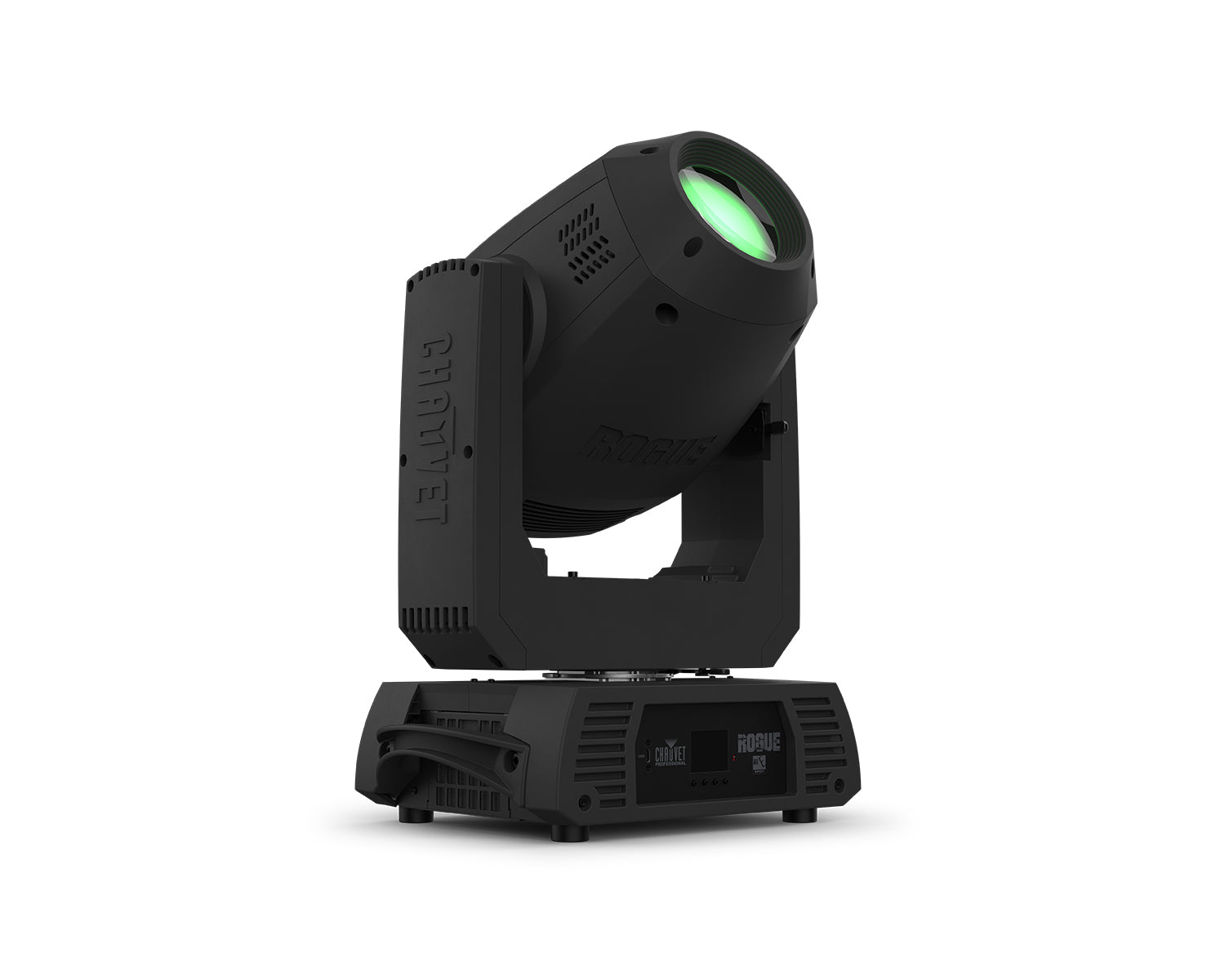

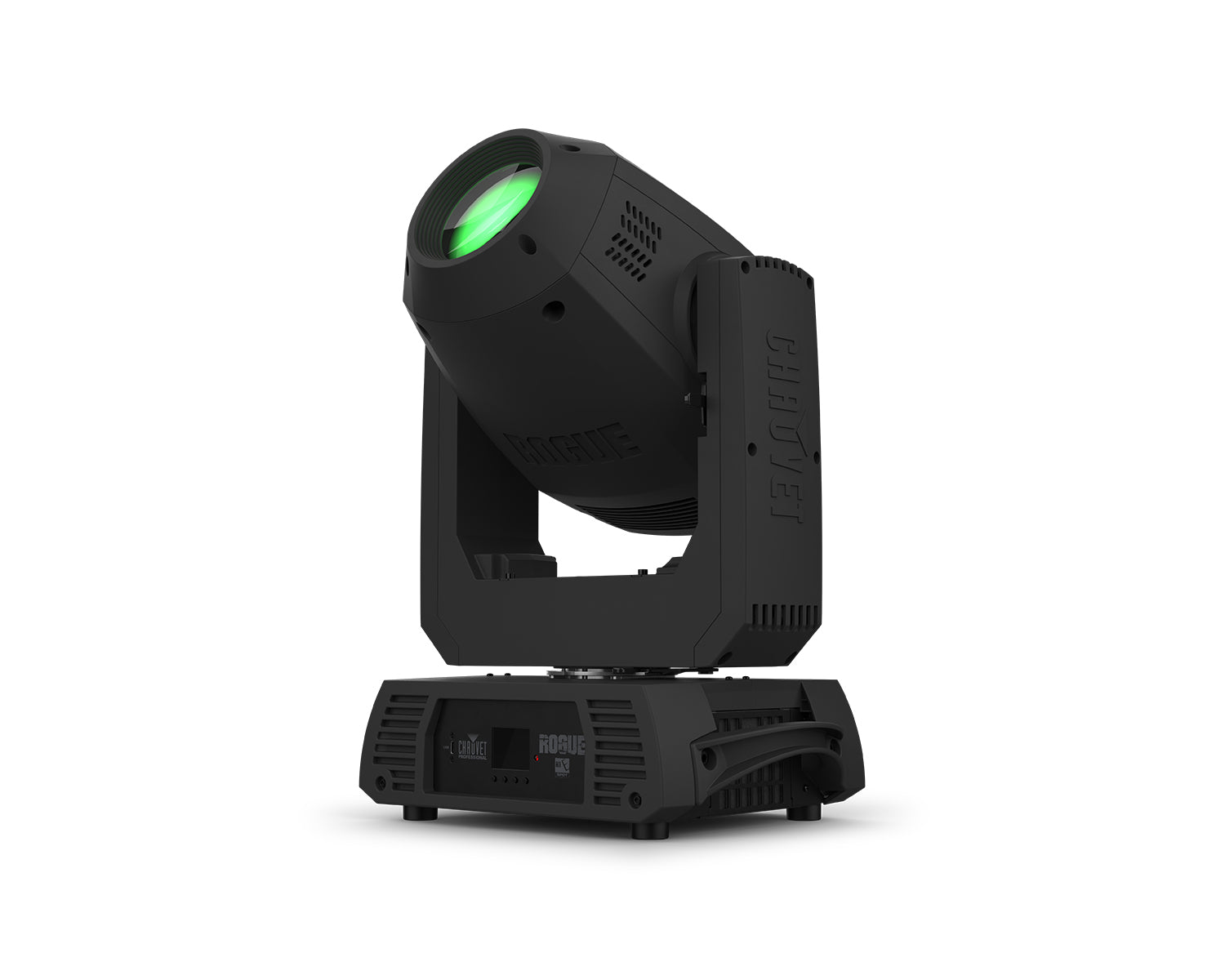

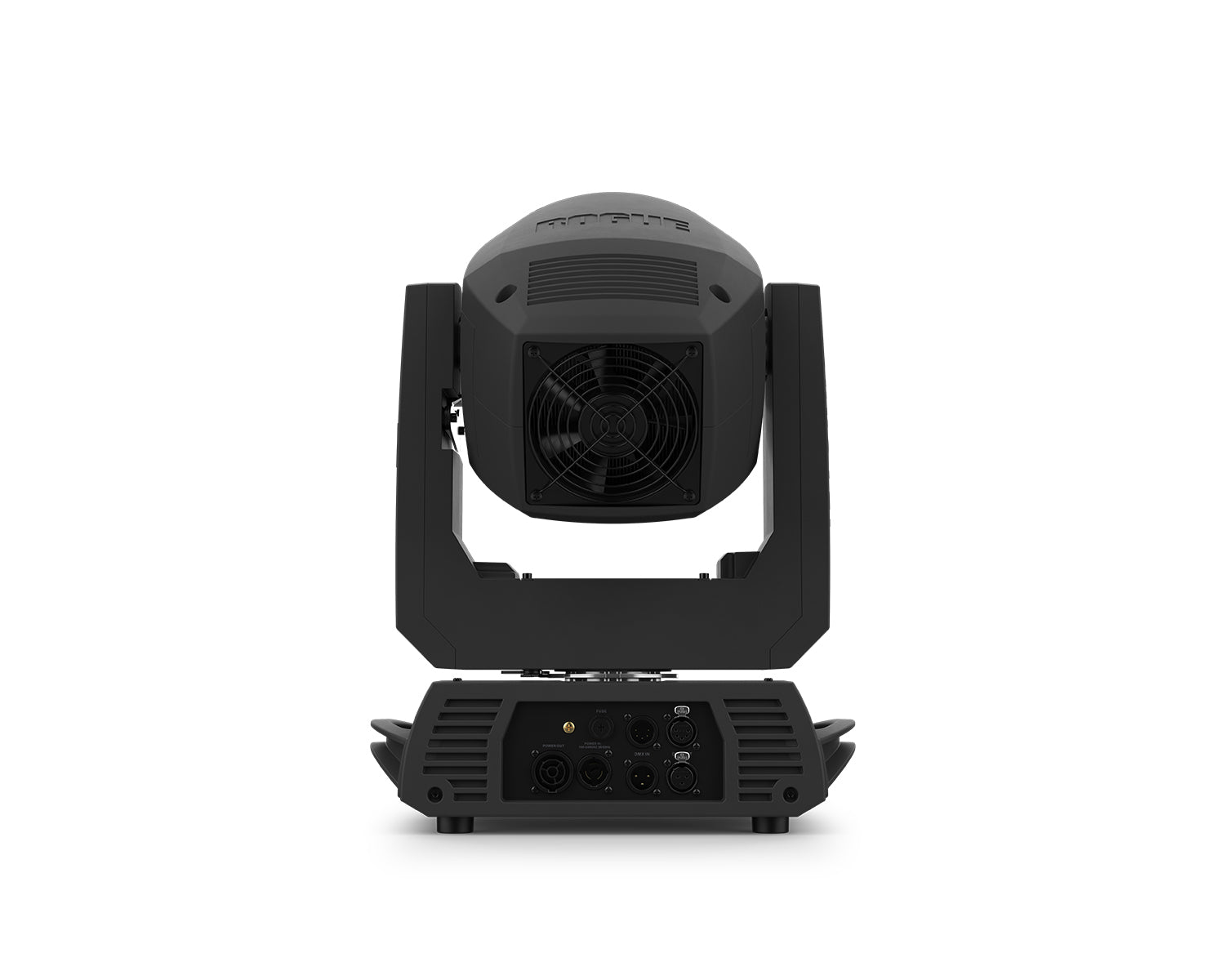

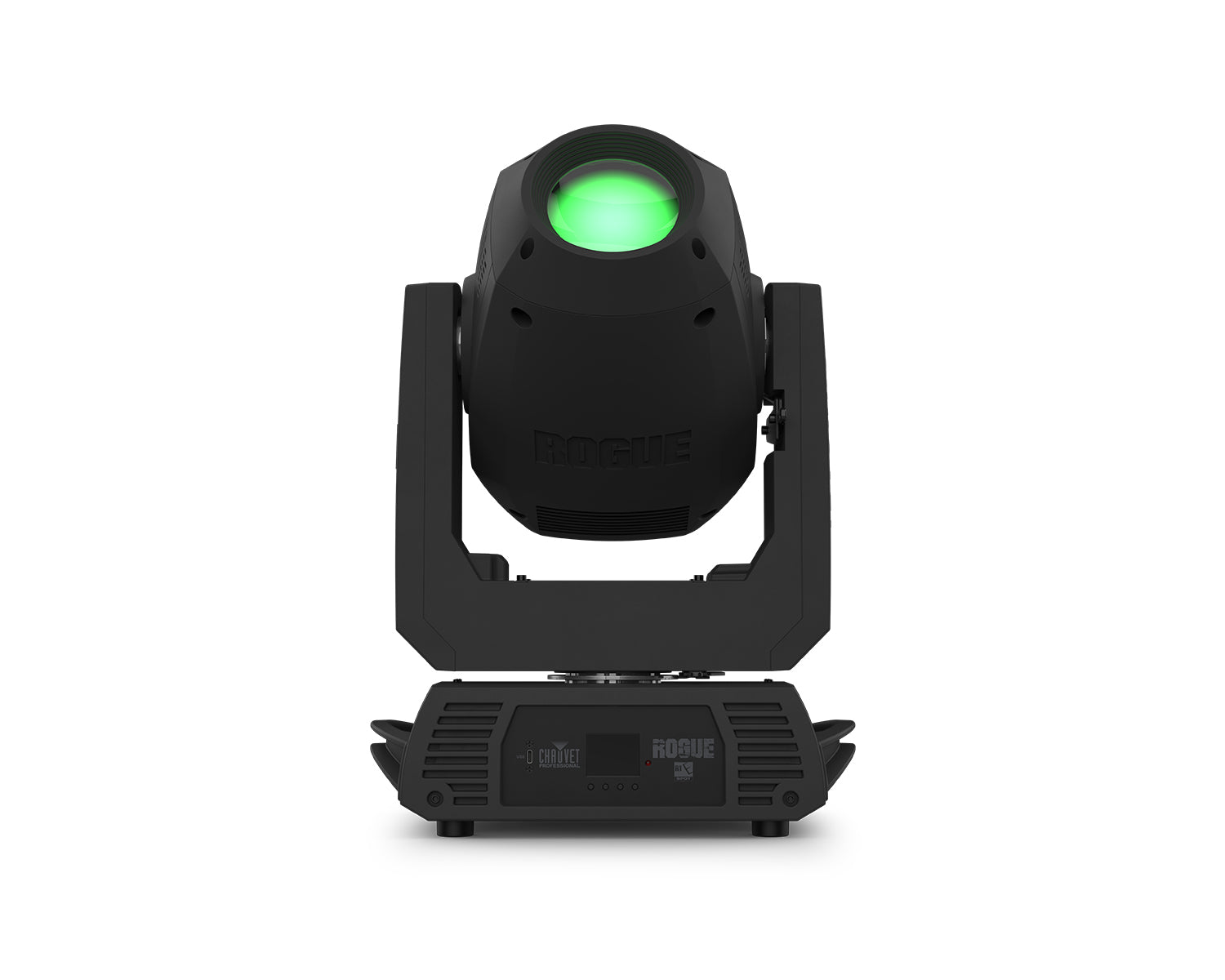

Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a colour wheel with eight brilliant colours + white + split colours. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R1X Spots in your rig.

Product Features

• A fully featured compact and light weight moving yoke spot fixture with an Intense 200 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and a colour wheel.
• 16-bit dimming of master dimmer for smooth control of fades
• Perfect gobo morphing between gobo wheels
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
• Iris, 3-facet prism, and frost for beam control
• True 1 compatible power input/output connections for power linking.
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting.
• Selectable LED maximum output to match legacy Rogue R1X Spots
• Selectable PWM settings to maintain flicker-free operation on camera.
• Simple and complex DMX channel profiles for programming versatility

Product Specifications

Optical

• Light Source: 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy
• Colour Temperature (at full): 7423 K
• Front lens diameter: 90mm
• CRI: 71.9
• Beam Angle: 15.2°
• Field Angle: 18.2°
• Cutoff Angle: 19.2°
• Lumens – Source: 17,900
• Lumens – Output: 11,176
• Illuminance (total): 8,306 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 270° pan/270°, 180°, 90° tilt
• Colours: 8 + white, split colours, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Move in Black: Yes

Control

• Control Protocol: DMX, RDM
• DMX Channels: 17 or 20
• Modes/Personalities: 2 personalities (17, 20)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 8units @ 230 V
• Power and Current: 303 W, 1.36 A @ 230 V, 50 Hz

Construction/Physical

• Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm) 
• Weight (single unit): 31.2 lb (14.2 kg)
• Exterior Colour: Black
• Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
• Software update: USB-C

What's in the Box?

• Rogue R1E Spot
• Seetronic PowerKon power cord
• 2 140D Omega brackets with mounting hardware
