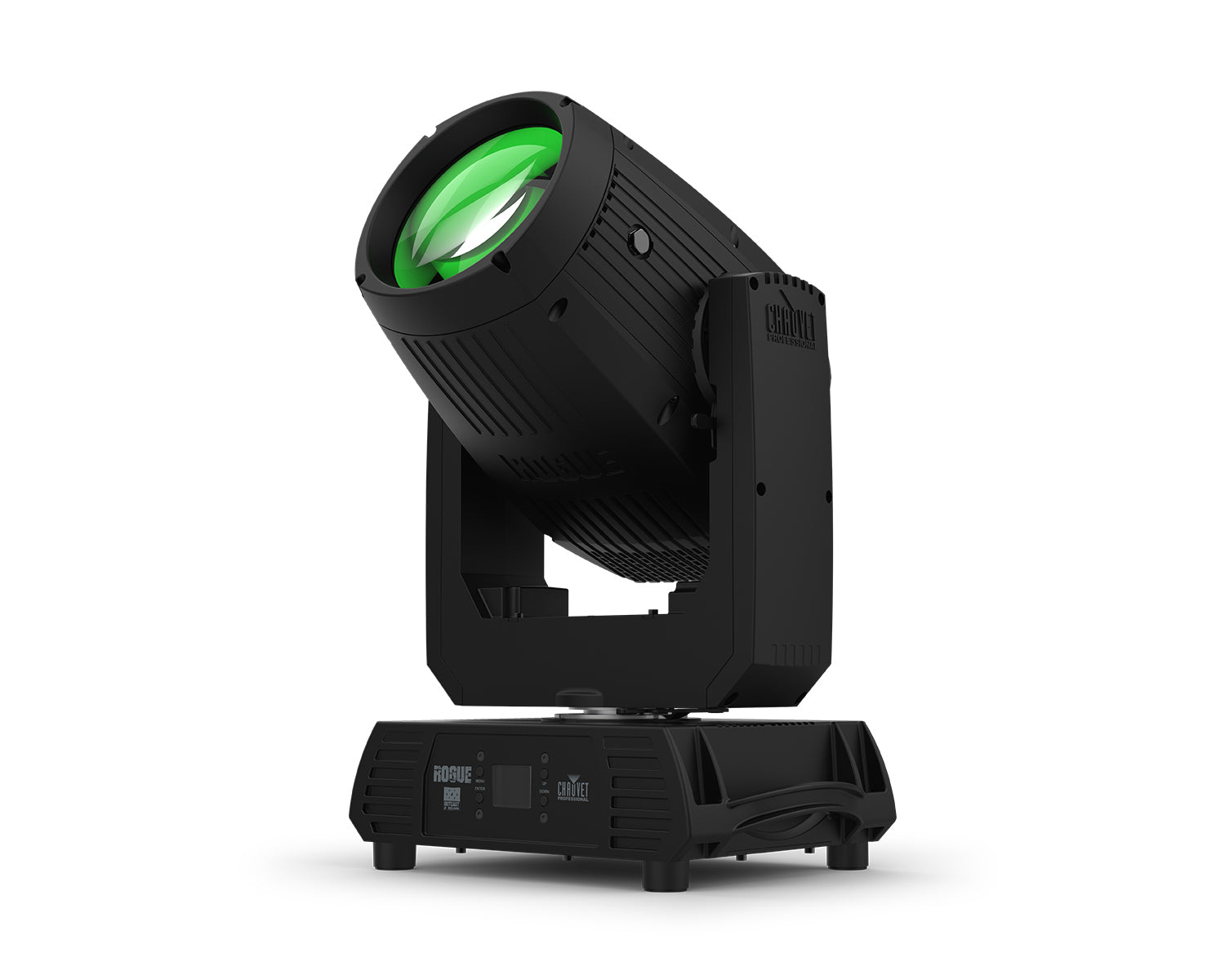

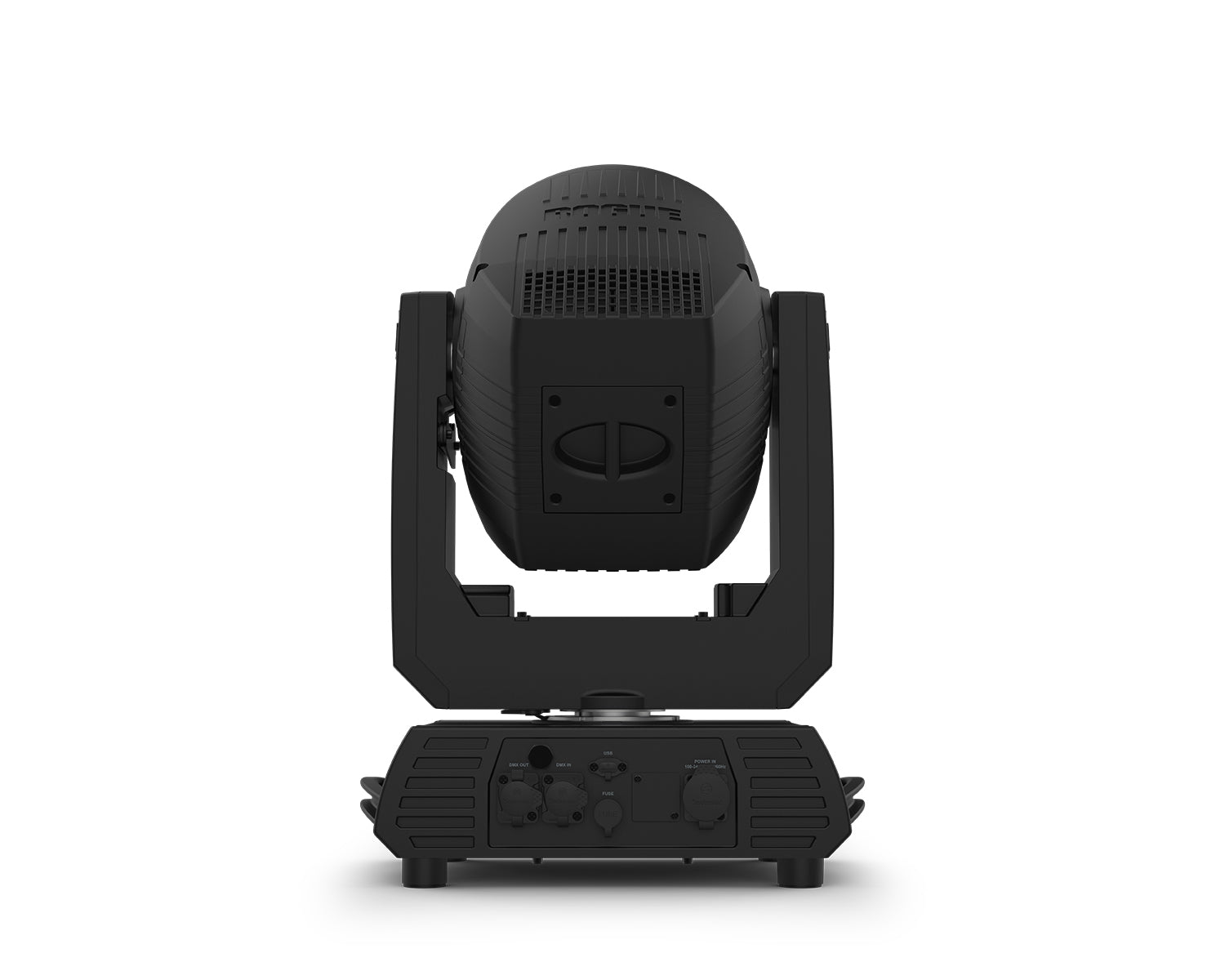

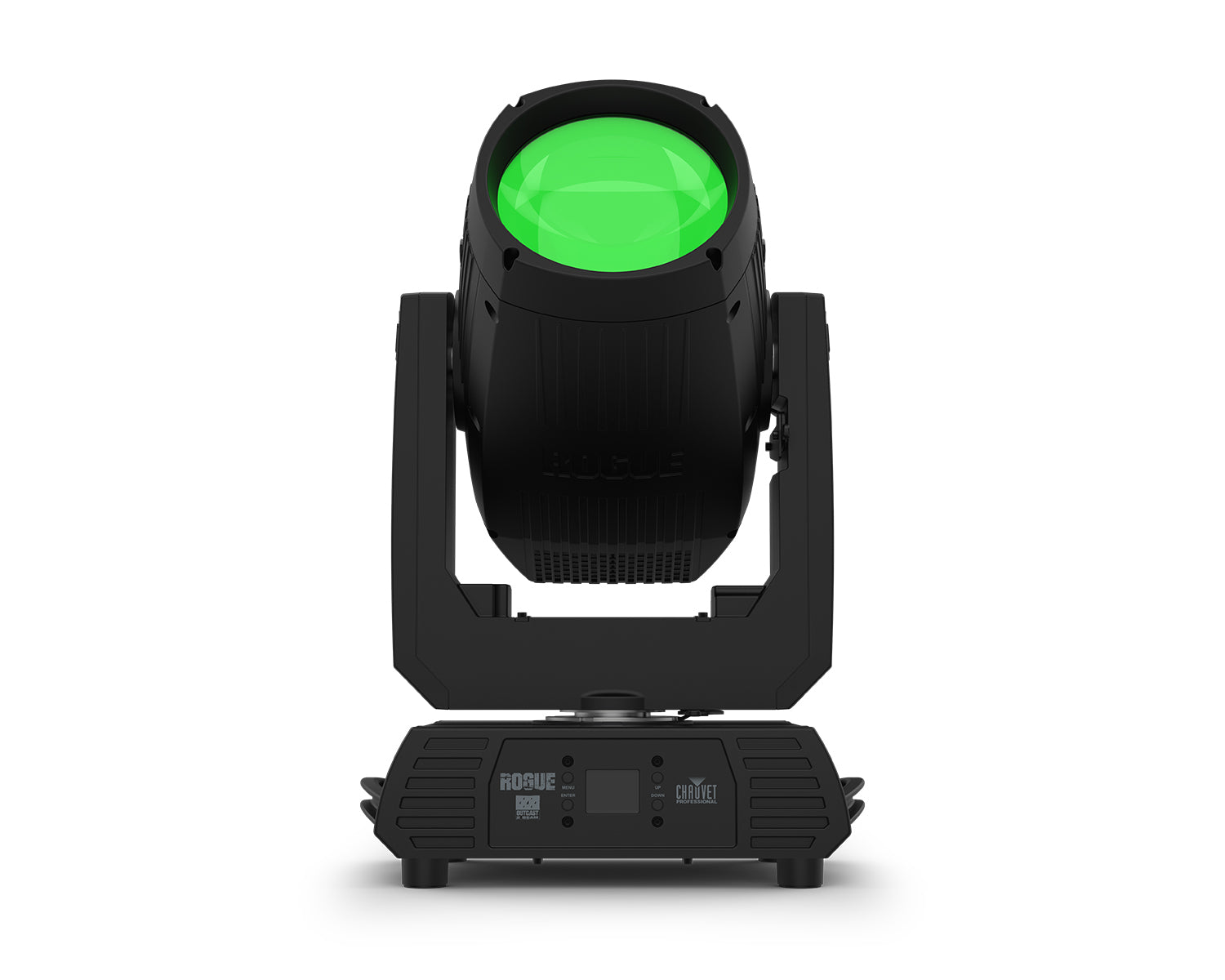

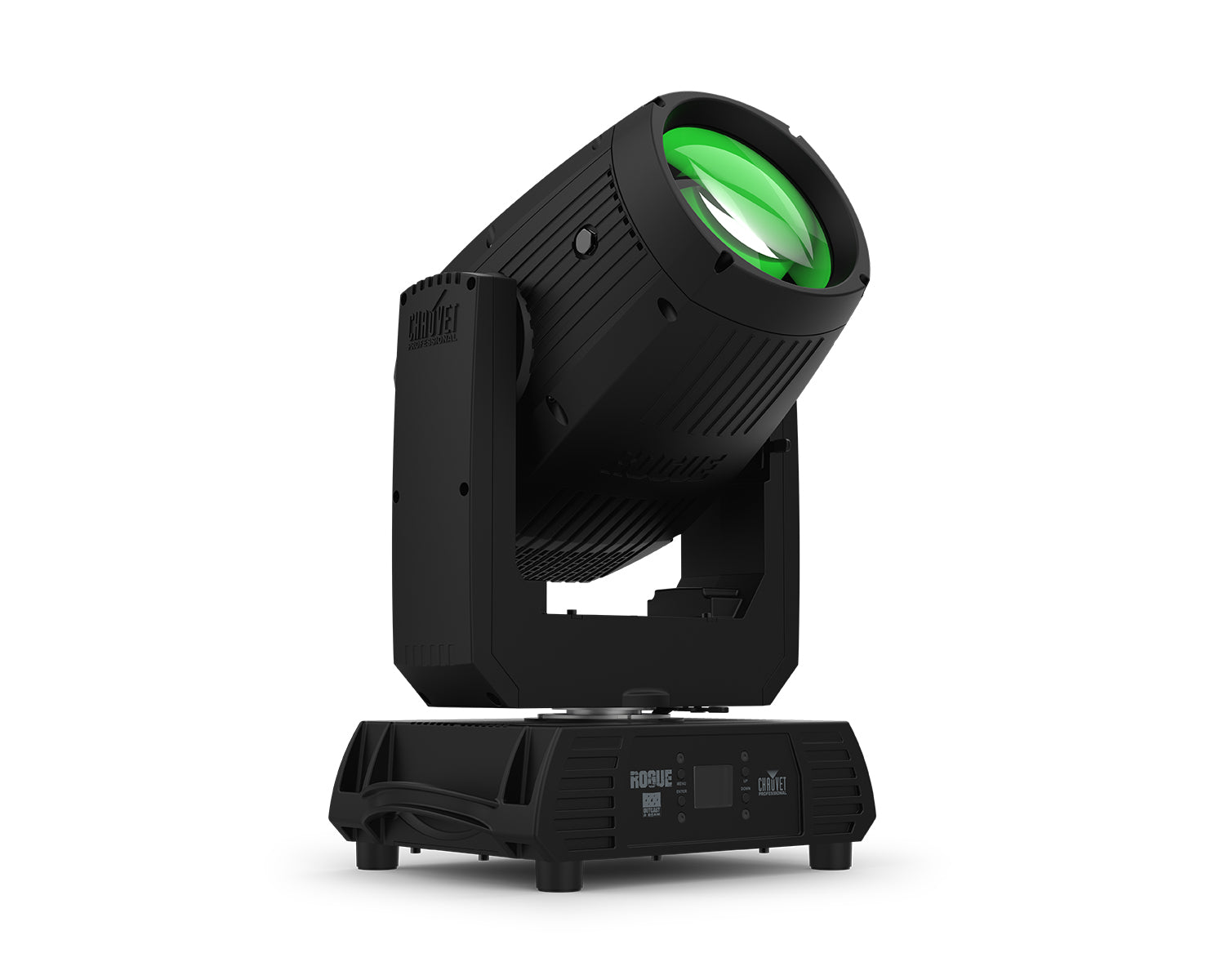

Rogue Outcast 2 Beam projects intensely bright and tight beams from a lightweight IP65 moving head designed to harness the power of its 300W 8000K lamp to slice through atmospherics and outshine any other effect. Aerial looks are sharp and multifaceted with split colors, stunning gobos, layerable rotating prisms and precision focus. Apply frost for even light distribution. Reduce maintenance with a durable alloy body built to withstand the elements, inside or out.

Product Features

• Fully featured, IP65 rated, high powered Beam fixture with an Ushio 300 W, 8,000 hour life expectancy lamp, 1 gobo wheel, 2 layerable prisms, precision focus, and lightweight aluminum/magnesium housing
• Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact
• Frost for even light distribution
• Tight 0.8° narrow beam angle for focused air effects and no field spill
• 17 static gobos for massive visual effect
• DMX and RDM protocol control
• True 1 compatible power input
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

Product Specifications

Optical

• Light Source: 300W NSL Ushio lamp, 8000 K (colour temp), 8,000 hours life expectancy
• Colour Temperature (at full): 7219 K
• Front lens diameter: 160 mm
• CRI: 80.6
• Beam Angle: 0.8°
• Field Angle: 1.5°
• Cutoff Angle: 2°
• Lumens – Source: 30,878
• Lumens – Output: 18,338
• Illuminance (total) : 204,335 lux @ 15 m

Dynamic Effects

• Pan and Tilt: 540°/260°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
• Colours: 14 + white, split colours, continuous scroll at variable speeds
• Gobos: 17 + open (17 metal), 17 static, continuous scroll at variable speeds; size: 106 mm (outside), 6 mm (image), 0.6 – 0.8 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Motorized
• Focus: Motorized
• Frost: Motorized
• Prism: 5 Facets, motorized, rotating
• Prism: 8 Facets, motorized, rotating
• Move-in-Black: Yes

Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 413 W, 3.51 A @ 120 V, 60 Hz
• Power and Current: 403 W, 2.01 A @ 208 V, 60 Hz
• Power and Current: 404 W, 1.82 A @ 230 V, 50 Hz

Certifications/Qualifications

• CE, MET, UKCA
• IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
• Maximum Ambient Temperature (ta): 45° C / 113° F

Physical & Dimensions

• Dimensions: 14.41 x 9.61 x 22.6 in (366 x 244 x 574 mm)
• Weight: 45.19 lb (20.5 kg)
• Exterior Colour: Black
• Housing Material: Aluminium/Magnesium diecast

What's in the Box?

• Rogue Outcast 2 Beam
• Seetronic Powerkon IP65 power cord
• 2 Omega brackets with mounting hardware
