REM MIRA is a high-performance indoor video wall solution with a thin profile that simplifies direct wall mounting and offers easy front installation and servicing of its universal magnetic LED modules. Premium NovaStar A10s Pro receiver cards, MX series processors and COEX VMP software work together to deliver a wide DCI-P3 colour gamut and low-latency signal processing, resulting in a top-tier, camera-friendly system in a slim, wall-hugging design that comes with integrated frame linking hardware to save installation labour and time.

Product Features

1.9 mm pitch, high resolution, modular, indoor permanent install video panel

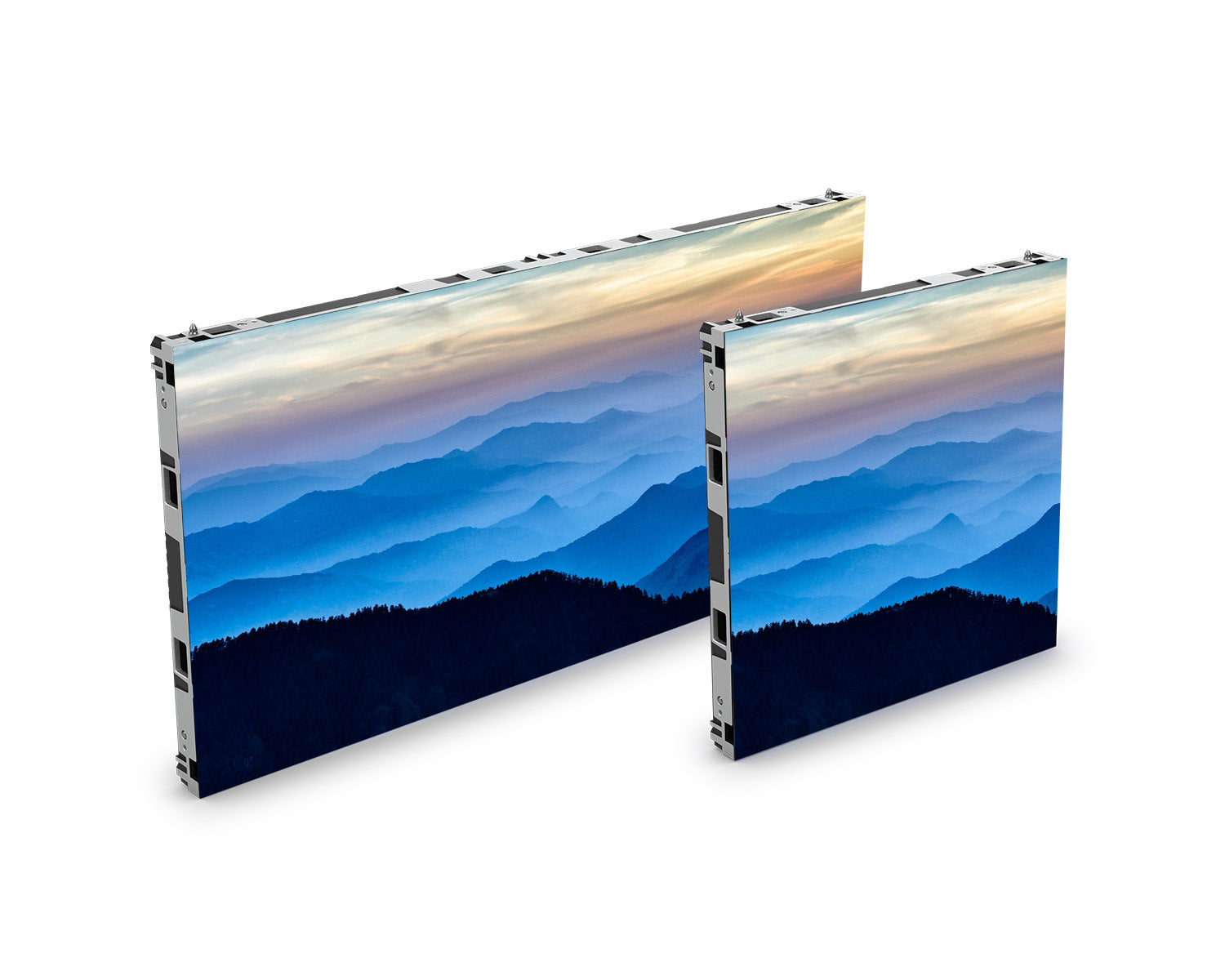

REM Mira offered in two physical sizes: 0.5 m x 1.0 m, 0.5 x 0.5 m
Designed to work with the COEX VMP platform and MX-series processors/senders.
Universal, magnetic LED modules for easy replacement and servicing
Linking hardware integrated into frames makes building a screen fast and easy with minimal labour/effort required
Ultra-slim design allows for cabinet to be mounted very close to the wall to reduce the side profile
Operating in the DCI-P3 colour space and driven via the premium A10s Pro receiver card from Novastar, black body, white reflector LEDs accurately reproduce video at 22-bit+ grayscale and a wide colour gamut
High performance LED drivers deliver 3,840 Hz refresh rate for camera-friendly operation in high-demand applications
Low latency and HDR10 supported
Designed for wall mounting and front service applications

Product Specifications

Optical

Light Source: 131,072 LEDs (tri-colour RGB) SMD 1212 (black body, White reflector), 100,000 hours life expectancy
Colour Wavelength: red (620 to 625 nm), green (510 to 535 nm), blue (458 to 475 nm)
Colour Space: DCI-P3
Viewing Angle (H/V): 140°/140°
Calibrated Illuminance: 1000 NITS (calibrated)
Maximum Illuminance: >1,050 NITS (calibration disabled)
Contrast Ratio: 8,500:1
Grayscale: 22-bit+
Receiver Card: A10s Pro
Drive Type: 1/32
Pixels: 512 x 256
Pixel Pitch: 1.9 mm
Minimum Viewing Distance: 7.5 ft (2.3 m)
Pixel Density: 262,144/m2
Display Refresh Rate: 3,840 Hz (S-PWM)

Control

Control Protocol: Novastar VMP platform
Recommended Processor/Driver: Novastar MX40 Pro
Panel Resolution (L x H): 512 x 256
Maximum Panels Tall/ Novastar MX40 Pro (adjust input/source resolution as needed):
- 4 @ 1080 height
- 5 @ 1344 height
- 6 @ 1680 height
- 8 @ 2160 height
Maximum Panels Wide/ Novastar MX40 Pro (adjust input/source resolution as needed):
- 3 @ 1920 wide resolution
- 7 @ 3840 wide resolution
- 16 @ 8192 wide resolution

Connections

Power Connection: Locking IEC to bare-ended (sold separately)
Power Input: IEC
Power Output: IEC
Data Connectors: Ethernet RJ-45
Cable Length (signal extension): 2 ft (0.61 m)
Cable Length (power): 32.9 ft (10 m)
Cable Length (power extension): 2 ft (0.61 m)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V; 12 units @ 240 V
Power and Current: 253 W, 2.1 A @ 120 V, 60 Hz
Power and Current: 253 W, 1.21 A @ 208 V, 60 Hz
Power and Current: 253 W, 1.1 A @ 230 V, 50 Hz
Power and Current: 253 W, 1.05 A @ 240 V, 50 Hz [# A inrush]
