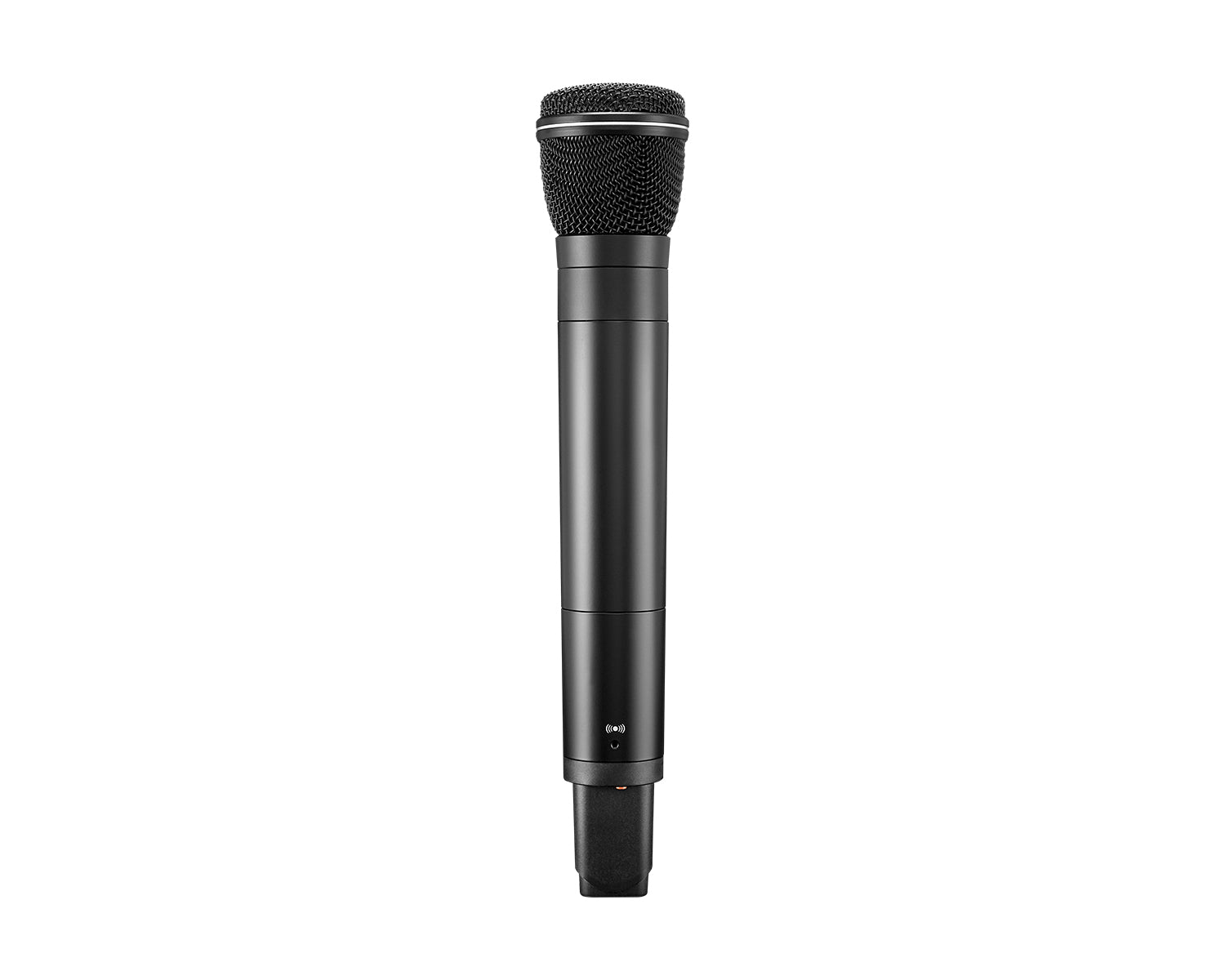

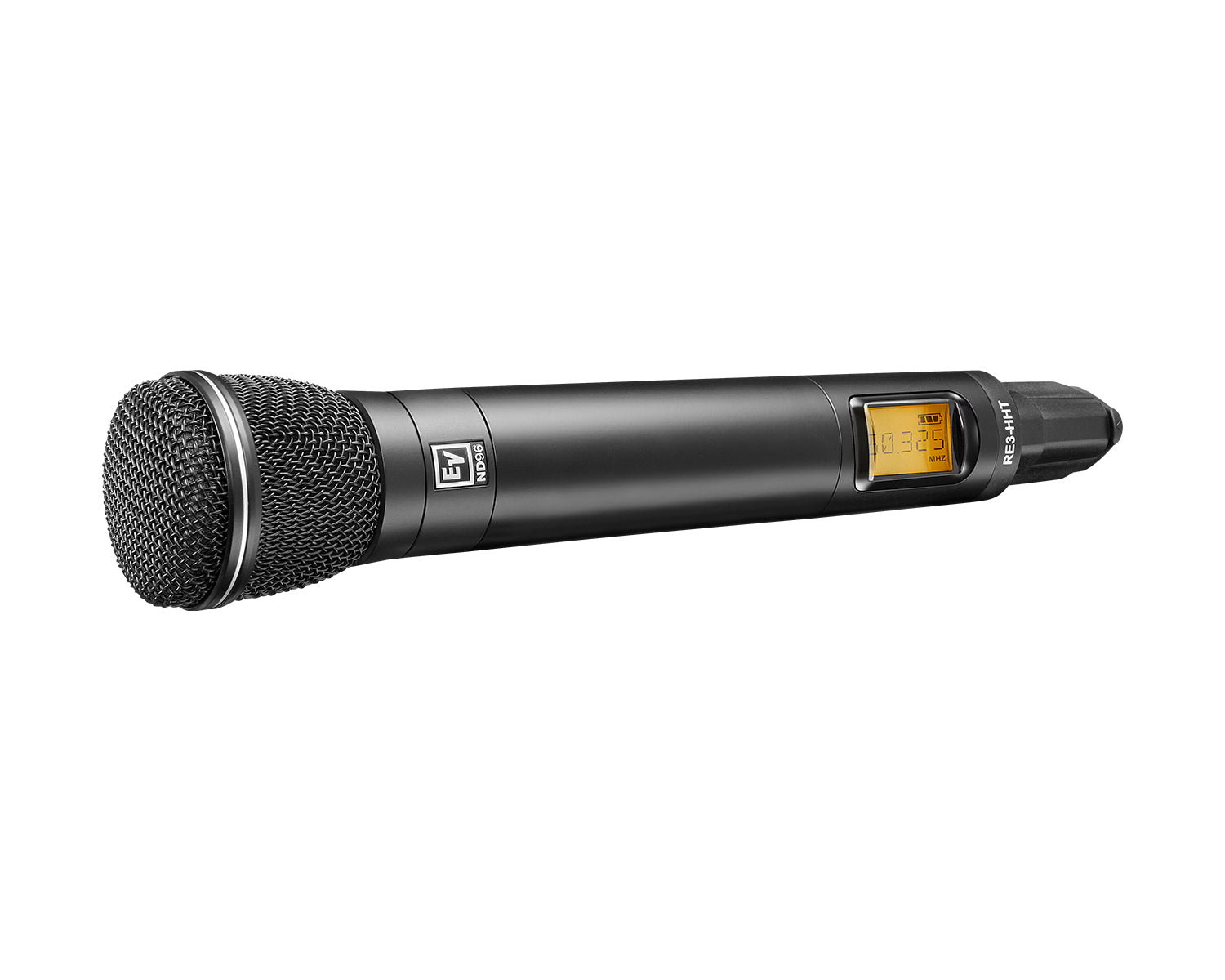

Handheld UHF wireless transmitter featuring ND96 dynamic supercardioid microphone head for vocal performance and presentations. The ND96’s sound is powerful, rich, and detailed, and delivers exceptionally high gain before feedback for excellent acoustic control on very loud stages.

The transmitter pairs perfectly with the RE3-RX diversity receiver. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

Product Features

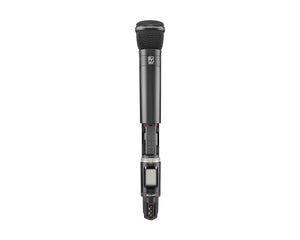

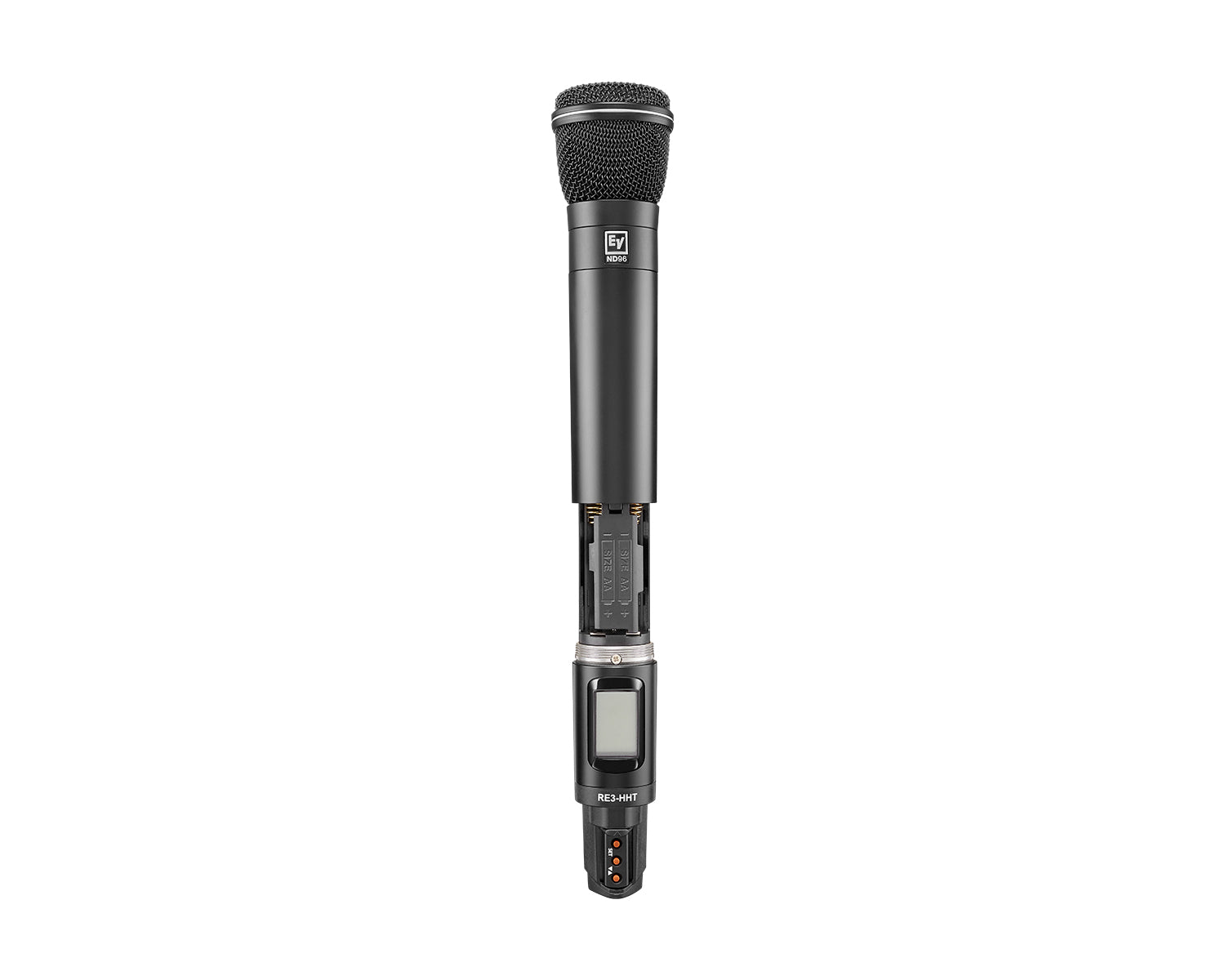

RE3-HHT Handheld Transmitter

• Robust metal body
• Sync function for easy frequency setup
• Selectable low and high output power (band specific)
• Up to 36 MHz tuning bandwidth (band specific)
• Common threaded coupling allows microphone head interc

ND96 Capsule

• Thread-on microphone head for Electro-Voice and other brand wireless handheld transmitters
• Excellent acoustic control on very loud stages: exceptionally high gain before feedback
• Large diaphragm dynamic capsule creates a rich and detailed frequency response
• Vocal presence emphasis switch selects between alternate sonic signatures
• Shock-mounted capsule minimizes handling noise

Product Specifications

RE3-HHT Handheld Transmitter

• Frequency Oscillation Mode: Phase-locked loop (PLL)
• Band name: 8M
• Tuning bandwidth: * see note
• Frequency range:
  • 823-865 MHz*
  • * 8M is split into two segments:
  • 823-832MHz: 9MHz
  • 863-865MHz: 2MHz
• Sync Frequency: Ultrasonic
• RF power output: Low 10mW / High 50mW
• Display By: LCD + LED
• Function Controls: Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
• RF Stability: <±10kHz@Fc
• Modulation Frequency Shift: Wideband FM ±48kHz deviation
• Harmonic Radiation: <-50dBc
• Battery: 2 x AA alkaline battery or NiMH rechargeable battery
• Charging Contacts: Yes
• Microphone Coupling: 1.25” diameter, 28 UN-2A thread pitch
• Microphone Electrical Contact: 3-ring/3-pin
• Finish: Black polyurethane paint
• Dimensions (without head):
  • Height: 7.52 inch (191mm)
  • Width at threaded end: 1.46 inch (37mm)
  • Width at control cover: 0.856 inch (22mm)
• Net Weight (without head): 12.2oz [346 grams]
• Gross Weight (without head): 16.9oz [480 grams]

ND96 Capsule

• Element type: Dynamic neodymium magnet structure
• Frequency response, close: 30 Hz-15 kHz
• Frequency response, far: 140 Hz-15 kHz
• Polar pattern: Supercardioid
• Sensitivity, open circuit voltage @ 1 kHz in flat position: 4.7 mV/Pascal (-46.5 dBV/Pa)
• Sensitivity, open circuit voltage @ 1 kHz in vocal presence position: 3.2 mV/Pascal (-50 dBV/Pa)
• Maximum SPL: 136.5 dB SPL (1% THD)
• Impedance: 1000 ohms
• Power requirements: 4-8 VDC
• Polarity: Positive pressure on diaphragm produces positive voltage at center contact relative to ground contact
• Electrical contact: 3-Ring/3-Pin
• Threaded coupling:
  • 1.25" diameter
  • 28 UN-2A thread pitch
• Finish: Black polyurethane paint
• Materials: Aluminium, steel, steel wire grillescreen
• Dimensions:
  • Length: 3.3 in. (83.5 mm)
  • Diameter: 2.0 in. (50.5 mm)
• Net weight: 6.8 oz (193 g)
• Shipping weight: 8.7 oz (247 g)

What's in the Box?

• RE3-HHT Handheld Transmitter
• ND96 Capsule
• Microphone stand adapter
• Two AA batteries
• Engineering Data Sheet
• Warranty card
• Declaration of conformity
