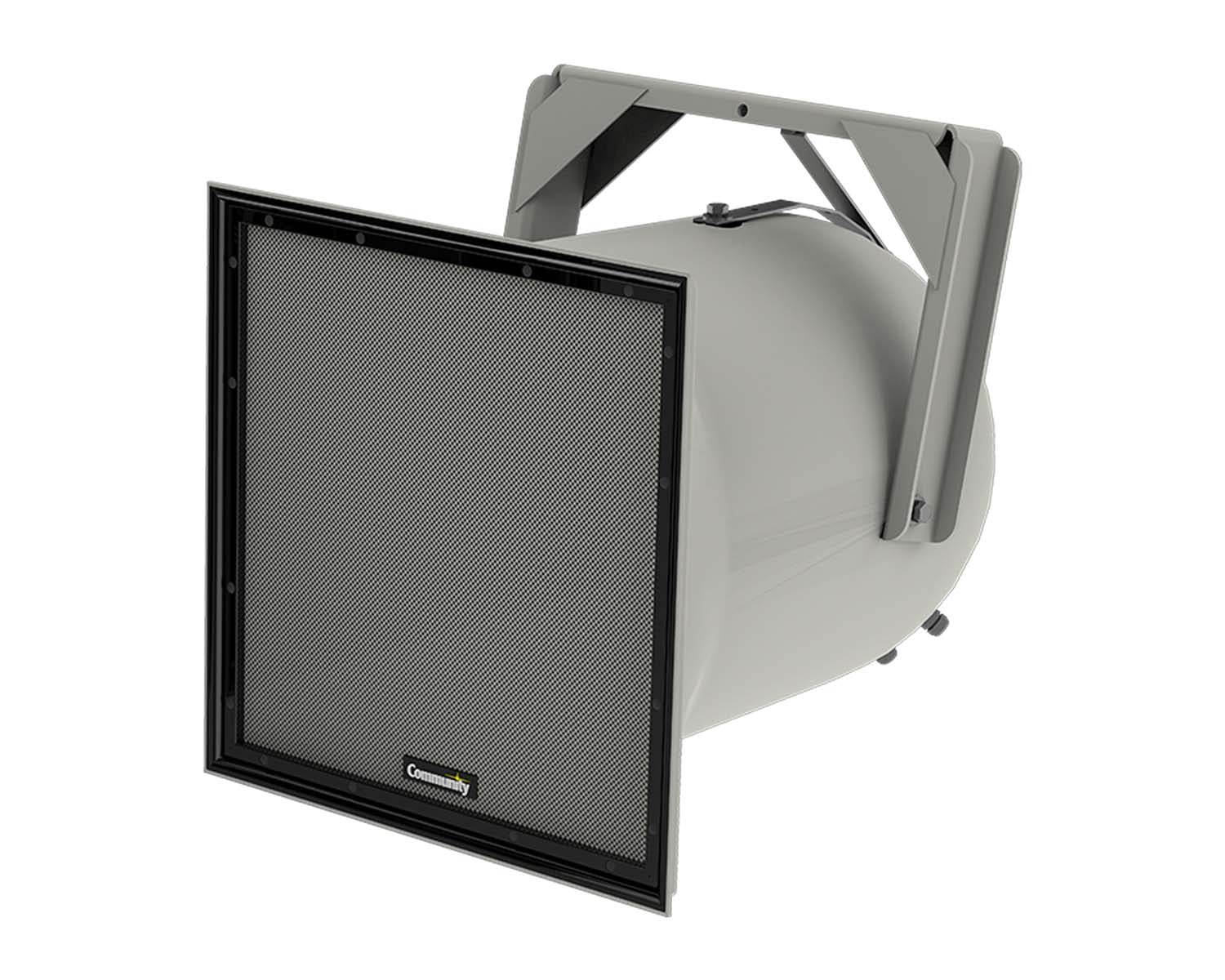

The R2-66MAX is a three-way, full-range loudspeaker system designed to provide "No Compromises" premium music reproduction at very high output levels, and also improves the legendary R2 voice projection and intelligibility capabilities. It is designed with the same materials and construction as the standard R2 for extreme weather resistance, and can withstand long-term exposure to tough environmental conditions

The R2-MAX is constructed with premium components in a Biamp format to maximally optimise its performance. It uses a 1.4" exit HF compression driver that features a copper shorting ring and hybrid diaphragm to reduce resonances while maintaining excellent HF extension. Operated with a high crossover frequency, the large HF driver maintains very high headroom, delivering effortless performance. The dual, high power 12" LF drivers feature an aluminium demodulation ring for very clean, low distortion performance. The midrange features a higher performance version of the legendary low compression ratio M200 2" exit compression driver, achieving 3dB greater output with extremely low distortion. The passive MF/HF horn signal aligns the drivers for the best possible music and speech performance. The result is an excellent loudspeaker system that is capable of exceeding expectations in any application.

Product Features

• Modern stadium loudspeaker, designed to meet the needs of today sporting venues for superb musicality, excellent speech intelligibility and very high output
• Signal aligned passive MF/HF horn coaxially mounted in front of electronically signal aligned LF drivers
• Very high sensitivity HF driver for improved balanced response and extension
• High sensitivity and very high output (135 dB max), with flat extended frequency response
• Coverage: 60° x 60°
• Finish: Grey

Product Specifications

• Finish: Hand-laminated multilayer fiberglass with paintable, light grey gelcoat and dual-layer powder-coated steel grille
• Nominal Beamwidth (H x V): -52 (50° x 20°), -64 (60° x 40°), -66 (60° x 60°), -94 (90° x 40°)
• Transducers
  • (R2-64/66/94MAX):LF-2 x 12” weather-resistant cones; MF-1 x 2” exit M200HP compression driver; HF-1 x 1.4” exit compression driver.
  • (R2-52MAX):LF-2 x 12” weather-resistant cones; MF-2 x 2” exit M200HP comp. driver; HF-1 x 1” exit comp. driver
• Dimensions (H x W x D): 24.75" x 24.75 " x 30.75 " (629 x 629 x 781 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
