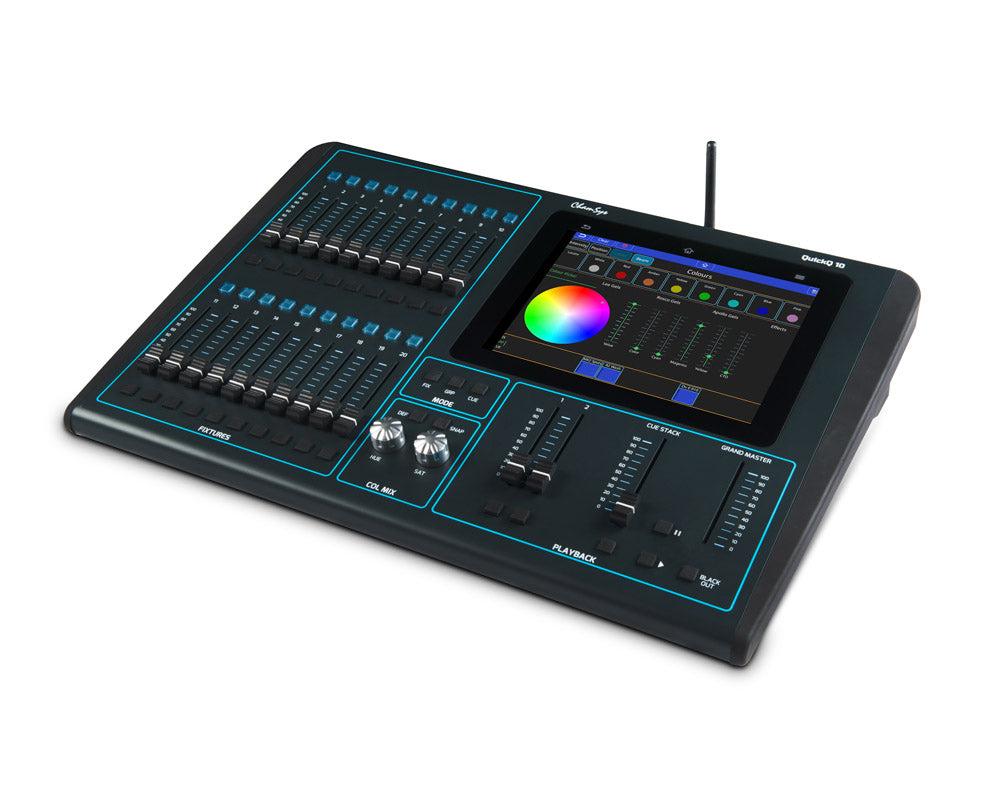

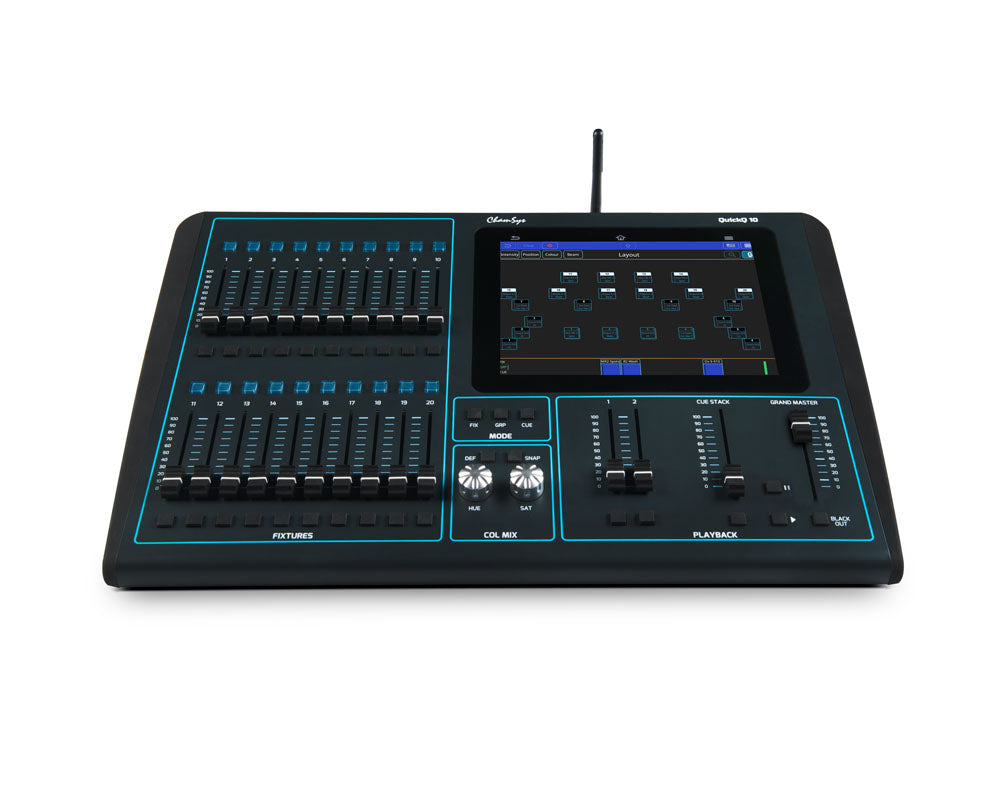

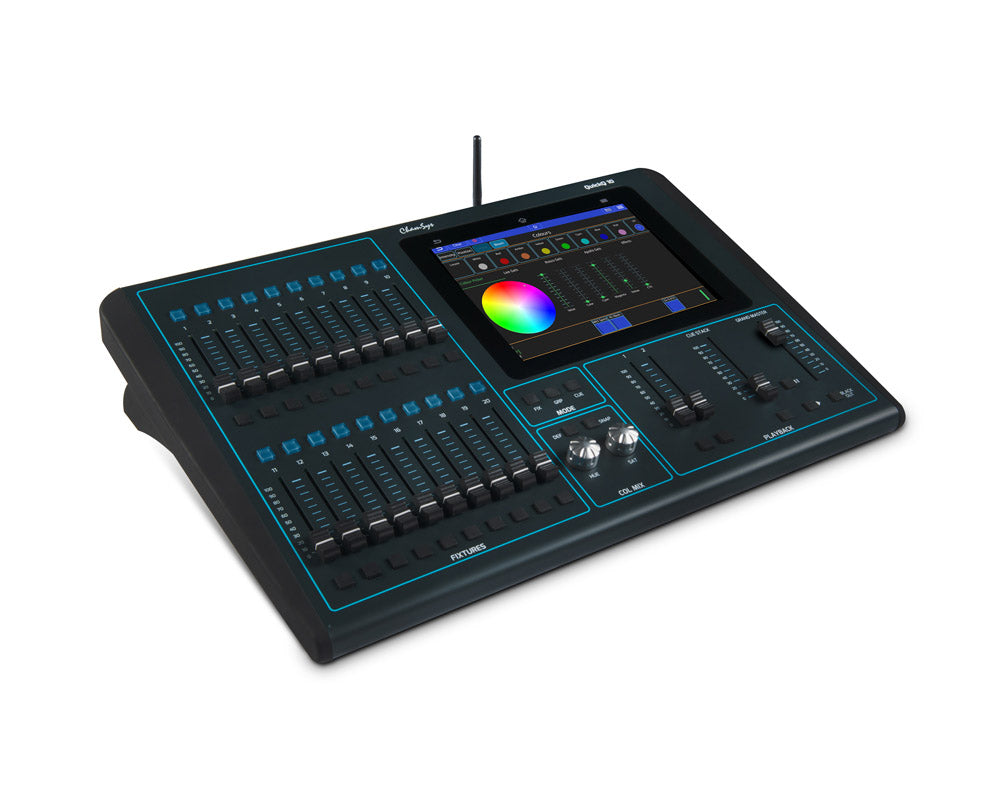

QuickQ 10 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 10 is the perfect choice console for control of dimmer and LED colour mixing fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.

The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI enabling remote connection to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.

Product Features

• 20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue
• 3 multi-cue Playback faders: two Chase controllers and one Cue Stack, which are legended on screen
• The console features a dedicated Grand Master fader for overall level control
• Modelled on smartphone icon interfaces for ease of use
• Intuitive interface allowing simple control of all fixture attributes
• The interface supports gestures such pinch zoom and scrolling
• Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi
• A dedicated “colour control area” with Hue and Saturation encoders
• Select from inbuilt palettes and gel libraries using the touch screen
• Built in colour picker for use with LED fixtures
• QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
• Offline editor available for both Windows and Mac
• Regular software updates
• Easy Upgrades
• Automated Patching
• HSV Color Mixing
• Colour Picker
• On Screen Pan/Tilt Trackpad
• Built-in FX
• Chase Support
• Master Cue Stack
• Execute Window
• Audio Triggering
• Tap to Time

Product Specifications

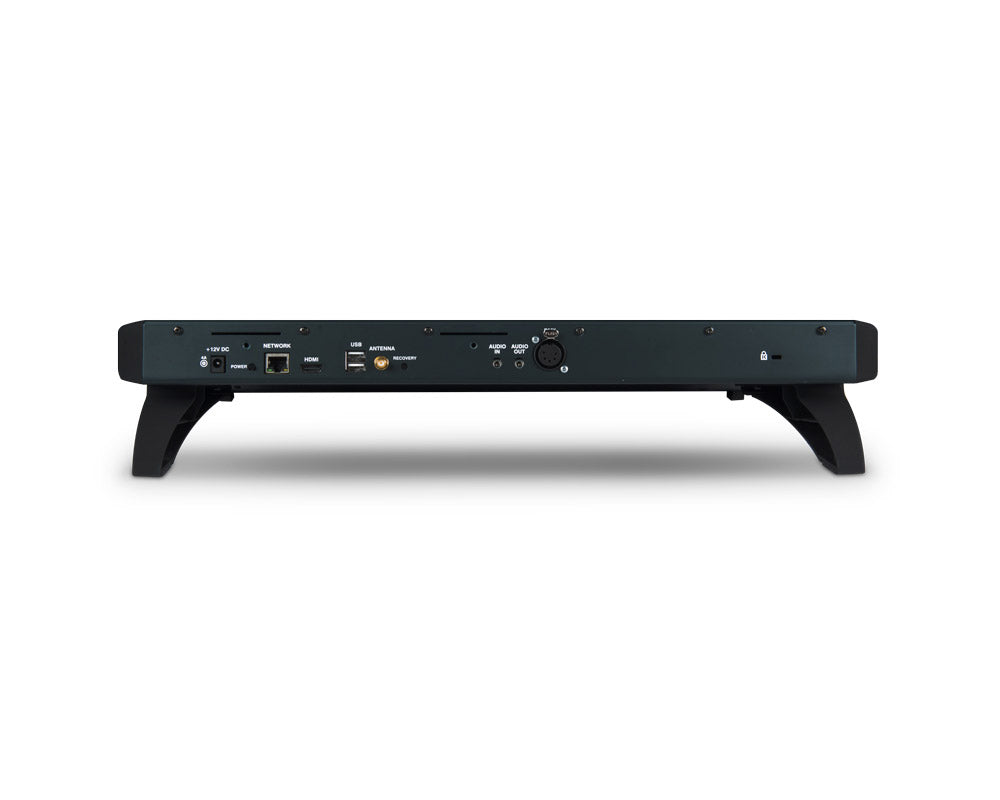

Hardware Specifications

• Universes supported: 1
• Direct DMX Outputs 5-Pin XLR: 1
• Master Playback Faders: 2 Chase, 1 Cue Stack
• Multi-Function Fixture Faders: 20
• Bump Buttons: Yes
• Attribute Encoders: 0
• Dedicated Hue/Saturation Encoders: Yes
• Inbuilt 9.7” Multi-touch Display: Yes
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Audio Input: 1
• Audio Output: 1* Audio Out enabled via future software update
• MIDI Ports in/out: No

Software Specifications

• Max Number of DMX Channels: 512
• Max Number of Fixtures Supported: 512
• Max Number of Cue Stacks: 1
• Max Number of Chases: 2
• Midi & Midi Timecode Supported: No
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 30,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
• Offline designer software available for Windows and Mac

Console Weights and Dimensions

• Width: 525mm (20.7 inches)
• Depth: 350mm (13.8 inches)
• Height: 106mm (4.2 inches)
• Weight: 4.07kg (8.97 lb)

What’s in the Box?

• USB Desk light: 1
• Dust cover: 1
• Tablet stand: 1
• Wi-Fi Antenna: 1
• 12V power supply: 1
• IEC power cable: 1
