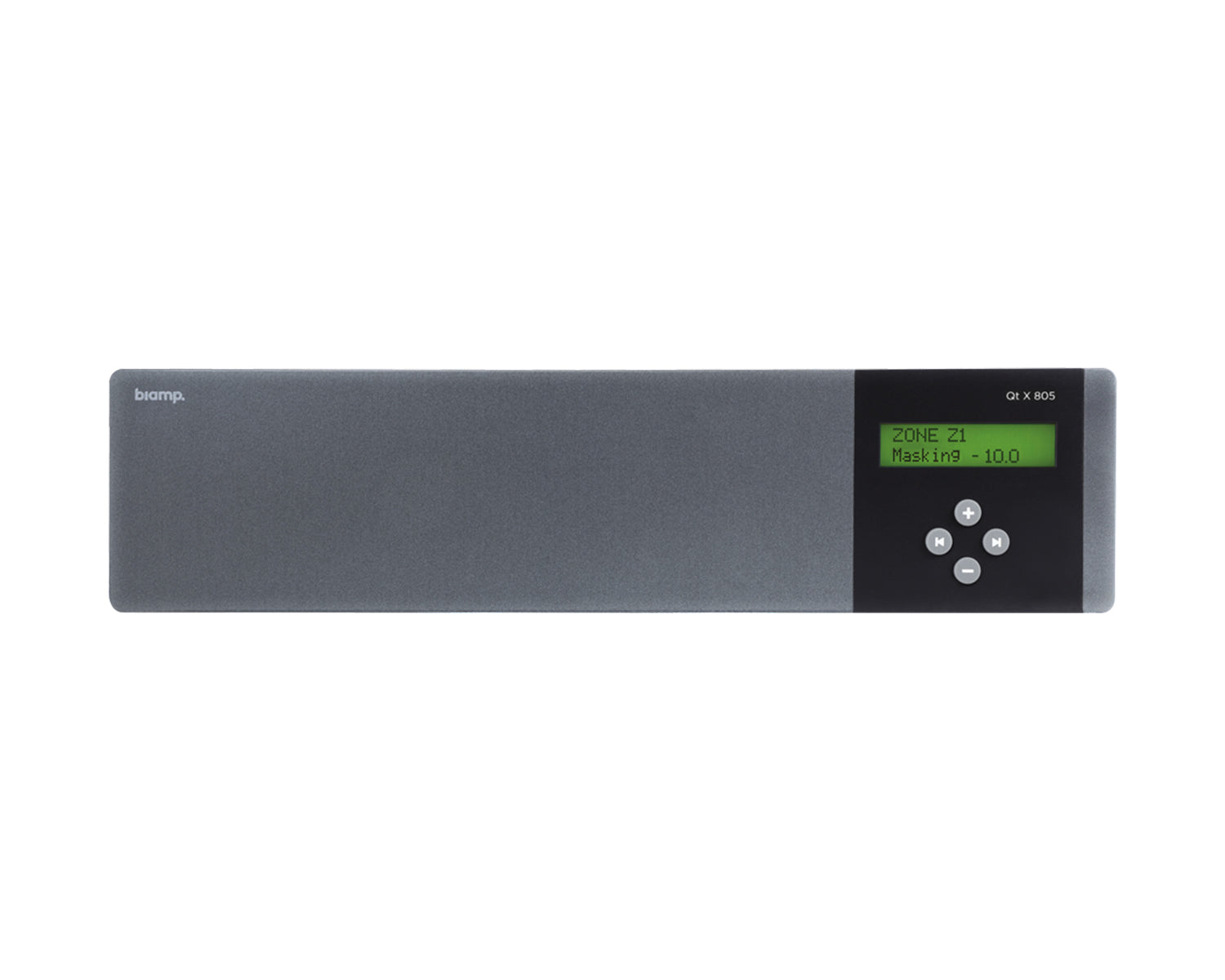

The Cambridge Qt® X 805/805D control module is a sound masking generator, controller, third-octave band equalizer and amplifier, with two auxiliary audio inputs allowing for audio distribution from paging controllers and/or (background) music players. The Qt X 805/805D controls sound masking speakers/emitters in both direct-field and indirect (in-plenum) installations—or a mix of both. Each of the eight amplified output speakers/emitters can be independently adjusted for masking and aux audio levels and spectra. Both models feature full compatibility with Biamp’s SageVue™ system management software and can participate in larger Qt X systems. When multiple Qt X controllers are included in a single system, audio inputs can be shared across all controllers via AVB.

Product Features

• Compatible with DynasoundPro™ loudspeakers and emitters
• Supports up to eight zones of amplified speakers matched with eight zones of pre-amp outputs
• AVB media network
• Two audio inputs for paging and music
• Contact closure integrates with fire alarm systems
• Front panel with LCD
• Panel lock via software control
• Auto ramping
• Event scheduling
• Adjustable equalizer for masking and audio inputs
• Eight included non-correlated sound masking audio sources (one for each output)
• Built-in clock with system NTP support
• Rack mount bracket included, optional wall mount bracket also available
• Dual network ports (media / control)
• Third-party control API/Ethernet
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty
• Manufactured in the U.S.A.
• TAA compliant
• GSA eligible

Product Specifications

• Equalization
  • Sound Masking (100Hz – 10kHz): ISO 1/3 Octave Bands
  • Active (125Hz – 8kHz): ISO 1/1 Octave Bands
  • Number of Non-Correlated Masking Sources 8
  • Masking Level Adjustment: 0.5dB steps
• Audio Inputs
  • Input Connector Type: Captive Screw Terminal
  • Number of Inputs: 2 (Stereo or Mono)
  • Input Level: +24dBu (12.3VRMS max)
  • Input Gain Range: 6dB steps
  • Input Level Adjustment: 1dB steps
  • Input Impedance: 8kΩ
• Remote Control
  • Connector Type: Captive Screw Terminal
  • Input Type: Contact Closure (Normally Open)
  • Number of Inputs: 2
  • Output Type: Logic Status (5VDC)
  • Number of Outputs:
    • 2
    • 2 Channels GPIO
• Amplified Audio Outputs
  • Output Connector Type: Captive Screw Terminal
  • Number of Amplified Outputs: 8
  • Nominal Output Impedance: 4Ω
• Pre-Amplifier Audio Outputs
  • Number of Outputs: 8
  • Nominal Output Impedance: 207Ω
• Power Supply
  • Operating Voltage: 100-240VAC 50/60Hz
  • Current Draw: 0.5A
  • Output: 48VDC @1.04A (50W Max)
  • Max. Power Consumption (48VDC): 24W
• Environmental:
  • Ambient Operating Temperature Range: 40 - 104° F (4 – 40° C)
  • Humidity: 0-95% relative humidity (non-condensing)
  • Altitude: 0-10,000 ft (0-3000m) MSL
• Compliance:
  • FCC Part 15B (USA)
  • UL Listed (USA and Canada)
  • CE Marked (Europe)
  • RoHS Directive (Europe)
• Overall Dimensions
  • Height: 3.5 inches (89mm)
  • Width: 11 inches (279mm)
  • Depth: 3.8 inches (97mm)
  • Weight: 3.8 lbs (1.75 kg) (with rack mount bracket installed)
