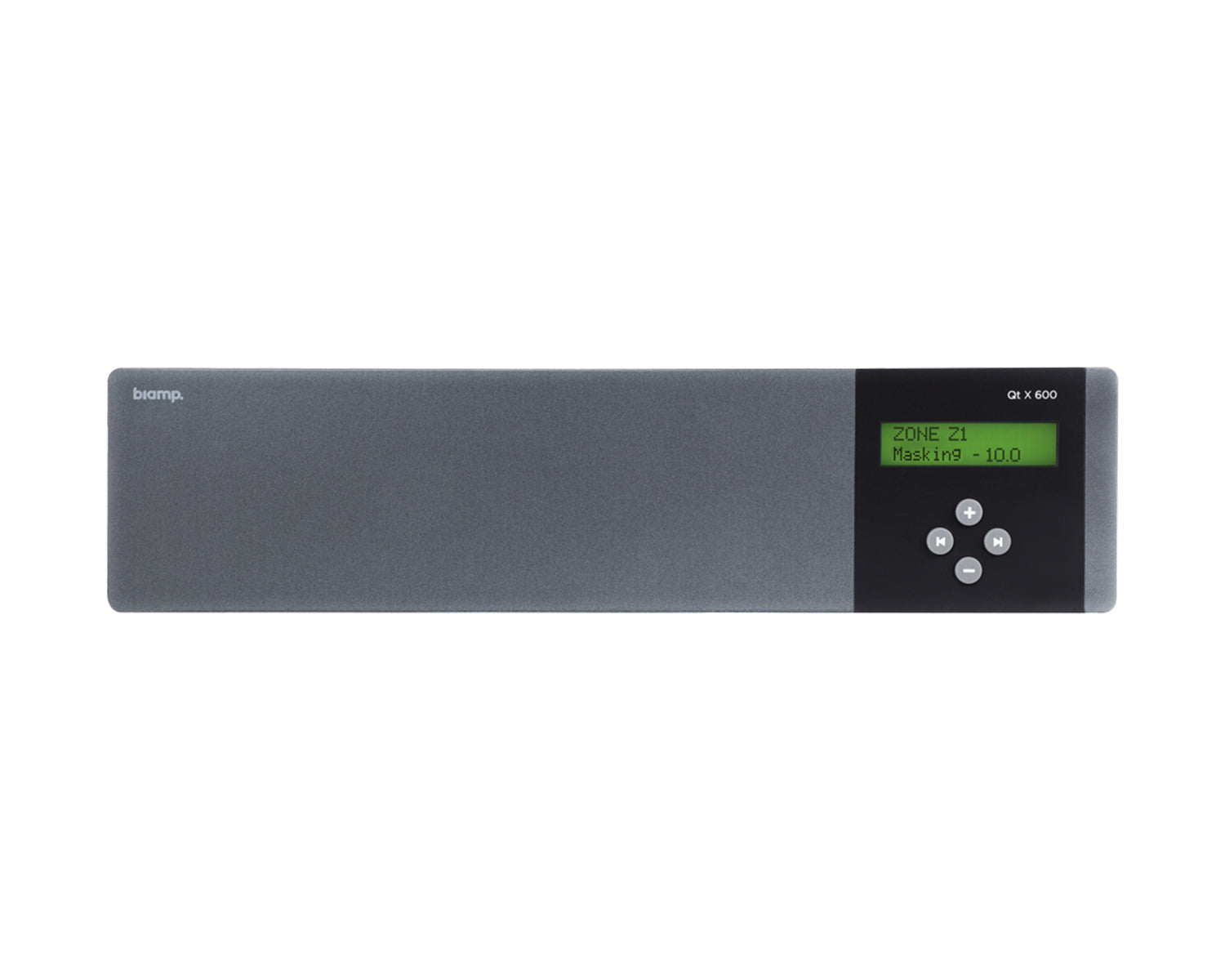

BIAQTX600 - Biamp Qt X 600 6 Zone Sound Masking Control Module AVB 2U Image 1

The Qt® X 600/600D control module is a sound masking generator, controller, third-octave band equalizer and amplifier, with two auxiliary audio inputs to allow for distribution of audio from paging controllers and/or (background) music players. The Qt X 600/600D controls up to six zones of Qt standard or active emitters. The Qt X 600/600D control module is a compact six-zone networkable controller suitable for installations of up to 72,000 square feet (6,690 m2). Each zone can be independently adjusted for masking and aux audio levels and spectra. Both models feature full compatibility with Biamp’s SageVue™ system management software. When multiple controllers are included in a single system audio inputs can be shared across all controllers via AVB.

Product Features

Compatible with Qt Standard emitters and Qt Active emitters.
Supports up to 6 zones
AVB media network
2 audio inputs for paging and music
Contact closure integrates with fire alarm systems
Front panel with LCD
Front Panel Lock (via software control)
Auto ramping
Event scheduling
Adjustable equalizer for masking and audio inputs
4 non-correlated sound masking audio sources per zone
Built-in clock with system NTP support
Wall mount bracket included, optional rack mount bracket also available
Dual network ports (media / control)
Web interface control by any web-enabled device
Third party control API/Ethernet
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ five-year warranty
Manufactured in the U.S.A.
TAA compliant
GSA eligible

Product Specifications

Active Emitters

Max Emitter/Device Capacity: 50 Qt Active Emitters per cable run
Max Emitter Cabling Distance: 800 feet (243m) per cable run
Frequency Response
- Sound Masking: 125Hz to 6.3kHz
- Music/Paging: 115Hz to 12kHz
SPL
- Minimum Masking SPL (@ 1m): 30dBA
- Maximum Masking SPL (@ 1m): 55dBA
- Maximum Music/Paging SPL (@ 1m): 74dBA
Equalization
- Sound Masking (125Hz - 6.3kHz): ISO 1/3 Octave Bands
- Music/Paging (200Hz - 8kHz): ISO 1/1 Octave Bands

Standard Emitters

Max Emitter/Device Capacity: 60 Qt Emitters per cable run
Max Emitter Cabling Distance: 1000 feet (300m) per cable run
Frequency Response
- Sound Masking: 200Hz to 6.3kHz
- Music/Paging: 200Hz to 10kHz
SPL
- Minimum Masking SPL (@ 1m): 30dBA
- Maximum Masking SPL (@ 1m): 55dBA
- Maximum Music/Paging SPL (@ 1m): 56dBA
Equalization
- Sound Masking (200Hz - 6.3kHz): ISO 1/3 Octave Bands
- Music/Paging (200Hz - 8kHz): ISO 1/1 Octave Bands

Masking
- Number of Masking Zones: 6 (2 cable runs per zone)
- Number of Non-Correlated Masking Sources: 4 per zone
- Masking Level Adjustment: 0.5dB steps
Audio Inputs
- Input Connector Type: Captive Screw Terminal
- Number of Inputs: 2 (Mono)
- Input Level: +24dBu (12.3VRMS max)
- Input Gain Range: 6dB steps
- Input Level Adjustment: 1dB steps
- Input Impedance: 8kΩ
- Phantom Power: +48VDC (7mA/input)
Remote Control
- Connector Type: Captive Screw Terminal
- Input Type: Contact Closure (Normally Open)
- Number of Inputs: 2
- Output Type: Logic Status (5VDC)
- Number of Outputs:
  - 2
  - 2 Channels GPIO
Output Connections: 6 RJ-45
Minimum Output Impedance: 2Ω (per channel)
Power Supply
- Operating Voltage: 100-240VAC 50/60Hz
- Current Draw: 1.25 A
- Output: 24VDC @ 2.7A
- Max. Power Consumption (24VDC): 22W
Included Accessories: ACT Hole Saw, Wall Bracket
Compliance:
- FCC Part 15B (USA)
- UL Listed (USA and Canada)
- CE Marked (Europe)
- RoHS Directive (Europe)
Overall Dimensions
- Height: 3.5 inches (89mm)
- Width: 14 5/8 inches (371.5mm)
- Depth: 3.8 inches (97mm)
- Weight: 4.1 lbs (1.88 kg) (with surface mount bracket installed)
Environmental:
- Ambient Operating Temperature Range: 40 - 104° F (4 – 40° C)
- Humidity: 0-95% relative humidity (non-condensing)
- Altitude: 0-10,000 ft (0-3000m) MSL
