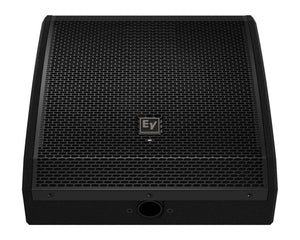

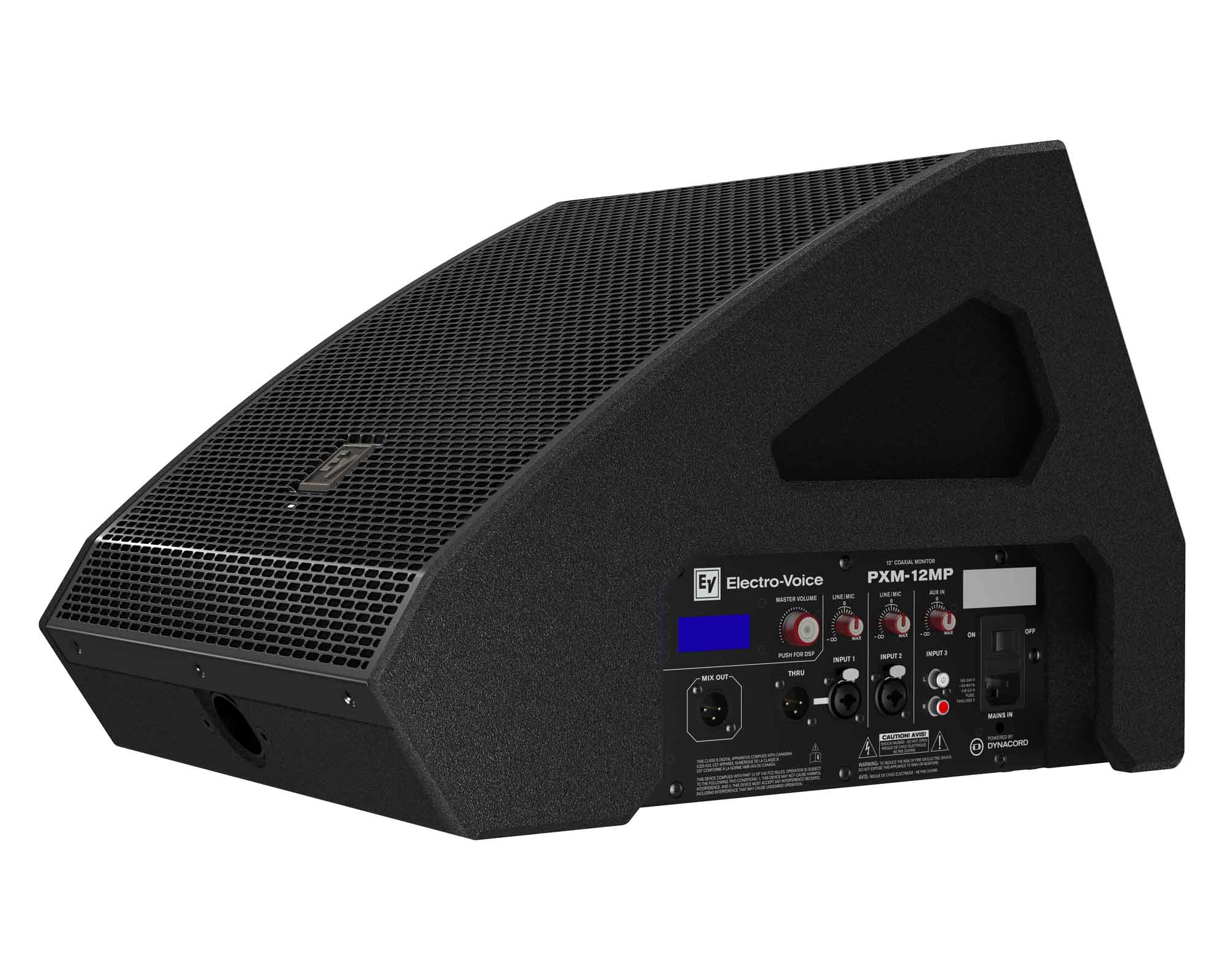

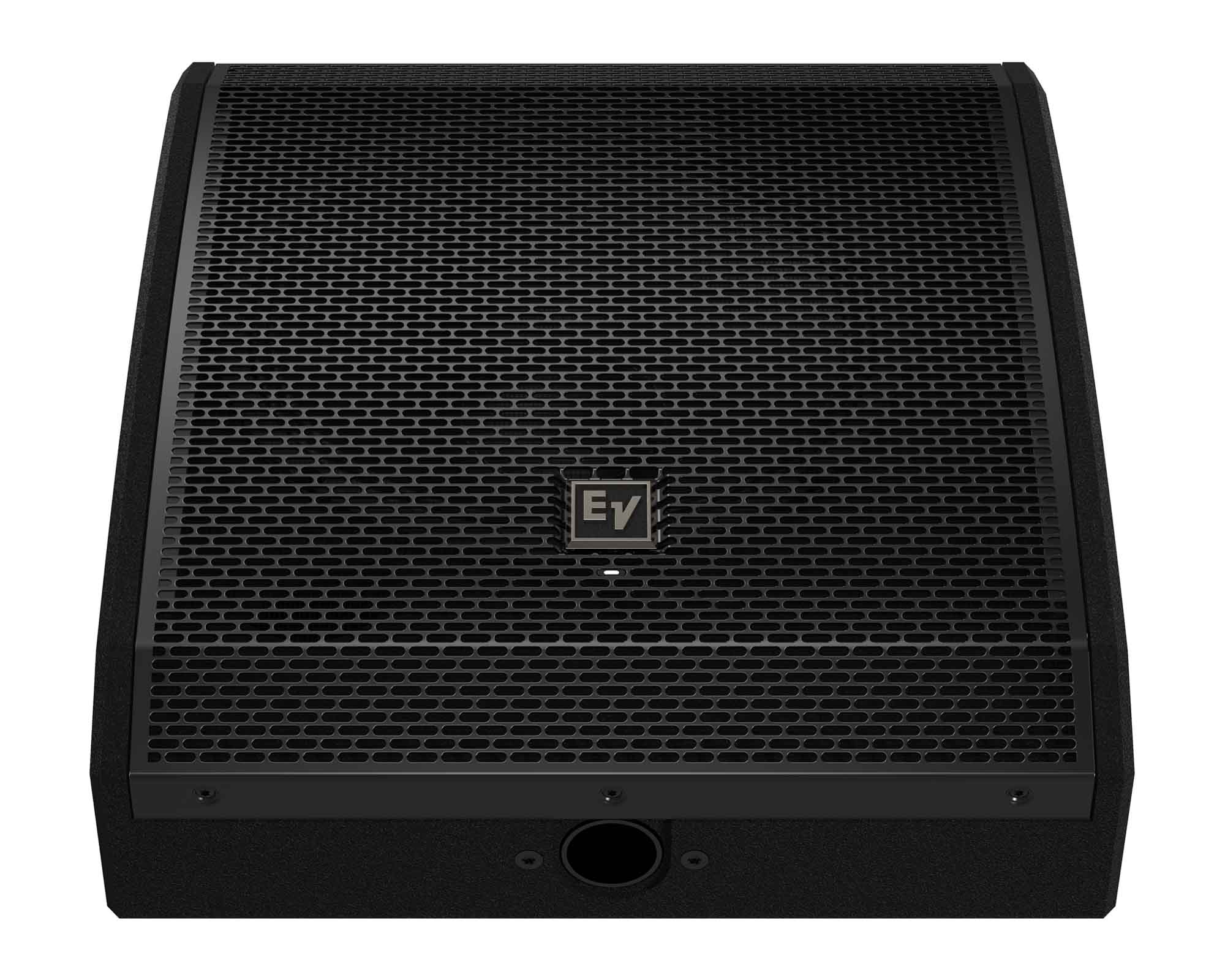

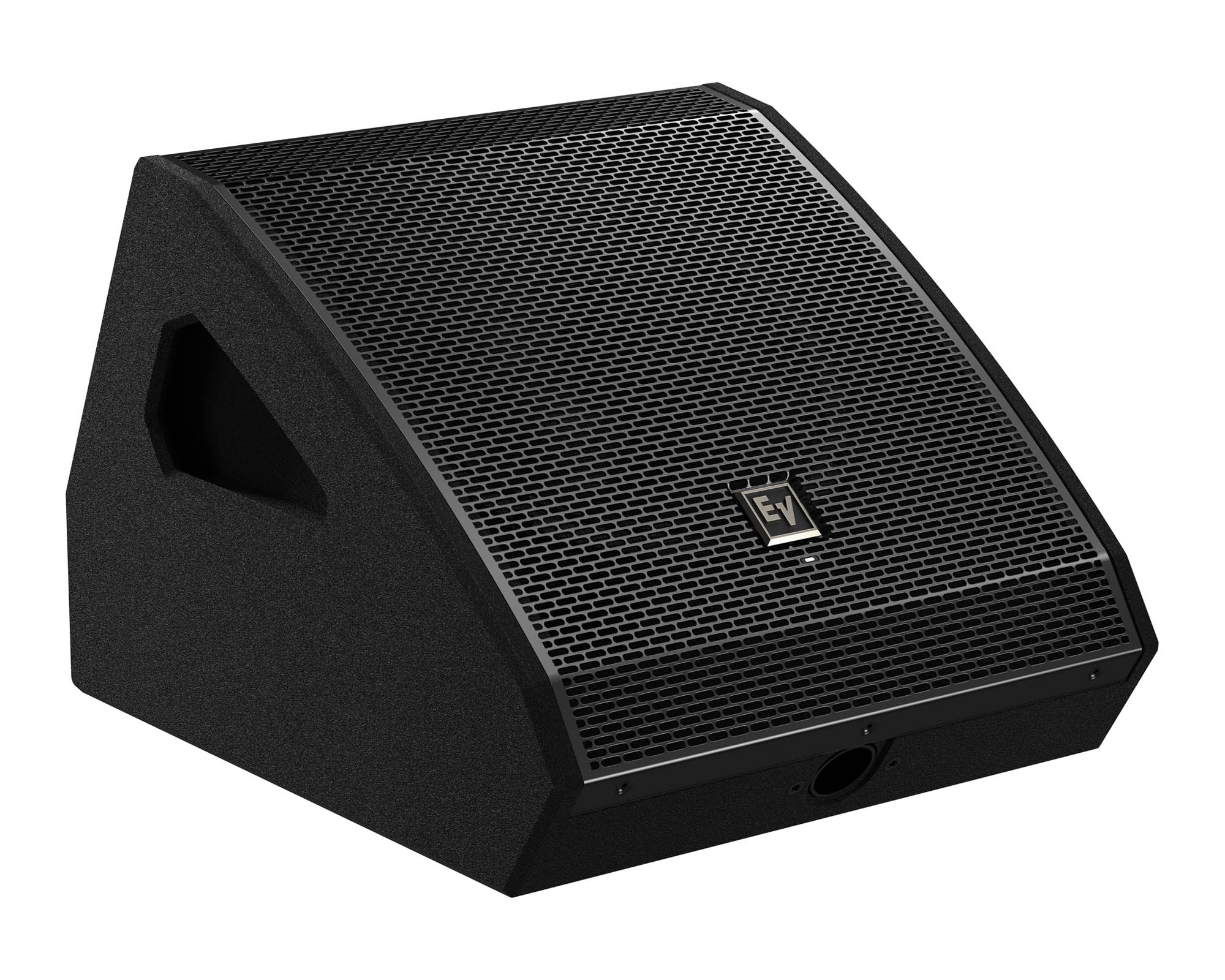

The PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs, and audio engineers convenient and powerful monitoring and playback functionality. By providing a symmetrical 90° x 90° coverage pattern facilitated by a 12” / 1.75” coaxial driver, users can experience solid, consistent coverage, which ensures that their mix can be heard clearly without constraining them to a limited part of the stage. The 55° monitoring angle enables users to stand as close or as far away from the system as necessary without sacrificing audio intelligibility. An integrated pole mount at the front allows for additional applications such fills, delays, or a main PA. With a dedicated subwoofer and the adjustable subwoofer matching LPFs of the PXM-12MP, a full 3-way system can be configured to create an extremely compact main PA.

Product Features

• Multi-functional monitoring system that is useable as a floor wedge or as a mains PA.
• Acoustically optimized 55° monitor floor angle
• QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
• 700 W Class-D power amplifier designed by Dynacord delivers up to 129 dB peak SPL utilizing transducers by EV.
• System reliability verified with over 500 hours of abuse and endurance testing.

Product Specifications

• Frequency response (-3 dB): 64 Hz - 20 kHz
• Frequency range (-10 dB): 53 Hz - 20 kHz
• Monitor Angle: 55°
• Maximum SPL: 129 dB
• Coverage (H x V): 90˚ x 90˚
• Amplifier Rating: 700 W
• LF Channel Rating: 500 W
• HF Channel Rating: 200 W
• Crossover frequency: 1.6 kHz

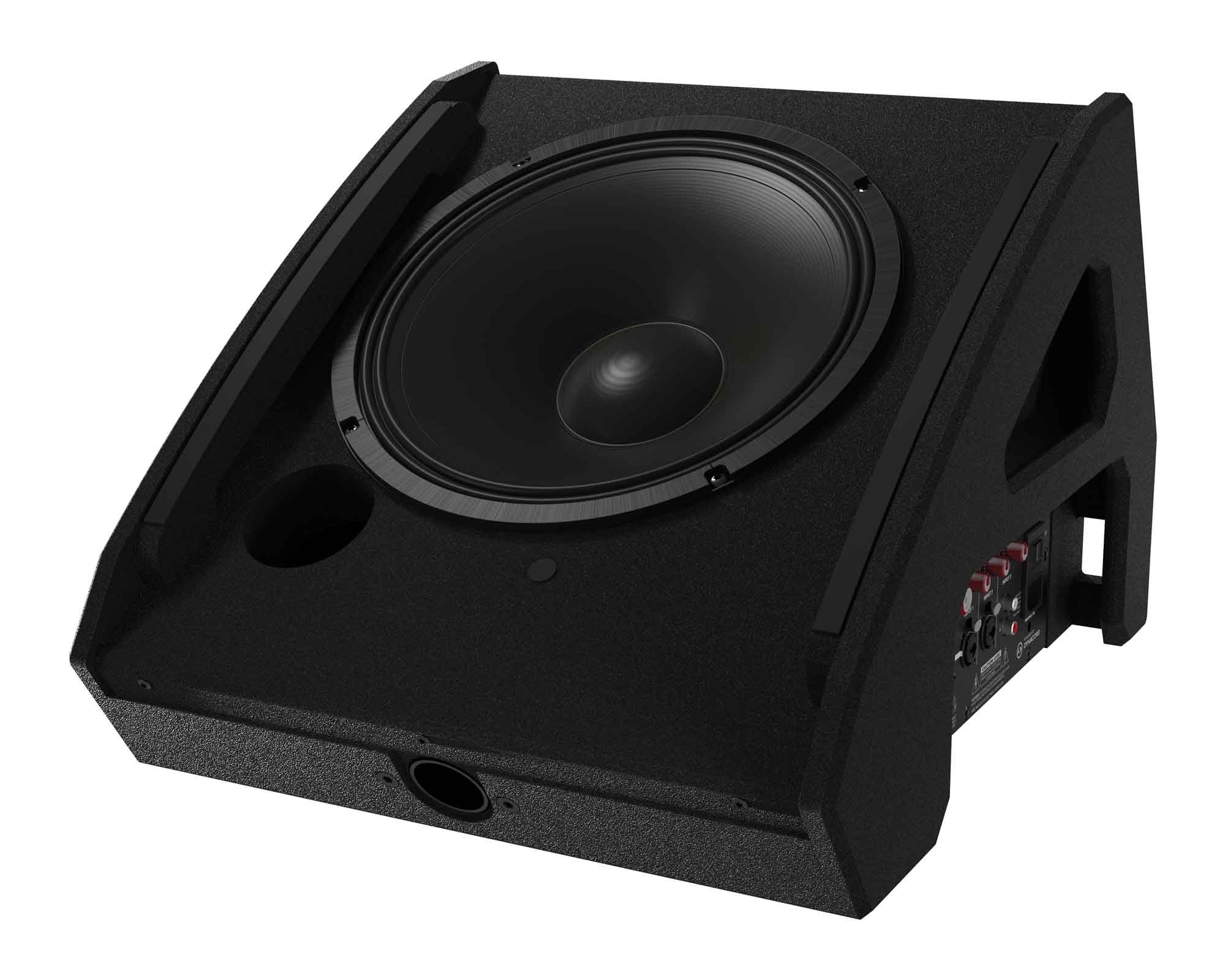

• Transducer: CXCA2128-1NA 12” / 1.75” 2-way coaxial

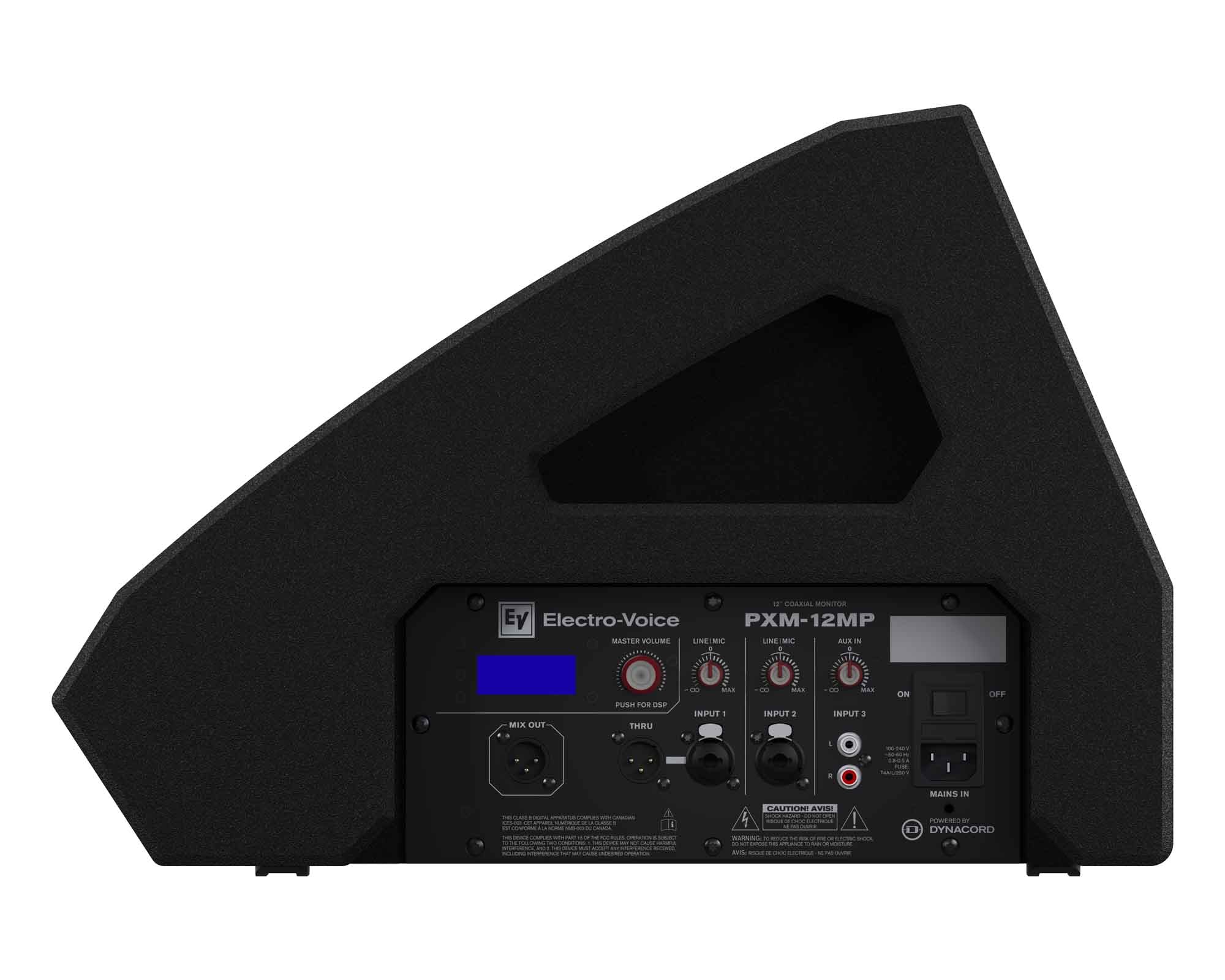

• Connectors:
  • 2x XLR/TRS combo input
  • 1x Stereo RCA input
  • 1x XLR THRU input
• Enclosure: 15 mm Plywood
• Grille: Steel with black powder coat
• Colour: Black
• Dimensions (H x W x D) mm (in): 334 mm x 409 mm x 484 mm (13.1 in x 16.1 in x 19.0 in)
• Net weight: 13.5 kg (29.8 lb)
• Shipping weight: 15.6 kg (34.3 lb)
• Power consumption: 100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A
