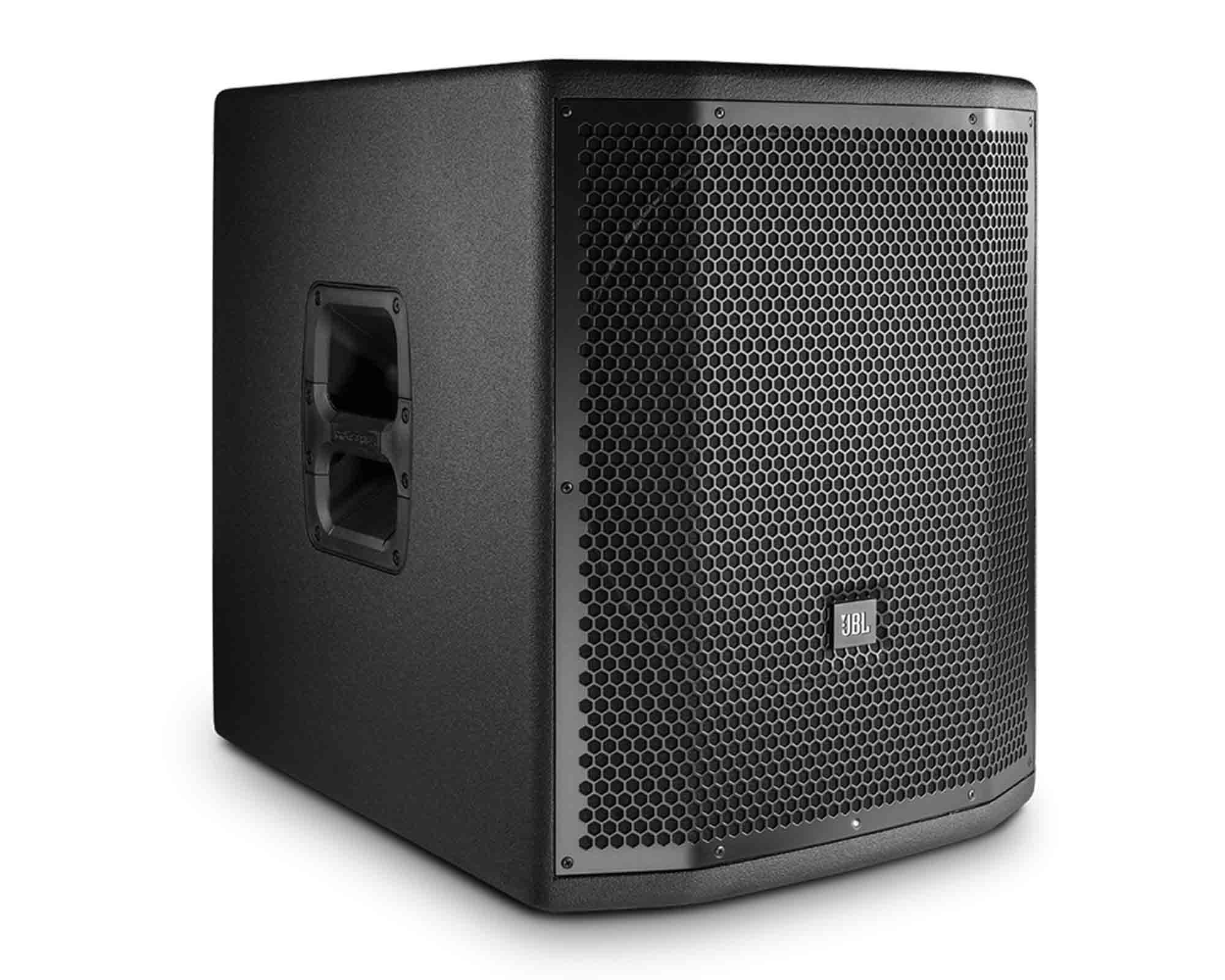

JBLPRX815X - JBL PRX815XLFW 15inch Class D Active Subwoofer with WiFi 1500W Image 1

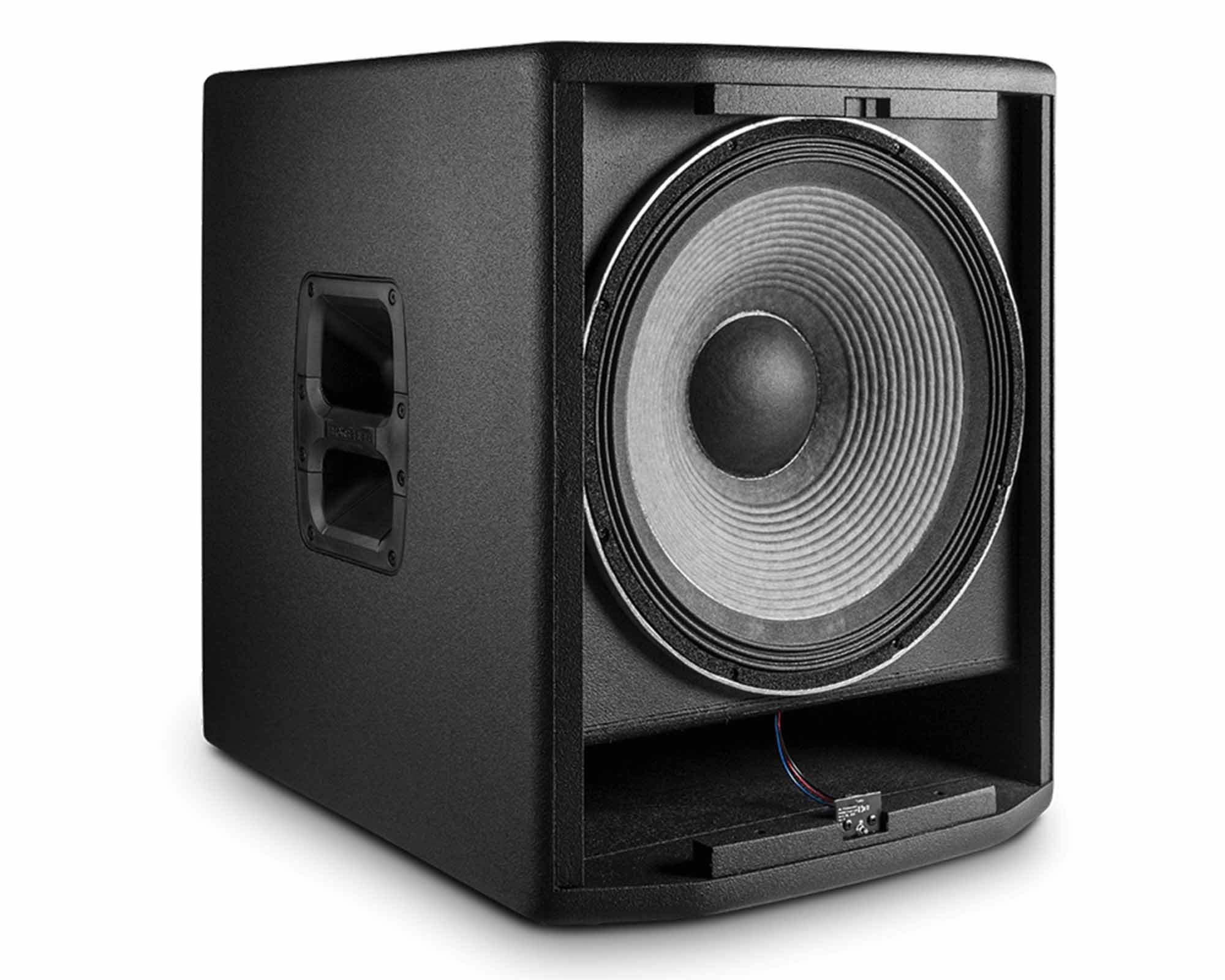

JBLPRX815X - JBL PRX815XLFW 15inch Class D Active Subwoofer with WiFi 1500W Image 2

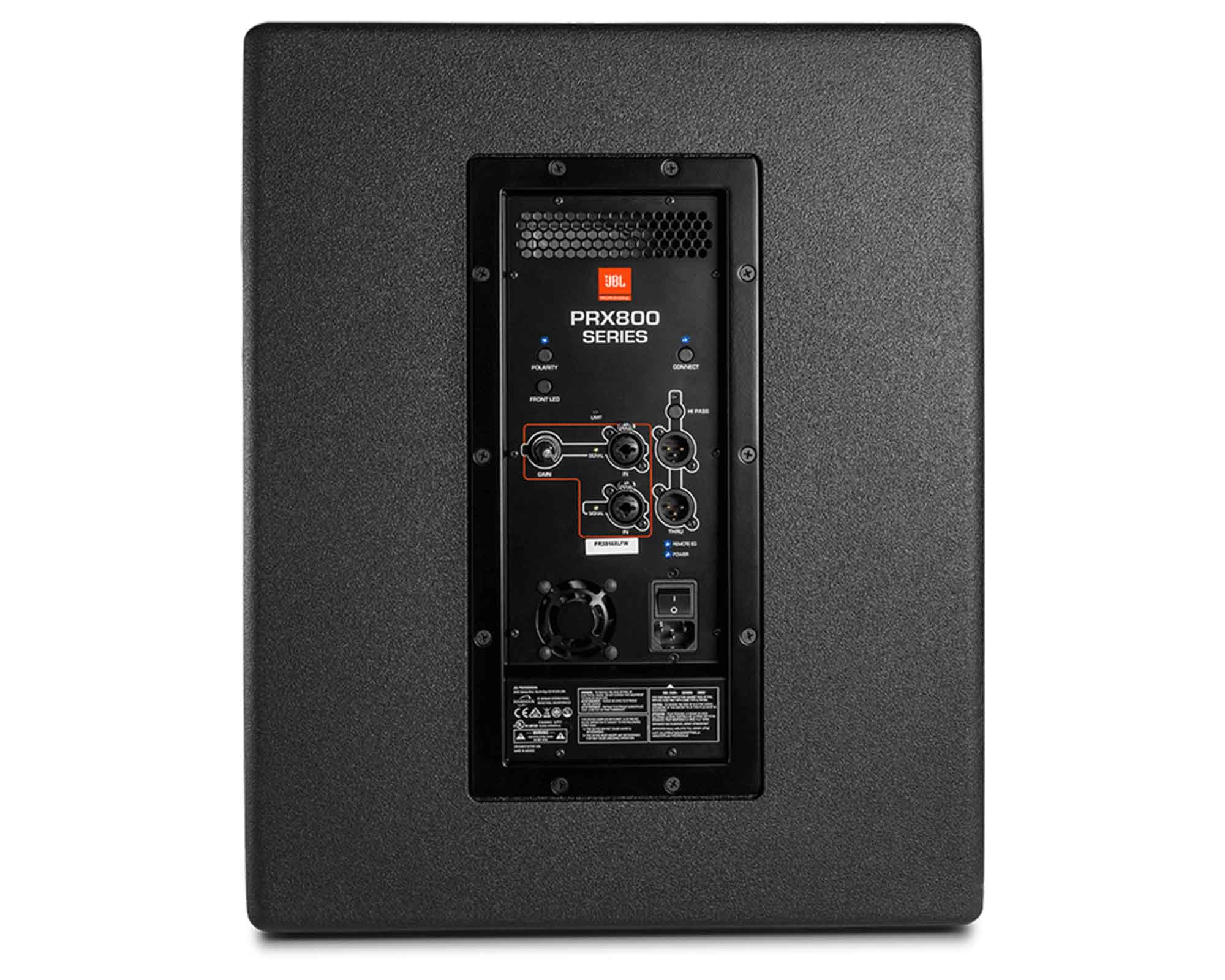

JBLPRX815X - JBL PRX815XLFW 15inch Class D Active Subwoofer with WiFi 1500W Image 3

The PRX815XLFW extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/ sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLFW performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimisation.

Product Features

Built-in Wi-Fi for wireless control of your system from anywhere in the venue
Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
Class-leading 1500-watt amplifier delivers ample power to fill your venue
JBL Differential Drive® transducers for higher SPL in a lightweight design
Next-generation JBL neodymium compression drivers
Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
Intelligent variable-speed fan activates only when needed to reduce noise
Updated tuning delivers flat frequency response and smooth off-axis behavior
Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
Universal power supply for worldwide compatibility
dbx Type IV™ limiting ensures clear, accurate sound at high volumes
Brutal testing regimen - including the famous JBL 100-hour power test - ensures reliable performance

Product Specifications

General

System Type: Self Powered 15” subwoofer
Maximum SPL Output: 131 dB peak
Frequency Range (-10 dB): 36 Hz - 98 Hz
Frequency Response (±3 dB): 40 Hz – 87 Hz
Input Connectors: Two Balanced female XLR/ 1/4” combo connectors
Input Impedance: 20K Ohms (balanced)
Signal Indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
Dynamic Control (Input): dbx Type IV™ limiter circuit
Internal Crossover Frequency: 80 Hz DSP
Loop out Crossover Frequency: 120 Hz analog 24 dB filter slope
Design: Highly efficient Class-D amplifier
Power Rating: 1500W
AC Power Input: 100V - 240V ~ 50/60 Hz
LF Driver: 1 x JBL 2275H 15 in woofer
Enclosure: Rectangular, 18 mm & 25 mm, plywood
Transport: 2 x injection molded handles with backing cup
Finish: Obsidian DuraFlex™ finish
Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
