The SigNET PRO Range comprises of constant current, single and dual induction hearing loop amplifiers, each with an LCD graphical display. The dual loop amplifiers have a built-in phase shifter, designed for ‘phased array’ induction loop systems.

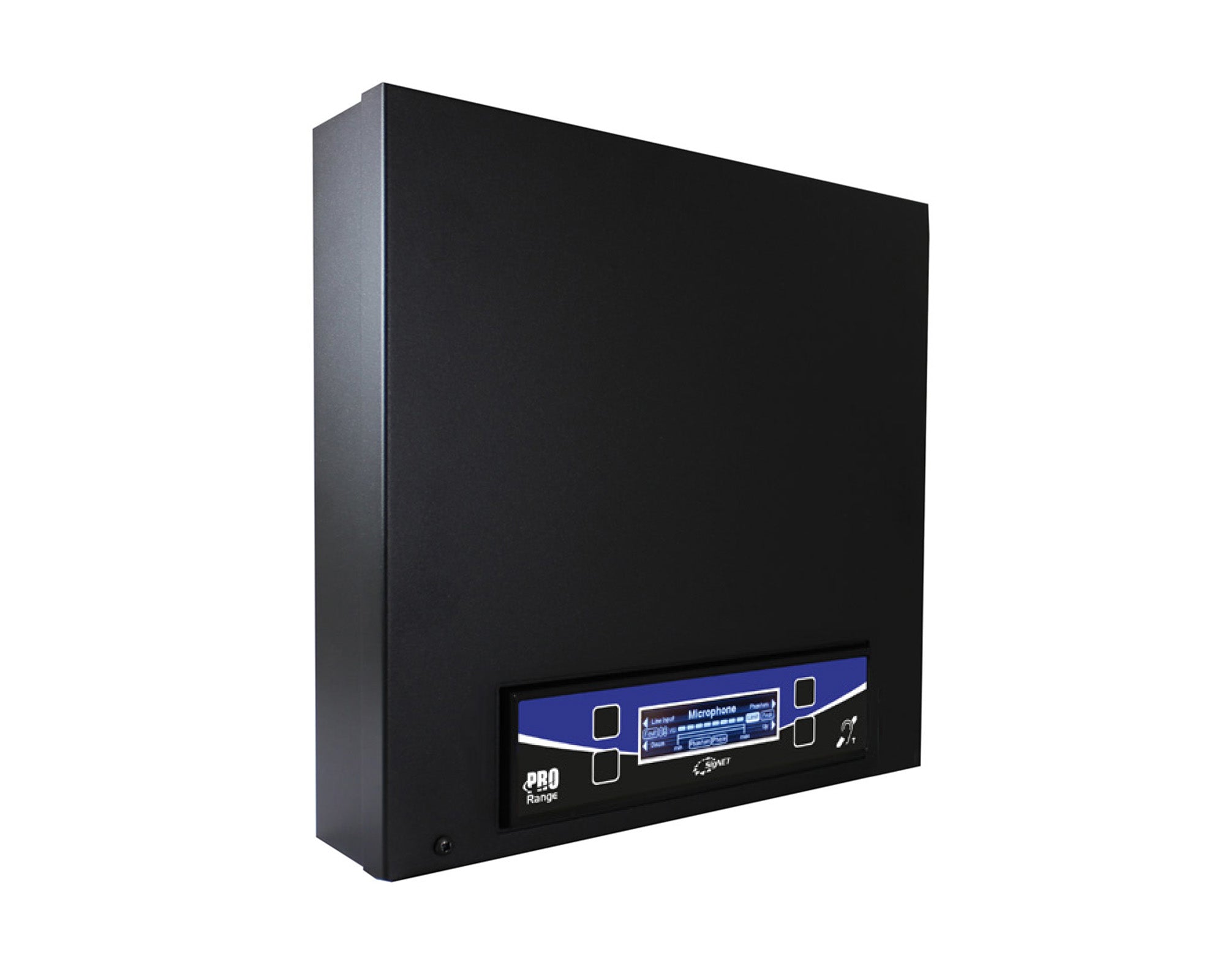

This wallmounted model is designed to cover areas up to 1000m2.

Product Features

• Clear & intuitive LCD graphical interface allows simple set-up of input levels, output current, phantom power and metal compensation
• 1000m2 coverage
• 2 x XLR mic/line inputs (selectable)
• Digital optical ‘Toslink’ connector facilitates easy connection to TVs, soundbars, etc
• Outreach connector allows up to 10 of our revolutionary audio input utility plates to be added
• Free-standing option also available
• Anti-tamper lock function prevents unauthorised adjustment of system settings
• 5 year warranty as standard
• Class D output stage for maximum efficiency and very high output
• Superior analogue audio processing with a powerful CPU and cutting-edge technology provide life-like speech and first class music reproduction
• Short circuit protection against loop faults for increased reliability
• Fault relay & graphical display provide clear indication of operation and fault status
• Industry leading dual action automatic gain control compensates for poor microphone technique
• Line level output for recording or daisy-chaining multiple units to cover larger areas
• Designed and manufactured in the UK

Product Specifications

General

• Type: Free-standing (supplied with IEC 320 fused mains lead) or Wall-mount (requires permanent connection to Mains)
• Coverage: 1000m2, i.e. rooms up to approx. 31m x 31m (PDA11/SD, PDA11/SW, PDA11/DD, PDA11/DW)
• Inputs
  • 2 x XLR mic/line (selectable)
  • 1 x Outreach
  • 1 x Optical TOS Link digital receiver
• Outputs
  • Loop 1 & Loop 2
  • Line Out
  • Fault Relay
  • Phase Shift 2 x 900 phase shifted Selectable (on/off);
• Controls
  • Sensitivity Level Controls
  • Line In
  • Mic
  • 12V Phantom
  • Outreach
  • Optical
  • Metal Comp
  • Drive 1 & 2
  • Loop
  • Phase Shift
• Indicators: LCD display with 4 membrane control buttons

Physical & Dimensions

• Dimensions: 298H x 308W x 74D mm
• Weight: 3.35kg

See the User Manual in the Downloads tab for full specifications.

What's in the Box?

• 1 x Hearing loop amplifier
• 1 x Accessory pack containing instructions (this document), two ferrite beads (for the loop cables), pluggable connectors (for the outreach, line out, relay, line in & microphone terminals), ‘hearing loop fitted’ sticker.
