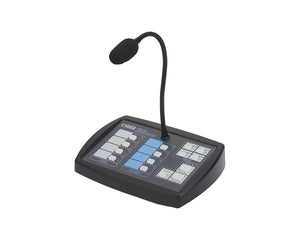

The Cloud PM4-SA / PM8-SA Mutizone Paging Microphones with pot Announcer\' capability offer reliable paging microphone performance with the added functionality of pre-recorded message announcement capability.

Up to four (PM4-SA) or eight (PM8-SA) pre-recorded messages, of any length, can be stored internally on a standard SD memory card, plugged into a dedicated card slot and accessed through the base plate of the PM-SA unit.

A \'Group\' function allows an individual message and a number of zones to be grouped together which allows single-button playback of individual messages to a specified number of zones, handy for regular announcements. The \'Group\' function can also be remotely triggered by remote timers, PIR, Camera and DVR using a NO/NC contact.

Messages for announcement and pre-announcement chime sound files (.WAV or .MP3) need to be prepared on a computer with a SD card slot, and then saved to the SD card. For operational and security reasons messages cannot be overwritten by the paging microphone.

An SD card is supplied with each PM-SA unit, with pre-announcement chime sound files already loaded.

Product Features

• Individual and Multiple Zone Selection by Mic or Message
• Remote Message Trigger Contacts (NO/NC Contacts) for PIRs, Timer, DVR/Cameras
• User Definable .WAV & .MP3 Recordable Message - any length
• Definable Zone Groups with Group Selection
• Pre-Announcement Chine (recordable on SD Card)
• TALK & CALL ALL Buttons
• BUSY LED
• Configurable 2-Layer Announcement Priority
• Auto Zone Reset after Announcement
• Zone Disable Function

Product Specifications

• Microphone:
  • Capsule Type: Condenser
  • Polar Pattern: Cardioid
  • Gooseneck length: 300 mm (standard); 140 mm (alternative Part No. MI100166)
• Number of Zones:
  • PM4-SA: 4
  • PM8-SA: 8
• Number of Chimes:
  • PM4-SA: 4
  • PM8-SA: 8 (derived from SD card); internal speaker
• Interface:
  • Digital: Cloud Digital Paging Interface (RJ45)
  • Analogue: Zone Access Output (Short to Ground), Audio Output
• Messages:
  • PM4-SA: 4
  • PM8-SA: 8; internal speaker
• Card format
  • SD/SDHC
  • MiniSD/SDHC*
  • MicroSD/SDHC*
• File system:
  • PM4-SA: FAT16
  • PM8-SA: FAT32
• File types: MP3 or WMA
• Power input
  • Voltage range:
    • PM4-SA: 9 - 17 VAC
    • PM8-SA: 12 - 24 VDC
  • Current consumption:
    • 120 mA (PM4-SA, idle mode)
    • 220 mA (PM4-SA, message mode)
    • 150 mA (PM8-SA, idle mode)
    • 250 mA (PM8-SA, message mode)
• Dimensions: 245 wide x 65 high (less gooseneck mic) x 170 deep (mm)
• Net Weight: 1.2 kg
