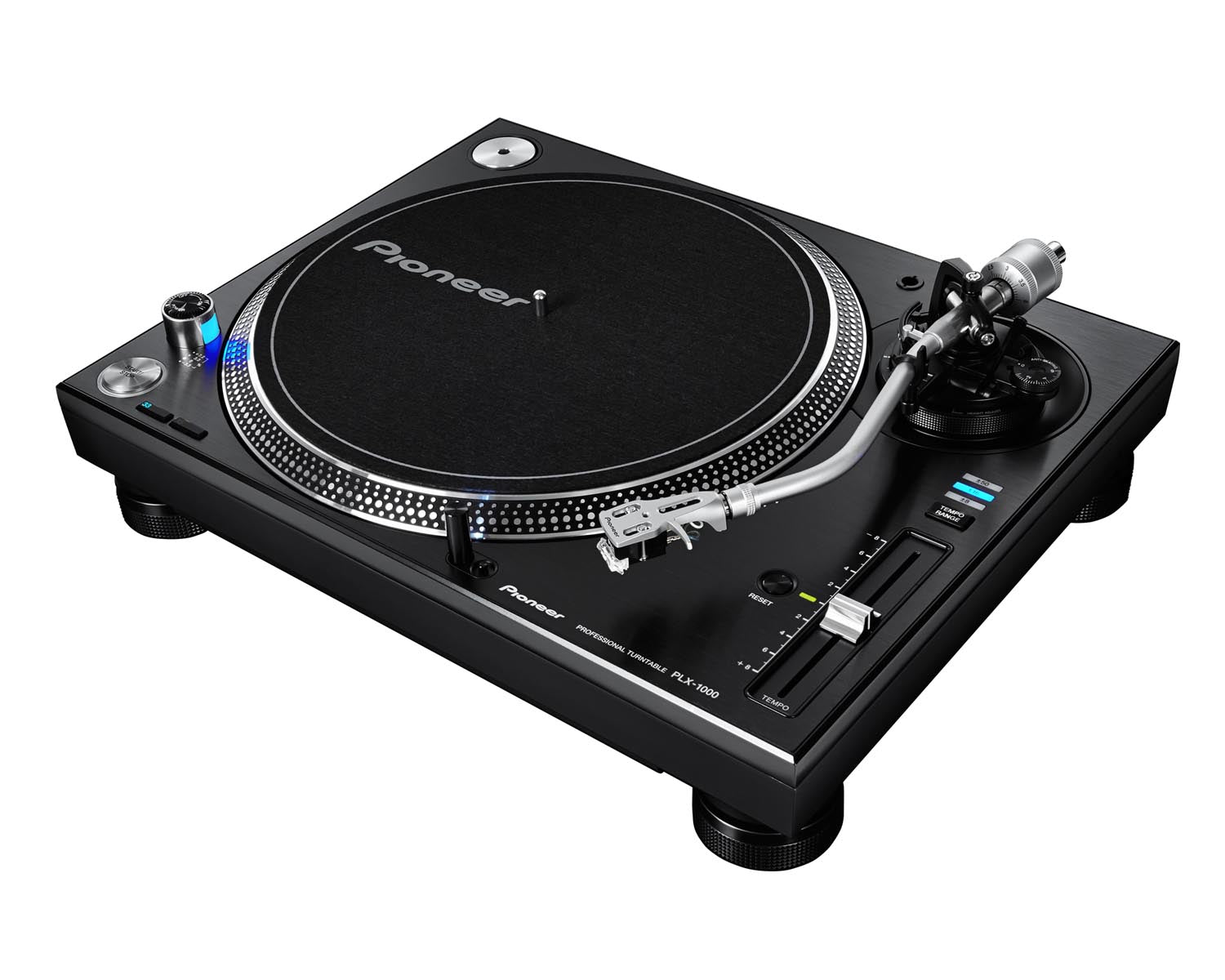

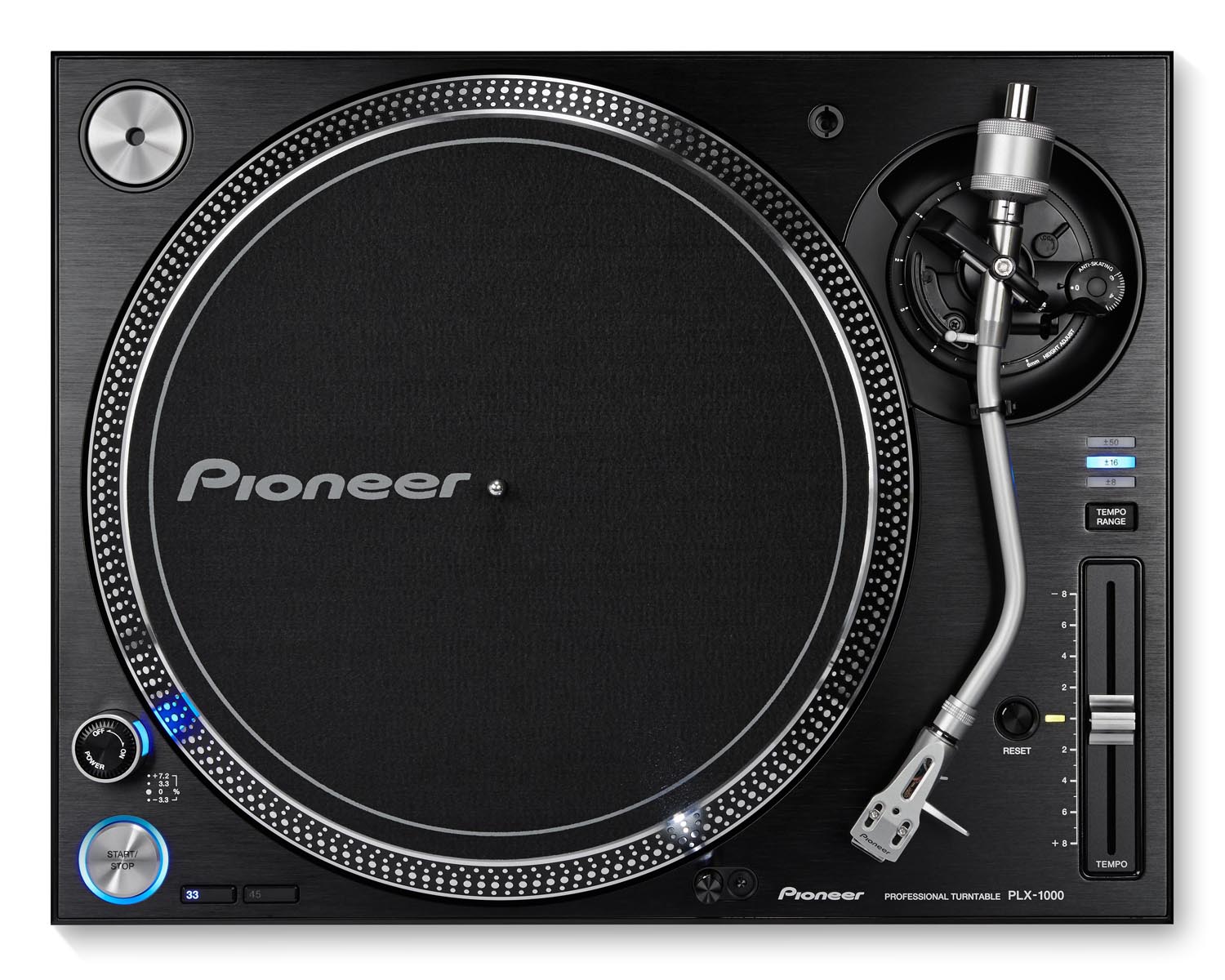

The Pioneer DJ PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.

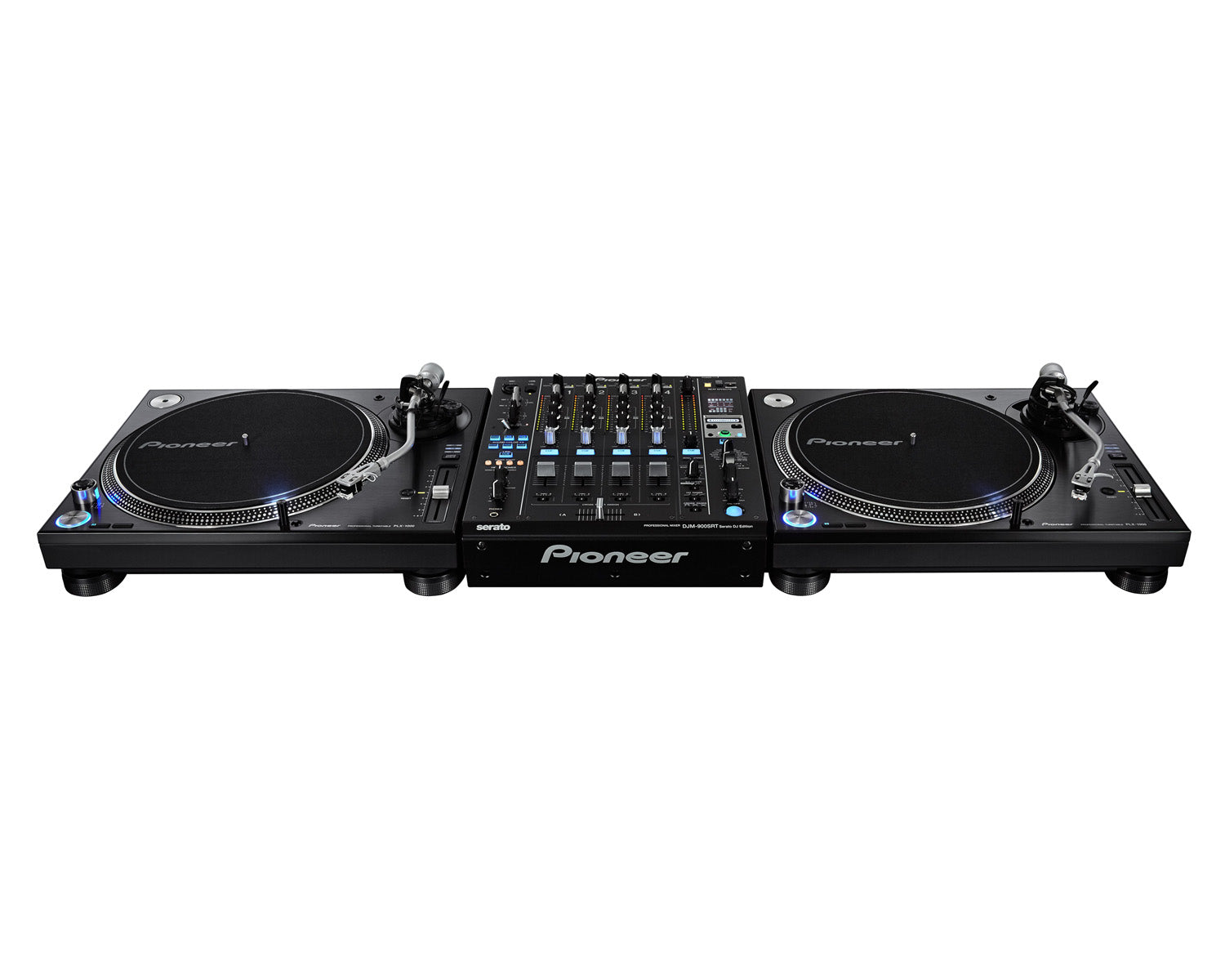

Combine the PLX-1000 with your DJM mixer for the ideal set-up for turntablists and vinyl enthusiasts.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

• TURN THE TABLES: The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
• EXCELLENT SOUND DESIGN: The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
• PICK UP THE PACE: Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

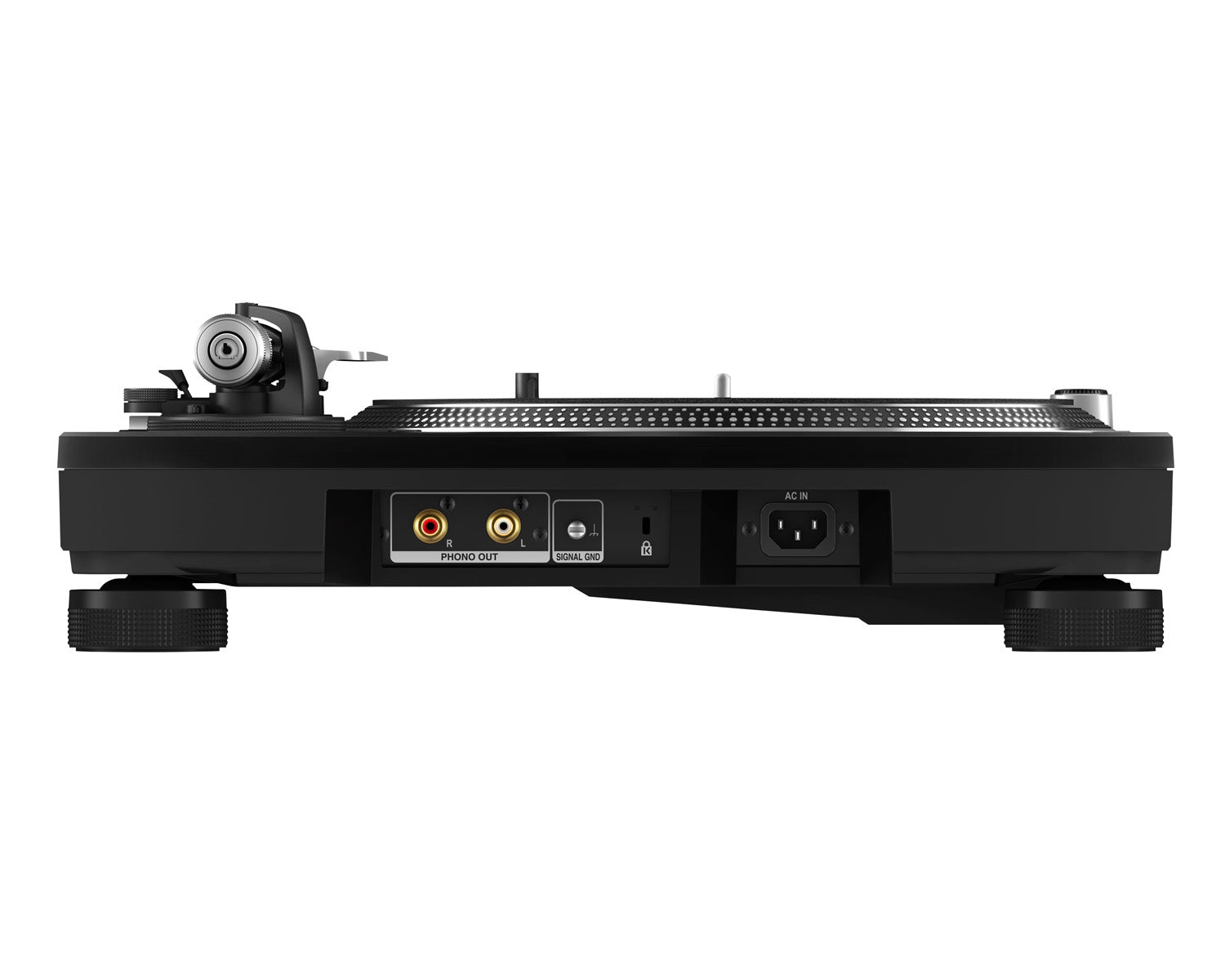

• FLEXIBLE CONNECTIVITY: Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

Product Specifcations

General

• Included Accessories:
  • Turntable sheet
  • Slip mat and sheet
  • Dust cover
  • Head shell
  • Balance, sub and shell weights
  • Audio cable
  • Ground wire

Physical & Dimensions

• Width: 453 mm
• Height: 159 mm
• Depth: 353 mm
• Weight: 14.6 kg

Turntables

• Drive Method: Quartz lock, servo-type, direct drive
• Platter: Aluminium, die-casting diameter: 332 mm
• Motor: 3-phase, brushless DC motor
• Braking System: Electronic brake
• Rotation Speed: 33⅓-45 rpm
• Rotation Adjustment Range: ±8, ±16, ±50 %
• Wow and Flutter: < 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)
• Signal-to-Noise Ratio: 70 dB
• Starting Torque: > 4.5 kgf・cm
• Start Time: Within 0.3 sec (at 33⅓ rpm)

Tone Arm

• Arm Type:
  • Universal type S-shape tone arm
  • Gimbal-supported type bearing structure
  • Static balance type
• Overhang: 15 mm
• Effective Length: 230 mm
• Tracking Error: Within 3°
• Height Adjustment Range: 6 mm
• Stylus Pressure Variable Range: 0-4 g (1 scale 0.1 g)
• Single Cartridge Weight: 3.5-13 g

Terminals

• Outputs: 1 ANALOGUE (RCA)

What's in the Box?

• Turntable sheet
• Slip mat and sheet
• Dust cover
• Head shell
• Balance, sub and shell weights
• Audio cable
• Ground wire
