The PDA103 is a true current mode, hearing loop amplifier. It may be surface-mounted and is designed to cover ticket counters up to 1.2m2 (PDA103C kit version), or rooms up to 50m2 (PDA103R/L/S kit versions). See installation manual and specifications for more information.

Product Features

• Each kit contains everything you need to create a high quality hearing loop system for a room up to 50m2 (7m x 7m)

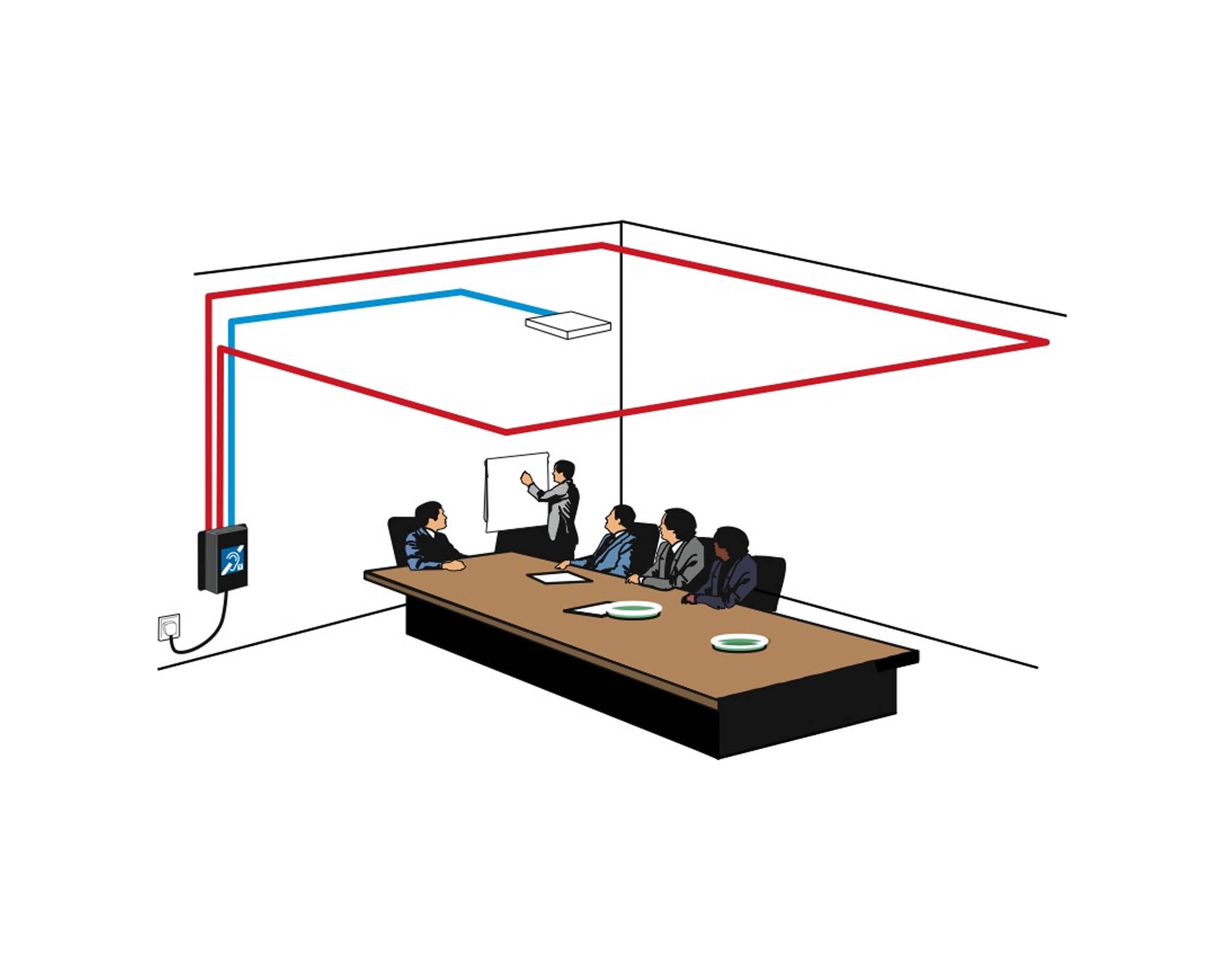

• PDA103R kit is ideal for small room applications where equipment needs be mounted above suspended ceilings, etc.
• PDA103 amplifier includes a 3.5mm microphone input, a line level input and an \'outreach\' socket
• Metal compensation control helps improve intelligibility in rooms with high metal content
• Adjustable mic, line level and \'outreach\' controls.
• Drive (level) control allows the amplifier output stage to be set-up to suit the exact characteristics of the application.
• State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
• Limit, Peak, Loop Fault and Power On indicators
• Designed to be wall-mounted using the keyholes provided
• Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed

Product Specifications

General

• Rated supply voltage: 110 to 240Va.c. @ 50/60Hz
• Rated power consumption: 18W PSU
• Maximum RMS output current: 4A @ 1kHz
• Maximum RMS load voltage: 5.5V
• PDA103C approx. coverage area using the TX2 pre-formed loop: 1.2m2
• PDA103R/L/S approx. coverage area using 0.5mm2 loop cable: 50m2, i.e. rooms up to approx. 7m x 7m
• Recommended number of turns: Single turn
• Recommended loop conductor size: 0.5mm2 @ < 50m loop length
• Frequency response -3dB: 120Hz to 5kHz as per BS EN 60118-4
• Input signal level: Mic: -60dB unbalanced; Line: -27dB stereo unbalanced; Outreach: -10dB balanced.
• Input impedance: Mic: 1k ohm; Line: 100k ohm; Outreach: 20k ohm.
• Microphone phantom power: 12Vd.c.
• Signal to noise ratio, A weighted: -62dB
• Optical TOS-link receiver (PDA103S kit only): Up to 24 bit, 96kHz sampling
• AGC range (3dB change in output current), reference rated I/P voltage: 10dB
• AGC ratio: 20:1
• Amplifier mode: True current mode
• Sensitivity level controls: Mic, Line, Digital (PDA103S kit only), Outreach, Metal Compensation, Level (all rotary pot controls are screwdriver adjustable).
• LED indicators: Limit (Red), Peak (Red), Loop Fault (Red), Power On (Green).
• Connectors:
• Mic (3.5mm mono jack socket);
• Line (3.5mm stereo jack socket);
• Digital (PDA103S kit only);
• Outreach (4- way pluggable screw terminal);
• DC in; Loop (2-way pluggable screw terminal)

Physical & Dimensions

• Dimensions (H x W x D): 35mm x 135mm x 130mm (including controls)
• Weight: 380g (amplifier only)
• IP Rating (to EN 60529): IP40
• Operating temperature: 0°C to 40°C

What's in the Box?

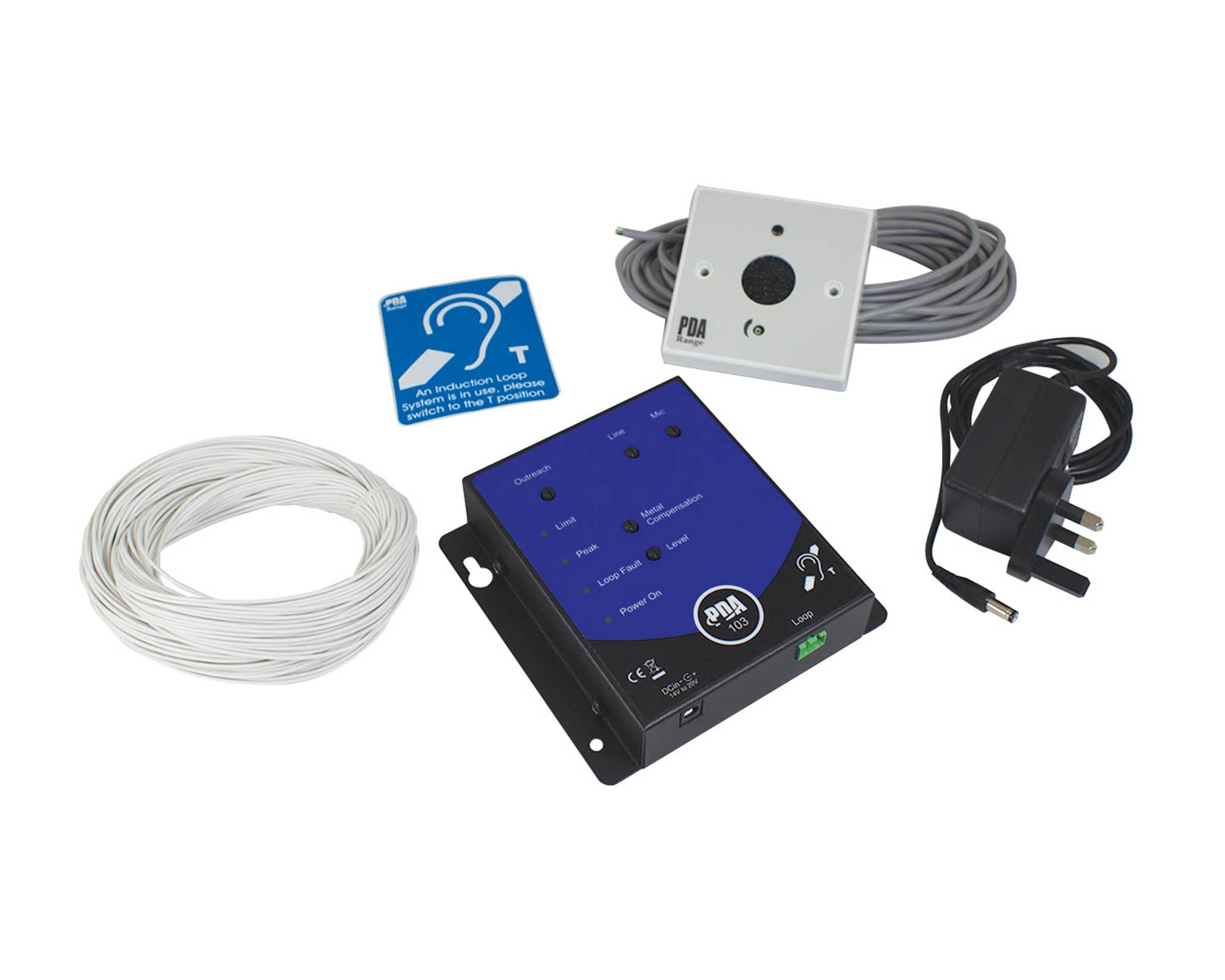

• 1 x PDA103 hearing loop amplifier
• 1 x 230Va.c. PL1/PSU1 plug-top power supply
• 1 x APM ‘outreach’ plated microphone c/w 6m Belden cable
• 1 x 40m of 0.5mm2 loop cable
