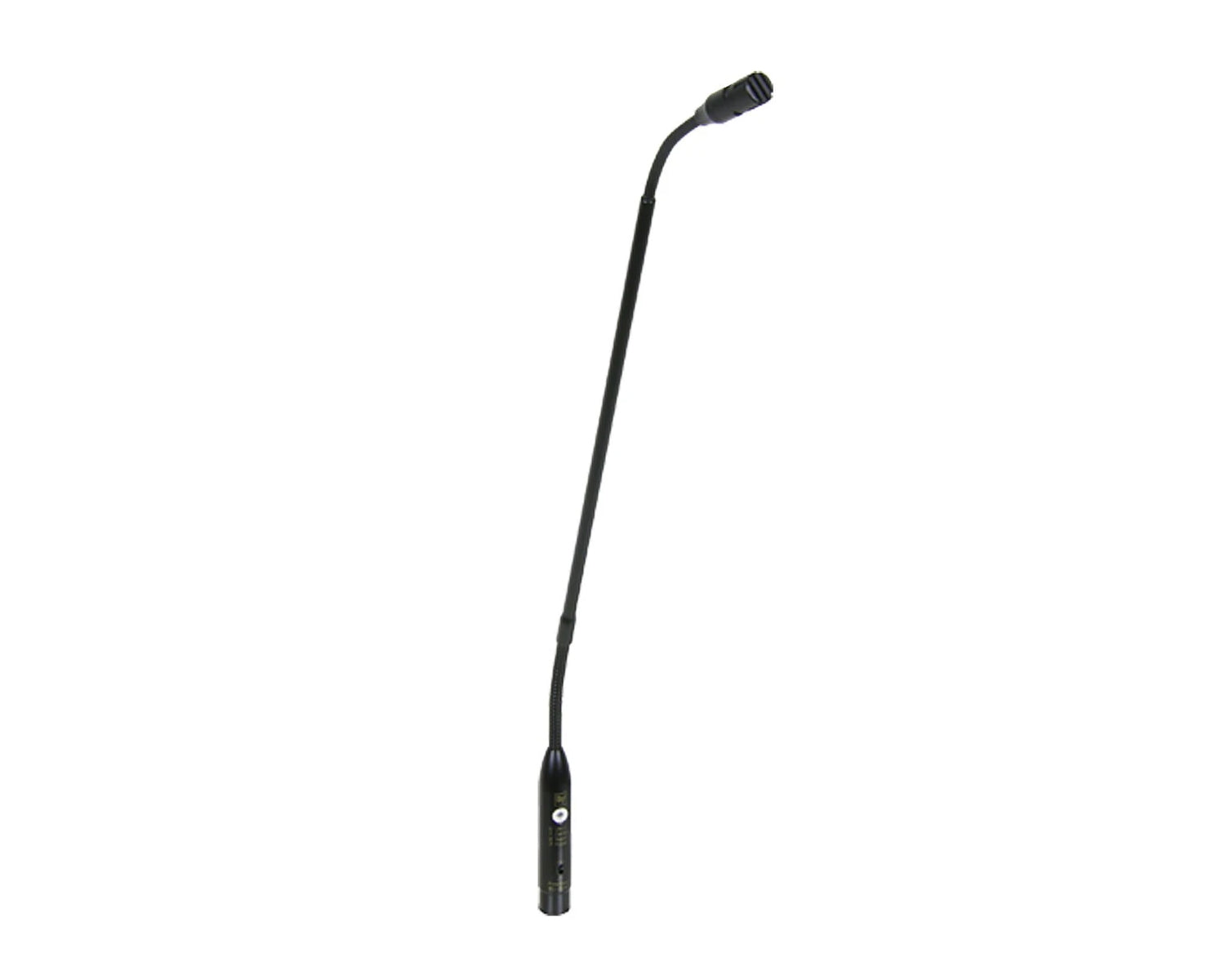

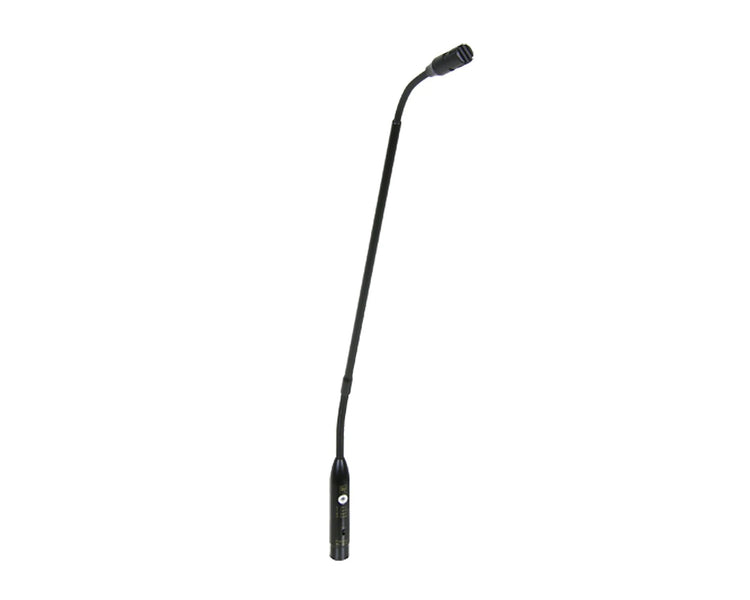

The PolarChoice™ PC-12/XLR and PolarChoice™ PC-18/XLR are multi-pattern miniature gooseneck podium microphones designed for sound reinforcement systems where sound quality and gain-before-feedback is of major importance. The multi-pattern versatility of the PolarChoice microphone makes it true “problem solver”. With 3 directional and one non-directional polar pattern available, the PolarChoice microphone is ideal for virtually any installation. Polar patterns can be easily changed, using a small flat-bladed screwdriver with the front-mounted rotary control.

Altering the polar pattern does not change the on-axis sonic character of the microphone; therefore changes in equalizer settings are unnecessary. The PolarChoice™ PC-12/XLR and PolarChoice™ PC-18/XLR are acoustically designed for high-quality sound reinforcement and broadcast applications. The frequency response is tailored for wide-range sound reproduction with very natural sound pick-up for either distant or close-up use. The small, dual diameter gooseneck has two supple joints and a rigid center tube. The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone. The electronics housing’s 3/4-inch diameter base is terminated with a male XLR-type 3-pin connector that allows the microphone to be plugged directly into an existing panel-mount XLR receptacle. The housing is machined brass for ruggedness and superior EMI/RFI attenuation. The PolarChoice™ PC-12/XLR and PolarChoice™ PC-18/XLR are designed to be phantom-powered with a wide voltage range of 12-52V dc (DIN Standard 45 596).

Product Features

• Dual Capsule Design with 4 selectable polar patterns: Omnidirectional, Cardioid, Supercardioid, and Hypercardioid
• Includes CPSM Isolating shock mount
• RF Shield guards against RF/GSM interference
• Extended low frequency and switchable high pass filter
• Semi-Gloss Black finish
• 18" Gooseneck
• 3-pin male XLR-type output connector
• Phantom powered back-electret condenser

Product Specifications

• Generation Element: Dual condenser, back electret
• Frequency Response: 50 Hz to 20,000 Hz (see chart)
• Polar Patterns:
  • Omnidirectional
  • Cardioid
  • Supercardioid
  • Hypercardioid
• Sensitivity:
  • Open Circuit Voltage, 1 kHz:
  • 5.6mV/Pascal
• Clipping Level (1% THD): >135 dB SPL
• Equivalent Noise: <26 dB SPL “A” weighted (0 dB=20 micropascals)
• Dynamic Range: >109 dB
• Output Impedance, 1 kHz: 200 ohms
• Power Requirements: Phantom, 12 – 52 VDC
• Current Consumption: < 8 mA with P12 supply
• Polarity: Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm
• Dimensions:
  • Gooseneck Length:
    • PolarChoice™ PC-12/XLR: 316.4 mm (12.5 in.)
    • PolarChoice™ PC-18/XLR: 460.4 mm (18.1 in.)
  • Maximum Head Diameter: 14.6 mm (0.58 in.)
  • Gooseneck Diameter: 6.4/7.9 mm (0.25/0.312 in.)
  • Electronics Module Diameter: 20 mm (0.79 in.)
  • Connector Diameter: 19 mm (0.75 in.)
• Colour: Non-reflecting black
• Environmental Conditions:
  • Relative Humidity 0-50%: -29° to 74°C (-20° to 165°F)
  • Relative Humidity 0 to 95%: -29° to 57°C (-20° to 135°F)
• Net Weight:
  • PolarChoice™ PC-12/XLR: 170 grams (6.0 oz)
  • PolarChoice™ PC-18/XLR: 178 grams (6.3 oz)

What's in the Box?

• PC-18/XLR Gooseneck
• Windscreen
• Two-piece shock mount

Optional Accessories

• FMK flange-mount kit
• WS-PC1 large windscreen
• CPSM shock-mount kit
