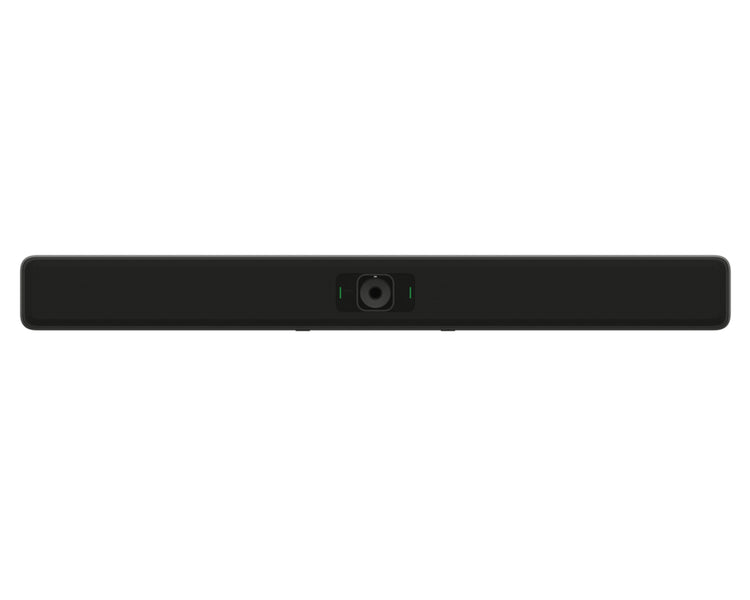

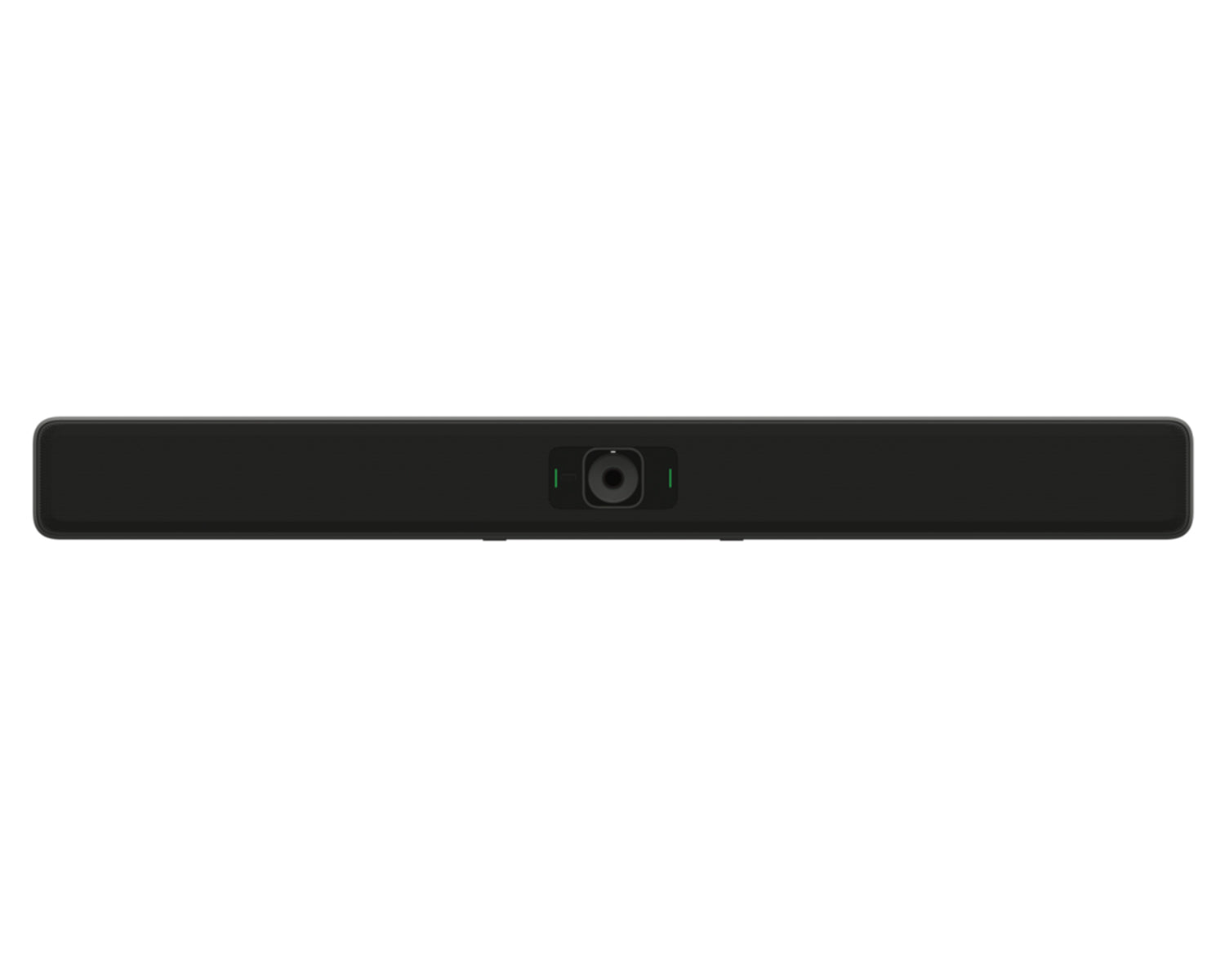

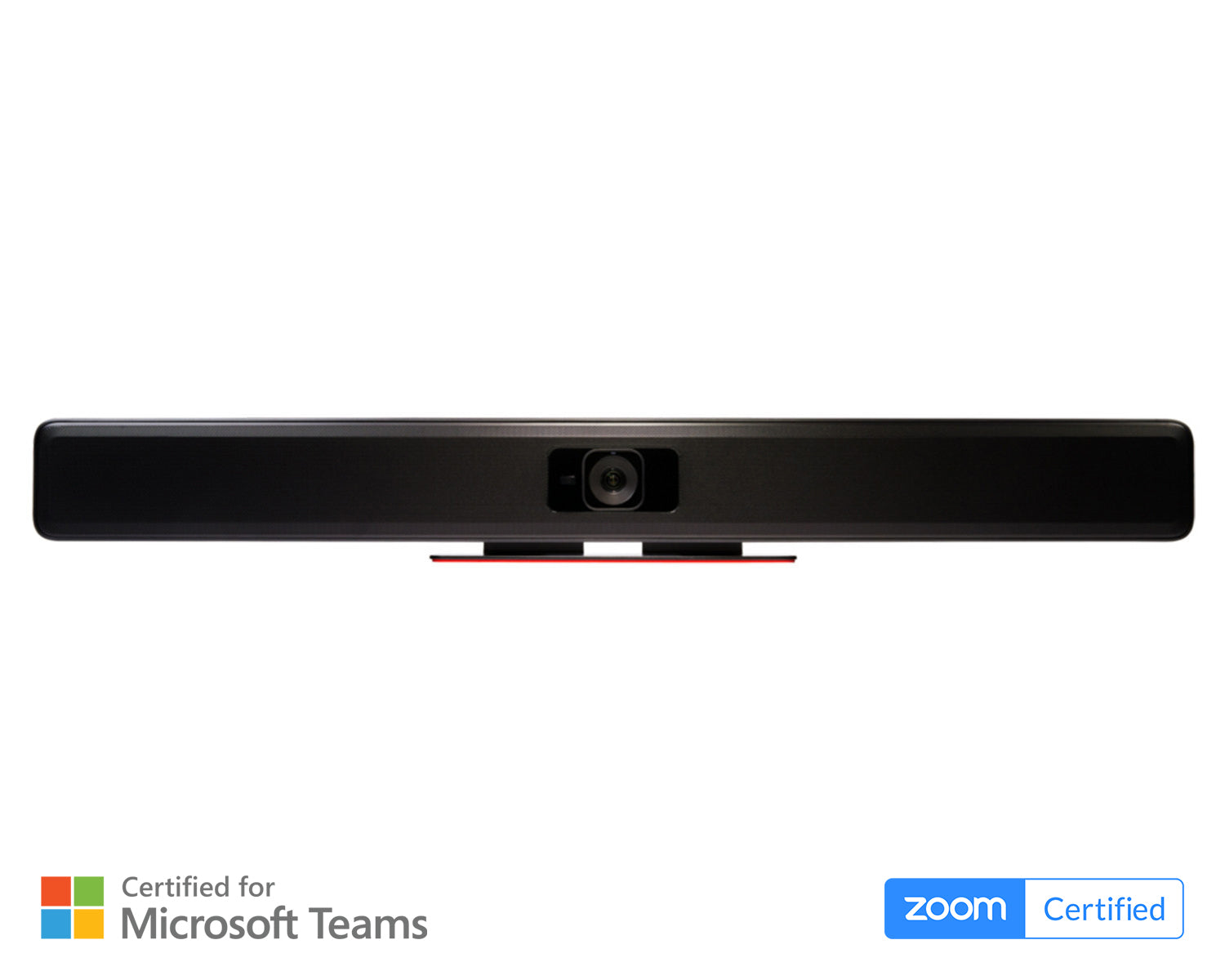

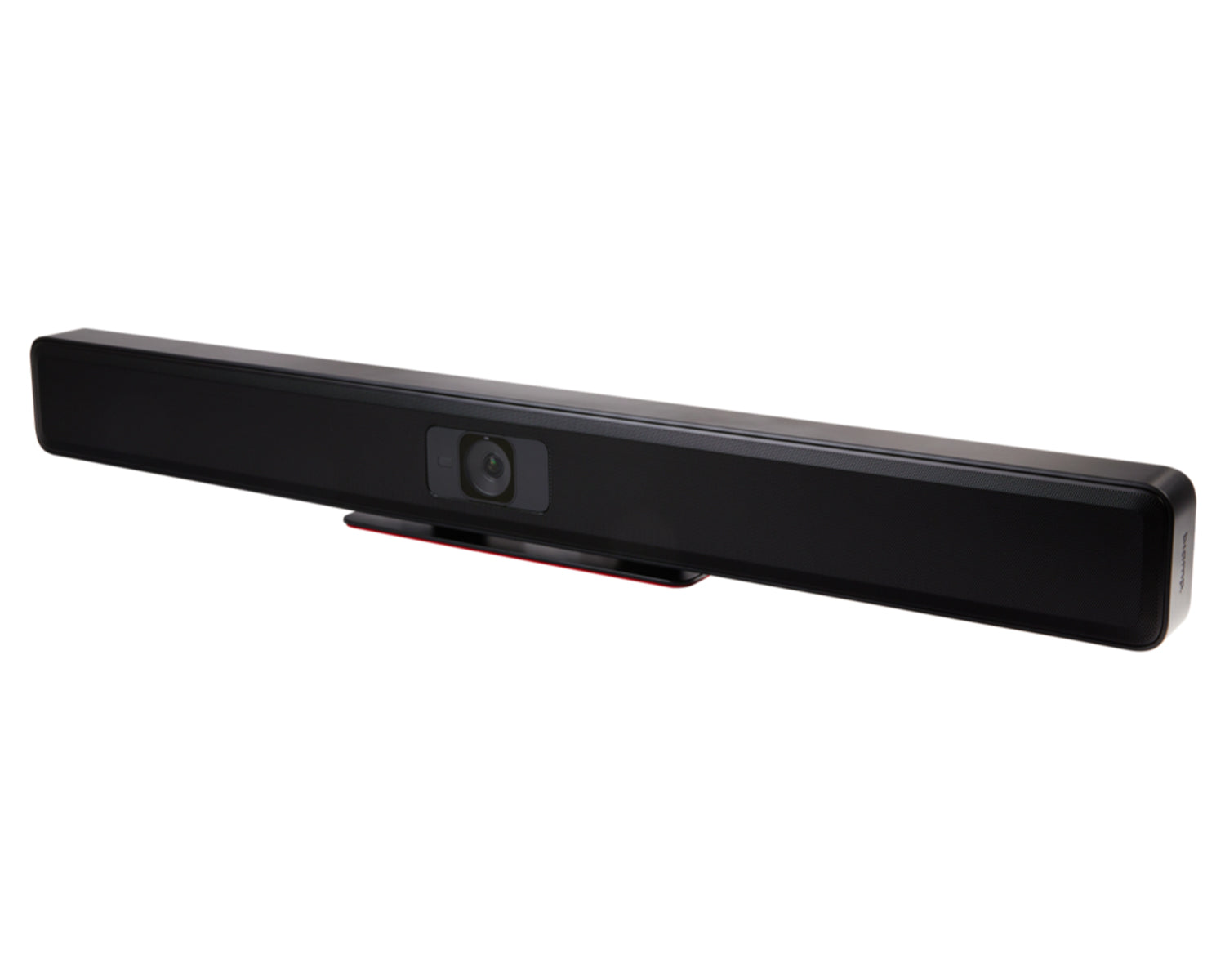

Parlé™ VBC 2500a is an all-in-one conferencing bar featuring Biamp Audio Intelligence and Biamp Video Intelligence to deliver premium AV experiences for small and medium conference rooms. With integrated Acoustic Echo Cancellation (AEC) and AI Noise Reduction, the VBC 2500a uses a 27-microphone array and Biamp Beamtracking™ technology to actively track and intelligently mix conversations from around the room. Two smart speakers use distortion compensation and dynamic bass enhancement technology to create room filling audio with superior speech reproduction.

The VBC 2500a is also equipped with Biamp’s groundbreaking Launch feature. With Biamp Launch, the acoustic performance of the room is analyzed and optimized at the touch of a button, making it easy to deliver extraordinary experiences consistently across your organization.

Parlé VBC 2500a includes a wide angle 4K camera designed for conference room environments. The camera incorporates high quality optics to enable streaming crystal clear video at up to 2160p @ 30fps. The Parlé VBC 2500a uses auto framing technology to identify meeting participants and to adjust the focus and zoom to keep participants in view.

Parlé VBC 2500a can be plugged directly into a UC System with a single USB connection or can be paired with a Devio™ SCR-10 for a BYOD system.

Product Features

• Certified for Microsoft Teams Rooms and Zoom Rooms
• Beamtracking technology actively tracks and intelligently mixes conversations
• AI noise reduction algorithm for clear voice reproduction
• Low distortion smart speakers
• Biamp Launch for one touch automatic tuning
• LED indications for mute status and camera activity
• Wide angle 4K camera that can stream 2160p @ 30fps
• Electronic Pan/Tilt/Zoom with 5x zoom
• Auto framing technology to keep participants in frame
• Automatic privacy shutter
• Discrete output for Assistive Listening Systems
• Table, wall, and display mount options available
• 3-year warranty

Product Specifications

General

• Height: 3.9 inches
• Width: 37 inches
• Depth: 2.5 inches
• Weight: 4.4kg

Environmental

• Ambient Operating Tempreture Range: 0-40° C
• Humidity: 0-90% (non-condensing)
• Altitude: 0-10,000ft MSL

Power

• USB-C: 60W
• External Power Supply: 100-240VAC 50/60Hz

Interfaces

• USB 3.0: 1 X Type-C
• Assistive Listening Feed: 1 x 3.5mm Mono Balanced

Loudspeaker

• Beamwidth: Nominal Beamwidth (H x V) 180° x 180°
• Transducers: 2x 2.5 in (60mm) full range

Sensitivity

• Microphone: (@ 1Pa): > -37dBFS ± 1dB
• Loudspeakers: (@ 1m, 2.83V): 84 dB

Camera

• Diagonal Field of View: 120 Degrees
• Horizontal Filed of View: 109 Degrees
• Verticle Field of View: 75 Degrees
• Image Sensor: 12 Megapixel
• Focus Distance: 100 cm
• Digital Zoom: 5x
• Lens Cap: Automated Privacy Shutter
• Positioning: Autoframing capability | Electronic Pan/Tilt/Zoom | UVC controlled
• Indicators: Camera Active Indicator (White/Off LED)
• Supported Resolutions: 720p @ 30fps | 1080p @ 30fps | 2160p @ 30fps

Audio

• USB 3.0: 1X Type-C
• Assistive Listening Feed: 1x 3.5mm Mono Balanced
• Microphone Technology: 27-Element Digital Array
• Polar Pattern: Active Beamformed
• Microphone SNR (@ 1kHz, 94dB SPL, A-Weighted): 69 dB
• Microphone Data Rate Output: 48 kHz
• Microphone Audio Processing: AEC (Acoustic Echo Cancellation)
• Microphone Noise Reduction: AI Filter
• Nominal Impedance: 4Ω Continuous Rated Power
• Impendance (6 dB crest factor, HPF @ 60 Hz): 20W
• THD (@ 1kHz): < 0.2%
• Microphone Frequency Response: (100 Hz - 8 kHz): -10dB
• Loudspeaker Frequency Response: (57 Hz - 20 kHz): -10 dB
• Pickup Range (25dBA noise floor): > 23 feet (7 m)
• Microphone Maximum SPL (@ 1kHz, THD < 10%): 130 dB
• Loudspeakers Rated Maximum SPL (@ 1m): 90 dB (continuous), 96 dB (peak)
• Sampling Rate: 48 kHz

Certified Solutions

• Microsoft Teams
• Zoom

Compliance

• FCC Part 15B (USA)
• CE Marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
