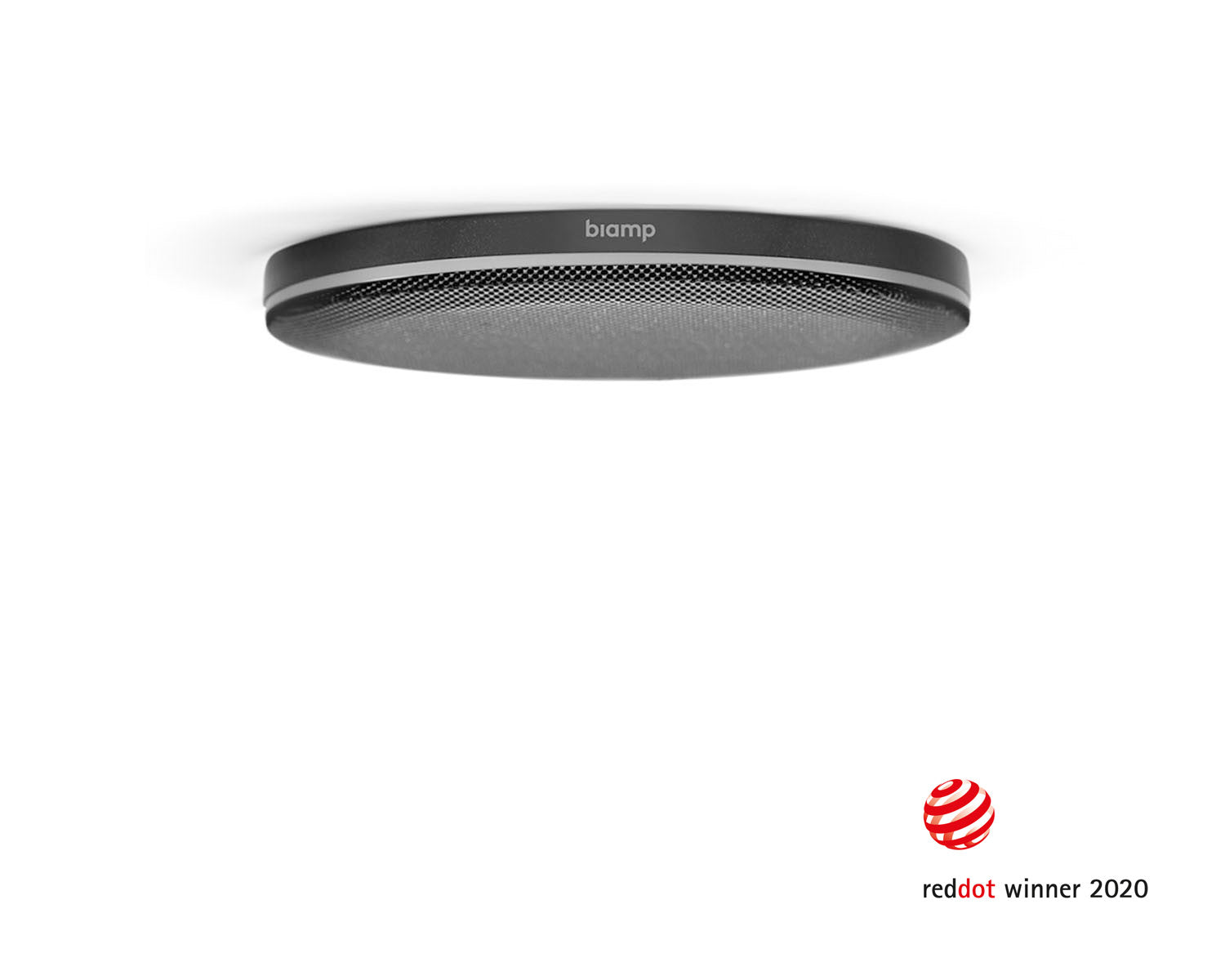

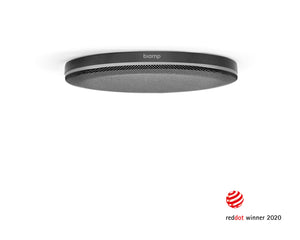

The Parlé™ TCM-XEX is a low-profile ceiling microphone for use in Tesira® and Devio® systems. Each microphone includes Beamtracking™ technology with four 90-degree zones, providing full 360-degree coverage of the meeting space. The TCM-XEX microphone delivers Beamtracking performance in a sleek, unobtrusive design that mounts to the ceiling. The TCM-XEX actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting. In Tesira systems, the TCM-XEX is intended to be used as a second microphone in conjunction with the TCM-X or TCM-XA; it cannot operate as a standalone device. In Devio systems, it functions as a standalone microphone. The TCM-XEX is well suited for a variety of room types and sizes with 10 foot (3 meter) ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.

Product Features

• Must be used with a Parlé TCM-X or TCM-XA microphone
• Measures 5.90 inches (150 mm) in diameter
• Mounts directly to the ceiling to virtually disappear in room
• Beamtracking technology actively tracks and intelligently mixes conversations
• Four 90-degree zones for full 360-degree room coverage
• Uses only one channel of AEC per mic
• Single cable connection via CAT cable
• Beamtracking technology works out-of-box without any lobe aiming or room mapping
• LED mute status indicator
• Available in either black or white
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
• CE marked, UL listed, and RoHS compliant
• Covered by Biamp Systems’ five-year warranty

Product Specifications

General

• Microphone Technology: 16-Element Digital Array
• Frequency Response (150 Hz - 16 kHz): ± 3dB
• Polar Pattern: Active Beamformed
• SNR (at 1kHz, 94dBSPL A-Weighted): > 76dB
• Maximum SPL (at < 1% THD): 109dB
• Dynamic Range (THD+N < 1%): 92dB, A-Weighted
• Indicators: Mute Indicator (Green/Red LED)
• Digital Interface: Custom/Proprietary
• Connector: RJ-45
• Power: Custom/Proprietary
• Max Distance Between Devices: 33 feet (10 meters) between TCM-XEX and DSP host device
• Environmental
  • Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
  • Humidity: 0-95% relative humidity (non-condensing)
  • Altitude: 0-10,000 ft (0-3000m) MSL

Overall Dimensions

• Height (excluding ceiling mount): 0.6 inches (15 mm)
• Diameter: 5.9 inches (150 mm)
• Weight: 0.7 lbs (340 g)

Compliance

• FCC Part 15B (USA)
• CE marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
• Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
