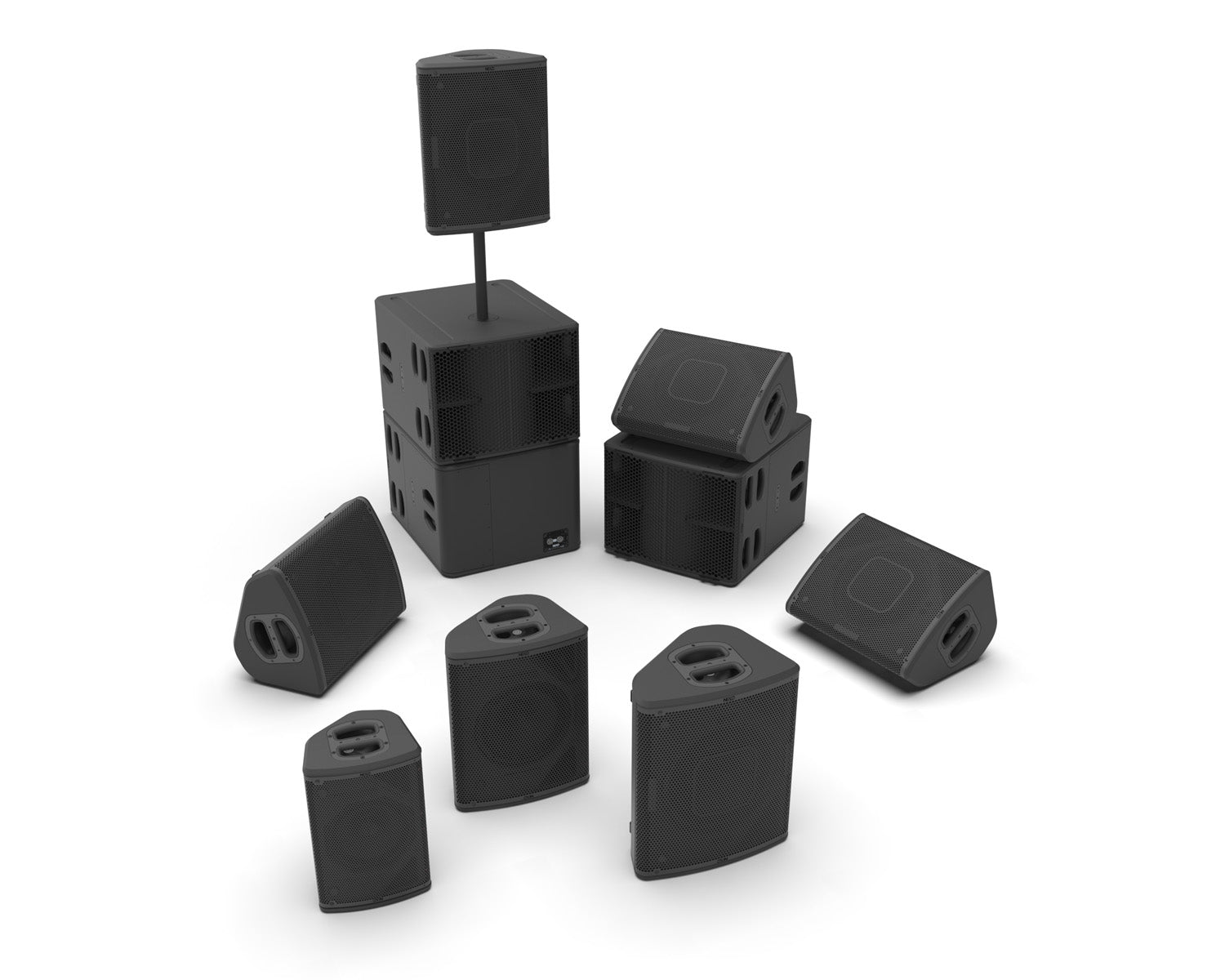

Available in mobile and install versions, the curved, low profile P8, P10 and P12 cabinets can be deployed both vertically or horizontally (as a wedge monitor). Dispersion angles can be changed quickly to match precisely the application, and versatility is further expanded by a comprehensive range of accessories.

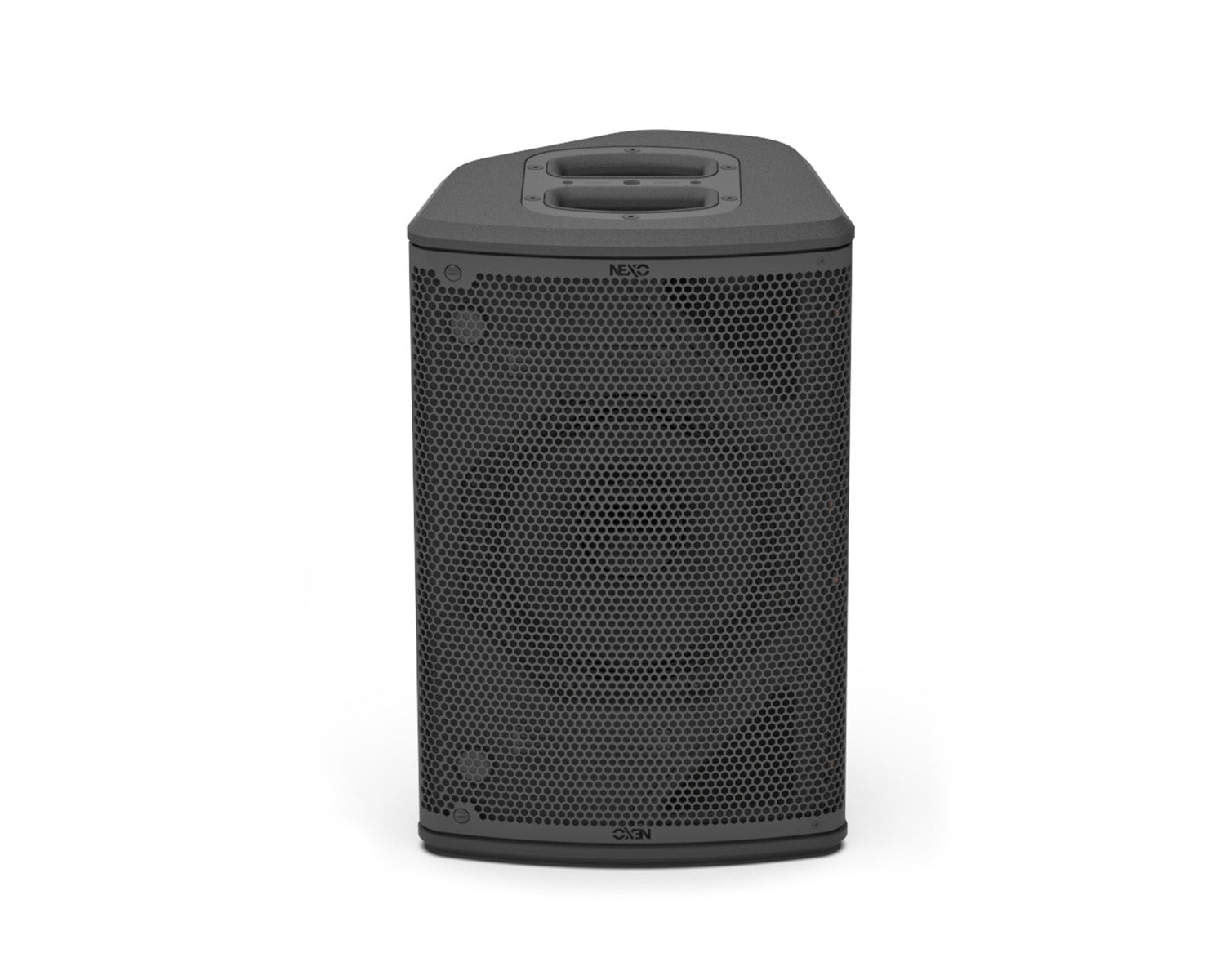

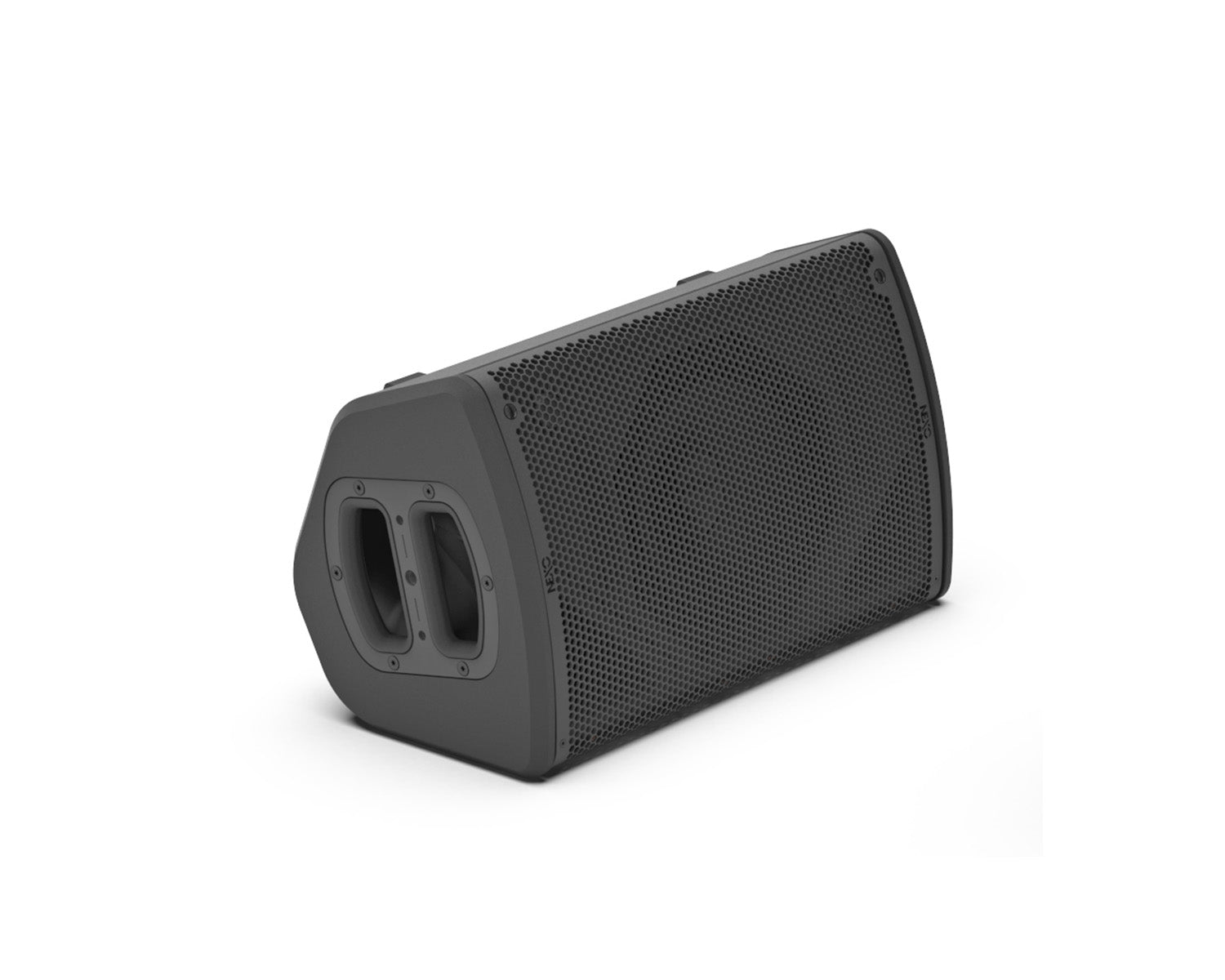

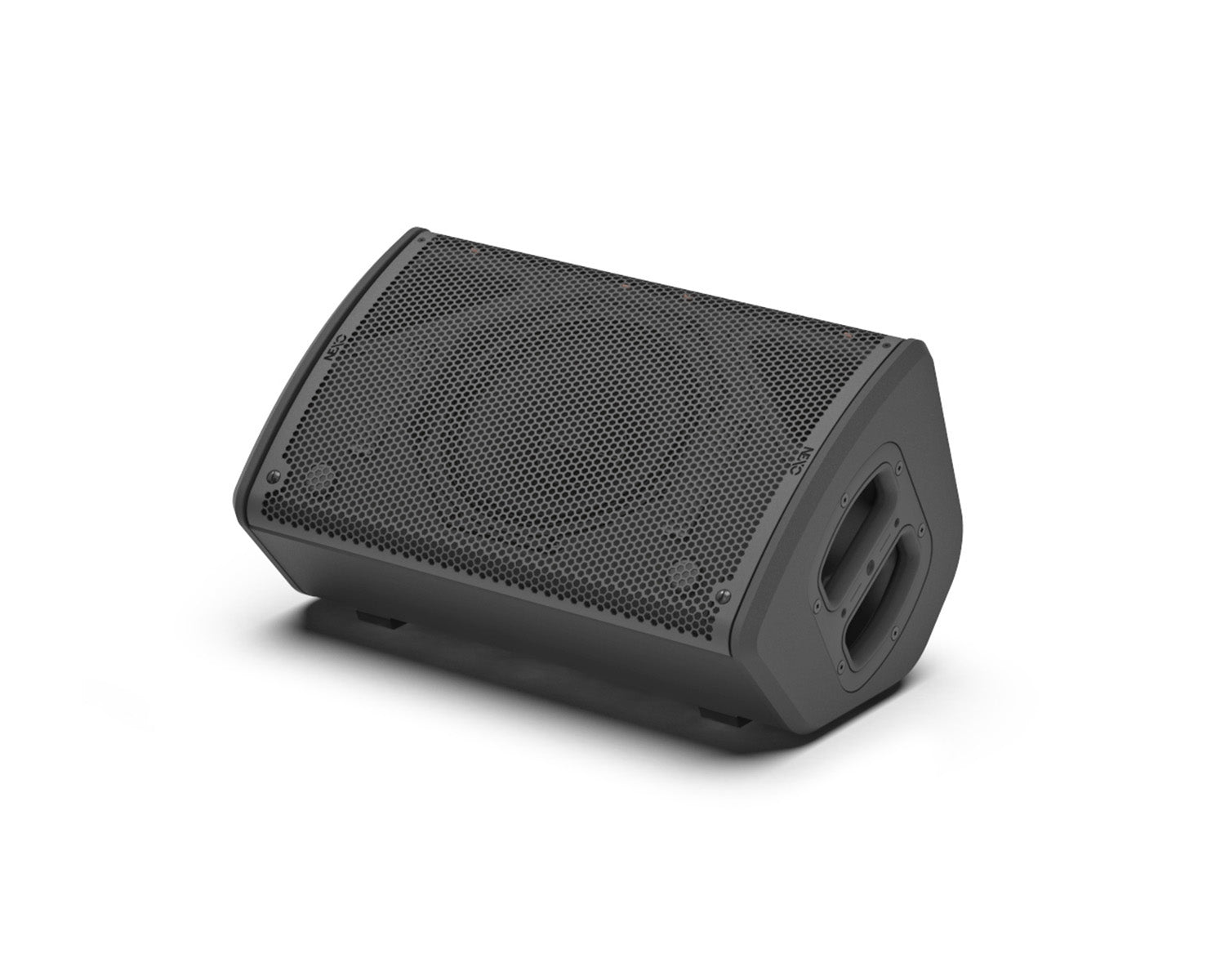

Measuring 276mm wide x 423mm high x 250mm deep and weighing 12Kg, the P8 can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. Speakon connectors are located in the side-mounting handles and the back plate (Touring version only). The Installation version has a 2 core cable for audio input to ensure IP54 protection index. The P8 is passive only.

Also available in white and custom colours, please contact our sales team for more details and to place an order.

Product Features

• Compact, low-profile, curvilinear enclosure
• 8” LF Neodymium driver and 1.5” diaphragm HF driver in a coaxial configuration
• Variable HF directivity
• 129dB peak SPL
• Threaded inserts on the back and on both sides for connection of mounting accessories
• Stand fitting on both sides
• 4x NL4, 4 poles connectors; 2 on the back and 1 on both sides

Also available in white and custom colours, please contact our sales team for more details and to place an order.

Product Specifications

• Frequency Response (+6 dB): 66 Hz to 20 kHz
• Peak SPL Level (1m): 129 dB Peak
• Operating Voltage: 40 Vrms (105 Vpeak)
• HF Dispersion (according to horn): 100° x 100° (Default) - 110° x 60° (with 110° x 60° optional horn)
• Crossover Frequency: 66 Hz, 85 Hz
• Nominal Impedance: 8Ω
• Components: 1 x Coaxial LF 8" 8 Ohms long excursion & Neodymium HF 1.5" 8 Ohms
• Number of ways: 2 ways passive
• Connectors (Touring version): 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
• Connectors (Install version): 1 x Cable gland with 2 cores cable
• Rigging points: 1 x universal accessory fit on each side + 1 x on the bottom
• Material: Custom made bent plywood of baltic birch and poplar
• Finish: Black or White structural paint
• Front Finish (Touring version): Magnelis® steel front grille + back mesh
• Front Finish (Install version): UV resistant acoustic fabric fitted front grill
• Height x Width x Depth: 423 mm x 276 mm x 250 mm (16.7" x 10.9" x 9.8")
• Weight: Net: 12 kg (26.5 lbs)
• Operating temperature range: 0°C - 40 °C (32° F - 104° F)
• Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
